DMC:V2500-A1-73-35-15-01A-941A-DIssue No:002.00Issue Date:2018-11-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B73351501 | FUEL TEMPERATURE THERMOCOUPLE, PRE SBE70-0027 | aa | ||
| SBE0027-01 | FUEL TEMPERATURE THERMOCOUPLE | ab | ||
| 100 | 73983600 | • THERMOCOUPLE - FUEL TEMPERATURE PRE SBE70-0027 | aa | 1 |
| 100A | 73983600 | • THERMOCOUPLE - FUEL TEMPERATURE ALT 73984200 REF No. 5U0025 POST SBE70-0027 | ab | 1 |
| -100B | 73984200 | • THERMOCOUPLE - FUEL TEMPERATURE ALT 73983600 REF No. 5U0029 POST SBE70-0027 | ab | REF |
| 110 | 4W0169 | • BOLT, MACHINE DOUBLE HEX - .250 DIA X .938 | aa-ab | 2 |
| 120 | AS43013-112 | • RING - 12.37 MM ID X 2.62 MM U1653 | aa-ab | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

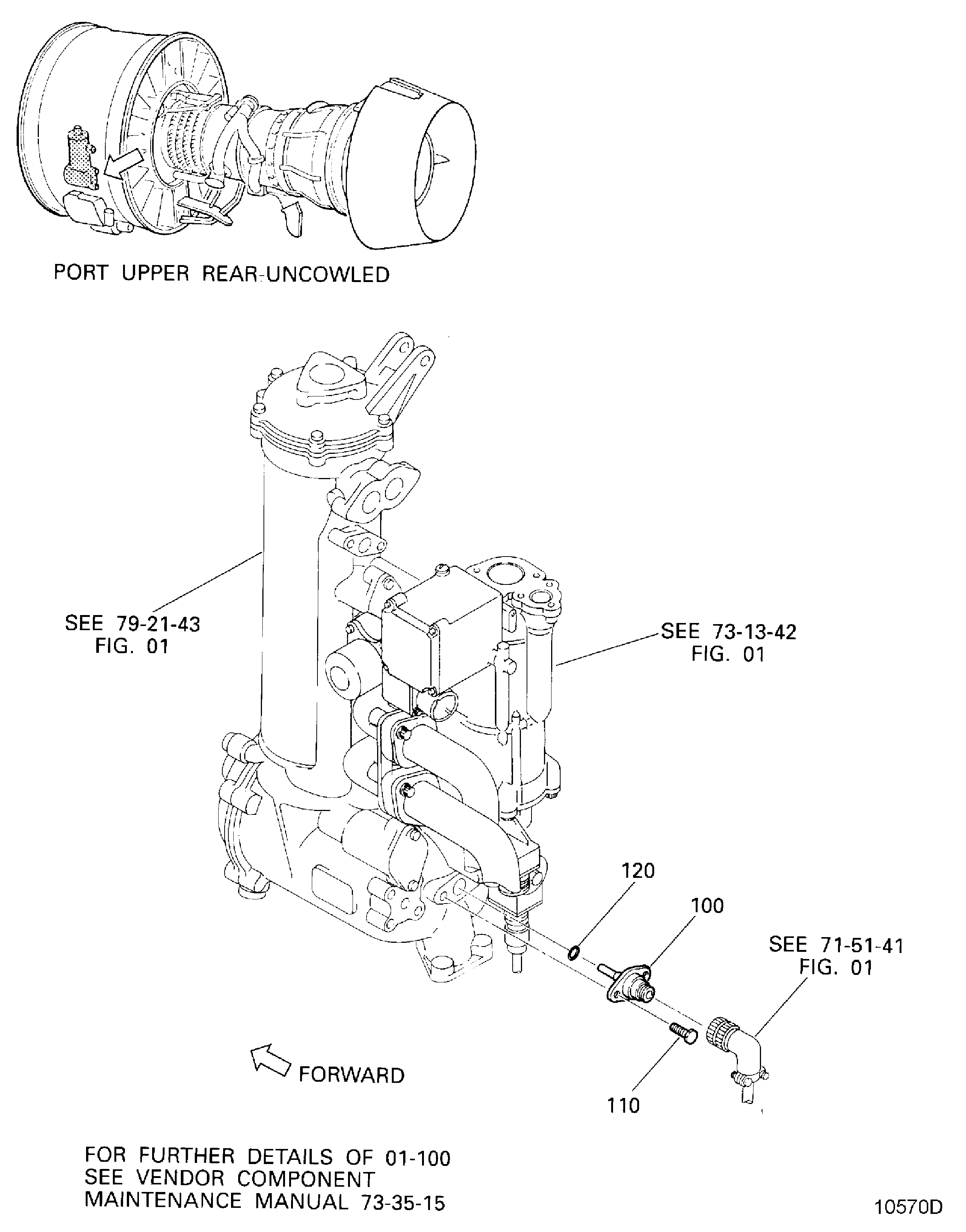

Figure: FUEL TEMPERATURE THERMOCOUPLE
FUEL TEMPERATURE THERMOCOUPLE
