| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B74214101 | IGNITION - IGNITER PLUGS, PRE SBE72-0029 | aa | ||
| SBE0029-01 | IGNITION - IGNITER PLUGS, PRE SBE70-0276 | ab | ||
| SBE0276-01 | IGNITION - IGNITER PLUGS, PRE SBE74-0004 | ac | ||
| SBE0004-01 | IGNITION - IGNITER PLUGS, PRE SBE70-1003 | ad | ||
| SBE1003-01 | IGNITION - IGNITER PLUGS, SBE74-0007 | ae | ||
| SBE0007-01 | IGNITION-IGNITER PLUGS, SBE74-0009 | af | ||
| SBE0009-01 | IGNITION - IGNITER PLUGS | ag | ||
| 020 | 2A0449 | • INSERT - SCREW THREAD, -0.9375 PRE SBE74-0004 | aa-ae | 2 |
| 020A | 2A3154 | • INSERT POST SBE74-0004 | aa-ae | 2 |
| 042 | 668637CL1 | • SPACER - RING, 1.085 X 1.415 X 0.043 77445 | aa-ae | 4 |
| 044 | 668637CL2 | • SPACER - RING, 1.085 X 1.415 X 0.053 77445 | aa-ae | 4 |
| 046 | 668637CL3 | • SPACER - RING, 1.085 X 1.415 X 0.063 77445 | aa-ae | 4 |
| 048 | 668637CL4 | • SPACER - RING, 1.085 X 1.415 X 0.073 77445 | aa-ae | 4 |
| 050 | 668637CL5 | • SPACER - RING, 1.085 X 1.415 X 0.083 77445 | aa-ae | 4 |
| 052 | 668637CL6 | • SPACER - RING, 1.085 X 1.415 X 0.093 77445 | aa-ae | 4 |
| 054 | 668637CL7 | • SPACER - RING, 1.085 X 1.415 X 0.103 77445 | aa-ae | 4 |
| 056 | 668637CL8 | • SPACER - RING, 1.085 X 1.415 X 0.113 77445 | aa-ae | 4 |
| 058 | 668637CL9 | • SPACER - RING, 1.085 X 1.415 X 0.123 77445 | aa-ae | 4 |
| 060 | 668637CL10 | • SPACER - RING, 1.085 X 1.415 X 0.133 77445 | aa-ae | 4 |
| 062 | 668637CL11 | • SPACER - RING, 1.085 X 1.415 X 0.143 77445 | aa-ae | 4 |
| 064 | 668637CL12 | • SPACER - RING, 1.085 X 1.415 X 0.153 77445 POST SBE72-0029 | ab-ae | 4 |
| 066 | 668637CL13 | • SPACER - RING, 1.085 X 1.415 X 0.163 77445 | aa-ae | 4 |
| 068 | 668637CL14 | • SPACER - RING, 1.085 X 1.415 X 0.173 77445 | aa-ae | 4 |
| 070 | 668637CL15 | • SPACER - RING, 1.085 X 1.415 X 0.183 77445 | aa-ae | 4 |
| 072 | 668637CL16 | • SPACER - RING, 1.085 X 1.415 X 0.013 77445 | aa-ae | 4 |
| 074 | 668637CL17 | • SPACER - RING, 1.085 X 1.415 X 0.023 77445 | aa-ae | 4 |
| 076 | 668637CL18 | • SPACER - RING, 1.085 X 1.415 X 0.033 77445 | aa-ae | 4 |
| 100 | JS100A | • PLUG - IGNITER 54052 REF No. 5U0007 PRE SBE70-0276 PRE SBE74-0007 | aa-ab | 2 |
| 100A | JS100A1 | • PLUG - IGNITER 54052 REF No. 5U0006 POST SBE70-0276 PRE SBE70-1003 PRE SBE74-0007 | ac-ad | 2 |
| 100B | CH31964 | • PLUG - IGNITER 81349 POST SBE70-1003 PRE SBE74-0007 | ae | 2 |
| 100C | CH31964-1 | • PLUG, IGNITER 0AFL4 POST SBE74-0007 PRE SBE74-0009 | af | 2 |
| 100D | CH31991 | • PLUG - IGNITER POST SBE74-0009 | ag | 2 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

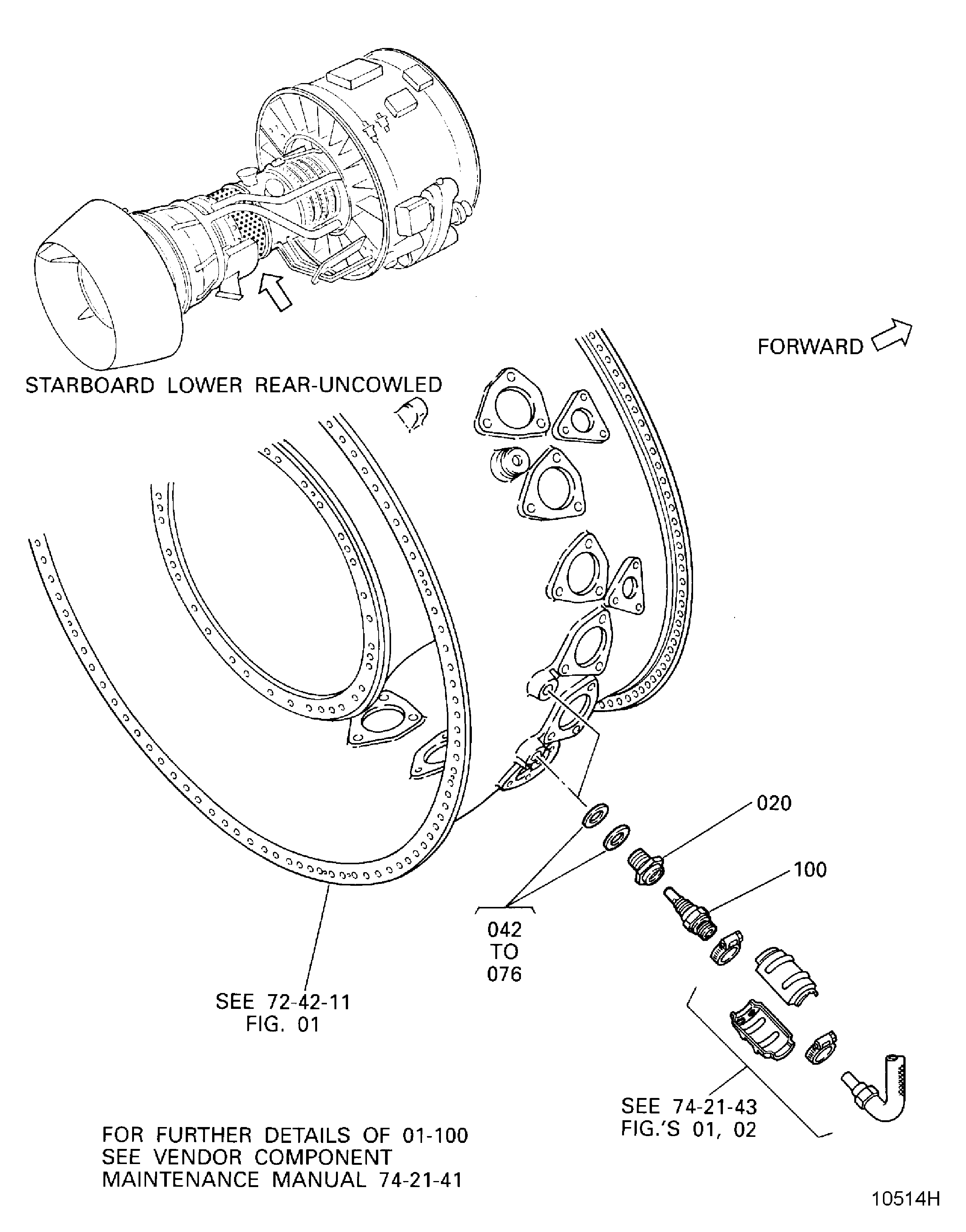

Figure: IGNITION-IGNITER PLUGS
IGNITOR PLUG
