DMC:V2500-A1-75-00-49-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B75004901 | AIR-ENGINE AIR OFFTAKE DUCTS, PRE SBE75-0011 | aa | ||
| SBE0011-01 | AIR-ENGINE AIR OFFTAKE DUCTS, PRE SBE72-0119 | ab | ||
| SBE0119-01 | AIR-ENGINE AIR OFFTAKE DUCTS, PRE SBE70-0368 | ac | ||
| SBE0368-01 | AIR-ENGINE AIR OFFTAKE DUCTS, PRE SBE75-0066 | ad | ||
| SBE0066-01 | AIR-ENGINE AIR OFFTAKE DUCTS, PRE SBE79-0087 | ae | ||
| SBE0087-01 | AIR-ENGINE AIR OFFTAKE DUCTS | af | ||
| 090 | 5W0045 | • BRACKET PRE SBE79-0087 | aa-ae | 1 |
| 090A | 6A5750 | • BRACKET - A/O-CLIPPING POST SBE79-0087 | af | 1 |
| 092 | 5W8394 | • BRACKET POST SBE75-0011 PRE SBE72-0132 | ***** | 1 |
| 095 | 5W8365 | • BRACKET PRE SBE72-0132 | ***** | 1 |
| 100 | 6A2281 | • SUPPORT - ASSY OF DUCT AIR HP PRE SBE75-0066 | aa-af | 2 |
| 100A | 6A5759 | • SUPPORT - DUCT,AIR HP7 POST SBE75-0066 | aa-af | 2 |
| 102 | AS21011 | • BOLT - .250 DIA X .6875 U1653 PRE SBE72-0119 | aa-ab | 24 |
| 102A | AS21011 | • BOLT - .250 DIA X .6875 U1653 POST SBE72-0119 PRE SBE70-0368 | ac-af | 20 |
| 102B | 4W0166 | • BOLT - .250 DIA X .750 POST SBE70-0368 | ac-af | 12 |
| 104 | 4W0165 | • BOLT - .250 DIA X .688 Optional Part 4W0165 POST SBE70-0368 | ad-af | 8 |
| 106 | AS21015 | • BOLT - BIHEX HD, .250 DIA X .938 U1653 POST SBE72-0119 | ac-af | 4 |
| 235 | 5W0082 | • BRACKET | aa-af | 1 |
| 240 | 740-5073-505 | • BRACKET 51563 | aa-af | 1 |
| 242 | 745-5069-501 | • BRACKET 51563 POST SBE79-0087 | af | 1 |
| 250 | 6A2290 | • DUCT - ASSY -AIR,HP7-BV & CAB | aa-af | 1 |
| 252 | AS21011 | • BOLT - .250 DIA X .6875 U1653 PRE SBE70-0368 | aa-ac | 12 |
| 252A | 4W0166 | • BOLT - .250 DIA X .750 POST SBE70-0368 | ad-af | 12 |
| 262 | AGS3732 | • • INSERT - SCREW THREAD, .250 DIA X 1.5D U1653 | aa-af | 12 |
| 262A | AGS3732 | • • INSERT - SCREW THREAD,(VRS6234), .250 DIA X 1.5D U1653 POST SBE70-0269 | ***** | 1 |
| -275 | 6A1570 | • • DUCT - -AIR,HP7-BV & CABIN | aa-af | REF |
| 545 | 5W8468 | • BRACKET | aa-af | 1 |
| 550 | 6A2087 | • DUCT - ASSY OF -AIR,HP10-R.H. | aa-af | 1 |
| 552 | 4W0585 | • BOLT - .250 DIA X .688 PRE SBE70-0368 | aa-ac | 12 |
| 552A | 4W0586 | • BOLT - .250 DIA X .750 POST SBE70-0368 | ad-af | 12 |
| 670 | 5W2076 | • BRACKET | aa-af | 1 |
| 680 | 5W0078 | • BRACKET PRE SBE79-0087 | aa-ae | 1 |
| 680A | 6A5758 | • BRACKET POST SBE79-0087 | af | 1 |
| 700 | 6A2292 | • DUCT - ASSY OF -AIR,HP10-CABI | aa-af | 1 |
| 702 | 4W0585 | • BOLT - .250 DIA X .688 | aa-af | 12 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

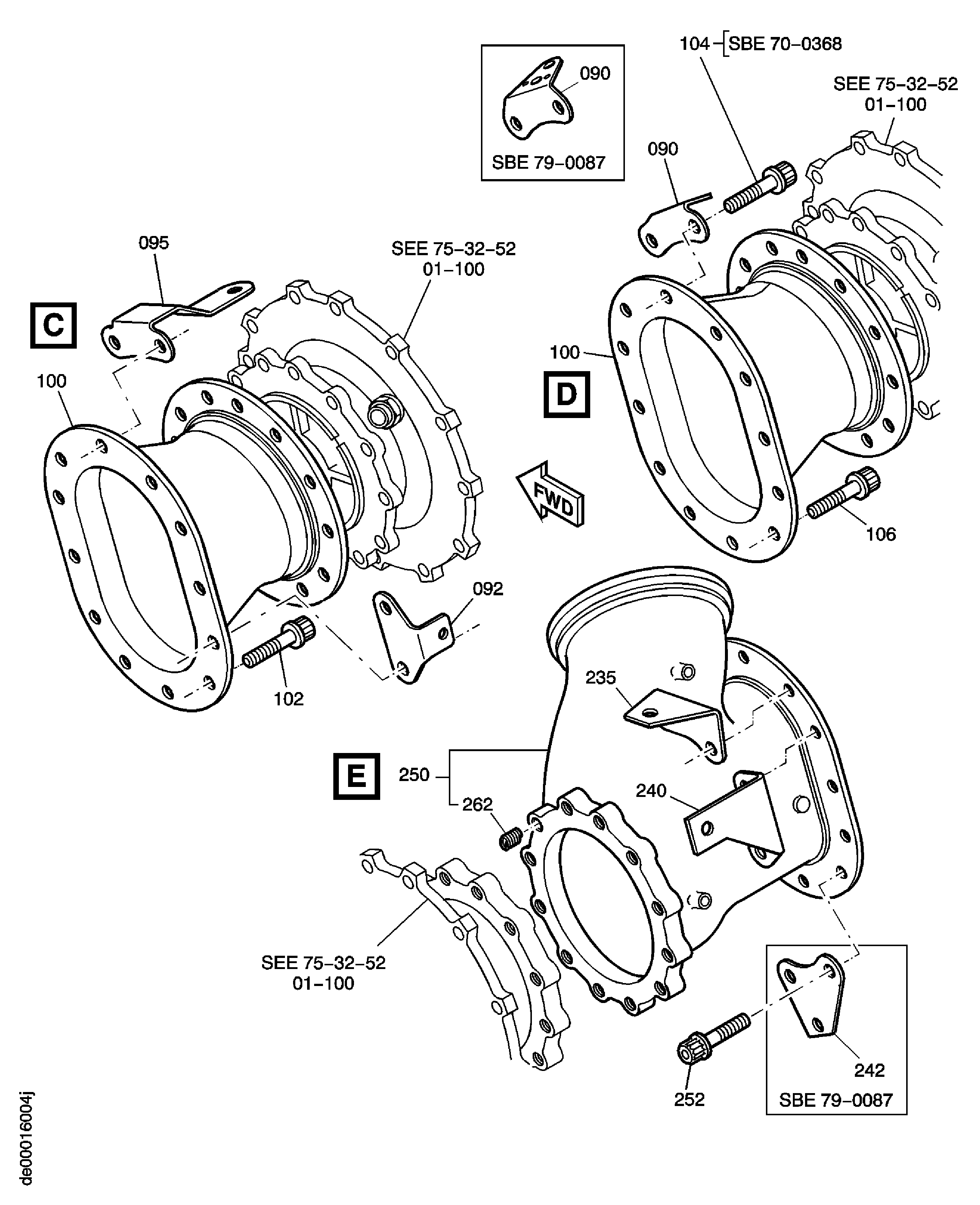

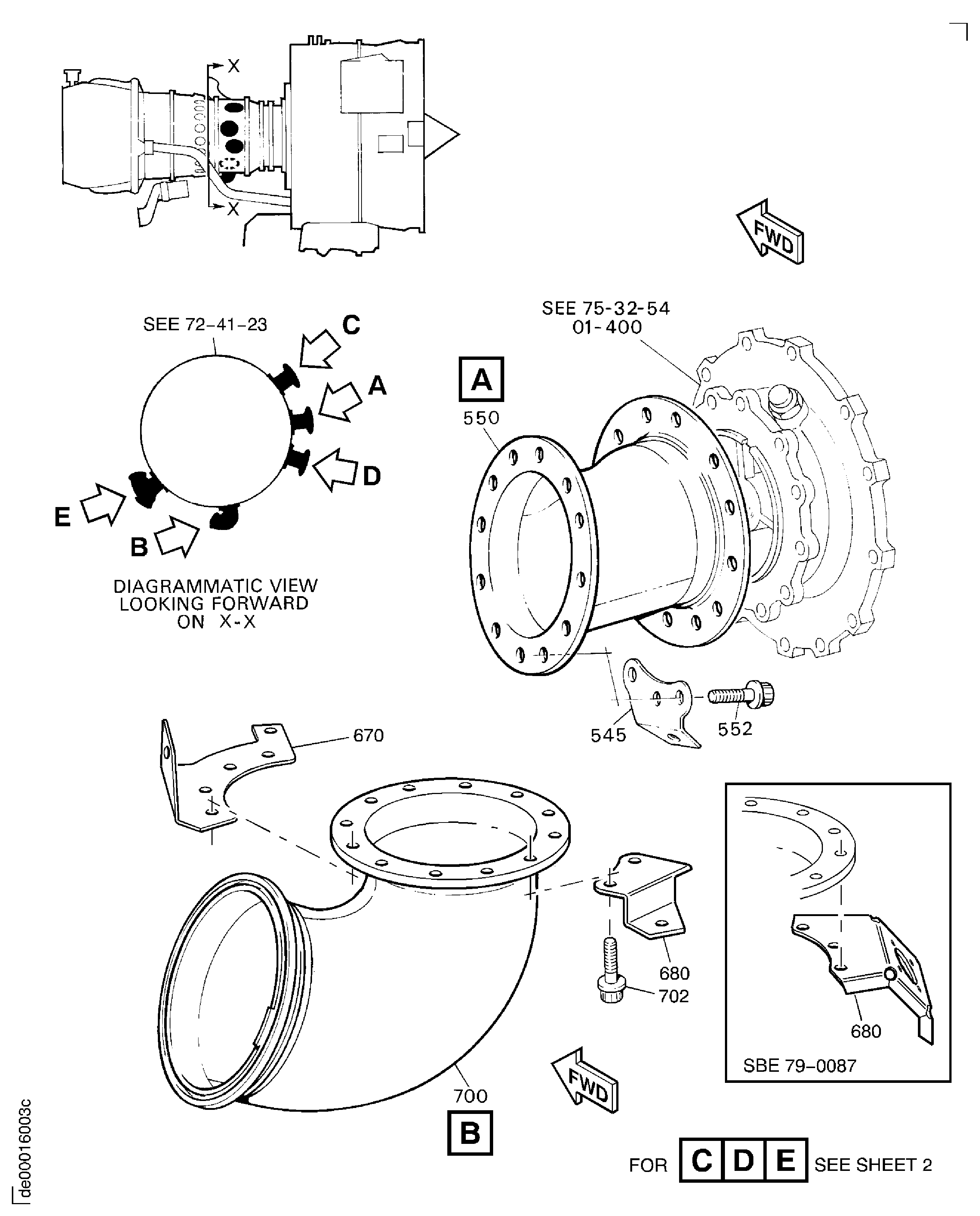

Figure: AIR-ENGINE AIR OFFTAKE DUCTS
ENGINE AIR OFF-TAKE DUCTS
ENGINE AIR OFF-TAKE DUCTS
