| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B75224801 | AIR-ACAC EXHAUST DUCT, PRE SBN70-0464 | aa | ||
| SBN0464-01 | AIR-ACAC EXHAUST DUCT, PRE SBN75-0062 | ab | ||
| SBN0062-01 | AIR-ACAC EXHAUST DUCT, PRE SBN75-0058 | ac | ||
| SBN0058-01 | AIR-ACAC EXHAUST DUCT, PRE SBN70-0651 | ad | ||
| SBN0651-01 | AIR-ACAC EXHAUST DUCT, PRE SBN70-0616 | ae | ||
| SBN0616-01 | AIR-ACAC EXHAUST DUCT | af | ||
| -001 | 740-0364-503 | DUCT - ACAC,INSTL 51563 POST SBN75-0058 | ad-af | REF |
| 010 | 740-0361-503 | • DUCT - ASSY ACAC 51563 PRE SBN70-0464 | aa | 1 |
| 010A | 740-0361-505 | • DUCT - ASSY ACAC 51563 POST SBN70-0464 | ab-af | 1 |
| 010B | 740-0361-507 | • DUCT - ASSY ACAC 51563 POST SBN75-0062 PRE SBN75-0058 | ac | 1 |
| 010C | 740-0361-509 | • DUCT - ASSY ACAC 51563 POST SBN75-0058 | ac-af | 1 |
| 015 | 740-0364-2D | • CONE - ASSY 51563 POST SBN75-0062 | ac-af | 1 |
| 020 | 2703-200 | • COUPLING 15284 | aa-af | 1 |
| 030 | 1012904 | • SEAL | aa-af | 1 |
| 030A | 13227-200 | • SEAL 15284 POST SBN70-0651 | ae-af | 1 |
| 040 | 740-1085-501 | • HOUSING - ASSY 51563 PRE SBN75-0058 | aa-ac | 1 |
| 040A | 740-1085-503 | • HOUSING - ASSY 51563 POST SBN75-0058 | aa-af | 1 |
| 040B | 740-1085-505 | • HOUSING - ASSY 51563 POST SBN70-0616 | af | 1 |
| 050 | NAS6304-4 | • BOLT 80205 | aa-af | 4 |
| 060 | S700S1085-1 | • RING - SUPPORT 51563 PRE SBN75-0058 | aa-ac | 1 |
| 060A | S700S1085-2 | • RING - SUPPORT 51563 POST SBN75-0058 | aa-af | 1 |
| 065 | 740-0364-7 | • RING - BACKUP 51563 POST SBN75-0058 | ad-af | 1 |
| 070 | MS21043-3 | • NUT - SELF LOCKING 96906 POST SBN75-0058 | ad-af | 2 |
| 075 | 740-0364-5 | • BLOCK - RADIUS 51563 POST SBN75-0058 | ad-af | 2 |
| 080 | 740-0364-3 | • BLOCK - RADIUS 51563 POST SBN75-0058 | ad-af | 2 |
| 085 | NAS6303-2 | • SCREW 80205 POST SBN75-0058 | ad-af | 2 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

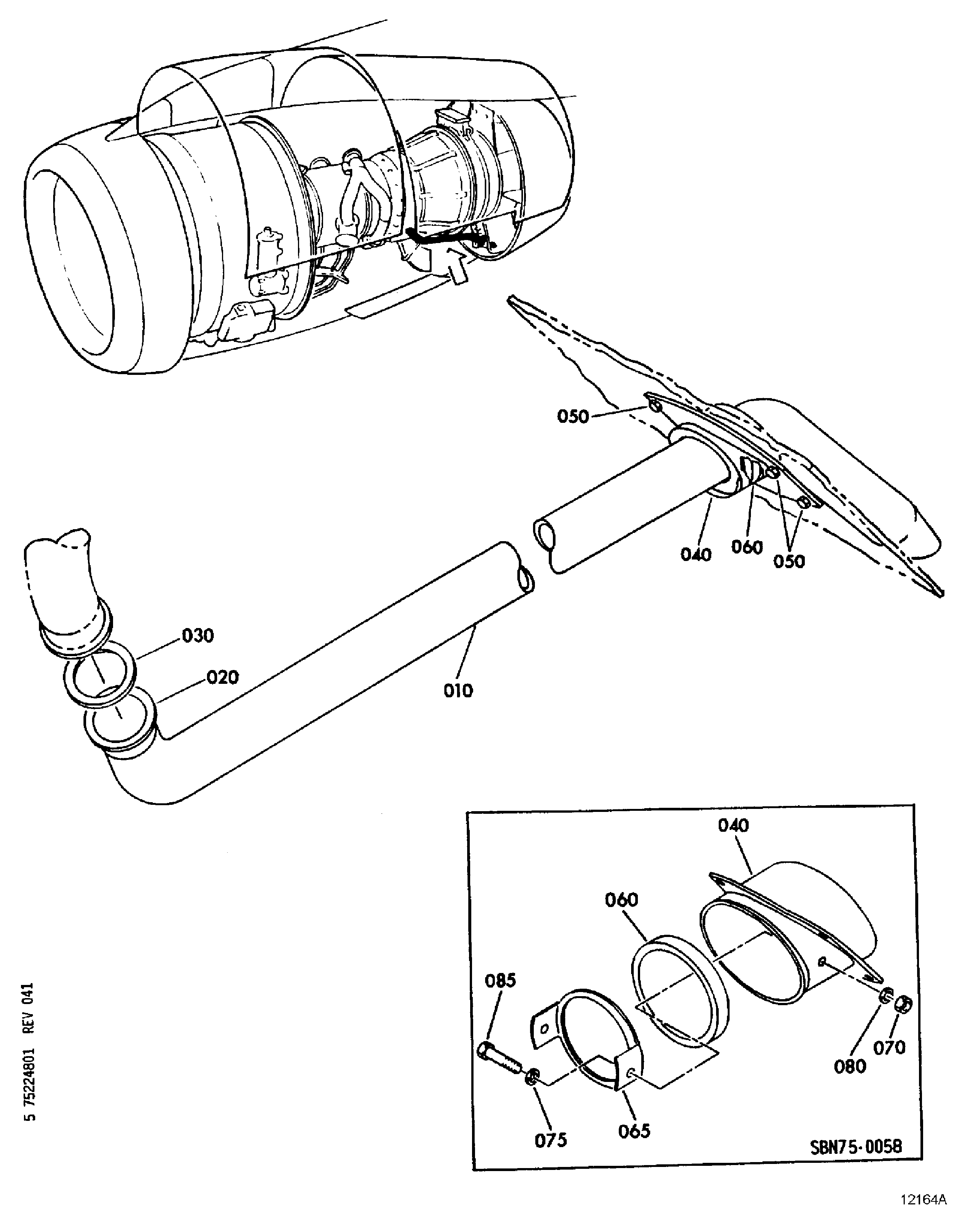

Figure: AIR-ACAC EXHAUST DUCT
ACAC EXHAUST DUCT
