DMC:V2500-A1-75-22-49-05A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 05 | ||||
| B75224905 | AIR-BEARING COMPARTMENT COOLING & SEALING TUBES, PRE SBE79-0087 | aa | ||
| SBE0087-01 | AIR-BEARING COMPARTMENT COOLING & SEALING TUBES | ab | ||
| 100 | 5A8765 | • TUBE - ASSY | aa-ab | 1 |
| 128 | 400WSS5 | • CLIP 83930 | aa-ab | 1 |
| 136 | 400WSS5 | • CLIP 83930 | aa-ab | 1 |
| 144 | 400WSS5 | • CLIP 83930 | aa-ab | 1 |
| 184 | 400WSS5 | • CLIP 83930 | aa-ab | 1 |
| 200 | AS15778 | • • WIRE - THRUST U1653 | aa-ab | 1 |
| 201 | AS15702 | • • NUT - TUBE COUPLING U1653 | aa-ab | 1 |
| 202 | AS15724 | • • FERRULE - WELDING TUBE U1653 | aa-ab | 1 |
| 242 | AS15804 | • • ADAPTOR - STRAIGHT TUBE U1653 | aa-ab | 1 |
| 500 | 5A8764 | • TUBE - ASSY PRE SBE79-0087 | aa | 1 |
| 500A | 6A6010 | • TUBE - A/O-AIR DISCON TO BIF PANEL NO.4BRG SCAV VALVE POST SBE79-0087 | ab | 1 |
| 525 | 4W0102 | • BOLT - .190 DIA X .438 Optional Part 4W0102 POST SBE79-0087 | ab | 1 |
| 526 | 5W1086 | • WASHER POST SBE79-0087 | ab | 1 |
| 528 | AS62405 | • CLIP - 7.92MM (0.312) U1653 POST SBE79-0087 | ab | 1 |
| 532 | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 POST SBE79-0087 | ab | 1 |
| 544 | 400WSS5 | • CLIP 83930 PRE SBE79-0087 | aa | 1 |
| 544A | AS62405 | • CLIP - 7.92MM (0.312) U1653 POST SBE79-0087 | ab | 1 |
| 552 | 400WSS5 | • CLIP 83930 PRE SBE79-0087 | aa | 1 |
| 552A | AS62405 | • CLIP - 7.92MM (0.312) U1653 POST SBE79-0087 | ab | 1 |
| 560 | 400WSS5 | • CLIP 83930 PRE SBE79-0087 | aa | 1 |
| 560A | AS62405 | • CLIP - 7.92MM (0.312) U1653 POST SBE79-0087 | ab | 1 |
| 565 | 4W0103 | • BOLT - .190 DIA X .500 PRE SBE79-0087 | aa | 1 |
| 566 | 5W1086 | • WASHER PRE SBE79-0087 | aa | 1 |
| 568 | 400WSS5 | • CLIP 83930 PRE SBE79-0087 | aa | 1 |
| 572 | 4W0001 | • NUT - .190 DIA PRE SBE79-0087 | aa | 1 |
| 573 | 4W0103 | • BOLT - .190 DIA X .500 POST SBE79-0087 | ab | 1 |
| 576 | AS62405 | • CLIP - 7.92MM (0.312) U1653 POST SBE79-0087 | ab | 1 |
| 580 | 4W0001 | • NUT - .190 DIA POST SBE79-0087 | ab | 1 |
| 584 | 400WSS5 | • CLIP 83930 PRE SBE79-0087 | aa | 1 |
| 600 | AS15778 | • • WIRE - THRUST U1653 PRE SBE79-0087 | aa | 2 |
| 600A | AS15778 | • • WIRE - THRUST U1653 POST SBE79-0087 | ab | 1 |
| 601 | AS15702 | • • NUT - TUBE COUPLING U1653 PRE SBE79-0087 | aa | 2 |
| 601A | AS15702 | • • NUT - TUBE COUPLING U1653 POST SBE79-0087 | ab | 1 |
| 602 | AS15724 | • • FERRULE - WELDING TUBE U1653 PRE SBE79-0087 | aa | 2 |
| 602A | AS15724 | • • FERRULE - WELDING TUBE U1653 POST SBE79-0087 | ab | 1 |
| 614 | 5W1060 | • • LUG - BRAZED PRE SBE79-0087 | aa | 2 |
| 614A | UP11153 | • • BRACKET - INTER TUBE SUPPORT POST SBE79-0087 | ab | 2 |
| 640 | AS15778 | • • WIRE - THRUST U1653 | aa-ab | 1 |
| 640A | AS15778 | • • WIRE - THRUST U1653 POST SBE79-0087 | ab | 1 |
| 641 | AS15702 | • • NUT - TUBE COUPLING U1653 | aa-ab | 1 |
| 641A | AS15702 | • • NUT - TUBE COUPLING U1653 POST SBE79-0087 | ab | 1 |
| 642 | AS15724 | • • FERRULE - WELDING TUBE U1653 | aa-ab | 1 |
| 642A | AS15724 | • • FERRULE - WELDING TUBE U1653 POST SBE79-0087 | ab | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

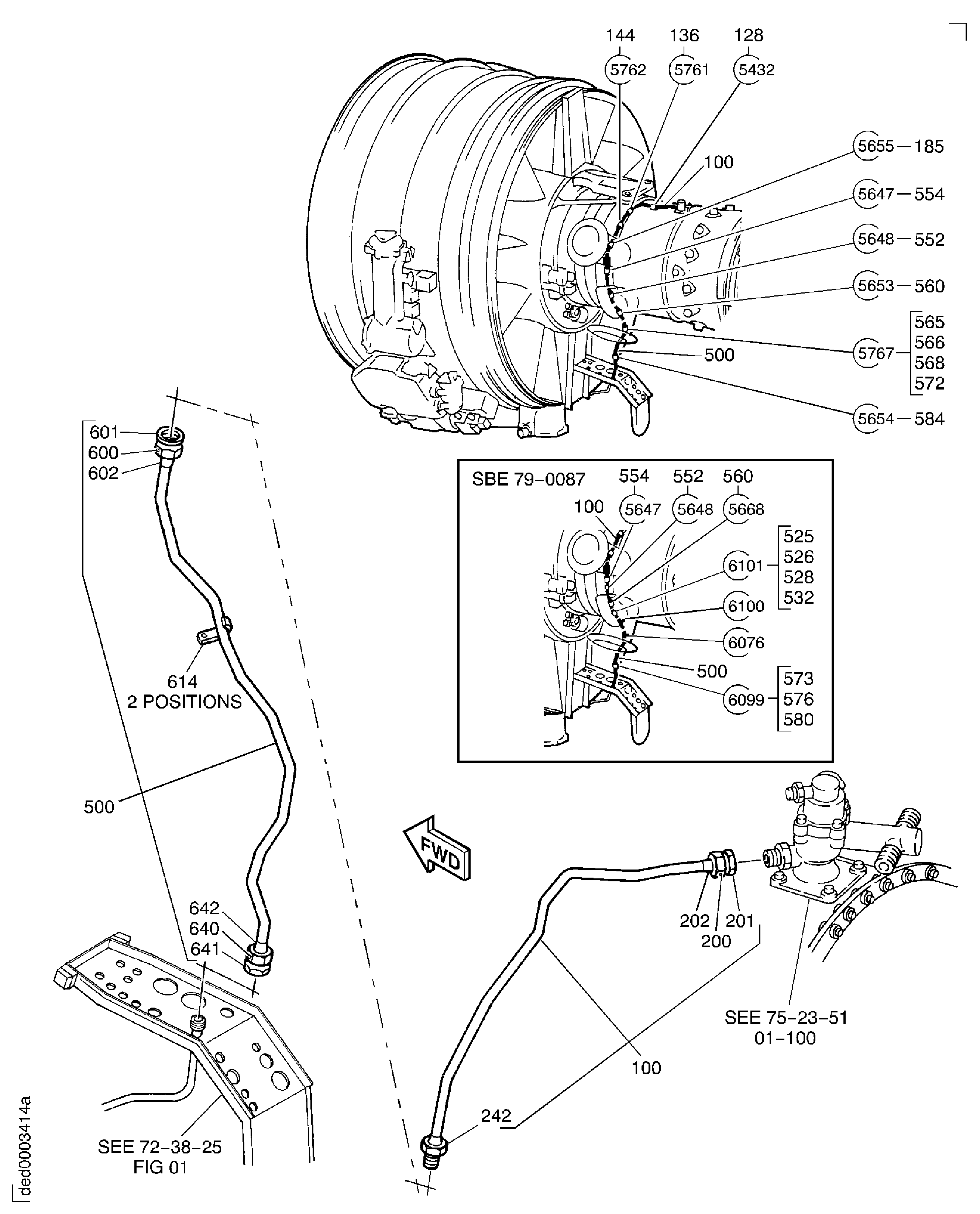

Figure: AIR-BEARING COMPARTMENT COOLING & SEALING TUBES
AIR-BEARING COMPARTMENT COOLING
