DMC:V2500-A1-75-22-49-08A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 08 | ||||
| B75224908 | AIR-BEARING COMPARTMENT COOLING & SEALING TUBES, PRE SBE72-0079 | aa | ||
| SBE0079-01 | AIR-BEARING COMPARTMENT COOLING & SEALING TUBES | ab | ||
| 100 | 5A9039 | • TUBE - A/O AIR COLD BUFFR AIR | aa-ab | 1 |
| 106 | 4W0165 | • BOLT - .250 DIA X .688 | aa-ab | 3 |
| 108 | AGS3900 | • GASKET U1653 | aa-ab | 1 |
| 125 | 4W0109 | • BOLT - .190 DIA X .875 PRE SBE72-0079 | aa-ab | 1 |
| 125A | 4W0103 | • BOLT - .190 DIA X .500 POST SBE72-0079 | aa-ab | 1 |
| 126 | 5W1086 | • WASHER | aa-ab | 1 |
| 128 | 5W1115 | • CLIP | aa-ab | 1 |
| 130 | 5W1030 | • SPACER - (10MM) PRE SBE72-0079 | aa | 1 |
| 132 | 4W0043 | • NUT - .190 DIA | aa-ab | 1 |
| 133 | 4W0109 | • BOLT - .190 DIA X .875 PRE SBE72-0079 | aa-ab | 1 |
| 133A | 4W0103 | • BOLT - .190 DIA X .500 POST SBE72-0079 | aa-ab | 1 |
| 134 | 5W1086 | • WASHER | aa-ab | 1 |
| 136 | 5W1115 | • CLIP | aa-ab | 1 |
| 138 | 5W1030 | • SPACER - (10MM) PRE SBE72-0079 | aa | 1 |
| 140 | 4W0043 | • NUT - .190 DIA | aa-ab | 1 |
| 141 | 4W0109 | • BOLT - .190 DIA X .875 PRE SBE72-0079 | aa-ab | 1 |
| 141A | 4W0103 | • BOLT - .190 DIA X .500 POST SBE72-0079 | aa-ab | 1 |
| 142 | 5W1086 | • WASHER | aa-ab | 1 |
| 144 | 5W1115 | • CLIP | aa-ab | 1 |
| 146 | 5W1030 | • SPACER - (10MM) PRE SBE72-0079 | aa | 1 |
| 148 | 4W0043 | • NUT - .190 DIA | aa-ab | 1 |
| 202 | 5A8692 | • • ADAPTOR - FLANGED ELBOW | aa-ab | 1 |
| 212 | 5W1103 | • • SLEEVE - HALF | aa-ab | 6 |
| 218 | 5W8133 | • • ADAPTOR - TEE | aa-ab | 1 |
| 242 | 5A8678 | • • ADAPTOR - TEE | aa-ab | 1 |
| 500 | 5A8757 | • TUBE - A/O AIR | aa-ab | 1 |
| 600 | AS15782 | • • WIRE - THRUST U1653 | aa-ab | 1 |
| 601 | AS15706 | • • NUT - TUBE COUPLING U1653 | aa-ab | 1 |
| 602 | AS15732 | • • FERRULE U1653 | aa-ab | 1 |
| 614 | 5W1065 | • • LUG | aa-ab | 1 |
| 642 | 5W8148 | • • ADAPTOR - UNION ELBOW | aa-ab | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

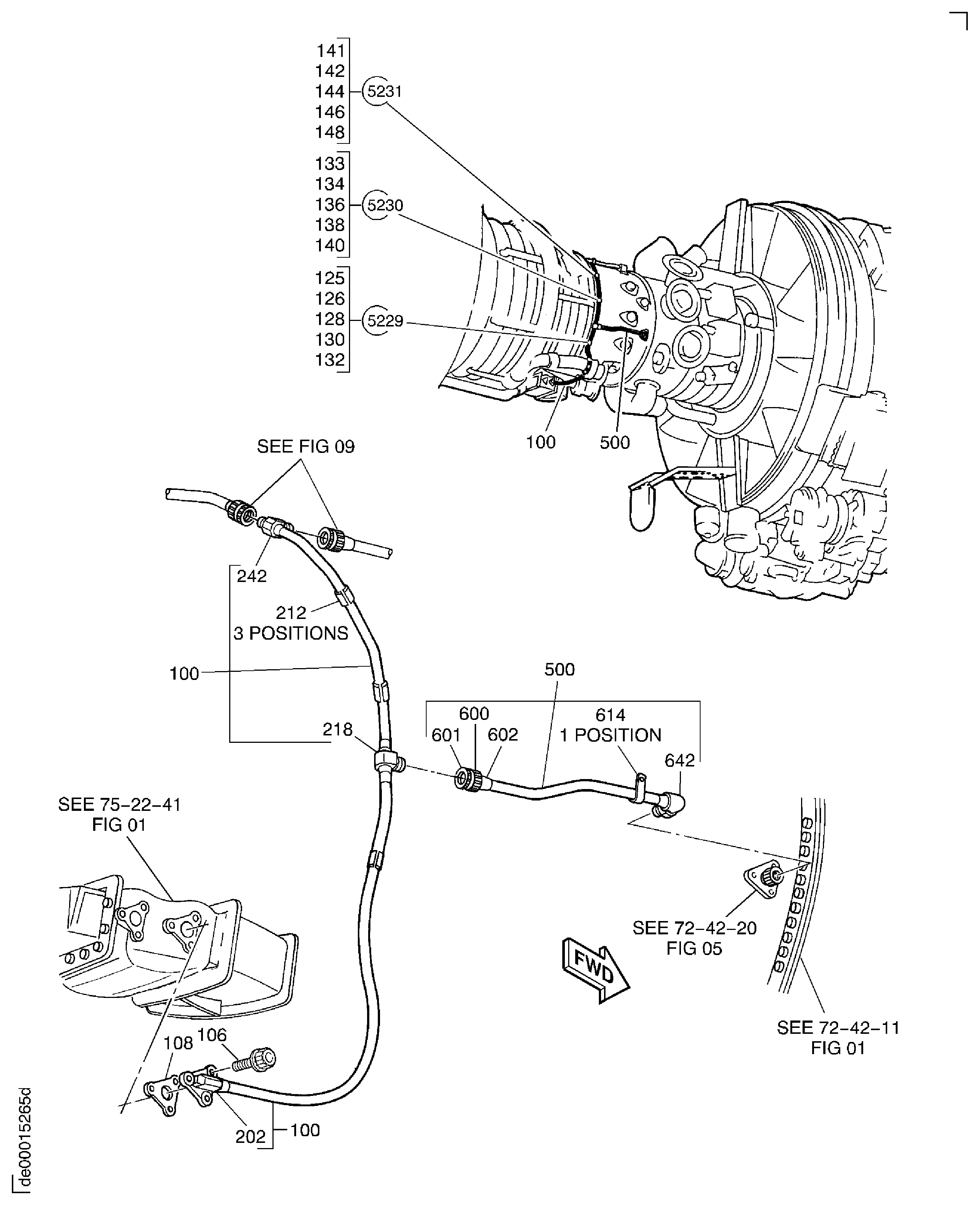

Figure: AIR-BEARING COMPARTMENT COOLING & SEALING TUBES
BEARING COMPARTMENT COOLING
