| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 10 | ||||
| B75224910 | AIR-BEARING COMPARTMENT COOLING & SEALING TUBES, PRE SBE71-0021 | aa | ||
| SBE0021-01 | AIR-BEARING COMPARTMENT COOLING & SEALING TUBES, PRE SBE75-0049 | ab | ||
| SBE0049-01 | AIR-BEARING COMPARTMENT COOLING & SEALING TUBES, PRE SBN71-0145 | ac | ||
| SBN0145-01 | AIR-BEARING COMPARTMENT COOLING & SEALING TUBES, PRE SBE71-0289 | ad | ||
| SBE0289-01 | AIR-BEARING COMPARTMENT COOLING & SEALING TUBES, PRE SBE70-0746 | ae | ||
| SBE0746-01 | AIR-BEARING COMPARTMENT COOLING & SEALING TUBES | af | ||
| 060 | 740-5034-501 | • BRACKET 51563 | aa-af | 1 |
| 060A | 740-5034-503 | • BRACKET - REF 51563 PRE SBE71-0021 | aa | 1 |
| 060B | 740-5034-505 | • BRACKET 51563 POST SBE71-0021 PRE SBN71-0145 | aa-ac | 1 |
| 060C | 740-5286-501 | • BRACKET 51563 POST SBN71-0145 | aa-af | 1 |
| -069 | AS61902 | • CLAMP - LOOP STYLE,CUSHION, 6.35 MM (0.250) U1653 POST SBE70-0746 | af | REF |
| 070 | 5W8345 | • BRACKET | aa-af | 1 |
| 100 | 5A9038 | • TUBE - A/O AIR COLD BUFFR AIR | aa-af | 1 |
| 112 | SP123E | • WASHER K7766 | aa-af | 1 |
| 114 | 4W0167 | • BOLT - .250 DIA X .812 | aa-af | 3 |
| 116 | AGS3900 | • GASKET U1653 | aa-af | 1 |
| 120 | TA0210046FT12 | • CLIP 84971 POST SBE75-0049 PRE SBE71-0289 | ac-af | 1 |
| 120A | TA025022-12 | • CLAMP - LOOP STYLE,CUSHION, 19.05 MM (0.750) 84971 POST SBE71-0289 | ac-af | 1 |
| 200 | AS15783 | • • WIRE - THRUST U1653 | aa-af | 1 |
| 201 | AS15707 | • • NUT - TUBE COUPLING U1653 | aa-af | 1 |
| 202 | 5W8149 | • • FERRULE - ELBOW | aa-af | 1 |
| 212 | 5W1066 | • • LUG - BRAZED | aa-af | 1 |
| 218 | 5W8131 | • • ADAPTOR - TEE | aa-af | 1 |
| 242 | 5A8691 | • • ADAPTOR - FLANGED | aa-af | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

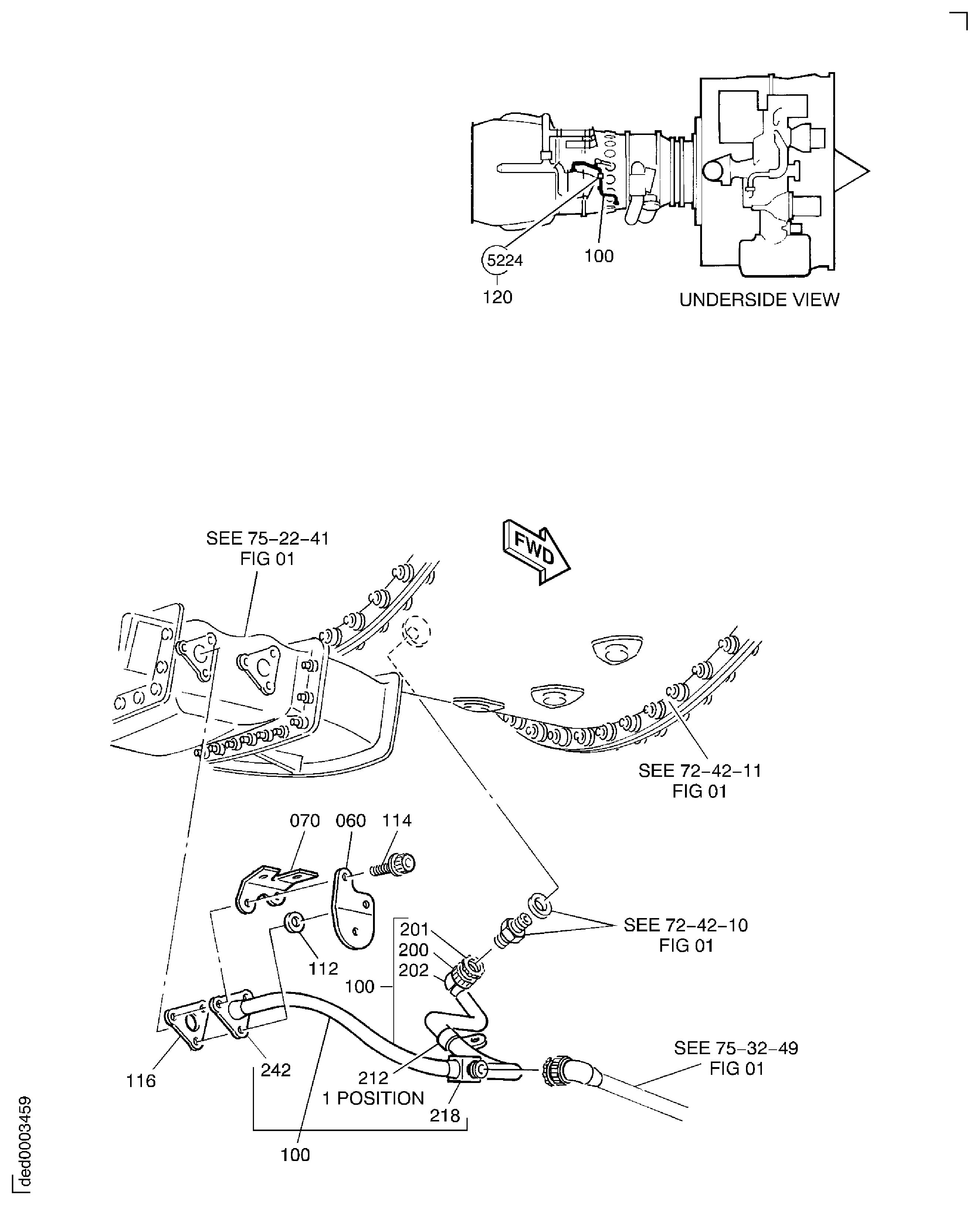

Figure: AIR-BEARING COMPARTMENT COOLING & SEALING TUBES
BEARING COMPARTMENT COOLING
