DMC:V2500-A1-75-22-49-16A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 16 | ||||
| B75224916 | AIR-BEARING COMPARTMENT COOLING & SEALING TUBES, PRE SBE75-0010 | aa | ||
| SBE0010-01 | AIR-BEARING COMPARTMENT COOLING & SEALING TUBES, PRE SBN29-0001 | ab | ||
| SBN0001-01 | AIR-BEARING COMPARTMENT COOLING & SEALING TUBES, PRE SBE71-0110 | ac | ||
| SBE0110-01 | AIR-BEARING COMPARTMENT COOLING & SEALING TUBES | ad | ||
| 100 | 6A2157 | • TUBE - ASSY OF, COOLING AIR POST SBE75-0010 | ab-ad | 1 |
| 125 | 4W0102 | • BOLT - .190 DIA X .438 Optional Part 4W0102 POST SBE75-0010 | ab-ad | 1 |
| 126 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE75-0010 | ab-ad | 1 |
| 128 | 400WSS8 | • CLIP - LOOP TYPE 83930 POST SBE75-0010 | ab-ad | 1 |
| 132 | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 POST SBE75-0010 | ab-ad | 1 |
| 136 | 400WSS8 | • CLIP - LOOP TYPE 83930 POST SBE75-0010 | ab-ad | 1 |
| 144 | 400WSS8 | • CLIP - LOOP TYPE 83930 POST SBE75-0010 PRE SBN29-0001 | ab | 1 |
| 152 | 400WSS8 | • CLIP - LOOP TYPE 83930 POST SBE75-0010 | ab-ad | 1 |
| 162 | AS21418 | • BOLT - BIHEX HD, .190 DIA X 1.125 U1653 POST SBN29-0001 | ac-ad | 1 |
| 164 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBN29-0001 | ac-ad | 1 |
| 166 | UP10480 | • SPACER - 15MM POST SBN29-0001 | ac-ad | 1 |
| 167 | 400WSS8 | • CLIP - LOOP TYPE 83930 POST SBN29-0001 | ac-ad | 1 |
| 168 | AS20624 | • NUT - SELF LOCKING,BIHEX, .190 DIA U1653 POST SBN29-0001 | ac-ad | 1 |
| 200 | AS15781 | • • WIRE - THRUST U1653 POST SBE75-0010 | ab-ad | 1 |
| 201 | AS15705 | • • NUT - TUBE COUPLING U1653 POST SBE75-0010 | ab-ad | 1 |
| 202 | AS15730 | • • FERRULE - WELDING TUBE U1653 POST SBE75-0010 | ab-ad | 1 |
| 242 | AS15810 | • • ADAPTOR - STRAIGHT TUBE U1653 POST SBE75-0010 | ab-ad | 1 |
| 500 | 6A2156 | • TUBE - ASSY OF, COOLING AIR POST SBE75-0010 | ab-ad | 1 |
| 528 | 400WSS8 | • CLIP - LOOP TYPE 83930 POST SBE75-0010 | ab-ad | 1 |
| 536 | 400WSS8 | • CLIP - LOOP TYPE 83930 POST SBE75-0010 | ab-ad | 1 |
| 544 | 400WSS8 | • CLIP - LOOP TYPE 83930 POST SBE75-0010 PRE SBE71-0110 | ab-ac | 1 |
| 549 | 4W0103 | • BOLT - .190 DIA X .500 Optional Part 4W0103 POST SBE71-0110 | ad | 1 |
| 550 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE71-0110 | ad | 1 |
| 552 | 400WSS8 | • CLIP 83930 POST SBE75-0010 | ab-ad | 1 |
| 556 | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 POST SBE71-0110 | ad | 1 |
| 560 | 400WSS8 | • CLIP - LOOP TYPE 83930 POST SBE75-0010 | ab-ad | 1 |
| 600 | AS15781 | • • WIRE - THRUST U1653 POST SBE75-0010 | ab-ad | 1 |
| 601 | AS15705 | • • NUT - TUBE COUPLING U1653 POST SBE75-0010 | ab-ad | 1 |
| 602 | AS15730 | • • FERRULE - WELDING TUBE U1653 POST SBE75-0010 | ab-ad | 1 |
| 614 | UP11155 | • • BRACKET - INTER TUBE SUPPORT POST SBE75-0010 | ab-ad | 1 |
| 642 | AS15810 | • • ADAPTOR - STRAIGHT TUBE U1653 POST SBE75-0010 | ab-ad | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

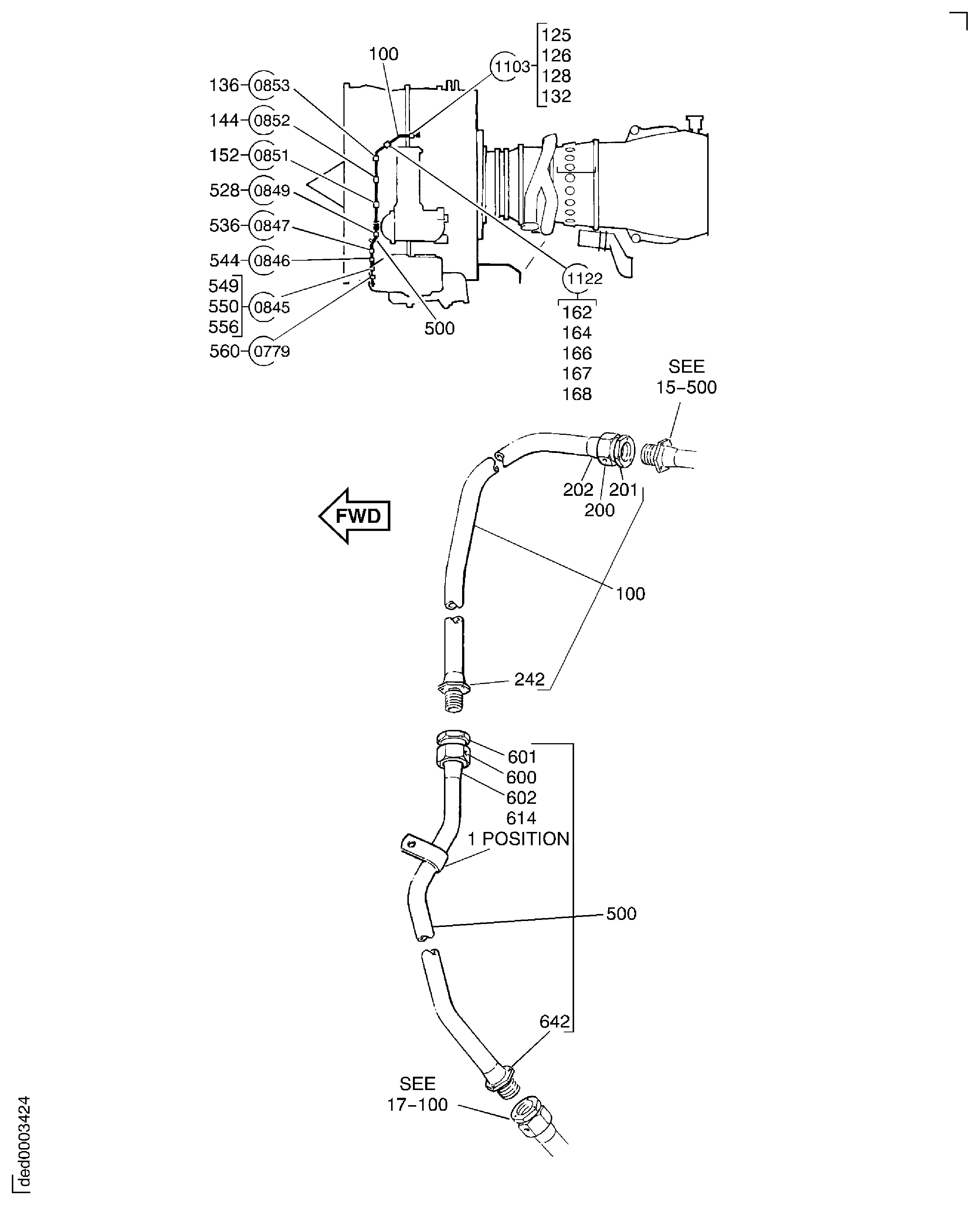

Figure: AIR-BEARING COMPARTMENT COOLING & SEALING TUBES
BEARING COMPARTMENT COOLING
