DMC:V2500-A1-75-23-48-03A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 03 | ||||
| B75234803 | AIR-TURBINE COOLING CONTROLLED AIR TUBES, PRE SBE79-0087 | aa | ||
| SBE0087-01 | AIR-TURBINE COOLING CONTROLLED AIR TUBES | ab | ||
| 100 | 5A8760 | • TUBE - ASSY PRE SBE79-0087 | aa | 1 |
| 100A | 6A6021 | • TUBE - A/O-AIR BIF PANEL TO DISCON MAKE UP AIR VALVE POST SBE79-0087 | ab | 1 |
| 160 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087 | ab | 1 |
| 168 | 400WSS4 | • CLIP 83930 PRE SBE79-0087 | aa | 1 |
| 168A | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087 | ab | 1 |
| 176 | 400WSS4 | • CLIP 83930 PRE SBE79-0087 | aa | 1 |
| 176A | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087 | ab | 1 |
| 189 | 4W0103 | • BOLT - .190 DIA X .500 PRE SBE79-0087 | aa | 1 |
| 189A | 4W0112 | • BOLT - .190 DIA X 1.062 POST SBE79-0087 | ab | 1 |
| 190 | 5W1086 | • WASHER PRE SBE79-0087 | aa | 1 |
| 192 | 400WSS4 | • CLIP 83930 PRE SBE79-0087 | aa | 1 |
| 192A | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087 | ab | 1 |
| 194 | LK42781 | • SPACER POST SBE79-0087 | ab | 1 |
| 196 | 4W0001 | • NUT - .190 DIA | aa-ab | 1 |
| 200 | AS15777 | • • WIRE - THRUST U1653 | aa-ab | 1 |
| 201 | AS15701 | • • NUT - TUBE COUPLING U1653 | aa-ab | 1 |
| 202 | AS15768 | • • FERRULE - ASSY U1653 | aa-ab | 1 |
| 214 | 5W1059 | • • LUG - BRAZED PRE SBE79-0087 | aa | 6 |
| 214A | UP11152 | • • BRACKET - INTER TUBE SUPPORT POST SBE79-0087 | ab | 6 |
| 218 | AS15802 | • • ADAPTOR U1653 PRE SBE79-0087 | aa | 1 |
| 242 | AS15802 | • • ADAPTOR U1653 POST SBE79-0087 | ab | 1 |
| 500 | 5A8761 | • TUBE - ASSY | aa-ab | 1 |
| 528 | 400WSS4 | • CLIP 83930 | aa-ab | 1 |
| 536 | 400WSS4 | • CLIP 83930 | aa-ab | 1 |
| 581 | 4W0103 | • BOLT - .190 DIA X .500 | aa-ab | 1 |
| 582 | 5W1086 | • WASHER | aa-ab | 1 |
| 584 | 400WSS4 | • CLIP 83930 | aa-ab | 1 |
| 588 | 4W0043 | • NUT - .190 DIA | aa-ab | 1 |
| 600 | AS15777 | • • WIRE - THRUST U1653 | aa-ab | 1 |
| 601 | AS15701 | • • NUT - TUBE COUPLING U1653 | aa-ab | 1 |
| 602 | AS15768 | • • FERRULE - ASSY U1653 | aa-ab | 1 |
| 614 | 5W1059 | • • LUG - BRAZED | aa-ab | 3 |
| 640 | AS15777 | • • WIRE - THRUST U1653 | aa-ab | 1 |
| 641 | AS15701 | • • NUT - TUBE COUPLING U1653 | aa-ab | 1 |
| 642 | 5W8143 | • • FERRULE - ASSY ELBOW | aa-ab | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

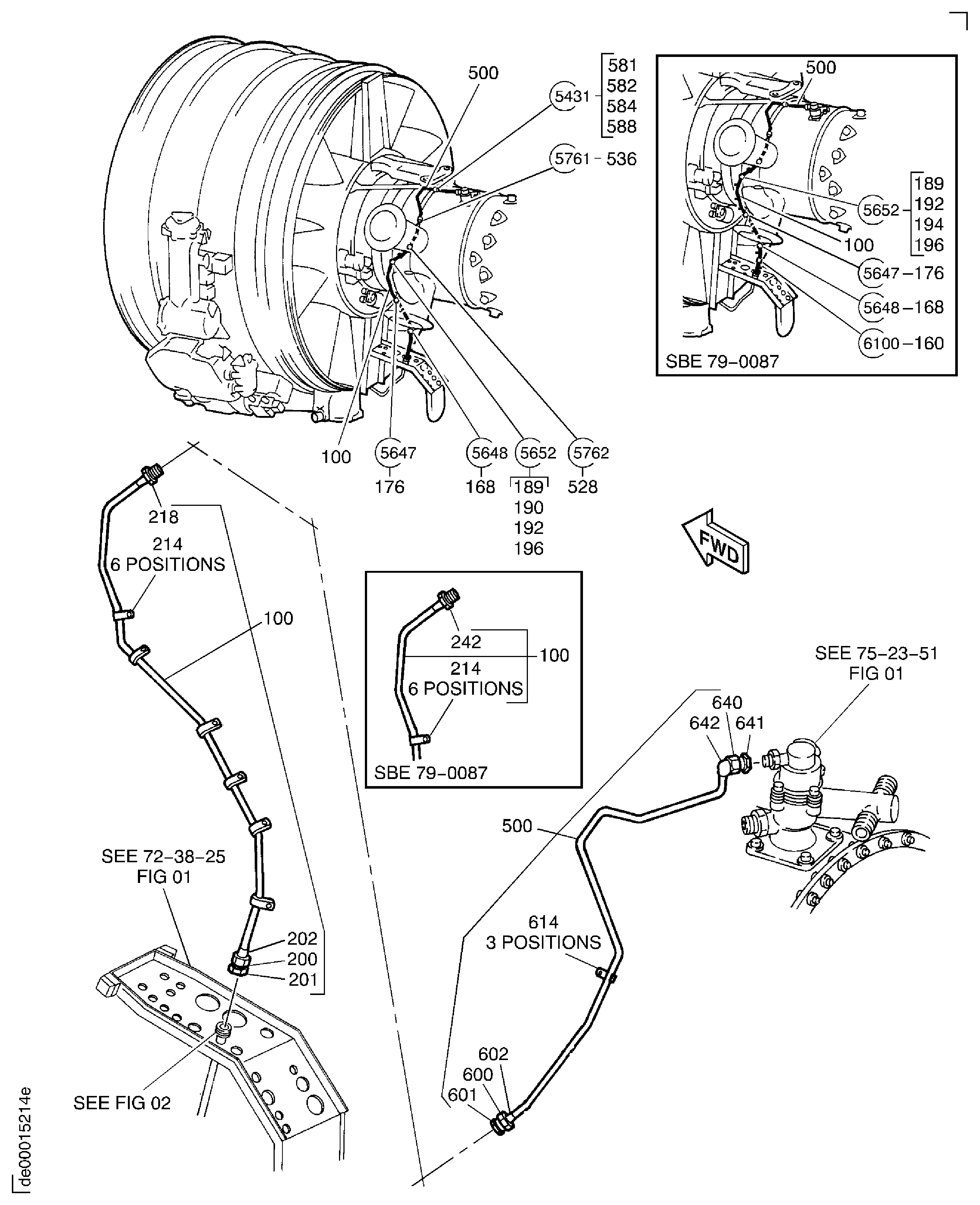

Figure: AIR-TURBINE COOLING CONTROLLED AIR TUBES
TURBINE COOLING CONTROLLED AIR TUBES
