DMC:V2500-A1-75-23-48-04A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 04 | ||||
| B75234804 | AIR-TURBINE COOLING CONTROLLED AIR TUBES, PRE SBE70-0022 | aa | ||
| SBE0022-01 | AIR-TURBINE COOLING CONTROLLED AIR TUBES | ab | ||
| 100 | 5W2559 | • TUBE - PS3 COOLING AIR A/O | aa-ab | 1 |
| 133 | 4W0103 | • BOLT - .190 DIA X .500 | aa-ab | 1 |
| 134 | AN960XC10L | • WASHER 81352 PRE SBE70-0022 | aa-ab | 1 |
| 134A | 5W1086 | • WASHER POST SBE70-0022 | aa-ab | 1 |
| 136 | 5W8244 | • CLIP | aa-ab | 1 |
| 140 | 4W0043 | • NUT - .190 DIA | aa-ab | 1 |
| 141 | 4W0105 | • BOLT - .190 DIA X .625 | aa-ab | 2 |
| 142 | AN960XC10L | • WASHER 81352 PRE SBE70-0022 | aa-ab | 4 |
| 142A | 5W1086 | • WASHER POST SBE70-0022 | aa-ab | 4 |
| 144 | 5W8244 | • CLIP | aa-ab | 1 |
| 145 | 2A0776 | • CLAMP | aa-ab | 1 |
| 147 | 5W8387 | • BRACKET | aa-ab | 1 |
| 148 | 4W0001 | • NUT - .190 DIA | aa-ab | 2 |
| 200 | AS15785 | • • WIRE - THRUST U1653 | aa-ab | 1 |
| 201 | AS15709 | • • NUT - TUBE COUPLING U1653 | aa-ab | 1 |
| 202 | 5W8224 | • • FERRULE | aa-ab | 1 |
| 212 | 5W8225 | • • SLEEVE - HALF | aa-ab | 2 |
| 213 | 5W2092 | • • SLEEVE | aa-ab | 2 |
| 242 | 5W8223 | • • ADAPTOR - UNION | aa-ab | 1 |
| 500 | 5W2558 | • TUBE - PS3 COOLING AIR,A/O | aa-ab | 1 |
| 541 | 4W0103 | • BOLT - .190 DIA X .500 | aa-ab | 1 |
| 542 | AN960XC10L | • WASHER 81352 PRE SBE70-0022 | aa-ab | 1 |
| 542A | 5W1086 | • WASHER POST SBE70-0022 | aa-ab | 1 |
| 544 | 5W8244 | • CLIP | aa-ab | 1 |
| 548 | 4W0043 | • NUT - .190 DIA | aa-ab | 1 |
| 549 | 4W0105 | • BOLT - .190 DIA X .625 | aa-ab | 2 |
| 550 | AN960XC10L | • WASHER 81352 PRE SBE70-0022 | aa-ab | 4 |
| 550A | 5W1086 | • WASHER POST SBE70-0022 | aa-ab | 4 |
| 552 | 5W8244 | • CLIP | aa-ab | 1 |
| 553 | 2A0776 | • CLAMP | aa-ab | 1 |
| 555 | 5W8388 | • BRACKET | aa-ab | 1 |
| 556 | 4W0001 | • NUT - .190 DIA | aa-ab | 2 |
| 600 | AS15785 | • • WIRE - THRUST U1653 | aa-ab | 1 |
| 601 | AS15709 | • • NUT - TUBE COUPLING U1653 | aa-ab | 1 |
| 602 | 5W8224 | • • FERRULE | aa-ab | 1 |
| 612 | 5W8225 | • • SLEEVE - HALF | aa-ab | 2 |
| 613 | 5W2092 | • • SLEEVE | aa-ab | 2 |
| 642 | 5W8223 | • • ADAPTOR - UNION | aa-ab | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

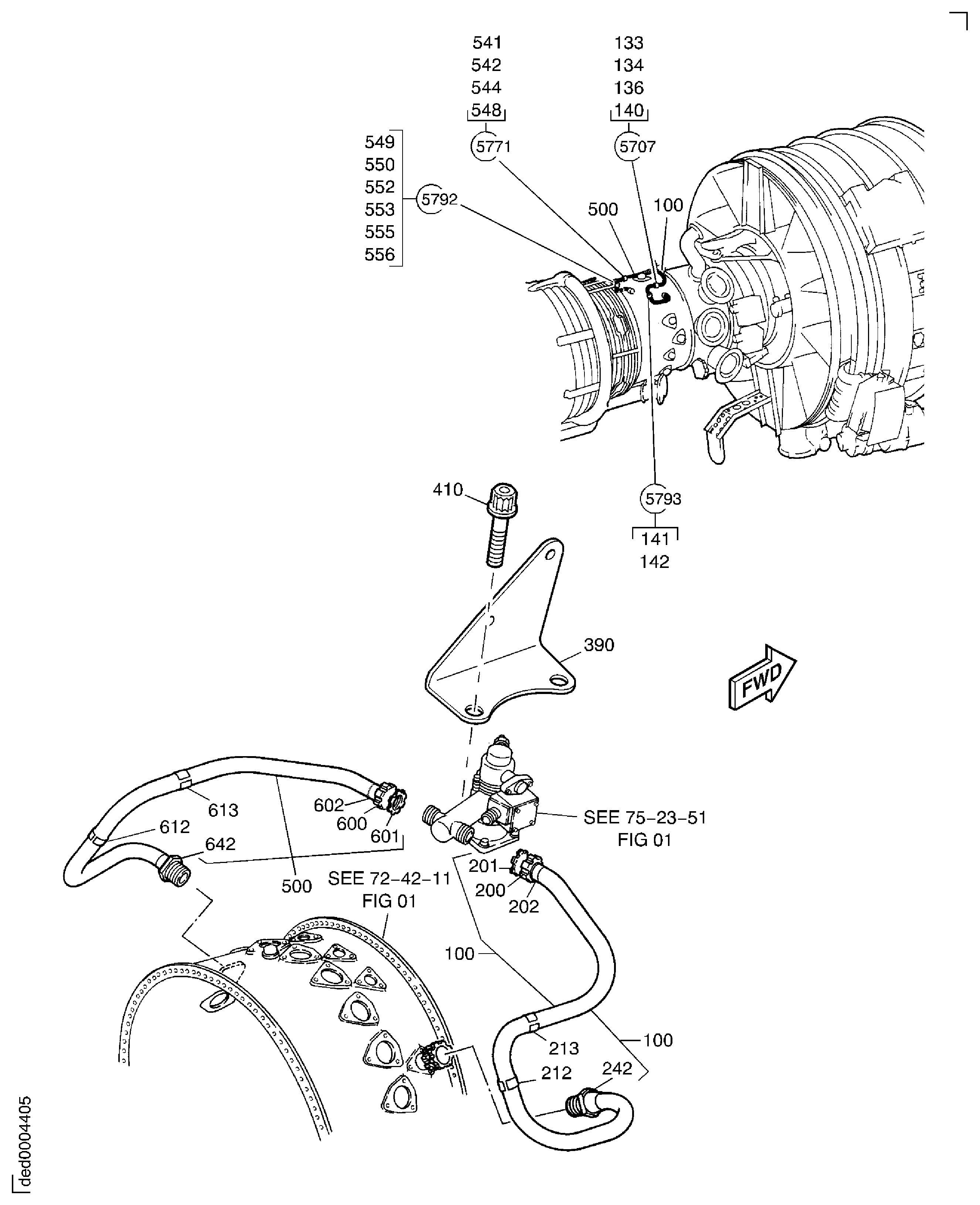

Figure: AIR-TURBINE COOLING CONTROLLED AIR TUBES
AIR-TURBINE COOLING CONTROLLED AIR TUBES
