AIR-STAGE 10 AIR SOLENOID VALVE

DMC:V2500-A1-75-23-52-01A-941A-D|Issue No:001|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig. Item	Part No.	Description	Effect/Model Applic.	UPA
01
000	B75235201	AIR-STAGE 10 AIR SOLENOID VALVE, PRE SBE75-0003	aa
000	SBE0003-01	AIR-STAGE 10 AIR SOLENOID VALVE, PRE SBE70-0035	ab
000	SBE0035-01	AIR-STAGE 10 AIR SOLENOID VALVE, PRE SBE70-0047	ac
000	SBE0047-01	AIR-STAGE 10 AIR SOLENOID VALVE, PRE SBE70-0099	ad
000	SBE0099-01	AIR-STAGE 10 AIR SOLENOID VALVE, PRE SBE80-0001	ae
000	SBE0001-01	AIR-STAGE 10 AIR SOLENOID VALVE	af
100100	AC69262	• VALVE - SOLENOID-STAGE 10 AIR 88041 REF No. 5L0006	aa-af	1

110110	4W0108	• BOLT - .190 DIA X .812	aa-af	3
113113	4W2621	• WASHER	aa-af	3
115115	AS41104	• NUT - .190 DIA U1653 PRE SBE70-0047	aa-af	2
115115A	4W0043	• NUT - .190 DIA POST SBE70-0047	aa-af	2

130130	AC045753	• • UNION - DOUBLE-ENDED (VENDOR P/N ACO45753) 88041 POST SBE70-0099	ae-af	1
133133	AC045636	• • RING - SEALING TOROIDAL (VENDOR P/N ACO45636) 88041 POST SBE70-0099	ae-af	1
140140	AC045752	• • UNION - DOUBLE-ENDED (VENDOR P/N ACO45752) 88041 POST SBE70-0099	ae-af	1
143143	AC045635	• • UNION - SEALING TOROIDAL (VENDOR P/N ACO45635) 88041 POST SBE70-0099	ae-af	1
500500	5A9158	• BRACKET PRE SBE75-0003	aa-af	1
500500A	5A0292	• BRACKET POST SBE75-0003 PRE SBE70-0035	aa-af	1
500500B	5A0336	• BRACKET - ASSY POST SBE70-0035	aa-af	1

510510	4W0104	• BOLT - .190 DIA X .562	aa-af	1
518518	4W0002	• NUT - .250 DIA	aa-af	1
520520	4W0164	• BOLT - .250 DIA X .625	aa-af	1

570570	740-5135-501	• BRACKET - LINK 51563	aa-af	1
573573	NAS6303U5	• BOLT 80205	aa-af	1
573573A	NAS6303U5	• BOLT 80205 POST SBE80-0001	af	1

574574	NAS6303U3	• BOLT 80205	aa-af	2
574574A	NAS6303U4	• BOLT 80205	aa-af	1
574574B	NAS6303U4	• BOLT 80205 POST SBE80-0001	af	1

600600	740-5133-503	• RAFT 51563	aa-af	1

610610	4W0002	• NUT - .250 DIA	aa-af	2
612612	4W0164	• BOLT - .250 DIA X .625	aa-af	2

650650	740-5134-503	• BRACKET 51563	aa-af	1

651651	NAS1291C4M	• NUT 80205	aa-af	1
651651A	NAS1291C4M	• NUT 80205	aa-af	2
652652	SP154E	• WASHER K7766	aa-af	2

653653	740-5139-501	• PACKING - PIECE 51563	aa-af	1

654654	NAS7204U6	• BOLT 80205	aa-af	2

- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

Manufacturer Code:	0AM53
Enterprise Name:	IAE INTERNATIONAL AERO ENGINES AG
BU Name:	NULL
Building:	SUITE 400
Street:	628 HEBRON AVENUE
City:	GLASTONBURY
State:	CT
Zip Code:	06033
Country:	USA

Manufacturer Code:	15653
Enterprise Name:	ALCOA FASTENING SYSTEMS
BU Name:	ALCOA FASTENING SYSTEMS
Department:	FULLERTON OPERATIONS PLANT 1
Street:	800 S.STATE COLLEGE BOULEVARD
City:	FULLERTON
State:	CA
Zip Code:	92831
Country:	USA
Phone Number:	1-714-871-1550
Fax Number:	1-714-680-0175
Internet:	www.alcoa.com

Manufacturer Code:	51563
Enterprise Name:	ROHR INC, A COLLINS AEROSPACE COMPANY
BU Name:	ROHR INC, A COLLINS AEROSPACE COMPANY
Street:	850 LAGOON DRIVE
City:	CHULA VISTA
State:	CA
Zip Code:	91910-2098
Country:	USA
Phone Number:	1-619-691-2089
Fax Number:	1-619-691-6195

Manufacturer Code:	80205
Enterprise Name:	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES ASSO OF AMERICAN, INC
BU Name:	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES ASSO OF AMERICAN, INC
Street:	NONE
City:	NONE
Country:	USA
Phone Number:	NONE

Manufacturer Code:	96906
Enterprise Name:	MILITARY STANDARDS MANUAL 4120 3-M
BU Name:	MILITARY STANDARDS MANUAL 4120 3-M
Street:	NONE
City:	NONE
Country:	USA
Phone Number:	NONE

Manufacturer Code:	K7766
Enterprise Name:	K7766
BU Name:	British Standards Institution
Street:	2 Park Street
City:	London
Zip Code:	AW1A 2BS
Country:	England

Manufacturer Code:	U1653
Enterprise Name:	Society Of British Aerospace Companies, LTD.

Part Number:	5A0336
Part Name:	BRACKET - ASSEMBLY OF
Manufacturer Code:	0AM53

Part Number:	AS12943
Part Name:	WASHER - FLAT
Manufacturer Code:	U1653

Part Number:	AS20625
Part Name:	NUT, SELF LOCKING, BIHEX, .250 DIA
Manufacturer Code:	U1653
Unit Of Issue:	EA

Part Number:	AS21413
Part Name:	BOLT - 0.190 DIA X 0.812
Manufacturer Code:	U1653

AIR-STAGE 10 AIR SOLENOID VALVE

Export Control

Copyright

Applicability

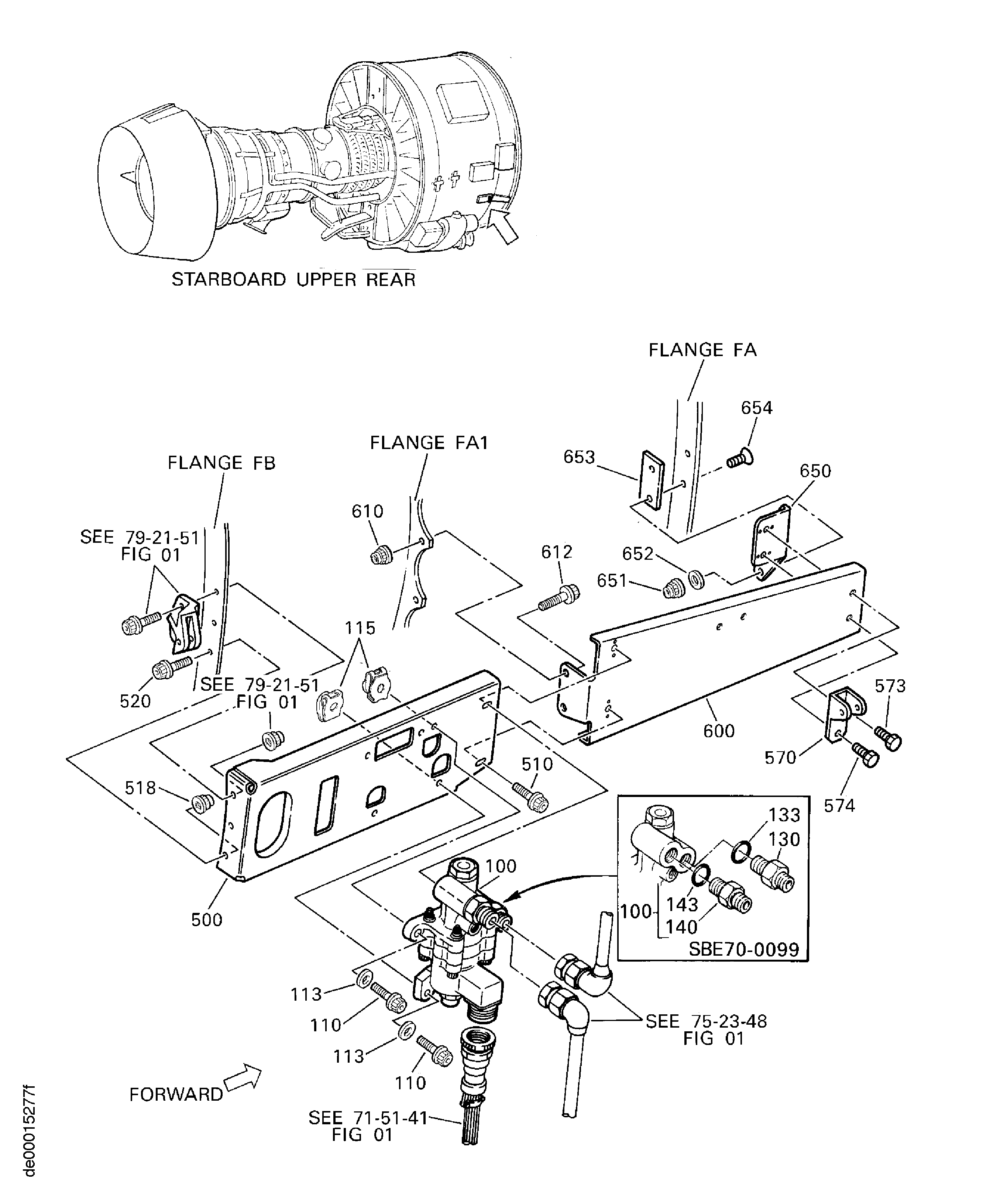

Figure: AIR-STAGE 10 AIR SOLENOID VALVE
