DMC:V2500-A1-75-24-47-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B75244701 | AIR-HP/LP ACTIVE CLEARANCE CONTROL SUPPLY DUCT, PRE SBE75-0006 | aa | ||
| SBE0006-01 | AIR-HP/LP ACTIVE CLEARANCE CONTROL SUPPLY DUCT, PRE SBE75-0025 | ab | ||
| SBE0025-01 | AIR-HP/LP ACTIVE CLEARANCE CONTROL SUPPLY DUCT, PRE SBE75-0060 | ac | ||
| SBE0060-01 | AIR-HP/LP ACTIVE CLEARANCE CONTROL SUPPLY DUCT, PRE SBE70-0574 | ad | ||
| SBE0574-01 | AIR-HP/LP ACTIVE CLEARANCE CONTROL SUPPLY DUCT, PRE SBE75-0119 | ae | ||
| SBE0119-01 | AIR-HP/LP ACTIVE CLEARANCE CONTROL SUPPLY DUCT | af | ||
| 070 | 2A3637 | • COVER - A/O DUCT FRONT POST SBE75-0025 | ac-af | 1 |
| 075 | 4W0102 | • BOLT - .190 DIA X .438 Optional Part 4W0102 POST SBE75-0025 | ac-af | 2 |
| 080 | MS21048-3 | • • NUT - ANCHOR TWO-LUG 96906 POST SBE75-0025 | ac-af | 1 |
| 084 | MS20427M3-4 | • • RIVET - 100 DEGREE C/S 96906 POST SBE75-0025 | ac-af | 2 |
| 100 | 2A0788 | • DUCT - ACC FRONT | aa-af | 1 |
| 110 | 4W0001 | • NUT - .190 DIA | aa-af | 2 |
| 115 | 4W0102 | • BOLT - .190 DIA X .438 | aa-af | 2 |
| 120 | 5W1644 | • CLAMP | aa-af | 1 |
| 125 | 5W1635 | • CLAMP | aa-af | 1 |
| 135 | 4W0002 | • NUT - .250 DIA | aa-af | 12 |
| 140 | 4W0165 | • BOLT - .250 DIA X .688 | aa-af | 12 |
| 190 | 2A1481 | • SHIELD - A/O HEAT | aa-af | 1 |
| 200 | 4W0001 | • NUT - .190 DIA | aa-af | 4 |
| 210 | 4W0102 | • BOLT - .190 DIA X .438 | aa-af | 4 |
| 300 | 2A1428 | • DUCT - A/O ACC REAR | aa-af | 1 |
| 310 | 4W0002 | • NUT - .250 DIA | aa-af | 4 |
| 315 | 4W0165 | • BOLT - .250 DIA X .688 | aa-af | 4 |
| 320 | 4W0002 | • NUT - .250 DIA | aa-af | 2 |
| 325 | 4W0166 | • BOLT - .250 DIA X .750 | aa-af | 2 |
| 500 | 5W8456 | • BRACKET - A/O VALVE ACC PRE SBE75-0006 | aa-af | 1 |
| 500A | 5W2098 | • BRACKET - VALVE ACC ASSY OF POST SBE75-0006 PRE SBE75-0060 | aa-af | 1 |
| 500B | 6A6486 | • BRACKET - VALVE ACC ASSY OF POST SBE75-0060 PRE SBE70-0574 | aa-af | 1 |
| 500C | 6A6587 | • BRACKET - ASSY ALT 6A6486 POST SBE70-0574 | aa-af | 1 |
| 500D | 6A6486 | • BRACKET - VALVE ACC ASSY OF ALT 6A6587 POST SBE70-0574 | aa-af | 1 |
| 510 | MS24665-151 | • PIN 96906 | aa-af | 1 |
| 515 | AN310C4 | • NUT 81352 | aa-af | 1 |
| 520 | NAS6704DU12 | • BOLT 80205 | aa-af | 1 |
| 532 | VTB12351 | • • • BEARING - SPHERICAL 06710 ALT P25001 POST SBE75-0060 | ad-af | 1 |
| 532A | P25001 | • • • BEARING - SPHERICAL 57606 ALT VTB12351 POST SBE75-0060 | ad-af | 1 |
| 540 | 5W2059 | • BUSH PRE SBE75-0119 | aa-ae | 2 |
| 540A | 6B1465 | • BUSH POST SBE75-0119 | aa-af | 2 |
| 550 | 5W2058 | • LINK - VALVE ACC PRE SBE70-0574 | aa-af | 1 |
| 550A | 6A6588 | • LINK ALT 5W2058 POST SBE70-0574 | aa-af | 1 |
| 550B | 5W2058 | • LINK - VALVE ACC ALT 6A6588 POST SBE70-0574 | aa-af | 1 |
| 560 | MS24665-151 | • PIN 96906 | aa-af | 1 |
| 565 | AN310C4 | • NUT 81352 | aa-af | 1 |
| 570 | NAS6704DU12 | • BOLT 80205 | aa-af | 1 |
| 590 | 5W2059 | • BUSH PRE SBE75-0119 | aa-ae | 2 |
| 590A | 6B1465 | • BUSH POST SBE75-0119 | aa-af | 2 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

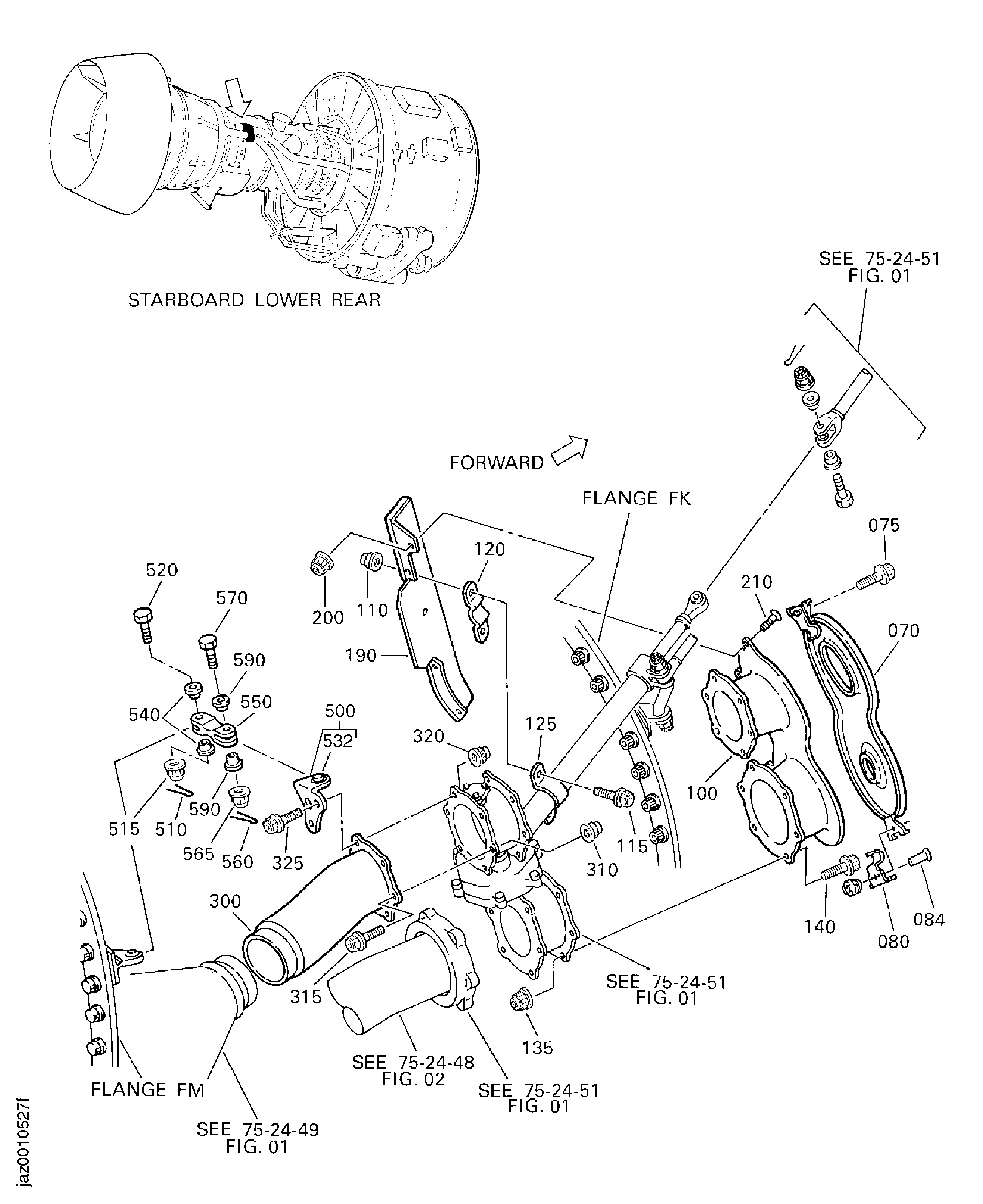

Figure: AIR-HP/LP ACTIVE CLEARANCE CONTROL SUPPLY DUCT
HP/LP ACTIVE CLEARANCE CONTROL DUCTS
