DMC:V2500-A1-75-28-48-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B75284801 | AIR-EEC COOLING FLEXIBLE TUBES | aa | ||
| 100 | BA5956 | • HOSE - FLEX INLET U1901 | aa | 2 |
| 100A | BA6409 | • HOSE - FLEX INLET U1901 PRE SBN71-0069 | ***** | 2 |
| 125 | BAS243N0A | • CLAMP U1901 | aa | 4 |
| 125A | BAS242MH0 | • CLAMP U1901 PRE SBN71-0069 | ***** | 4 |
| 500 | BA6014 | • HOSE - FLEXIBLE OUTLET U1901 | aa | 2 |
| 500A | BA6410 | • HOSE - FLEX OUTLET U1901 PRE SBN71-0069 | ***** | 2 |
| 525 | BAS243N0A | • CLAMP U1901 | aa | 4 |
| 525A | BAS242MH0 | • CLAMP U1901 PRE SBN71-0069 | ***** | 4 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

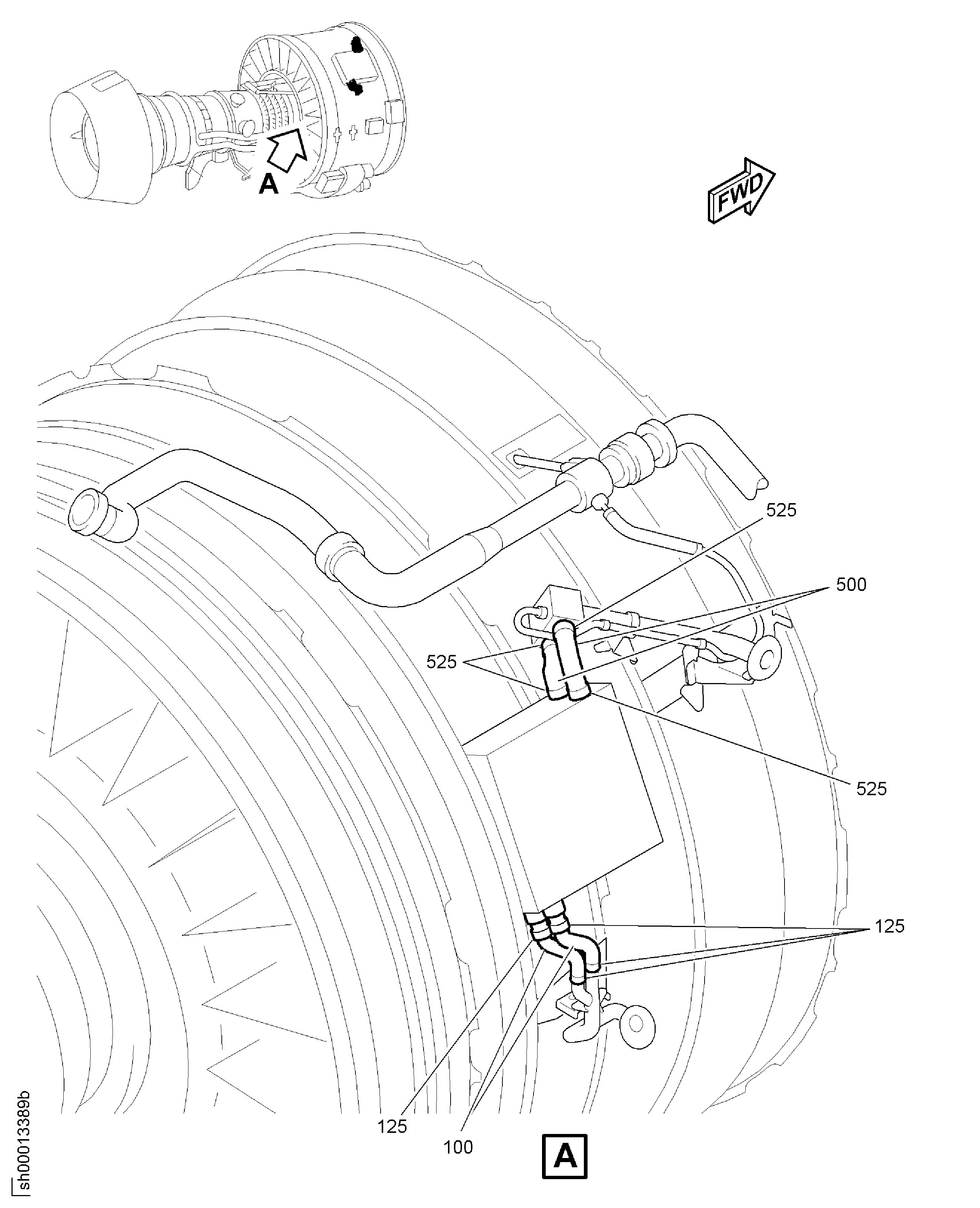

Figure: AIR-EEC COOLING FLEXIBLE TUBES
FLEXIBLE HOSES EEC COOLING
