AIR-EEC COOLING DUCTS

DMC:V2500-A1-75-28-49-01A-941A-D|Issue No:001.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig.
Item		Part No.DescriptionEffect/Model Applic.UPA
01
000B75284901AIR-EEC COOLING DUCTS, PRE SBN71-0069aa
000SBN0069-01AIR-EEC COOLING DUCTSab
100100740-5222-501• TUBE - ASSY
51563
PRE SBN71-0069		aa1
102102MS21902S4• UNION
96906		aa-ab1
102102AMS21902-5S• UNION
96906
PRE SBN71-0069		aa1
103103MS21913-5S• PLUG
96906
ALT AS27905
POST SBN71-0069
PRE SBN70-0076		*****1
-103103AAS27905• PLUG - SCREWED
U1653
ALT 740-5141-501
POST SBN71-0069
PRE SBN70-0076		*****REF
-103103B740-5141-501• PLUG
51563
POST SBN71-0069
PRE SBN70-0076		*****REF
10410412100AA4• SEAL
08199		aa-ab1
104104A12100AA5• SEAL
08199
PRE SBN70-0076		*****1
125125AS21412• BOLT - .190 DIA X .750
U1653
PRE SBN71-0069		aa1
127127SP154D• WASHER - .190 DIA
K7766
PRE SBN71-0069		aa1
129129AS20624• NUT - .190 DIA
U1653
PRE SBN71-0069		aa1
132132TA02109PH05FT• CLIP
84971
PRE SBN71-0069		aa1
133133AS21413• BOLT - .190 DIA X .812
U1653
PRE SBN71-0069		aa1
136136TA02109PH05FT• CLIP
84971
PRE SBN71-0069		aa1
140140556-1-15410-000• HOSE - ASSY,FLEX
U1603
PRE SBN71-0069		aa1
142142TA02109PH05FT• CLIP
84971
PRE SBN71-0069		aa1
150150TA02109PH05FT• CLIP
84971
PRE SBN71-0069		aa1
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

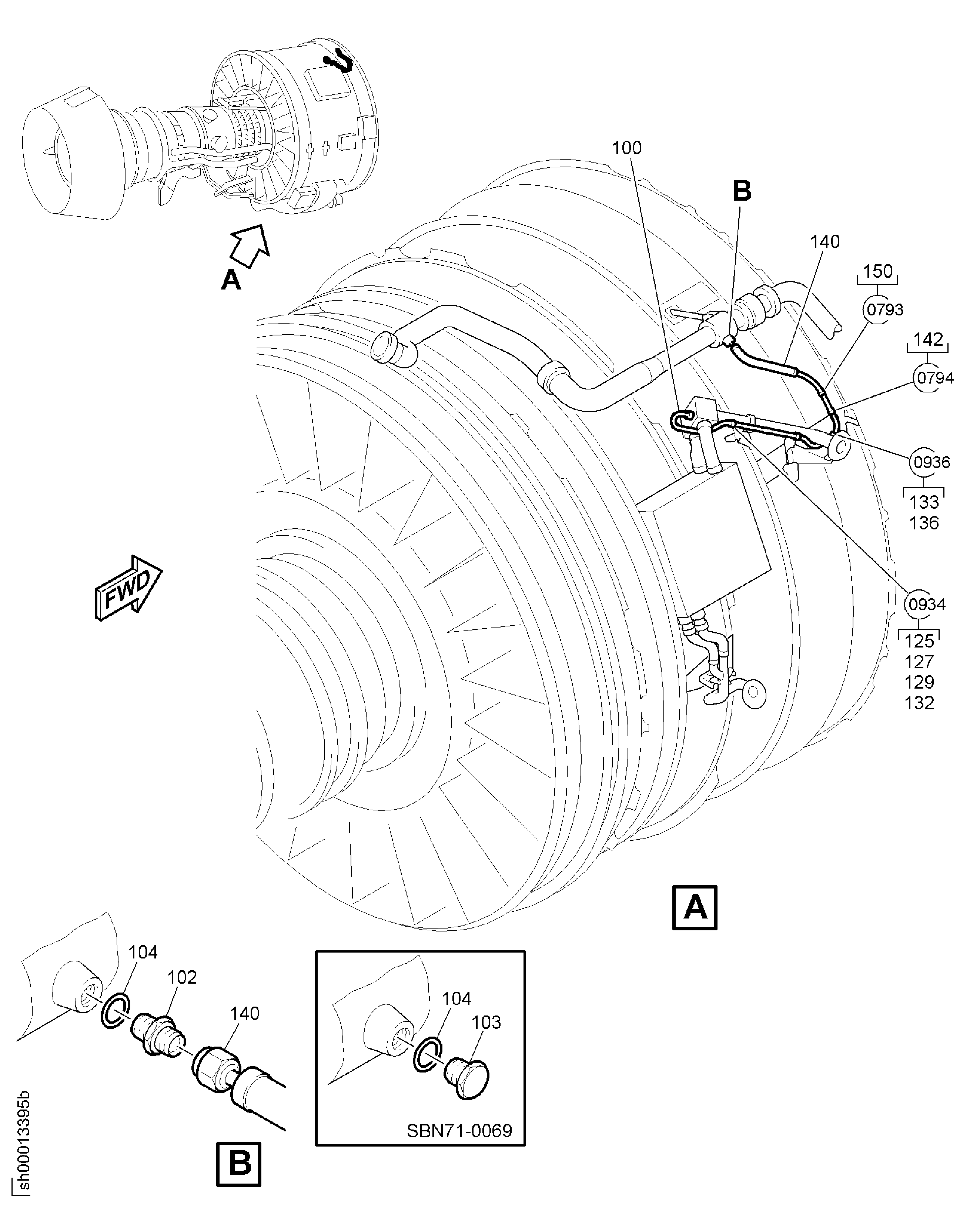

Figure: AIR-EEC COOLING DUCTS

DUCTS EEC COOLING
