DMC:V2500-A1-75-32-41-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B75324101 | AIR-HP COMPRESSOR VARIABLE STATOR VANE ACTUATOR, PRE SBE75-0007 | aa | ||
| SBE0007-01 | AIR-HP COMPRESSOR VARIABLE STATOR VANE ACTUATOR, PRE SBE70-0158 | ab | ||
| SBE0158-01 | AIR-HP COMPRESSOR VARIABLE STATOR VANE ACTUATOR, PRE SBE75-0020 | ac | ||
| SBE0020-01 | AIR-HP COMPRESSOR VARIABLE STATOR VANE ACTUATOR, PRE SBE75-0029 | ad | ||
| SBE0029-01 | AIR-HP COMPRESSOR VARIABLE STATOR VANE ACTUATOR, PRE SBE75-0034 | ae | ||
| SBE0034-01 | AIR-HP COMPRESSOR VARIABLE STATOR VANE ACTUATOR, PRE SBE75-0061 | af | ||
| SBE0061-01 | AIR-HP COMPRESSOR VARIABLE STATOR VANE ACTUATOR, PRE SBE75-0075 | ag | ||
| SBE0075-01 | AIR-HP COMPRESSOR VARIABLE STATOR VANE ACTUATOR, PRE SBE75-0078 | ah | ||
| SBE0078-01 | AIR-HP COMPRESSOR VARIABLE STATOR VANE ACTUATOR, PRE SBE75-0112 | ai | ||
| SBE0112-01 | AIR-HP COMPRESSOR VARIABLE STATOR VANE ACTUATOR | aj | ||
| 070 | 5W8366 | • BRACKET - ASSY PRE SBE70-0158 | aa-ae | 1 |
| 070A | 6A4672 | • BRACKET - ASSY OF POST SBE70-0158 PRE SBE75-0034 | aa-ae | 1 |
| 070B | 6A4659 | • BRACKET - ASSY OF POST SBE75-0034 | aa-aj | 1 |
| 080 | 6A3092 | • BRACKET - ASSY SUPPORTING | aa-aj | 1 |
| 082 | 4W0226 | • BOLT - .3125 DIA X .812 | aa-aj | 2 |
| 088 | AS44803 | • • PIN - SHOULDER,HEADLESS U1653 | aa-aj | 1 |
| 100 | 1685MK4 | • ACTUATOR K0131 PRE SBE75-0007 | aa-ai | 1 |
| 100A | 1685MK4 | • ACTUATOR K0131 POST SBE75-0007 PRE SBE75-0020 | aa-ai | 1 |
| 100B | 1685MK5 | • ACTUATOR - STATOR VANE K0131 POST SBE75-0020 PRE SBE75-0029 | aa-ai | 1 |
| 100C | 1685MK6 | • ACTUATOR - STATOR VANE K0131 POST SBE75-0029 PRE SBE75-0061 | aa-ai | 1 |
| 100D | 1685MK7 | • ACTUATOR - VARIABLE STATOR VANE K0131 POST SBE75-0061 PRE SBE75-0075 | aa-ai | 1 |
| 100E | 1685MK7 | • ACTUATOR - VARIABLE STATOR VANE K0131 POST SBE75-0075 PRE SBE75-0078 | aa-ai | 1 |
| 100F | 1685MK7 | • ACTUATOR K0131 POST SBE75-0078 PRE SBE75-0112 | aa-ai | 1 |
| 100G | 1685MK8 | • ACTUATOR - VSV K0131 POST SBE75-0112 | aa-aj | 1 |
| 102 | 4W0231 | • BOLT - .3125 DIA X 1.125 | aa-aj | 2 |
| 104 | AS26096 | • WASHER U1653 | aa-aj | 2 |
| 112 | 4W0228 | • BOLT - .3125 DIA X .938 | aa-aj | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

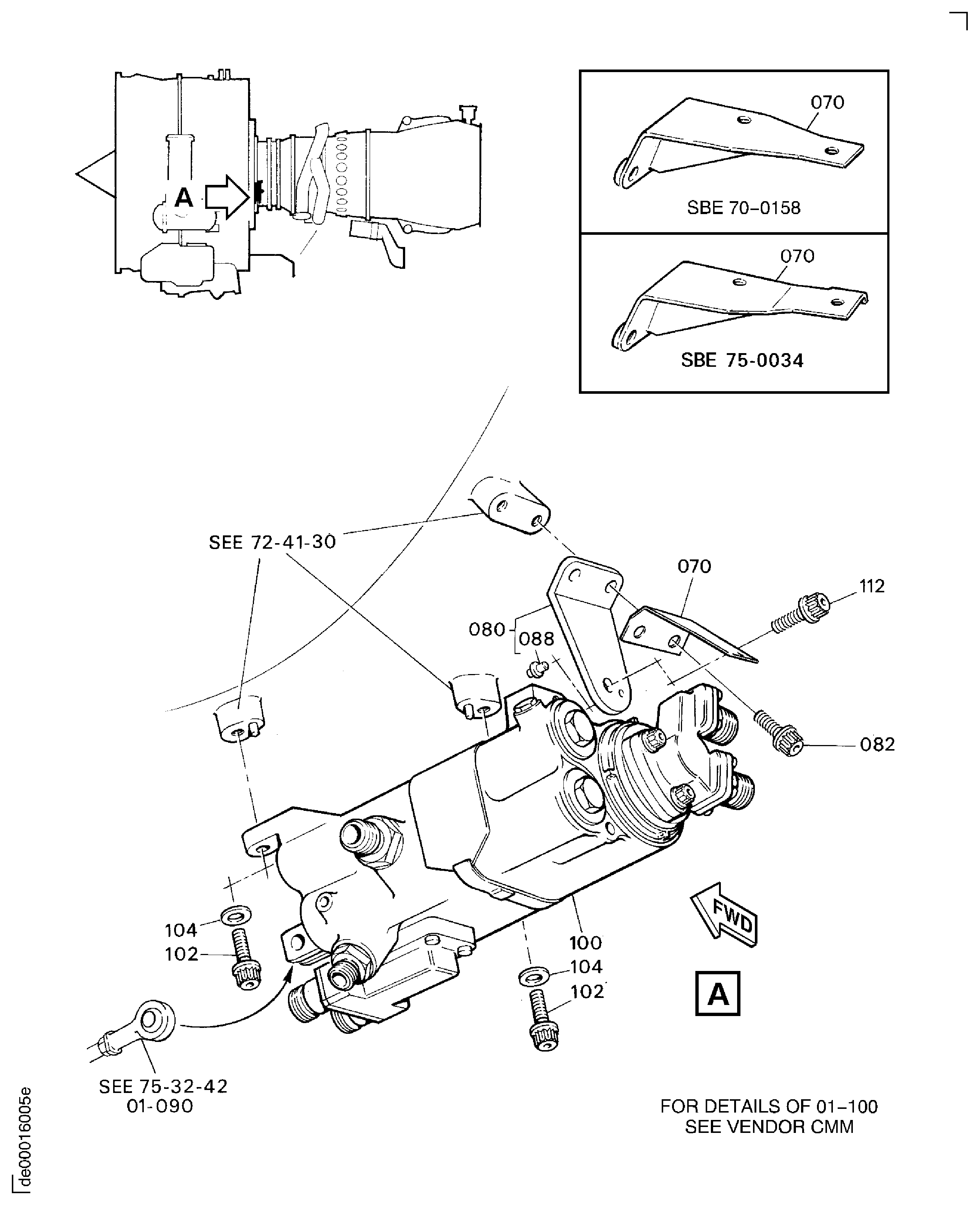

Figure: AIR-HP COMPRESSOR VARIABLE STATOR VANE ACTUATOR
VARIABLE STATOR VANE ACTUATOR
