AIR-HP COMPRESSOR BLEED CONTROL TUBES

DMC:V2500-A1-75-32-49-01A-941A-D|Issue No:001.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig.
Item		Part No.DescriptionEffect/Model Applic.UPA
01
000B75324901AIR-HP COMPRESSOR BLEED CONTROL TUBES, PRE SBE75-0049aa
000SBE0049-01AIR-HP COMPRESSOR BLEED CONTROL TUBES, PRE SBE71-0109ab
000SBE0109-01AIR-HP COMPRESSOR BLEED CONTROL TUBES, PRE SBE79-0087ac
000SBE0087-01AIR-HP COMPRESSOR BLEED CONTROL TUBES, PRE SBE71-0289ad
000SBE0289-01AIR-HP COMPRESSOR BLEED CONTROL TUBESae
1001005A9043• TUBE - A/O AIR HPC 10TH BLEED
PRE SBE79-0087		aa-ac1
100100A6A6200• TUBE - A/O AIR-HP AIR TO B.VALVE SOLENOIDTEE TO BIF
POST SBE79-0087		ad-ae1
1571574W0127• BOLT - .190 DIA X 2.000
Optional Part
4W0127
POST SBE75-0049
PRE SBE79-0087		ab-ac1
160160TA0210046FT08• CLIP
84971
POST SBE75-0049
PRE SBE79-0087		ab-ac1
160160ATA025022-08• CLAMP - 12.70 MM (0.500)
84971
POST SBE71-0289		ae1
162162LK56556• SPACER
POST SBE75-0049
PRE SBE79-0087		ab-ac1
163163LK67295• SPACER
POST SBE75-0049
PRE SBE79-0087		ab-ac1
1641644W0001• NUT - .190 DIA
Optional Part
4W0001
POST SBE75-0049
PRE SBE79-0087		ab-ac1
176176AS62408• CLIP - 12.70 MM (0.500)
U1653
POST SBE79-0087		ad-ae1
184184AS62408• CLIP - 12.70 MM (0.500)
U1653
POST SBE79-0087		ad-ae1
200200AS15781• • WIRE - THRUST
U1653
PRE SBE79-0087		aa-ac2
200200AAS15781• • WIRE - THRUST
U1653
POST SBE79-0087		ad-ae1
201201AS15705• • NUT - TUBE COUPLING
U1653
PRE SBE79-0087		aa-ac2
201201AAS15705• • NUT - TUBE COUPLING
U1653
POST SBE79-0087		ad-ae1
2022025W8147• • FERRULE - ELBOWaa-ae1
2142145W1063• • LUG - BRAZED
PRE SBE79-0087		aa-ac2
214214AUP11155• • BRACKET - INTER TUBE SUPPORT
POST SBE79-0087		ad-ae1
240240AS15781• • WIRE - THRUST
U1653
POST SBE79-0087		ad-ae1
241241AS15705• • NUT - TUBE COUPLING
U1653
POST SBE79-0087		ad-ae1
242242AS15730• • FERRULE - WELDING TUBE
U1653		aa-ae1
5005005A9067• TUBE - A/O AIR HP BLEED S/VAL
PRE SBE79-0087		aa-ac1
500500A6A6215• TUBE - A/O AIR-BIF PANEL TO SOLENOID DISCON
POST SBE79-0087		ad-ae1
5025024W0002• NUT - .250 DIAaa-ae2
5065064W0163• BOLT - .250 DIA X .562aa-ae2
5335334W0103• BOLT - .190 DIA X .500
POST SBE71-0109
PRE SBE79-0087		ac1
5345345W1086• WASHER
POST SBE71-0109
PRE SBE79-0087		ac1
536536400WSS8• CLIP
83930
POST SBE71-0109
PRE SBE79-0087		ac1
5405404W0001• NUT - .190 DIA
POST SBE71-0109
PRE SBE79-0087		ac1
544544AS62408• CLIP - 12.70 MM (0.500)
U1653
POST SBE79-0087		ad-ae1
552552AS62408• CLIP - 12.70 MM (0.500)
U1653
POST SBE79-0087		ad-ae1
5575574W0107• BOLT - .190 DIA X .750
POST SBE79-0087		ad-ae1
558558K8831• WASHER - .190 DIA X 0,51 THK
POST SBE79-0087		ad-ae2
560560AS62408• CLIP - 12.70 MM (0.500)
U1653
POST SBE79-0087		ad-ae1
562562UP10478• SPACER - 5MM
POST SBE79-0087		ad-ae1
5645644W0001• NUT - .190 DIA
POST SBE79-0087		ad-ae1
568568AS62408• CLIP - 12.70 MM (0.500)
U1653
POST SBE79-0087		ad-ae1
5735734W0103• BOLT - .190 DIA X .500
POST SBE79-0087		ad-ae1
574574K8831• WASHER - .190 DIA X 0,51 THK
POST SBE79-0087		ad-ae1
576576AS62408• CLIP - 12.70 MM (0.500)
U1653
POST SBE79-0087		ad-ae1
5805804W0001• NUT - .190 DIA
POST SBE79-0087		ad-ae1
6026025W8022• • ADAPTOR - UNION FLANGEDaa-ae1
6146145W1063• • LUG - BRAZED
PRE SBE79-0087		aa-ac2
614614AUP11155• • BRACKET - INTER TUBE SUPPORT
POST SBE79-0087		ad-ae4
642642AS15810• • ADAPTOR - STRAIGHT TUBE
U1653		aa-ae1
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

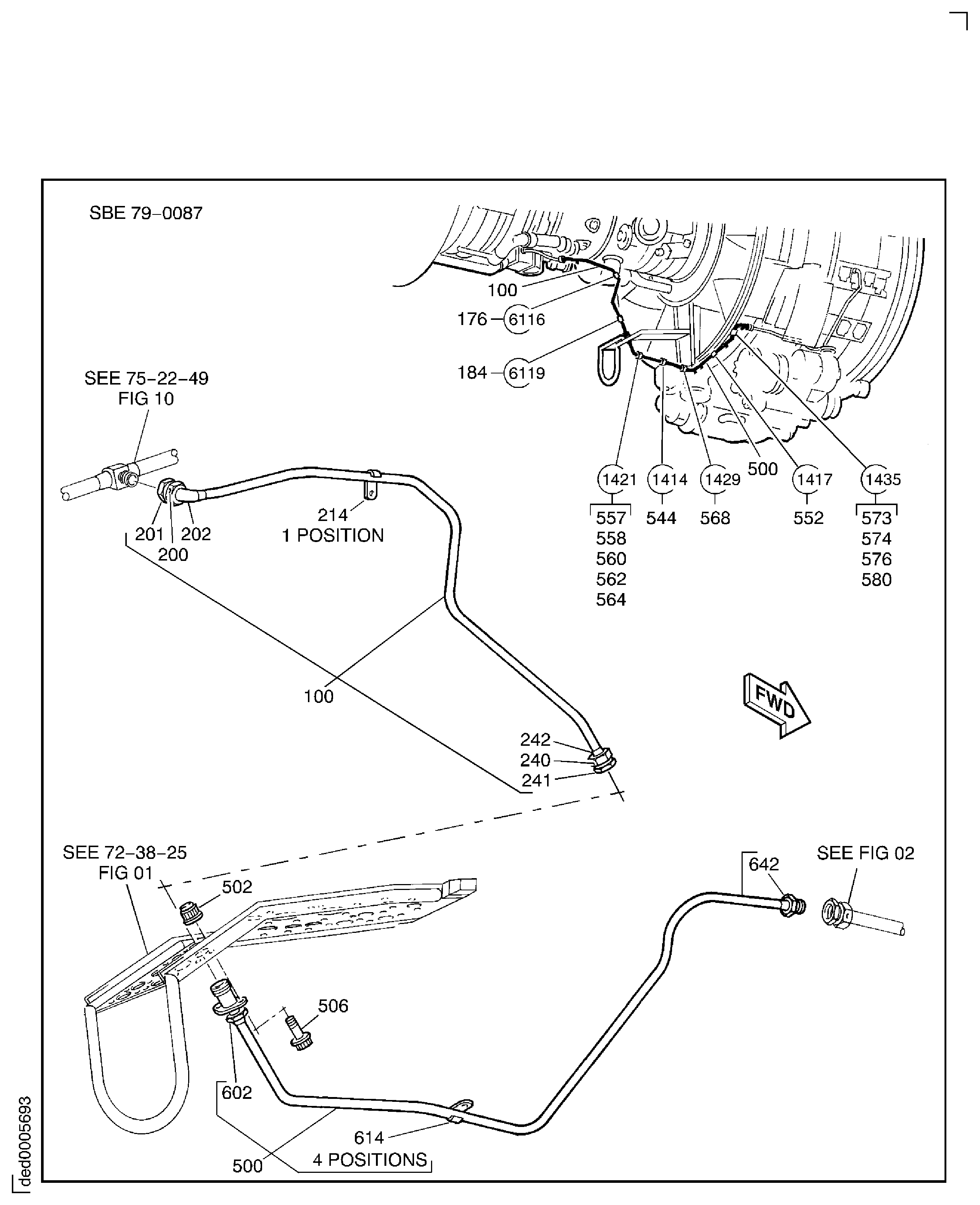

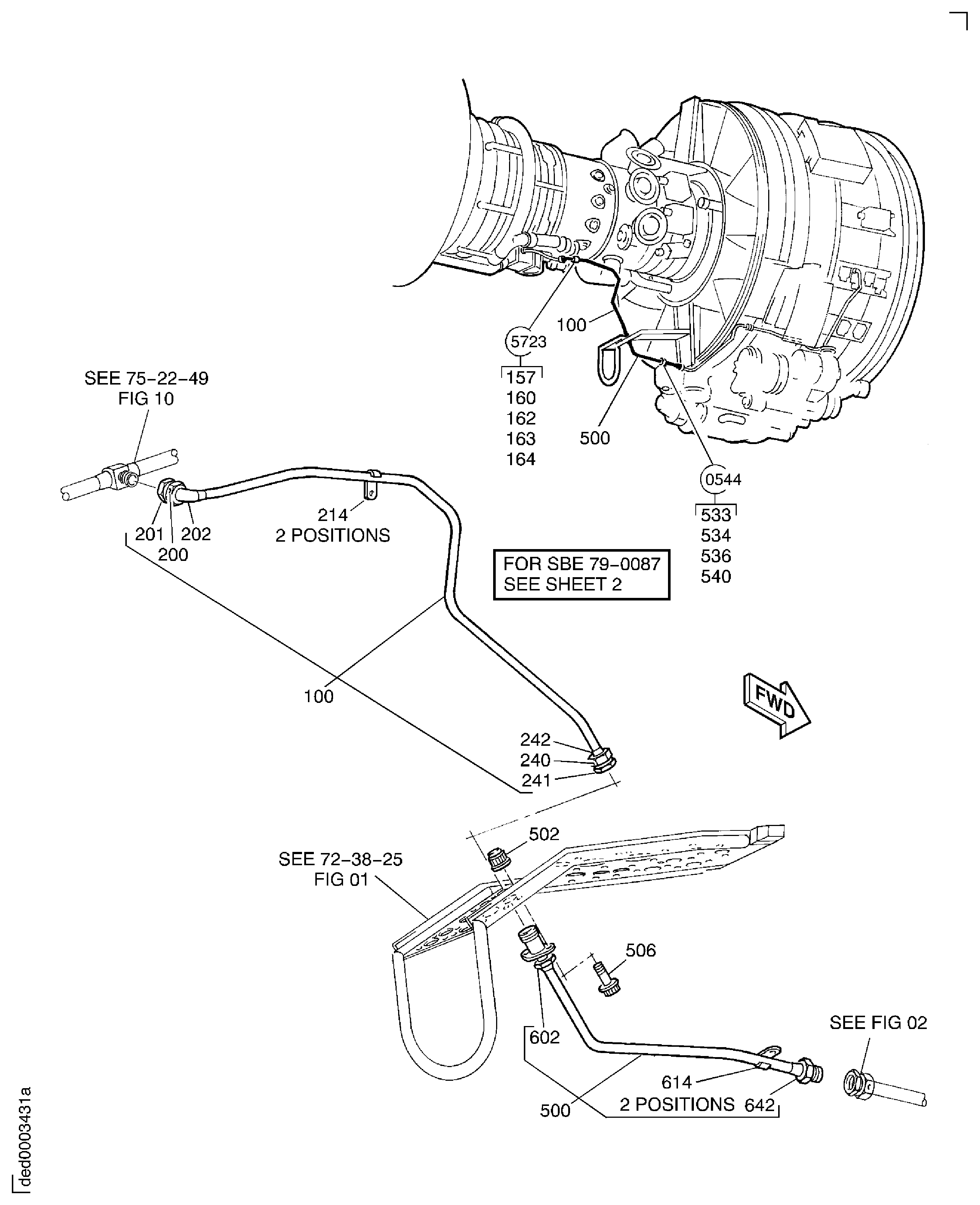

Figure: AIR-HP COMPRESSOR BLEED CONTROL TUBES
