DMC:V2500-A1-75-32-49-02A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 02 | ||||
| B75324902 | AIR-HP COMPRESSOR BLEED CONTROL TUBES, PRE SBE72-0052 | aa | ||
| SBE0052-01 | AIR-HP COMPRESSOR BLEED CONTROL TUBES, PRE SBE75-0050 | ab | ||
| SBE0050-01 | AIR-HP COMPRESSOR BLEED CONTROL TUBES, PRE SBE79-0087 | ac | ||
| SBE0087-01 | AIR-HP COMPRESSOR BLEED CONTROL TUBES | ad | ||
| 100 | 5A9068 | • TUBE - A/O AIR HP BLEED S/VAL PRE SBE75-0050 | aa-ab | 1 |
| 100A | 6A5337 | • TUBE - A/O AIR HP BLEED S/VAL POST SBE75-0050 PRE SBE79-0087 | aa-ac | 1 |
| 125 | 4W0103 | • BOLT - .190 DIA X .500 PRE SBE79-0087 | aa-ac | 1 |
| 126 | 5W1086 | • WASHER PRE SBE79-0087 | aa-ac | 1 |
| 128 | 400WSS8 | • CLIP 83930 PRE SBE79-0087 | aa-ac | 1 |
| 132 | 4W0001 | • NUT - .190 DIA PRE SBE79-0087 | aa-ac | 1 |
| 133 | 4W0106 | • BOLT - .190 DIA X .688 PRE SBE72-0052 | aa | 1 |
| 133A | 4W0108 | • BOLT - .190 DIA X .812 POST SBE72-0052 PRE SBE79-0087 | aa-ac | 1 |
| 134 | 5W1086 | • WASHER PRE SBE79-0087 | aa-ac | 2 |
| 136 | 400WSS8 | • CLIP 83930 PRE SBE79-0087 | aa-ac | 1 |
| 140 | 4W0001 | • NUT - .190 DIA PRE SBE79-0087 | aa-ac | 1 |
| 200 | AS15781 | • • WIRE - THRUST U1653 PRE SBE79-0087 | aa-ac | 1 |
| 201 | AS15705 | • • NUT - TUBE COUPLING U1653 PRE SBE79-0087 | aa-ac | 1 |
| 202 | AS15730 | • • FERRULE - WELDING TUBE U1653 PRE SBE79-0087 | aa-ac | 1 |
| 214 | UP11155 | • • BRACKET - INTER TUBE SUPPORT POST SBE75-0050 PRE SBE79-0087 | ac | 2 |
| 242 | AS15810 | • • ADAPTOR - STRAIGHT TUBE U1653 PRE SBE79-0087 | aa-ac | 1 |
| 500 | 5A9139 | • TUBE - A/O AIR HP BLEED S/VAL | aa-ad | 1 |
| 525 | 4W0103 | • BOLT - .190 DIA X .500 POST SBE79-0087 | ad | 1 |
| 526 | 5W1086 | • WASHER POST SBE79-0087 | ad | 1 |
| 528 | 400WSS8 | • CLIP 83930 PRE SBE79-0087 | aa-ac | 1 |
| 528A | AS62408 | • CLIP - 12.70 MM (0.500) U1653 POST SBE79-0087 | ad | 1 |
| 532 | 4W0043 | • NUT - .190 DIA POST SBE79-0087 | ad | 1 |
| 541 | 4W0105 | • BOLT - .190 DIA X .625 | aa-ad | 1 |
| 542 | 5W1086 | • WASHER | aa-ad | 2 |
| 544 | 400WSS8 | • CLIP 83930 | aa-ad | 1 |
| 548 | 4W0001 | • NUT - .190 DIA | aa-ad | 1 |
| 557 | 4W0107 | • BOLT - .190 DIA X .750 | aa-ad | 1 |
| 558 | 5W1086 | • WASHER | aa-ad | 2 |
| 560 | 400WSS8 | • CLIP 83930 | aa-ad | 1 |
| 562 | 5W1029 | • SPACER - (5MM) | aa-ad | 1 |
| 564 | 4W0001 | • NUT - .190 DIA | aa-ad | 1 |
| 600 | AS15781 | • • WIRE - THRUST U1653 | aa-ad | 1 |
| 601 | AS15705 | • • NUT - TUBE COUPLING U1653 | aa-ad | 1 |
| 602 | AS15730 | • • FERRULE - WELDING TUBE U1653 | aa-ad | 1 |
| 614 | 5W1063 | • • LUG - BRAZED | aa-ad | 2 |
| 618 | 5A8129 | • • CONNECTR - TEE | aa-ad | 4 |
| 628 | 5W8128 | • • CONNECTR - TEE | aa-ad | 1 |
| 640 | AS15778 | • • WIRE - THRUST U1653 | aa-ad | 1 |
| 641 | AS15702 | • • NUT - TUBE COUPLING U1653 | aa-ad | 1 |
| 642 | 5W8144 | • • FERRULE - ELBOW | aa-ad | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

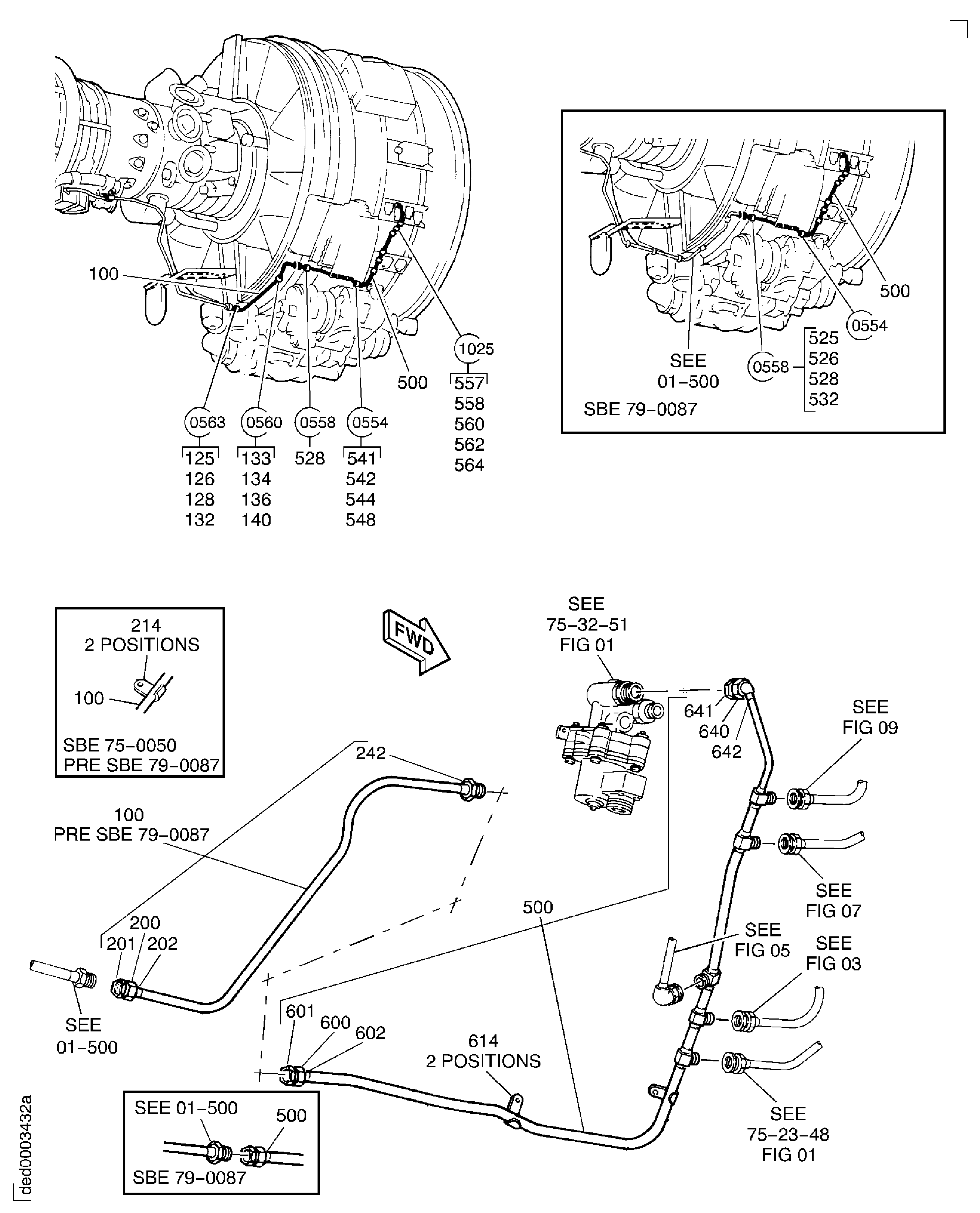

Figure: AIR-HP COMPRESSOR BLEED CONTROL TUBES
AIR-HPC BLEED CONTROL TUBES
