| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 03 | ||||
| B75324903 | AIR-HP COMPRESSOR BLEED CONTROL TUBES, PRE SBE73-0198 | aa | ||
| SBE0198-01 | AIR-HP COMPRESSOR BLEED CONTROL TUBES | ab | ||
| 100 | 5A9147 | • TUBE - A/O AIR TO 10TH S/VAL | aa-ab | 1 |
| 200 | AS15778 | • • WIRE - THRUST U1653 | aa-ab | 1 |
| 201 | AS15702 | • • NUT - TUBE COUPLING U1653 | aa-ab | 1 |
| 202 | AS15724 | • • FERRULE - WELDING TUBE U1653 | aa-ab | 1 |
| 240 | AS15778 | • • WIRE - THRUST U1653 | aa-ab | 1 |
| 241 | AS15702 | • • NUT - TUBE COUPLING U1653 | aa-ab | 1 |
| 242 | 5W8144 | • • FERRULE - ELBOW | aa-ab | 1 |
| 500 | 5A9146 | • TUBE - A/O AIR HPC 10TH B/VAL PRE SBE73-0198 | aa | 1 |
| 500A | 6A9042 | • TUBE - ASSY POST SBE73-0198 | ab | 1 |
| 549 | 4W0104 | • BOLT - .190 DIA X .562 | aa-ab | 1 |
| 550 | 5W1086 | • WASHER | aa-ab | 2 |
| 552 | 400WSS4 | • CLIP 83930 | aa-ab | 1 |
| 556 | 4W0001 | • NUT - .190 DIA | aa-ab | 1 |
| 557 | 4W0103 | • BOLT - .190 DIA X .500 | aa-ab | 1 |
| 558 | 5W1086 | • WASHER | aa-ab | 1 |
| 560 | 400WSS4 | • CLIP 83930 | aa-ab | 1 |
| 564 | 4W0001 | • NUT - .190 DIA | aa-ab | 1 |
| 568 | 400WSS4 | • CLIP 83930 | aa-ab | 1 |
| 576 | 400WSS4 | • CLIP 83930 | aa-ab | 1 |
| 600 | AS15777 | • • WIRE - THRUST U1653 | aa-ab | 2 |
| 601 | AS15701 | • • NUT - TUBE COUPLING U1653 | aa-ab | 2 |
| 602 | 5W8143 | • • FERRULE - ASSY ELBOW | aa-ab | 1 |
| 640 | AS15777 | • • WIRE - THRUST U1653 | aa-ab | 1 |
| 641 | AS15701 | • • NUT - TUBE COUPLING U1653 | aa-ab | 1 |
| 642 | AS15768 | • • FERRULE - ASSY U1653 | aa-ab | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

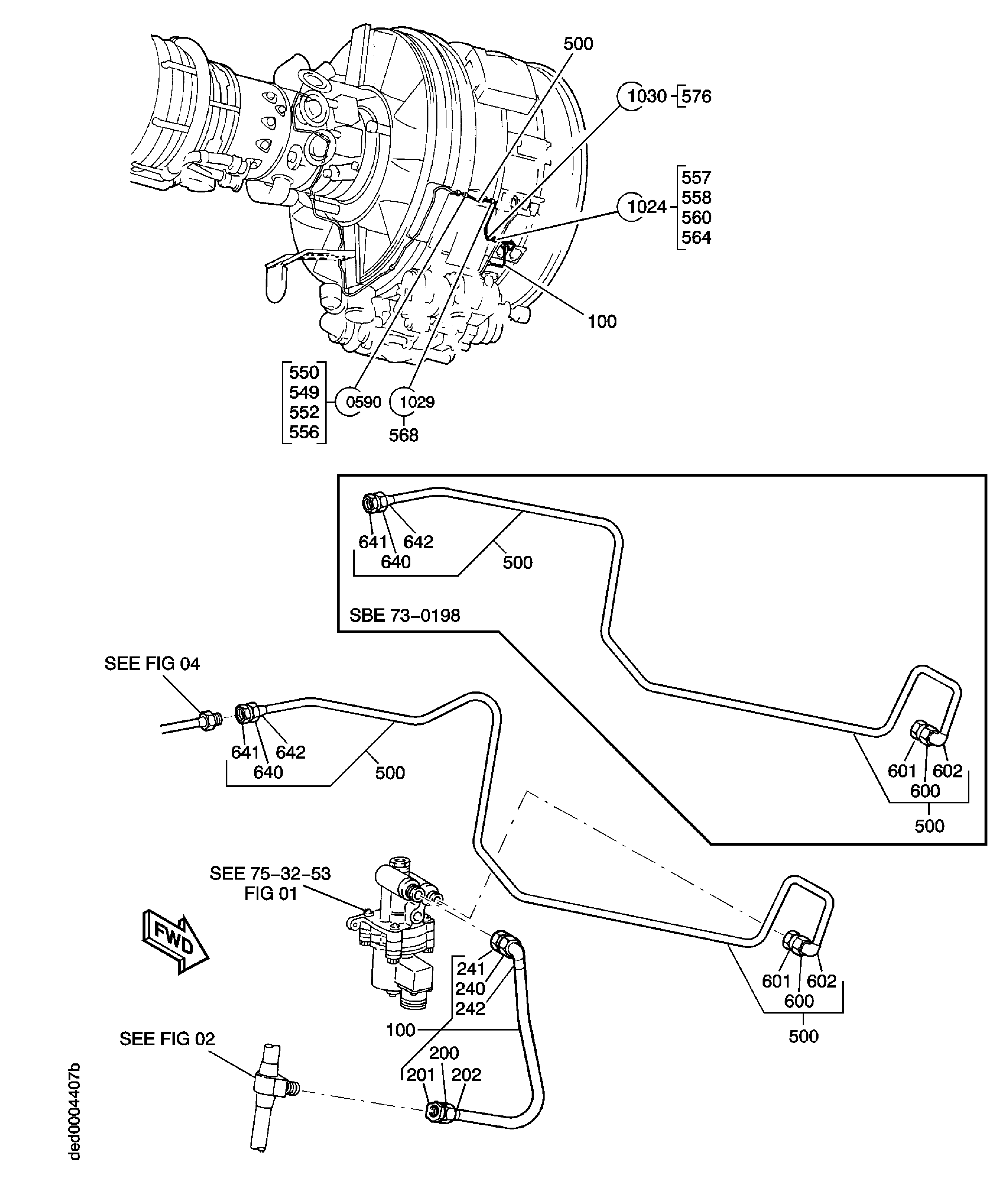

Figure: AIR-HP COMPRESSOR BLEED CONTROL TUBES
AIR-HPC BLEED CONTROL TUBES
