AIR-HP COMPRESSOR BLEED CONTROL TUBES

DMC:V2500-A1-75-32-49-04A-941A-D|Issue No:001.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig.
Item		Part No.DescriptionEffect/Model Applic.UPA
04
000B75324904AIR-HP COMPRESSOR BLEED CONTROL TUBES, PRE SBE71-0109aa
000SBE0109-01AIR-HP COMPRESSOR BLEED CONTROL TUBES, PRE SBE79-0087ab
000SBE0087-01AIR-HP COMPRESSOR BLEED CONTROL TUBES, PRE SBE73-0198ac
000SBE0198-01AIR-HP COMPRESSOR BLEED CONTROL TUBESad
1001005A9071• TUBE - A/O AIR HPC 10TH B/VAL
PRE SBE71-0109		aa1
100100A6A5330• TUBE - AIR-ASSY 0F
POST SBE71-0109
PRE SBE79-0087		ab1
100100B6A6222• TUBE - A/O AIR-HP10SOLENOID DISCON TO DISCON
POST SBE79-0087
PRE SBE73-0198		ac1
100100C6A6212• TUBE - A/O
POST SBE73-0198		ad1
1251254W0103• BOLT - .190 DIA X .500
ALT 4W0103
POST SBE73-0198		ad1
125125A4W0343• BOLT - .190 DIA X .500
ALT 4W0343
POST SBE73-0198		ad1
1261265W1086• WASHER
POST SBE73-0198		ad1
128128400WSS4• CLIP
83930
PRE SBE73-0198		aa-ad1
128128A400WSS4• CLIP
83930
ALT AS62404
POST SBE73-0198		aa-ad1
128128BAS62404• CLIP - 6.35 MM (0.250)
U1653
ALT 400WSS4
POST SBE73-0198		aa-ad1
1321324W0043• NUT - .190 DIA
Optional Part
4W0043
POST SBE73-0198		ad1
136136400WSS4• CLIP
83930
PRE SBE73-0198		aa-ad1
136136A400WSS4• CLIP
83930
ALT AS62404
POST SBE73-0198		aa-ad1
136136BAS62404• CLIP - 6.35 MM (0.250)
U1653
ALT 400WSS4
POST SBE73-0198		aa-ad1
144144400WSS4• CLIP
83930
PRE SBE73-0198		aa-ad1
144144A400WSS4• CLIP
83930
ALT AS62404
POST SBE73-0198		aa-ad1
144144BAS62404• CLIP - 6.35 MM (0.250)
U1653
ALT 400WSS4
POST SBE73-0198		aa-ad1
152152400WSS4• CLIP
83930
PRE SBE73-0198		aa-ad1
152152A400WSS4• CLIP
83930
ALT AS62404
POST SBE73-0198		aa-ad1
152152BAS62404• CLIP - 6.35 MM (0.250)
U1653
ALT 400WSS4
POST SBE73-0198		aa-ad1
160160400WSS4• CLIP
83930
PRE SBE79-0087		aa-ab1
1651654W0115• BOLT - .190 DIA X 1.250
Optional Part
4S48020
POST SBE79-0087
PRE SBE73-0198		ac1
166166K8831• WASHER - .190 DIA X 0,51 THK
POST SBE79-0087
PRE SBE73-0198		ac2
168168AS62404• CLIP - 6.35 MM (0.250)
U1653
POST SBE79-0087
PRE SBE73-0198		ac1
170170UP10480• SPACER - 15MM
POST SBE79-0087
PRE SBE73-0198		ac1
1721724W0001• NUT - .190 DIA
Optional Part
AS20624
POST SBE79-0087
PRE SBE73-0198		ac1
202202AS15802• • ADAPTOR
U1653
PRE SBE71-0109		aa2
202202AAS15802• • ADAPTOR
U1653
POST SBE71-0109		ab-ad1
214214UP11152• • BRACKET - INTER TUBE SUPPORT
POST SBE79-0087
PRE SBE73-0198		ac1
240240AS15777• WIRE - THRUST
U1653
POST SBE73-0198		ad1
241241AS15777• WIRE - THRUST
U1653
POST SBE73-0198		ad1
242242AS15768• FERRULE - ASSY
U1653
POST SBE73-0198		ad1
2532534W0102• BOLT - .190 DIA X .438
Optional Part
AS21407
POST SBE73-0198		ad1
254254K8831• WASHER - .190 DIA X 0,51 THK
POST SBE73-0198		ad1
256256AS62404• CLIP - 6.35 MM (0.250)
U1653
POST SBE73-0198		ad1
2602604W0001• NUT - .190 DIA
Optional Part
AS20624
POST SBE73-0198		ad1
2612614W0105• BOLT - .190 DIA X .625
Optional Part
AS21410
POST SBE73-0198		ad1
262262K8831• WASHER - .190 DIA X 0,51 THK
POST SBE73-0198		ad1
264264AS62404• CLIP - 6.35 MM (0.250)
U1653
POST SBE73-0198		ad1
2682684W0001• NUT - .190 DIA
Optional Part
AS20624
POST SBE73-0198		ad1
5005005A8743• TUBE - ASSY
PRE SBE71-0109		aa1
500500A6A5331• TUBE - AIR-ASSY OF
POST SBE71-0109
PRE SBE79-0087		ab1
500500B6A6223• TUBE - A/O AIR-HP7SOLENOID DISCON TO BIF PANEL
POST SBE79-0087
PRE SBE73-0198		ac1
500500C6A9041• TUBE - ASSY
POST SBE73-0198		ad1
5105104W0002• NUT - .250 DIAaa-ad2
5145144W0163• BOLT - .250 DIA X .562aa-ad2
528528400WSS4• CLIP
83930
POST SBE71-0109
PRE SBE79-0087		ab1
536536400WSS4• CLIP
83930
POST SBE71-0109
PRE SBE79-0087		ab1
536536AAS62404• CLIP - 6.35 MM (0.250)
U1653
POST SBE79-0087
PRE SBE73-0198		ac1
5415414W0115• BOLT - .190 DIA X 1.250
Optional Part
AS48020
POST SBE79-0087		ac-ad1
541541A4W0116• BOLT - .190 DIA X 1.312
ALT 4W0356
POST SBE73-0198		ad1
541541B4W0356• BOLT - .190 DIA X 1.312
ALT 4W0116
POST SBE73-0198		ad1
542542K8831• WASHER - .190 DIA X 0,51 THK
POST SBE79-0087		ac-ad1
544544AS62404• CLIP - 6.35 MM (0.250)
U1653
POST SBE79-0087		ac-ad1
546546UP10480• SPACER - 15MM
POST SBE79-0087		ac-ad1
5915914W0114• BOLT - .190 DIA X 1.188
POST SBE79-0087
PRE SBE73-0198		ac-ad1
591591A4W0114• BOLT - .190 DIA X 1.188
ALT 4W0354
POST SBE73-0198		ac-ad1
591591B4W0354• BOLT - .190 DIA X 1.188
ALT 4W0114
POST SBE73-0198		ac-ad1
592592K8831• WASHER - .190 DIA X 0,51 THK
POST SBE79-0087		ac-ad1
594594AS62404• CLIP - 6.35 MM (0.250)
U1653
POST SBE79-0087		ac-ad1
596596UP10480• SPACER - 15MM
POST SBE79-0087		ac-ad1
5985984W0001• NUT - .190 DIA
POST SBE79-0087		ac-ad1
600600AS15777• • WIRE - THRUST
U1653
PRE SBE73-0198		aa-ac1
601601AS15701• • NUT - TUBE COUPLING
U1653
PRE SBE73-0198		aa-ac1
602602AS15768• • FERRULE - ASSY
U1653
PRE SBE73-0198		aa-ac1
605605AS15802• ADAPTOR
U1653
POST SBE73-0198		ad1
6146145W1059• • LUG - BRAZED
PRE SBE71-0109		aa2
614614AUP11152• • BRACKET - INTER TUBE SUPPORT
POST SBE71-0109
PRE SBE79-0087		ab1
6426425W8019• • ADAPTOR - UNION FLANGEDaa-ad1
656656AS62404• CLIP - 6.35 MM (0.250)
U1653
POST SBE73-0198		ad1
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

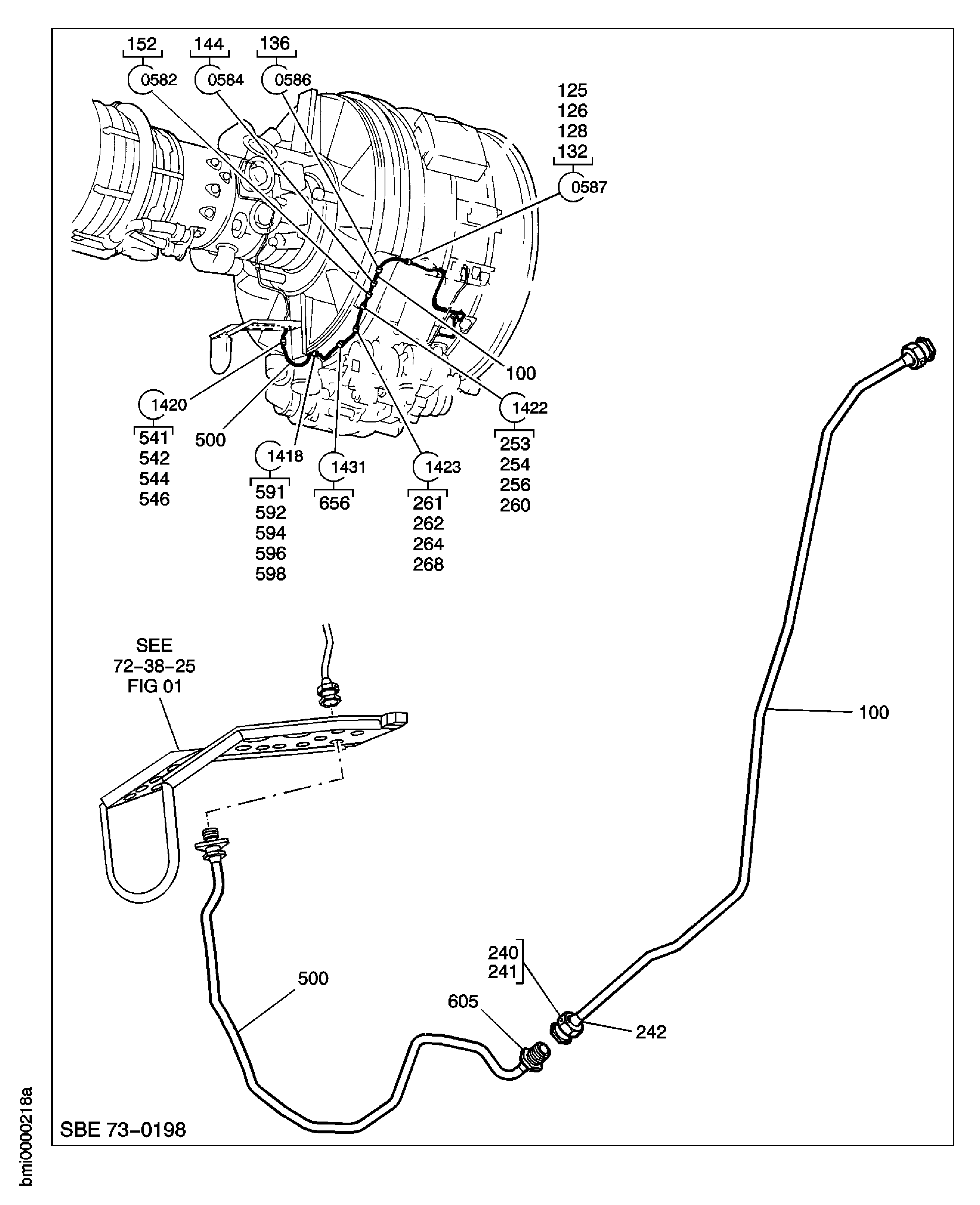

Figure: AIR-HP COMPRESSOR BLEED CONTROL TUBES

AIR-HPC BLEED CONTROL TUBES

AIR-HPC BLEED CONTROL TUBES

Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Manufacturer Code:83930
Enterprise Name:TRANSDIGM INC
BU Name:TRANSDIGM INC
Department:ADEL FASTENERS
Building:SANDWELL INDUSTRIAL ESTATE
Street:5000 TRIGGS STREET
City:LOS ANGELES
State:WEST MIDLANDS
Zip Code:B66 1QJ
Country:USA
Manufacturer Code:96906
Enterprise Name:MILITARY STANDARDS MANUAL 4120 3-M
BU Name:MILITARY STANDARDS MANUAL 4120 3-M
Street:NONE
City:NONE
Country:USA
Phone Number:NONE
Manufacturer Code:U1653
Enterprise Name:Society Of British Aerospace Companies, LTD.
Part Number:400WSS4
Part Name:CLIP
Manufacturer Code:83930
Optional Parts
Part NumberPart NameManufacturer
AS62404CLIP - 6.35 MM (0.250)U1653
Part Number:4S48020
Part Name:BOLT - 0.190 DIA X 10.312
Manufacturer Code:U1653
Part Number:4W0001
Part Name:NUT, OPTION - .190 DIA
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS20624NUT, SELF LOCKING DBL HEX - .190 DIAU1653
Part Number:4W0002
Part Name:NUT, SELF LOCKING DBL HEX - .250 DIA
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS20625NUT, SELF LOCKING, BIHEX, .250 DIAU1653
Part Number:4W0043
Part Name:NUT, SELF LOCKING, ASSEMBLY OF - .190 DIA
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS41104NUT - 0.19 DIAU1653
Part Number:4W0102
Part Name:BOLT, MACHINE DOUBLE HEX - .190 DIA X .438
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
4W0342BOLT - .190 DIA X .4380AM53
AS21407BOLT - 0.19 DIA X 0.438U1653
Part Number:4W0103
Part Name:BOLT - .190 DIA X .500
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS21408BOLT - 0.19 DIA X 0.500U1653
Part Number:4W0105
Part Name:BOLT - MACHINE DOUBLE HEX, .190 DIA X .625
Manufacturer Code:0AM53
Part Number:4W0114
Part Name:BOLT - MACHINE DOUBLE HEX, 190 DIA X 1.188
Manufacturer Code:0AM53
Part Number:4W0115
Part Name:BOLT, MACHINE DOUBLE HEX - .190 DIA X 1.250
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
4W0355BOLT, MACHINE DOUBLE HEX - .190 DIA X 1.2500AM53
Part Number:4W0116
Part Name:BOLT, MACHINE DOUBLE HEX - .190 DIA X 1.312
Manufacturer Code:0AM53
Part Number:4W0163
Part Name:BOLT, MACHINE DOUBLE HEX - .250 DIA X .562
Manufacturer Code:0AM53
Part Number:4W0342
Part Name:BOLT - .190 DIA X .438
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
4W0102BOLT, MACHINE DOUBLE HEX - .190 DIA X .4380AM53
Part Number:4W0343
Part Name:BOLT - 0.190 DIA X 0.500
Manufacturer Code:0AM53
Part Number:4W0354
Part Name:BOLT - 0.190 DIA X 1.188
Manufacturer Code:0AM53
Part Number:4W0355
Part Name:BOLT, MACHINE DOUBLE HEX - .190 DIA X 1.250
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
4W0115BOLT, MACHINE DOUBLE HEX - .190 DIA X 1.2500AM53
Part Number:4W0356
Part Name:BOLT - 0.190 DIA X 10.312
Manufacturer Code:0AM53
Part Number:5A8743
Part Name:TUBE - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5A9071
Part Name:TUBE - AIR HPC, 10TH STAGE BLEED VALVE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:5W1031
Part Name:SPACER, SLEEVE - (15MM)
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
UP10480SPACER - 15MM0AM53
Part Number:5W1059
Part Name:LUG - BRAZED
Manufacturer Code:0AM53
Part Number:5W1086
Part Name:WASHER
Manufacturer Code:0AM53
Part Number:5W8019
Part Name:ADAPTOR, UNION FLANGED
Manufacturer Code:0AM53
Part Number:6A5330
Part Name:TUBE - AIR, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A5331
Part Name:TUBE - AIR, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A6212
Part Name:TUBE - FUEL, SYSTEM ELECTRONIC ENGINE CONTROL TO BIFI PANEL, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A6222
Part Name:TUBE - AIR, HP 10 SOLENOID DISCON TO DISCON, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A6223
Part Name:TUBE - AIR, HP 7 SOLENOID DISCON TO BIF PANEL, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:6A9041
Part Name:TUBE - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:AS15701
Part Name:NUT - TUBE COUPLING
Manufacturer Code:U1653
Part Number:AS15768
Part Name:FERRULE - ASSEMBLY
Manufacturer Code:U1653
Part Number:AS15777
Part Name:WIRE - THRUST
Manufacturer Code:U1653
Part Number:AS15802
Part Name:ADAPTOR, STRAIGHT TUBE
Manufacturer Code:U1653
Part Number:AS20624
Part Name:NUT, SELF LOCKING DBL HEX - .190 DIA
Manufacturer Code:U1653
Part Number:AS20625
Part Name:NUT, SELF LOCKING, BIHEX, .250 DIA
Manufacturer Code:U1653
Unit Of Issue:EA
Part Number:AS21407
Part Name:BOLT - 0.19 DIA X 0.438
Manufacturer Code:U1653
Optional Parts
Part NumberPart NameManufacturer
MS9556-05BOLT96906
Part Number:AS21408
Part Name:BOLT - 0.19 DIA X 0.500
Manufacturer Code:U1653
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
MS9556-06BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.50096906
Part Number:AS21410
Part Name:BOLT - .190 DIA X .625
Manufacturer Code:U1653
Optional Parts
Part NumberPart NameManufacturer
MS9556-08BOLT96906
Part Number:AS41104
Part Name:NUT - 0.19 DIA
Manufacturer Code:U1653
Part Number:AS48020
Part Name:BOLT - 0.190 DIA X 10.312
Manufacturer Code:U1653
Part Number:AS62404
Part Name:CLIP - 6.35 MM (0.250)
Manufacturer Code:U1653
Optional Parts
Part NumberPart NameManufacturer
400WSS4CLIP83930
Part Number:K8831
Part Name:WASHER - .190 DIA X 0.51 THK
Manufacturer Code:0AM53
Part Number:MS9556-05
Part Name:BOLT
Manufacturer Code:96906
Optional Parts
Part NumberPart NameManufacturer
AS21407BOLT - 0.19 DIA X 0.438U1653
Part Number:MS9556-06
Part Name:BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.500
Manufacturer Code:96906
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
AS21408BOLT - 0.19 DIA X 0.500U1653
Part Number:MS9556-08
Part Name:BOLT
Manufacturer Code:96906
Optional Parts
Part NumberPart NameManufacturer
AS21410BOLT - .190 DIA X .625U1653
Part Number:UP10480
Part Name:SPACER - 15MM
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
5W1031SPACER, SLEEVE - (15MM)0AM53
Part Number:UP11152
Part Name:BRACKET - SUPPORT, INTER-TUBE
Manufacturer Code:0AM53
