| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 10 | ||||
| B75324910 | AIR-HP COMPRESSOR BLEED CONTROL TUBES, PRE SBE70-0047 | aa | ||
| SBE0047-01 | AIR-HP COMPRESSOR BLEED CONTROL TUBES, PRE SBE73-0061 | ab | ||
| SBE0061-01 | AIR-HP COMPRESSOR BLEED CONTROL TUBES, PRE SBE71-0109 | ac | ||
| SBE0109-01 | AIR-HP COMPRESSOR BLEED CONTROL TUBES, PRE SBE79-0087 | ad | ||
| SBE0087-01 | AIR-HP COMPRESSOR BLEED CONTROL TUBES, PRE SBE73-0198 | ae | ||
| SBE0198-01 | AIR-HP COMPRESSOR BLEED CONTROL TUBES | af | ||
| 100 | 5A9074 | • TUBE - A/O AIR HPC 7TH B/VAL PRE SBE79-0087 | aa-ad | 1 |
| 100A | 6A6218 | • TUBE - A/O AIR-HP7SOLENOID DISCON TO DISCON POST SBE79-0087 | ae-af | 1 |
| 125 | 4W0118 | • BOLT - .190 DIA X 1.438 | aa-af | 1 |
| 125A | 4W0119 | • BOLT - .190 DIA X 1.500 | aa-af | 1 |
| 126 | 5W1086 | • WASHER | aa-af | 1 |
| 128 | 400WSS4 | • CLIP 83930 | aa-af | 1 |
| 130 | 5W1033 | • SPACER - (25MM) | aa-af | 1 |
| 132 | AS41104 | • NUT - .190 DIA U1653 PRE SBE70-0047 | aa-af | 1 |
| 132A | 4W0043 | • NUT - .190 DIA POST SBE70-0047 | aa-af | 1 |
| 133 | 4W0119 | • BOLT - .190 DIA X 1.500 | aa-af | 1 |
| 134 | 5W1086 | • WASHER | aa-af | 1 |
| 136 | 400WSS4 | • CLIP 83930 | aa-af | 1 |
| 138 | 5W1032 | • SPACER - (20MM) | aa-af | 1 |
| 141 | 4W0119 | • BOLT - .190 DIA X 1.500 | aa-af | 1 |
| 142 | 5W1086 | • WASHER PRE SBE79-0087 | aa-ad | 1 |
| 142A | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE79-0087 | ae-af | 1 |
| 144 | 400WSS4 | • CLIP 83930 | aa-af | 1 |
| 146 | 5W1032 | • SPACER - (20MM) PRE SBE79-0087 | aa-ad | 1 |
| 146A | UP10481 | • SPACER - 20MM POST SBE79-0087 | ae-af | 1 |
| 149 | 4W0119 | • BOLT - .190 DIA X 1.500 PRE SBE79-0087 | aa-ad | 1 |
| 149A | 4W0118 | • BOLT - .190 DIA X 1.438 POST SBE79-0087 | ae-af | 1 |
| 150 | 5W1086 | • WASHER PRE SBE79-0087 | aa-ad | 1 |
| 150A | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE79-0087 | ae-af | 1 |
| 152 | 400WSS4 | • CLIP 83930 | aa-af | 1 |
| 154 | 5W1032 | • SPACER - (20MM) PRE SBE79-0087 | aa-ad | 1 |
| 154A | UP10481 | • SPACER - 20MM POST SBE79-0087 | ae-af | 1 |
| 160 | 400WSS4 | • CLIP 83930 PRE SBE73-0061 | aa-ab | 1 |
| 160A | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE73-0061 PRE SBE79-0087 | aa-ad | 1 |
| 184 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087 | ae-af | 1 |
| 189 | 4W0107 | • BOLT - .190 DIA X .750 POST SBE79-0087 | ae-af | 1 |
| 190 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE79-0087 | ae-af | 1 |
| 192 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087 | ae-af | 1 |
| 194 | UP10478 | • SPACER - 5MM POST SBE79-0087 | ae-af | 1 |
| 196 | 4W0001 | • NUT - .190 DIA POST SBE79-0087 | ae-af | 1 |
| 202 | AS15802 | • • ADAPTOR U1653 PRE SBE79-0087 | aa-ad | 2 |
| 202A | AS15802 | • • ADAPTOR U1653 POST SBE79-0087 | ae-af | 1 |
| 242 | AS15802 | • • ADAPTOR U1653 POST SBE79-0087 | ae-af | 1 |
| 500 | 5A8769 | • TUBE - ASSY PRE SBE79-0087 | aa-ad | 1 |
| 500A | 6A6219 | • TUBE - A/O AIR-HP7SOLENOID DISCON TO BIF PANEL POST SBE79-0087 | ae-af | 1 |
| 510 | 4W0002 | • NUT - .250 DIA | aa-af | 2 |
| 514 | 4W0163 | • BOLT - .250 DIA X .562 | aa-af | 2 |
| 528 | 400WSS4 | • CLIP 83930 PRE SBE73-0061 | aa-ab | 1 |
| 528A | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE73-0061 PRE SBE79-0087 | aa-ad | 1 |
| 533 | 4W0111 | • BOLT - .190 DIA X 1.000 PRE SBE79-0087 | aa-ad | 1 |
| 534 | 5W1086 | • WASHER PRE SBE79-0087 | aa-ad | 1 |
| 536 | 400WSS4 | • CLIP 83930 PRE SBE79-0087 | aa-ad | 1 |
| 538 | 5W1030 | • SPACER - (10MM) PRE SBE79-0087 | aa-ad | 1 |
| 540 | 4W0001 | • NUT - .190 DIA PRE SBE79-0087 | aa-ad | 1 |
| 541 | 4W0103 | • BOLT - .190 DIA X .500 POST SBE71-0109 PRE SBE79-0087 | ad | 1 |
| 542 | 5W1086 | • WASHER POST SBE71-0109 PRE SBE79-0087 | ad | 1 |
| 544 | 400WSS4 | • CLIP 83930 POST SBE71-0109 PRE SBE79-0087 | ad | 1 |
| 548 | 4W0001 | • NUT - .190 DIA POST SBE71-0109 PRE SBE79-0087 | ad | 1 |
| 568 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087 | ae-af | 1 |
| 576 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087 | ae-af | 1 |
| 581 | 4W0104 | • BOLT - .190 DIA X .562 POST SBE79-0087 PRE SBE73-0198 | ae-af | 1 |
| 581A | 4W0104 | • BOLT - .190 DIA X .562 ALT 4W0344 POST SBE73-0198 | ae-af | 1 |
| 581B | 4W0344 | • BOLT - .190 DIA X .562 ALT 4W0104 POST SBE73-0198 | ae-af | 1 |
| 582 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE79-0087 | ae-af | 1 |
| 582A | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE73-0198 | af | 1 |
| 584 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087 | ae-af | 1 |
| 588 | 4W0001 | • NUT - .190 DIA POST SBE79-0087 | ae-af | 1 |
| 589 | 4W0102 | • BOLT - .190 DIA X .438 POST SBE79-0087 | ae-af | 1 |
| 590 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE79-0087 | ae-af | 1 |
| 592 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087 | ae-af | 1 |
| 596 | 4W0001 | • NUT - .190 DIA POST SBE79-0087 | ae-af | 1 |
| 600 | AS15777 | • • WIRE - THRUST U1653 | aa-af | 1 |
| 601 | AS15701 | • • NUT - TUBE COUPLING U1653 | aa-af | 1 |
| 602 | AS15768 | • • FERRULE - ASSY U1653 | aa-af | 1 |
| 614 | 5W1059 | • • LUG - BRAZED PRE SBE79-0087 | aa-ad | 1 |
| 642 | 5W8019 | • • ADAPTOR - UNION FLANGED | aa-af | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

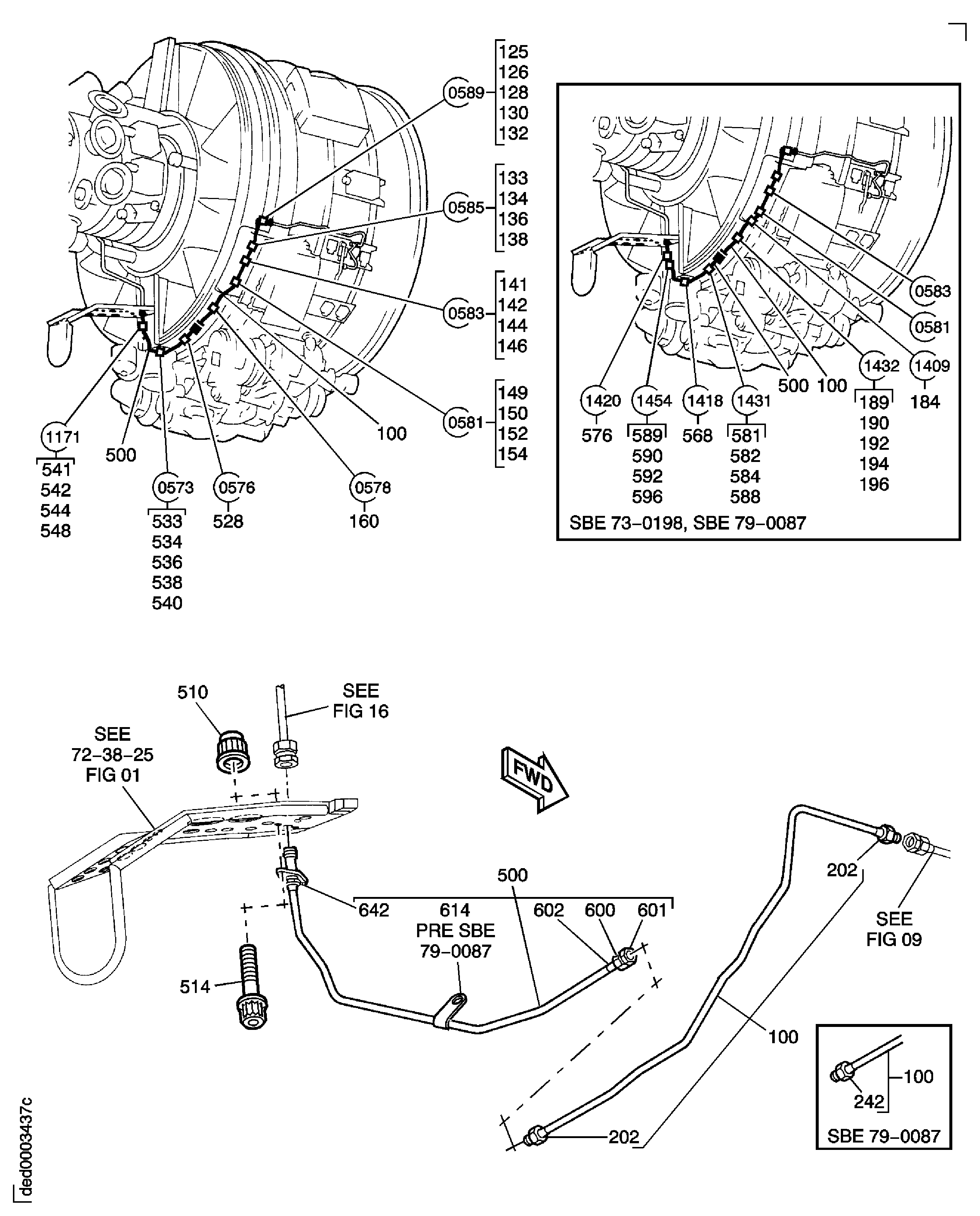

Figure: AIR-HP COMPRESSOR BLEED CONTROL TUBES
AIR-HPC BLEED CONTROL TUBES
