DMC:V2500-A1-75-32-49-12A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 12 | ||||
| B75324912 | AIR-HP COMPRESSOR BLEED CONTROL TUBES, PRE SBE71-0109 | aa | ||
| SBE0109-01 | AIR-HP COMPRESSOR BLEED CONTROL TUBES, PRE SBE79-0087 | ab | ||
| SBE0087-01 | AIR-HP COMPRESSOR BLEED CONTROL TUBES | ac | ||
| 100 | 5A8745 | • TUBE - ASSY PRE SBE79-0087 | aa-ab | 1 |
| 100A | 6A6217 | • TUBE - A/O AIR-HP7SOLENOID DISCON TO BIF PANEL POST SBE79-0087 | ac | 1 |
| 110 | 4W0002 | • NUT - .250 DIA | aa-ac | 2 |
| 114 | 4W0163 | • BOLT - .250 DIA X .562 | aa-ac | 2 |
| 125 | 4W0102 | • BOLT - .190 DIA X .438 POST SBE79-0087 | ac | 1 |
| 126 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE79-0087 | ac | 1 |
| 128 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087 | ac | 1 |
| 132 | 4W0001 | • NUT - .190 DIA POST SBE79-0087 | ac | 1 |
| 136 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087 | ac | 1 |
| 144 | 400WSS4 | • CLIP 83930 PRE SBE79-0087 | aa-ab | 1 |
| 144A | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087 | ac | 1 |
| 149 | 4W0103 | • BOLT - .190 DIA X .500 PRE SBE71-0109 | aa | 1 |
| 149A | 4W0104 | • BOLT - .190 DIA X .562 POST SBE71-0109 PRE SBE79-0087 | ab | 1 |
| 150 | 5W1086 | • WASHER PRE SBE71-0109 | aa | 1 |
| 150A | 5W1086 | • WASHER POST SBE71-0109 PRE SBE79-0087 | ab | 2 |
| 152 | 400WSS4 | • CLIP 83930 PRE SBE79-0087 | aa-ab | 1 |
| 156 | 4W0001 | • NUT - .190 DIA PRE SBE79-0087 | aa-ab | 1 |
| 160 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087 | ac | 1 |
| 165 | 4W0103 | • BOLT - .190 DIA X .500 PRE SBE79-0087 | aa-ab | 1 |
| 166 | 5W1086 | • WASHER PRE SBE79-0087 | aa-ab | 1 |
| 168 | 400WSS4 | • CLIP 83930 PRE SBE79-0087 | aa-ab | 1 |
| 172 | 4W0001 | • NUT - .190 DIA PRE SBE79-0087 | aa-ab | 1 |
| 173 | 4W0103 | • BOLT - .190 DIA X .500 POST SBE71-0109 PRE SBE79-0087 | ab | 1 |
| 174 | 5W1086 | • WASHER POST SBE71-0109 PRE SBE79-0087 | ab | 1 |
| 176 | 400WSS4 | • CLIP 83930 PRE SBE71-0109 | aa | 1 |
| 176A | 400WSS4 | • CLIP 83930 POST SBE71-0109 PRE SBE79-0087 | ab | 1 |
| 180 | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 POST SBE71-0109 PRE SBE79-0087 | ab | 1 |
| 184 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087 | ac | 1 |
| 192 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087 | ac | 1 |
| 202 | AS15802 | • • ADAPTOR U1653 | aa-ac | 1 |
| 241 | 5W1059 | • • LUG - BRAZED PRE SBE79-0087 | aa-ab | 2 |
| 242 | 5W8019 | • • ADAPTOR - UNION FLANGED | aa-ac | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

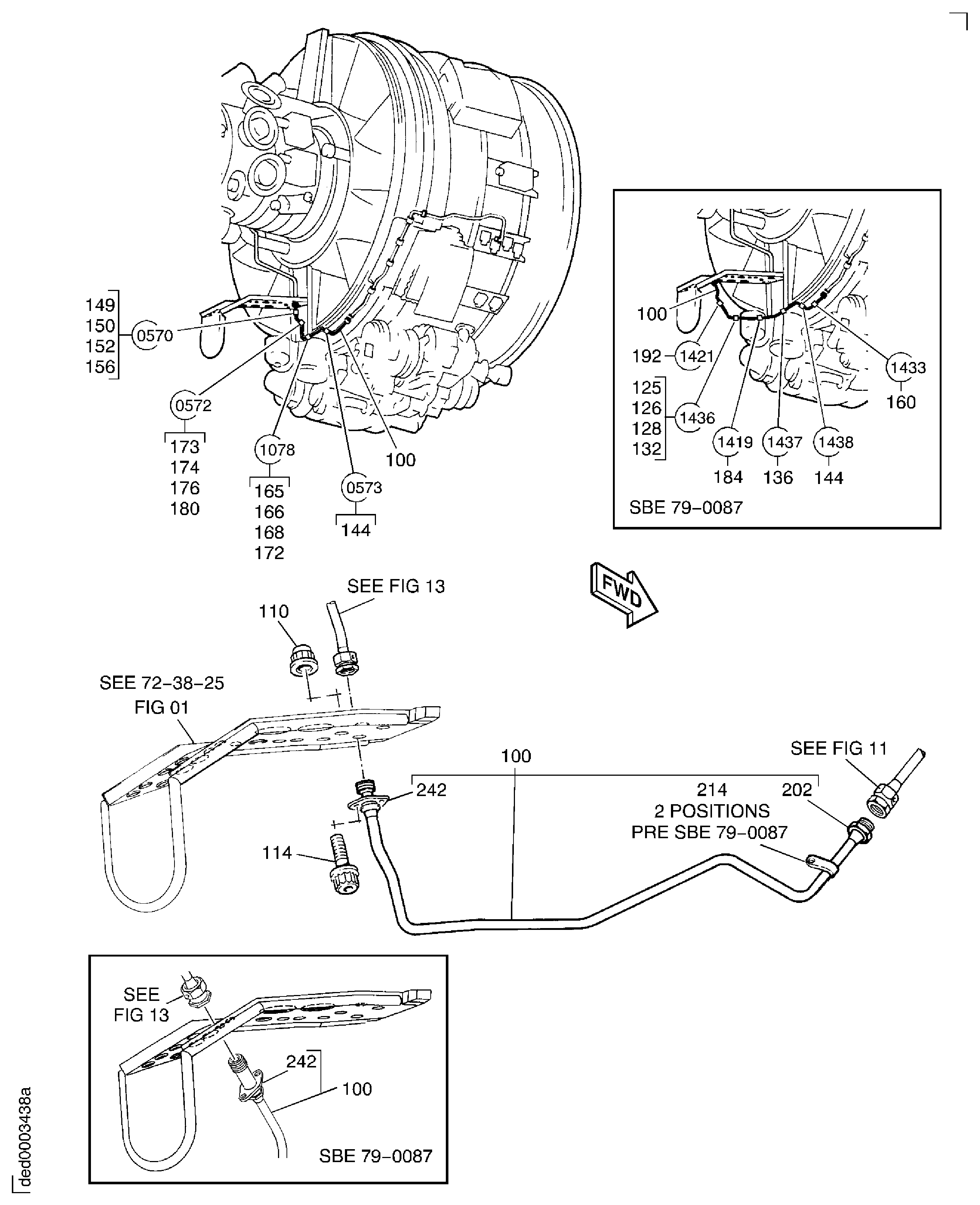

Figure: AIR-HP COMPRESSOR BLEED CONTROL TUBES
HPC BLEED AIR TUBES
