AIR-HP COMPRESSOR BLEED CONTROL TUBES

DMC:V2500-A1-75-32-49-13A-941A-D|Issue No:001|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig. Item	Part No.	Description	Effect/Model Applic.	UPA
13
000	B75324913	AIR-HP COMPRESSOR BLEED CONTROL TUBES, PRE SBE75-0016	aa
000	SBE0016-01	AIR-HP COMPRESSOR BLEED CONTROL TUBES, PRE SBE79-0087	ab
000	SBE0087-01	AIR-HP COMPRESSOR BLEED CONTROL TUBES	ac
100100	5A9044	• TUBE - A/O AIR HPC 7TH B/VAL PRE SBE75-0016	aa	1
100100A	6A2162	• TUBE - AIR HPC 7TH B/VAL-A/O POST SBE75-0016 PRE SBE79-0087	ab	1
100100B	6A6198	• TUBE - A/O AIR-BIF PANEL TO STG.7B.VALVE POST SBE79-0087	ac	1

133133	4W0115	• BOLT - .190 DIA X 1.250 PRE SBE75-0016	aa	1
133133A	4W0116	• BOLT - .190 DIA X 1.312 POST SBE75-0016 PRE SBE79-0087	aa-ab	1
134134	5W1086	• WASHER PRE SBE79-0087	aa-ab	1
136136	400WSS4	• CLIP 83930 PRE SBE79-0087	aa-ab	1
138138	5W1031	• SPACER - (15MM) PRE SBE79-0087	aa-ab	1
140140	4W0001	• NUT - .190 DIA PRE SBE79-0087	aa-ab	1
149149	4W0103	• BOLT - .190 DIA X .500 POST SBE79-0087	ac	1
152152	AS62404	• CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087	ac	1
156156	4W0001	• NUT - .190 DIA POST SBE79-0087	ac	1
173173	4W0128	• BOLT - .190 DIA X 2.125 POST SBE79-0087	ac	1
174174	K8831	• WASHER - .190 DIA X 0,51 THK POST SBE79-0087	ac	2
176176	AS62404	• CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087	ac	1
178178	6A4826	• SPACER - 40MM LONG POST SBE79-0087	ac	1
180180	4W0001	• NUT - .190 DIA POST SBE79-0087	ac	1
182182	AS62404	• CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087	ac	1
184184	AS62404	• CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087	ac	1

200200	AS15777	• • WIRE - THRUST U1653 PRE SBE75-0016	aa	2
200200A	AS15777	• • WIRE - THRUST U1653 POST SBE75-0016	ab-ac	1
201201	AS15701	• • NUT - TUBE COUPLING U1653 PRE SBE75-0016	aa	2
201201A	AS15701	• • NUT - TUBE COUPLING U1653 POST SBE75-0016	ab-ac	1
202202	AS15768	• • FERRULE - ASSY U1653 PRE SBE75-0016	aa	2
202202A	AS15768	• • FERRULE - ASSY U1653 POST SBE75-0016	ab-ac	1
214214	UP11152	• • BRACKET - INTER TUBE SUPPORT POST SBE79-0087	ac	1
240240	AS15777	• • WIRE - THRUST U1653 POST SBE79-0087	ac	1
241241	AS15701	• • NUT - TUBE COUPLING U1653 POST SBE79-0087	ac	1
242242	AS15802	• • ADAPTOR U1653 PRE SBE79-0087	aa-ab	1
242242A	K17404	• • FERRULE POST SBE79-0087	ac	1
243243	K12664	• • BUSHING POST SBE79-0087	ac	1
500500	5A8776	• TUBE - ASSY AIR HP COMP 7 BLD PRE SBE79-0087	aa-ab	1

557557	4W0114	• BOLT - .190 DIA X 1.188 PRE SBE79-0087	aa-ab	1
558558	5W1086	• WASHER PRE SBE79-0087	aa-ab	1
560560	400WSS4	• CLIP 83930 PRE SBE79-0087	aa-ab	1
562562	5W1031	• SPACER - (15MM) PRE SBE79-0087	aa-ab	1
564564	4W0043	• NUT - .190 DIA PRE SBE79-0087	aa-ab	1
565565	4W0104	• BOLT - .190 DIA X .562 PRE SBE79-0087	aa-ab	1
566566	5W1086	• WASHER PRE SBE79-0087	aa-ab	2
568568	400WSS4	• CLIP 83930 PRE SBE79-0087	aa-ab	1
572572	4W0001	• NUT - .190 DIA PRE SBE79-0087	aa-ab	1

600600	AS15777	• • WIRE - THRUST U1653 PRE SBE79-0087	aa-ab	2
601601	AS15701	• • NUT - TUBE COUPLING U1653 PRE SBE79-0087	aa-ab	2
602602	AS15768	• • FERRULE - ASSY U1653 PRE SBE79-0087	aa-ab	1
640640	AS15777	• • WIRE - THRUST U1653 PRE SBE79-0087	aa-ab	1
641641	AS15701	• • NUT - TUBE COUPLING U1653 PRE SBE79-0087	aa-ab	1
642642	5W8143	• • FERRULE - ASSY ELBOW PRE SBE79-0087	aa-ab	1
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

Manufacturer Code:	0AM53
Enterprise Name:	IAE INTERNATIONAL AERO ENGINES AG
BU Name:	NULL
Building:	SUITE 400
Street:	628 HEBRON AVENUE
City:	GLASTONBURY
State:	CT
Zip Code:	06033
Country:	USA

Manufacturer Code:	83930
Enterprise Name:	TRANSDIGM INC
BU Name:	TRANSDIGM INC
Department:	ADEL FASTENERS
Building:	SANDWELL INDUSTRIAL ESTATE
Street:	5000 TRIGGS STREET
City:	LOS ANGELES
State:	WEST MIDLANDS
Zip Code:	B66 1QJ
Country:	USA

Manufacturer Code:	96906
Enterprise Name:	MILITARY STANDARDS MANUAL 4120 3-M
BU Name:	MILITARY STANDARDS MANUAL 4120 3-M
Street:	NONE
City:	NONE
Country:	USA
Phone Number:	NONE

Manufacturer Code:	U1653
Enterprise Name:	Society Of British Aerospace Companies, LTD.

Part Number:	4W0114
Part Name:	BOLT - MACHINE DOUBLE HEX, 190 DIA X 1.188
Manufacturer Code:	0AM53

AIR-HP COMPRESSOR BLEED CONTROL TUBES

Export Control

Copyright

Applicability

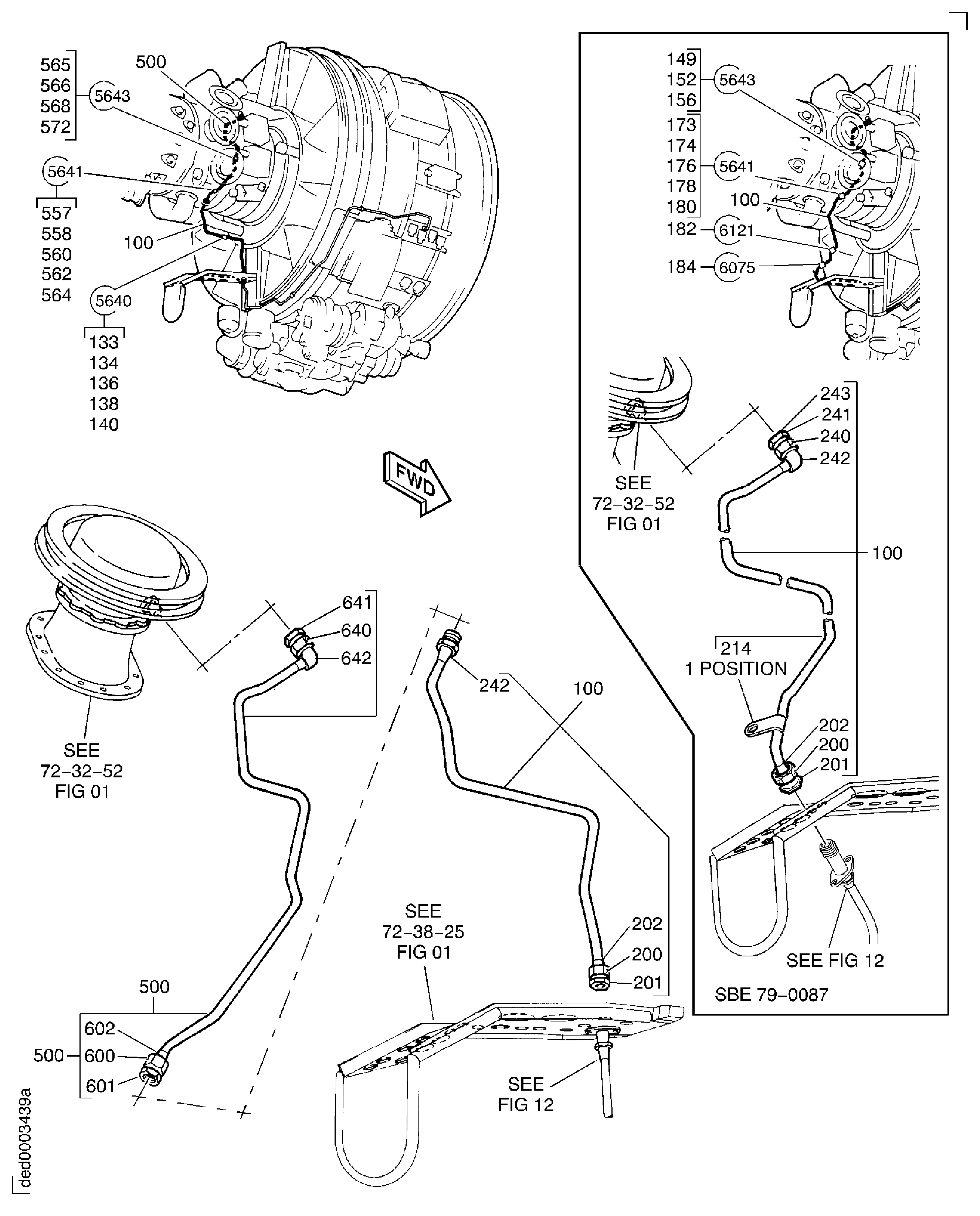

Figure: AIR-HP COMPRESSOR BLEED CONTROL TUBES

HPC BLEED AIR TUBES

Part Number:	AS20624
Part Name:	NUT, SELF LOCKING DBL HEX - .190 DIA
Manufacturer Code:	U1653

Part Number:	AS41104
Part Name:	NUT - 0.19 DIA
Manufacturer Code:	U1653
