| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 14 | ||||
| B75324914 | AIR-HP COMPRESSOR BLEED CONTROL TUBES, PRE SBE75-0016 | aa | ||
| SBE0016-01 | AIR-HP COMPRESSOR BLEED CONTROL TUBES, PRE SBE79-0087 | ab | ||
| SBE0087-01 | AIR-HP COMPRESSOR BLEED CONTROL TUBES, PRE SBE73-0198 | ac | ||
| SBE0198-01 | AIR-HP COMPRESSOR BLEED CONTROL TUBES | ad | ||
| 100 | 5A9046 | • TUBE - A/O AIR HPC 10TH B/VAL PRE SBE75-0016 | aa | 1 |
| 100A | 6A2163 | • TUBE - AIR HPC 10TH B/VAL-A/O POST SBE75-0016 PRE SBE79-0087 | ab | 1 |
| 100B | 6A6199 | • TUBE - A/O AIR-BIF PANEL TO STG.10B.VALVE POST SBE79-0087 | ac-ad | 1 |
| 100C | 6A9044 | • TUBE - ASSY POST SBE73-0198 | ad | 1 |
| 128 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087 | ac-ad | 1 |
| 136 | 400WSS4 | • CLIP 83930 PRE SBE79-0087 | aa-ab | 1 |
| 168 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087 | ac-ad | 1 |
| 173 | 4W0112 | • BOLT - .190 DIA X 1.062 POST SBE79-0087 | ac-ad | 1 |
| 176 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087 | ac-ad | 1 |
| 179 | UP10480 | • SPACER - 15MM POST SBE79-0087 | ac-ad | 1 |
| 180 | 4W0043 | • NUT - .190 DIA POST SBE79-0087 | ac-ad | 1 |
| 184 | 400WSS4 | • CLIP 83930 POST SBE79-0087 | ac-ad | 1 |
| 189 | 4W0102 | • BOLT - .190 DIA X .438 POST SBE79-0087 | ac-ad | 1 |
| 190 | 5W1086 | • WASHER POST SBE79-0087 | ac-ad | 1 |
| 192 | 400WSS4 | • CLIP 83930 POST SBE79-0087 | ac-ad | 1 |
| 196 | 4W0043 | • NUT - .190 DIA POST SBE79-0087 | ac-ad | 1 |
| 200 | AS15777 | • • WIRE - THRUST U1653 PRE SBE79-0087 | aa-ab | 2 |
| 200A | AS15777 | • • WIRE - THRUST U1653 POST SBE79-0087 | ac-ad | 1 |
| 201 | AS15701 | • • NUT - TUBE COUPLING U1653 PRE SBE79-0087 | aa-ab | 2 |
| 201A | AS15701 | • • NUT - TUBE COUPLING U1653 POST SBE79-0087 | ac-ad | 1 |
| 202 | AS15768 | • • FERRULE - ASSY U1653 PRE SBE79-0087 | aa-ab | 2 |
| 202A | AS15768 | • • FERRULE - ASSY U1653 POST SBE79-0087 | ac-ad | 1 |
| 214 | UP11152 | • • BRACKET - INTER TUBE SUPPORT POST SBE79-0087 | ac-ad | 3 |
| 240 | AS15777 | • • WIRE - THRUST U1653 POST SBE79-0087 | ac-ad | 1 |
| 241 | AS15701 | • • NUT - TUBE COUPLING U1653 POST SBE79-0087 | ac-ad | 1 |
| 242 | K17404 | • • FERRULE POST SBE79-0087 | ac-ad | 1 |
| 243 | K12664 | • • BUSHING POST SBE79-0087 PRE SBE73-0198 | ac | 1 |
| 500 | 5A8755 | • TUBE - A/O AIR PRE SBE79-0087 | aa-ab | 1 |
| 544 | 400WSS4 | • CLIP 83930 PRE SBE79-0087 | aa-ab | 1 |
| 549 | 4W0102 | • BOLT - .190 DIA X .438 PRE SBE79-0087 | aa-ab | 1 |
| 550 | 5W1086 | • WASHER PRE SBE79-0087 | aa-ab | 1 |
| 552 | 400WSS4 | • CLIP 83930 PRE SBE79-0087 | aa-ab | 1 |
| 556 | 4W0043 | • NUT - .190 DIA PRE SBE79-0087 | aa-ab | 1 |
| 560 | 400WSS4 | • CLIP 83930 PRE SBE79-0087 | aa-ab | 1 |
| 568 | 400WSS4 | • CLIP 83930 PRE SBE79-0087 | aa-ab | 1 |
| 576 | 400WSS4 | • CLIP 83930 PRE SBE79-0087 | aa-ab | 1 |
| 602 | AS15802 | • • ADAPTOR U1653 PRE SBE79-0087 | aa-ab | 1 |
| 640 | AS15777 | • • WIRE - THRUST U1653 PRE SBE79-0087 | aa-ab | 1 |
| 641 | AS15701 | • • NUT - TUBE COUPLING U1653 PRE SBE79-0087 | aa-ab | 1 |
| 642 | 5W8143 | • • FERRULE - ASSY ELBOW PRE SBE79-0087 | aa-ab | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

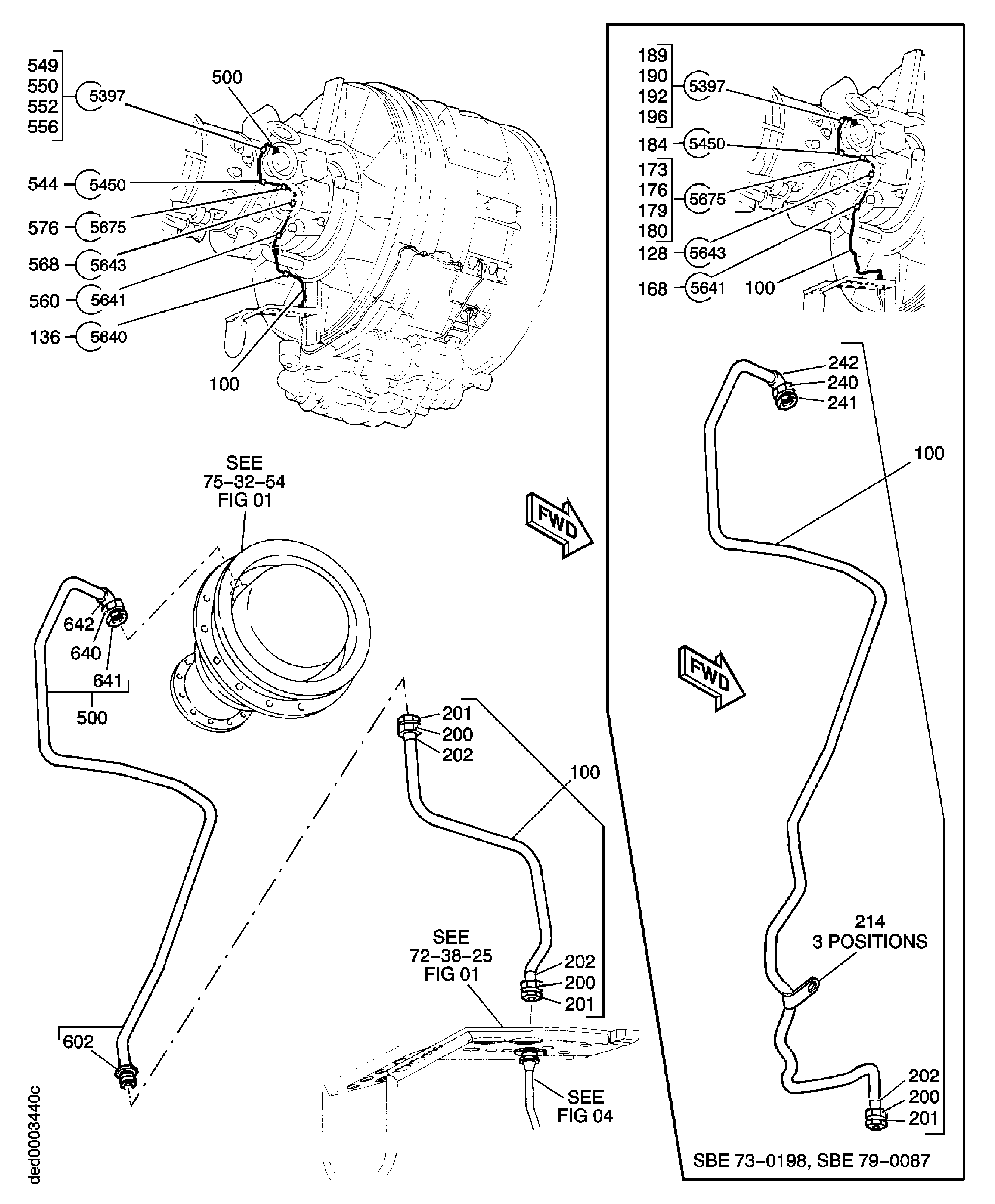

Figure: AIR-HP COMPRESSOR BLEED CONTROL TUBES
AIR-HPC BLEED CONTROL TUBES
