DMC:V2500-A1-75-32-49-15A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 15 | ||||
| B75324915 | AIR-HP COMPRESSOR BLEED CONTROL TUBES, PRE SBE72-0119 | aa | ||
| SBE0119-01 | AIR-HP COMPRESSOR BLEED CONTROL TUBES, PRE SBE79-0087 | ab | ||
| SBE0087-01 | AIR-HP COMPRESSOR BLEED CONTROL TUBES | ac | ||
| 100 | 5A9306 | • TUBE - A/O AIR HPC 7TH B/VAL PRE SBE79-0087 | aa-ab | 1 |
| 100A | 6A6197 | • TUBE - A/O AIR-BIF PANEL TO STG.7B.VALVE POST SBE79-0087 | ac | 1 |
| 120 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087 | ac | 1 |
| 125 | 4W0111 | • BOLT - .190 DIA X 1.000 POST SBE79-0087 | ac | 1 |
| 128 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087 | ac | 1 |
| 130 | LK53193 | • SPACER - 12.7 MM POST SBE79-0087 | ac | 1 |
| 131 | 4W0043 | • NUT - .190 DIA POST SBE79-0087 | ac | 1 |
| 144 | 400WSS4 | • CLIP 83930 PRE SBE79-0087 | aa-ab | 1 |
| 144A | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087 | ac | 1 |
| 152 | 400WSS4 | • CLIP 83930 PRE SBE79-0087 | aa-ab | 1 |
| 184 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087 | ac | 1 |
| 192 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087 | ac | 1 |
| 200 | AS15777 | • • WIRE - THRUST U1653 | aa-ac | 1 |
| 201 | AS15701 | • • NUT - TUBE COUPLING U1653 | aa-ac | 1 |
| 202 | AS15768 | • • FERRULE - ASSY U1653 | aa-ac | 1 |
| 214 | 5W1059 | • • LUG - BRAZED PRE SBE79-0087 | aa-ab | 1 |
| 214A | UP11152 | • • BRACKET - INTER TUBE SUPPORT POST SBE79-0087 | ac | 2 |
| 240 | AS15777 | • • WIRE - THRUST U1653 POST SBE79-0087 | ac | 1 |
| 241 | AS15701 | • • NUT - TUBE COUPLING U1653 POST SBE79-0087 | ac | 1 |
| 242 | AS15802 | • • ADAPTOR U1653 PRE SBE79-0087 | aa-ab | 1 |
| 242A | K17404 | • • FERRULE POST SBE79-0087 | ac | 1 |
| 243 | K12664 | • • BUSHING POST SBE79-0087 | ac | 1 |
| 500 | 5A9050 | • TUBE - A/O AIR HPC 7TH B/VAL PRE SBE79-0087 | aa-ab | 1 |
| 557 | 4W0102 | • BOLT - .190 DIA X .438 PRE SBE72-0119 | aa | 1 |
| 557A | 4W0104 | • BOLT - .190 DIA X .562 POST SBE72-0119 PRE SBE79-0087 | ab | 1 |
| 558 | 5W1086 | • WASHER PRE SBE79-0087 | aa-ab | 1 |
| 560 | 400WSS4 | • CLIP 83930 PRE SBE79-0087 | aa-ab | 1 |
| 564 | 4W0001 | • NUT - .190 DIA POST SBE72-0119 PRE SBE79-0087 | ab | 1 |
| 568 | 400WSS4 | • CLIP 83930 PRE SBE79-0087 | aa-ab | 1 |
| 600 | AS15777 | • • WIRE - THRUST U1653 PRE SBE79-0087 | aa-ab | 2 |
| 601 | AS15701 | • • NUT - TUBE COUPLING U1653 PRE SBE79-0087 | aa-ab | 2 |
| 602 | AS15768 | • • FERRULE - ASSY U1653 PRE SBE79-0087 | aa-ab | 1 |
| 614 | UP11152 | • • BRACKET - INTER TUBE SUPPORT | aa-ac | 1 |
| 640 | AS15777 | • • WIRE - THRUST U1653 PRE SBE79-0087 | aa-ab | 2 |
| 641 | AS15701 | • • NUT - TUBE COUPLING U1653 PRE SBE79-0087 | aa-ab | 2 |
| 642 | 5W8143 | • • FERRULE - ASSY ELBOW PRE SBE79-0087 | aa-ab | 1 |
| 645 | K12664 | • • BUSHING | aa-ac | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

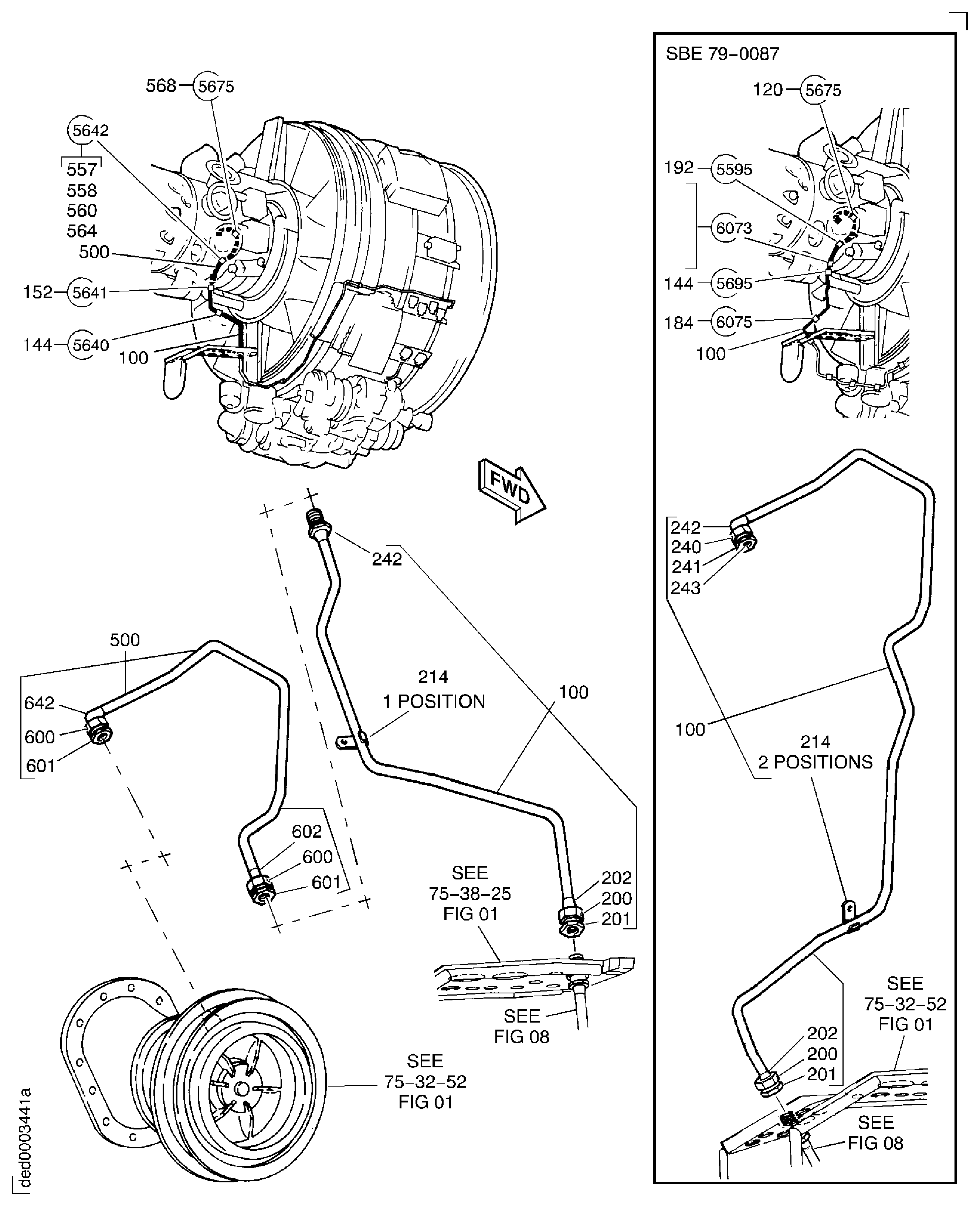

Figure: AIR-HP COMPRESSOR BLEED CONTROL TUBES
HPC BLEED AIR TUBES
