| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 16 | ||||
| B75324916 | AIR-HP COMPRESSOR BLEED CONTROL TUBES, PRE SBE79-0087 | aa | ||
| SBE0087-01 | AIR-HP COMPRESSOR BLEED CONTROL TUBES | ab | ||
| 100 | 5A9307 | • TUBE - A/O AIR HPC 7TH B/VAL PRE SBE79-0087 | aa | 1 |
| 100A | 6A6009 | • TUBE - A/O-AIR BIF PANEL TO DISCON STG.7BV POST SBE79-0087 | ab | 1 |
| 149 | 4W0104 | • BOLT - .190 DIA X .562 PRE SBE79-0087 | aa | 1 |
| 150 | 5W1086 | • WASHER PRE SBE79-0087 | aa | 1 |
| 152 | 400WSS4 | • CLIP 83930 PRE SBE79-0087 | aa | 1 |
| 156 | 4W0001 | • NUT - .190 DIA PRE SBE79-0087 | aa | 1 |
| 160 | 400WSS4 | • CLIP 83930 PRE SBE79-0087 | aa | 1 |
| 173 | 4W0108 | • BOLT - .190 DIA X .812 Optional Part 4W0108 POST SBE79-0087 | ab | 1 |
| 176 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087 | ab | 1 |
| 178 | LK69353 | • SPACER POST SBE79-0087 | ab | 1 |
| 180 | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 POST SBE79-0087 | ab | 1 |
| 181 | 4W0119 | • BOLT - .190 DIA X 1.500 Optional Part 4W0119 POST SBE79-0087 | ab | 1 |
| 184 | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE79-0087 | ab | 1 |
| 185 | LK69353 | • SPACER POST SBE79-0087 | ab | 1 |
| 186 | LK42781 | • SPACER POST SBE79-0087 | ab | 1 |
| 188 | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 POST SBE79-0087 | ab | 1 |
| 200 | AS15777 | • • WIRE - THRUST U1653 PRE SBE79-0087 | aa | 2 |
| 200A | AS15777 | • • WIRE - THRUST U1653 POST SBE79-0087 | ab | 1 |
| 201 | AS15701 | • • NUT - TUBE COUPLING U1653 PRE SBE79-0087 | aa | 2 |
| 201A | AS15701 | • • NUT - TUBE COUPLING U1653 POST SBE79-0087 | ab | 1 |
| 202 | AS15768 | • • FERRULE - ASSY U1653 PRE SBE79-0087 | aa | 2 |
| 202A | AS15768 | • • FERRULE - ASSY U1653 POST SBE79-0087 | ab | 1 |
| 214 | UP11152 | • • BRACKET - INTER TUBE SUPPORT POST SBE79-0087 | ab | 4 |
| 240 | AS15777 | • • WIRE - THRUST U1653 POST SBE79-0087 | ab | 1 |
| 241 | AS15701 | • • NUT - TUBE COUPLING U1653 POST SBE79-0087 | ab | 1 |
| 242 | K17404 | • • FERRULE POST SBE79-0087 | ab | 1 |
| 245 | K12664 | • • BUSHING | aa-ab | 1 |
| 245A | K12664 | • • BUSHING POST SBE79-0087 | ab | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

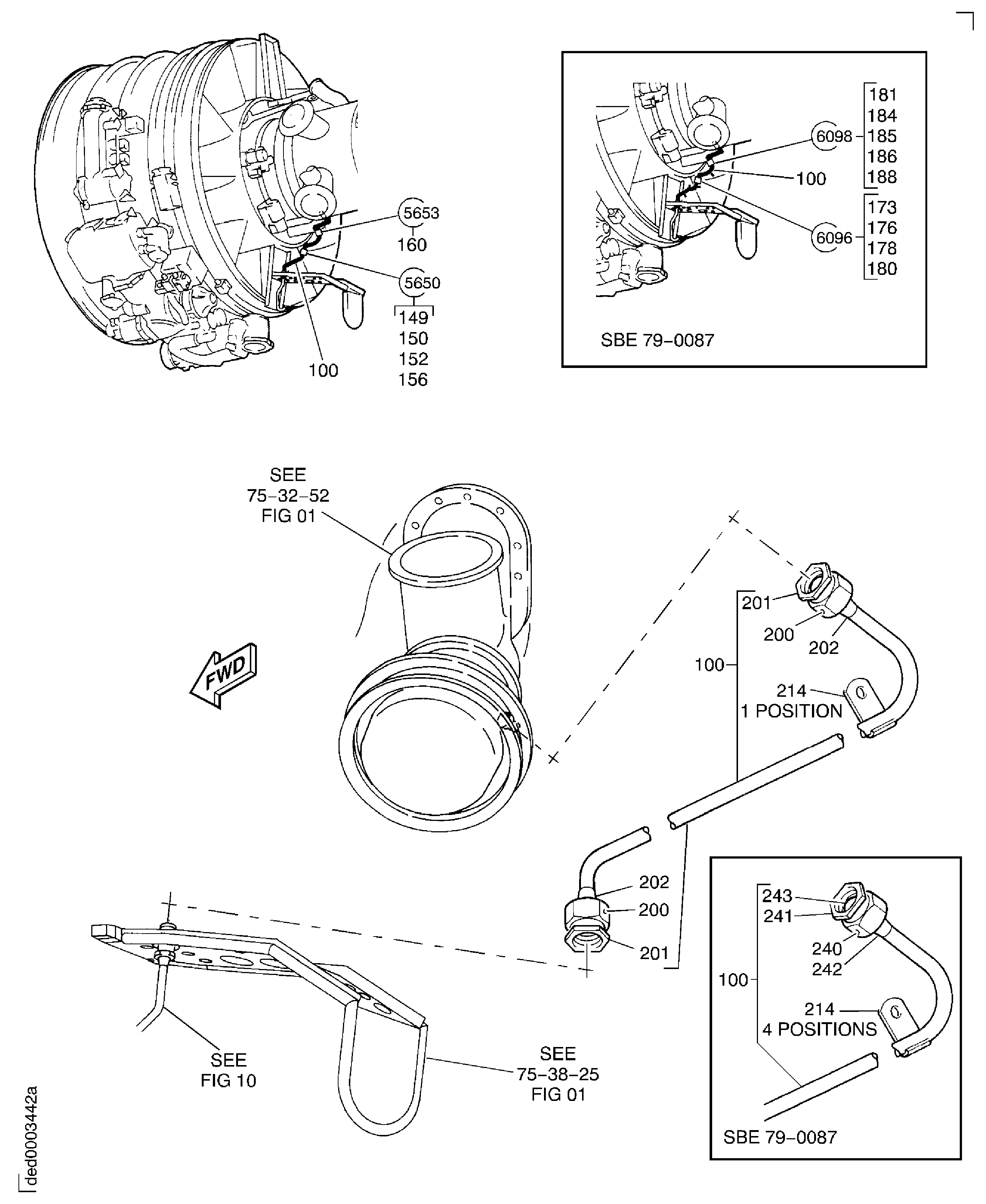

Figure: AIR-HP COMPRESSOR BLEED CONTROL TUBES
HPC BLEED AIR TUBES
