DMC:V2500-A1-75-32-51-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B75325101 | AIR-HPC STAGE 7 SOLENOID VALVE, PRE SBE75-0014 | aa | ||
| SBE0014-01 | AIR-HPC STAGE 7 SOLENOID VALVE, PRE SBE70-0158 | ab | ||
| SBE0158-01 | AIR-HPC STAGE 7 SOLENOID VALVE, PRE SBE75-0036 | ac | ||
| SBE0036-01 | AIR-HPC STAGE 7 SOLENOID VALVE, PRE SBE70-0568 | ad | ||
| SBE0568-01 | AIR-HPC STAGE 7 SOLENOID VALVE, PRE SBE75-0047 | ae | ||
| SBE0047-01 | AIR-HPC STAGE 7 SOLENOID VALVE, PRE SBE75-0109 | af | ||
| SBE0109-01 | AIR-HPC STAGE 7 SOLENOID VALVE | ag | ||
| 100 | AC69386 | • VALVE - SOLENOID 88041 PRE SBE75-0014 | aa-ag | 3 |
| 100A | AC69572 | • VALVE - SOLENOID STAGE 7 HPC 88041 POST SBE75-0014 PRE SBE75-0109 | aa-ag | 3 |
| 100B | AA1051-00 | • VALVE - SOLENOID K7766 ALT AA1056-00 POST SBE75-0109 | aa-ag | 3 |
| -100C | AA1056-00 | • VALVE - SOLENOID K7766 ALT AA1051-00 POST SBE75-0109 | aa-ag | REF |
| 102 | 4W0107 | • BOLT - .190 DIA X .750 PRE SBE75-0047 | aa-ae | 9 |
| 102A | 4W0108 | • BOLT - .190 DIA X .812 POST SBE75-0047 | af-ag | 9 |
| 104 | 4W2621 | • WASHER | aa-ag | 9 |
| 106 | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 POST SBE75-0047 | af-ag | 8 |
| 140 | 6A2832 | • BRACKET | aa-ag | 1 |
| 142 | AS21010 | • BOLT - .250 DIA X .625 U1653 | aa-ag | 2 |
| 143 | 4W0002 | • NUT - .250 DIA | aa-ag | 2 |
| 150 | 5W8314 | • BRACKET PRE SBE70-0158 | aa-ae | 2 |
| 150A | 6A4680 | • BRACKET POST SBE70-0158 PRE SBE70-0568 | aa-ae | 2 |
| 150B | 6A4680 | • BRACKET ALT 5W8314 POST SBE70-0568 PRE SBE75-0047 | aa-ae | 2 |
| 150C | 5W8314 | • BRACKET POST SBE70-0568 PRE SBE75-0047 | ae | 2 |
| 152 | 4W0001 | • NUT - .190 DIA PRE SBE75-0047 | aa-ae | 2 |
| 154 | 4W0103 | • BOLT - .190 DIA X .500 PRE SBE75-0047 | aa-ae | 2 |
| 160 | 6A3913 | • BRACKET - A/O PRE SBE75-0036 | aa-ac | 1 |
| 160A | 6A5649 | • BRACKET - A/O POST SBE75-0036 PRE SBE75-0047 | aa-ae | 1 |
| 160B | 6A7731 | • BRACKET - ASSY POST SBE75-0047 | aa-ag | 1 |
| 161 | AS21012 | • BOLT - .250 DIA X .750 U1653 | aa-ag | 1 |
| 162 | AS21010 | • BOLT - .250 DIA X .625 U1653 | aa-ag | 2 |
| 163 | AS21014 | • BOLT - .250 DIA X .875 U1653 | aa-ag | 1 |
| 167 | 4W0002 | • NUT - .250 DIA | aa-ag | 2 |
| 170 | 4W0044 | • NUT - .250 DIA | aa-ag | 2 |
| 180 | AS16087 | • • RIVET - SOLID UNIVERSAL HD U1653 | aa-ag | 4 |
| 182 | AS16446 | • • RIVET - SOLID CSK HEAD, 2.4 MM(.094) DIA U1653 PRE SBE75-0047 | aa-ae | 24 |
| 182A | AS16445 | • • RIVET - SOLID CSK HEAD U1653 POST SBE75-0047 | af-ag | 6 |
| 184 | 4W0038 | • • NUT - .190 DIA Optional Part 4W0038 PRE SBE75-0047 | aa-ae | 12 |
| 184A | 4W0038 | • • NUT - .190 DIA Optional Part 4W0038 POST SBE75-0047 | af-ag | 3 |
| -190 | NND5497 | • • BRACKET POST SBE75-0036 | ad-ag | REF |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

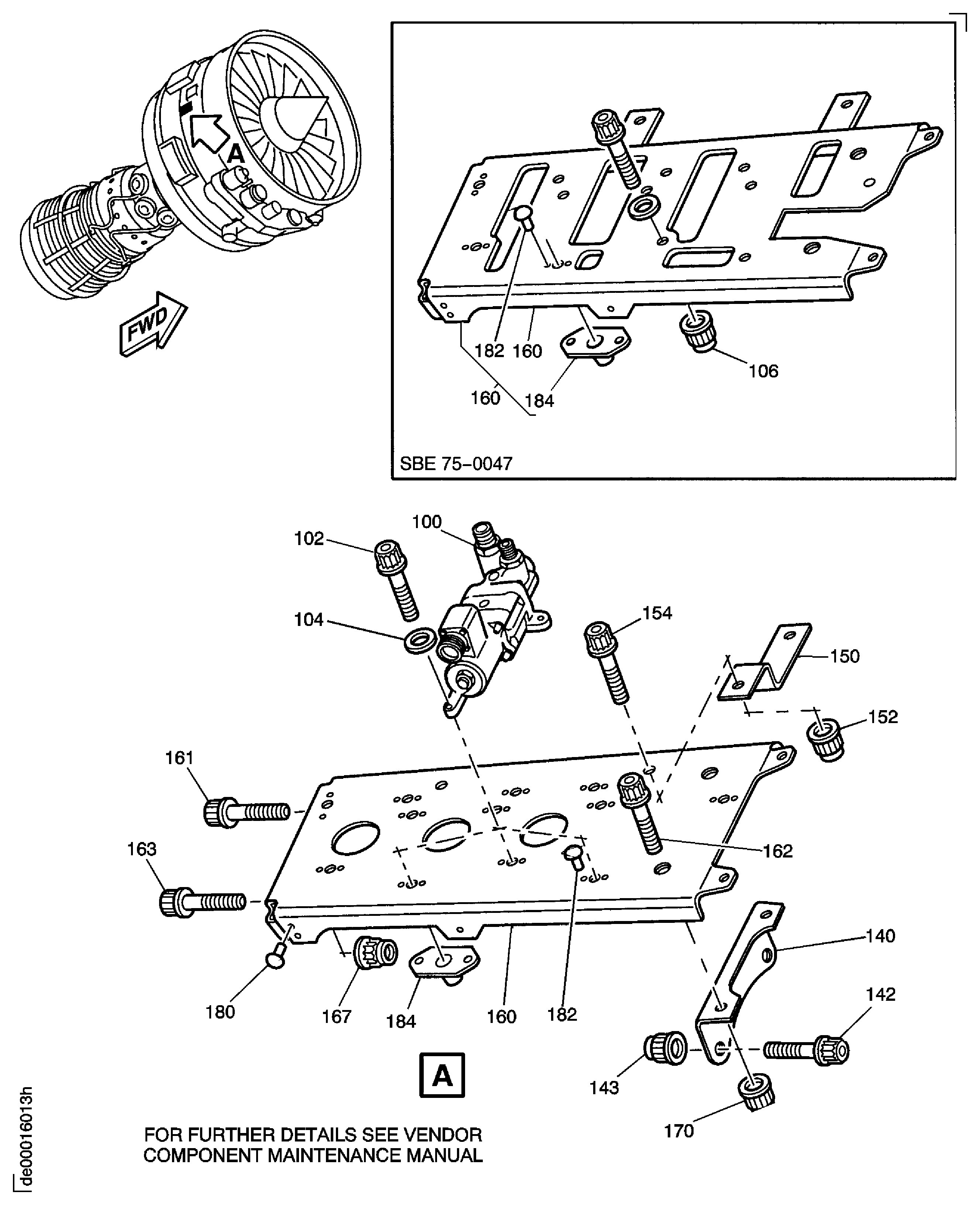

Figure: AIR-HPC STAGE 7 SOLENOID VALVE
HP COMPRESSOR BLEED CONTROL VALVES
