VIBRATION TRANSDUCER

DMC:V2500-A1-77-32-15-01A-941A-D|Issue No:003|Issue Date:2015-08-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig. Item	Part No.	Description	Effect/Model Applic.	UPA
01
000	B77321501	VIBRATION TRANSDUCER, PRE SBE71-0067	aa
000	SBE0067-01	VIBRATION TRANSDUCER, PRE SBE70-0746	ab
000	SBE0746-01	VIBRATION TRANSDUCER, PRE SBE70-1020	ac
000	SBE1020-01	VIBRATION TRANSDUCER	ad
-001001	740-5405-501	INSTL - VIBRATION TRANSDUCER 51563	aa-ac	REF
-005005	740-5405-503	INSTL - VIBRATION TRANSDUCER 51563	aa-ac	REF
-005005A	740-5405-507	INSTL - VIBRATION TRANSDUCER 51563 PRE SBE71-0067	aa-ac	REF
-005005B	740-5405-509	INSTL - VIBRATION TRANSDUCER 51563 POST SBE71-0067	aa-ac	REF
100100	144-171-000-031	• TRANSDCR - VIBRATION CA-171 S3960	aa-ac	1
100100A	144-171-000-031	• TRANSDCR - VIBRATION CA-171 S3960 PRE SBE70-1020	aa-ac	1
100100B	144-171-000-032	• TRANSDCR - VIBRATION CA-171 S3960 POST SBE70-1020	ad	1

101101	4W0001	• NUT - .190 DIA PRE SBE70-0746	aa-ab	2
101101A	4W0001	• NUT - .190 DIA POST SBE70-0746	ac	2
104104	4W0103	• BOLT - .190 DIA X .500 PRE SBE70-0746	aa-ab	2
104104A	4W0103	• BOLT - .190 DIA X .500 POST SBE70-0746	ac	2
249249	4W0103	• BOLT - .190 DIA X .500 PRE SBE70-0746	aa-ab	1
249249A	4W0103	• BOLT - .190 DIA X .500 POST SBE70-0746	ac	1
250250	SP154D	• WASHER - .190 DIA K7766 PRE SBE70-0746	aa-ab	1
250250A	SP154D	• WASHER - .190 DIA K7766 POST SBE70-0746	ac	1
252252	JM44LC39H103RG	• CLAMP 22175 PRE SBE71-0067	aa-ac	1
252252A	TA025074-03	• CLAMP - .188 DIA 84971 ALT AS61933 POST SBE71-0067	aa-ac	1
-252252B	AS61933	• CLAMP - 4.78 MM (.188) U1653 ALT TA025074-03 POST SBE71-0067 PRE SBE70-0746	ab-ac	REF
252252C	TA025074-03	• CLAMP - .188 DIA 84971 ALT AS61933 POST SBE70-0746	ab-ac	1
-252252D	AS61933	• CLAMP - 4.78 MM (.188) U1653 ALT TA025074-03 POST SBE70-0746	ab-ac	REF
257257	4W0103	• BOLT - .190 DIA X .500 PRE SBE70-0746	aa-ab	1
257257A	4W0103	• BOLT - .190 DIA X .500 POST SBE70-0746	ac	1
258258	SP154D	• WASHER - .190 DIA K7766 PRE SBE70-0746	aa-ab	1
258258A	SP154D	• WASHER - .190 DIA K7766 POST SBE70-0746	ac	1
260260	JM44LC39H103RG	• CLAMP 22175 PRE SBE71-0067	aa-ac	1
260260A	TA025074-03	• CLAMP - .188 DIA 84971 ALT AS61933 POST SBE71-0067	aa-ac	1
-260260B	AS61933	• CLAMP - 4.78 MM (.188) U1653 ALT TA025074-03 POST SBE71-0067 PRE SBE70-0746	ab-ac	REF
260260C	TA025074-03	• CLAMP - .188 DIA 84971 ALT AS61933 POST SBE70-0746	ab-ac	1
-260260D	AS61933	• CLAMP - 4.78 MM (.188) U1653 ALT TA025074-03 POST SBE70-0746	ab-ac	REF
265265	4W0103	• BOLT - .190 DIA X .500 PRE SBE70-0746	aa-ab	1
265265A	4W0103	• BOLT - .190 DIA X .500 POST SBE70-0746	ac	1
266266	SP154D	• WASHER - .190 DIA K7766 PRE SBE70-0746	aa-ab	1
266266A	SP154D	• WASHER - .190 DIA K7766 POST SBE70-0746	ac	1
268268	JM44LC39H103RG	• CLAMP 22175 PRE SBE71-0067	aa-ac	1
268268A	TA025074-03	• CLAMP - .188 DIA 84971 ALT AS61933 POST SBE71-0067	aa-ac	1
-268268B	AS61933	• CLAMP - 4.78 MM (.188) U1653 ALT TA025074-03 POST SBE71-0067 PRE SBE70-0746	ab-ac	REF
268268C	TA025074-03	• CLAMP - .188 DIA 84971 ALT AS61933 POST SBE70-0746	ab-ac	1
-268268D	AS61933	• CLAMP - 4.78 MM (.188) U1653 ALT TA025074-03 POST SBE70-0746	ab-ac	REF
273273	4W0104	• BOLT - .190 DIA X .562 PRE SBE70-0746	aa-ab	1
273273A	4W0104	• BOLT - .190 DIA X .562 POST SBE70-0746	ac	1
274274	SP154D	• WASHER - .190 DIA K7766 PRE SBE70-0746	aa-ab	1
274274A	SP154D	• WASHER - .190 DIA K7766 POST SBE70-0746	ac	1
275275	JM44LC39H103RG	• CLAMP 22175 PRE SBE71-0067	aa-ac	1
275275A	TA025074-03	• CLAMP - .188 DIA 84971 ALT AS61933 POST SBE71-0067	aa-ac	1
-275275B	AS61933	• CLAMP - 4.78 MM (.188) U1653 ALT TA025074-03 POST SBE71-0067 PRE SBE70-0746	ab-ac	REF
275275C	TA025074-03	• CLAMP - .188 DIA 84971 ALT AS61933 POST SBE70-0746	ab-ac	1
-275275D	AS61933	• CLAMP - 4.78 MM (.188) U1653 ALT TA025074-03 POST SBE70-0746	ab-ac	REF
276276	JM44LC39H103RG	• CLAMP 22175 PRE SBE71-0067	aa-ac	1
276276A	TA025074-03	• CLAMP - .188 DIA 84971 ALT AS61933 POST SBE71-0067	aa-ac	1
-276276B	AS61933	• CLAMP - 4.78 MM (.188) U1653 ALT TA025074-03 POST SBE71-0067 PRE SBE70-0746	ab-ac	REF
276276C	TA025074-03	• CLAMP - .188 DIA 84971 ALT AS61933 POST SBE70-0746	ab-ac	1
-276276D	AS61933	• CLAMP - 4.78 MM (.188) U1653 ALT TA025074-03 POST SBE70-0746	ab-ac	REF
280280	AS41104	• NUT - .190 DIA U1653 PRE SBE70-0746	aa-ab	1
280280A	AS41104	• NUT - .190 DIA U1653 POST SBE70-0746	ac	1
281281	4W0104	• BOLT - .190 DIA X .562 PRE SBE70-0746	aa-ab	1
281281A	4W0104	• BOLT - .190 DIA X .562 POST SBE70-0746	ac	1
282282	SP154D	• WASHER - .190 DIA K7766 PRE SBE70-0746	aa-ab	1
282282A	SP154D	• WASHER - .190 DIA K7766 POST SBE70-0746	ac	1
283283	JM44LC39H103RG	• CLAMP 22175 PRE SBE71-0067	aa-ac	1
283283A	TA025074-03	• CLAMP - .188 DIA 84971 ALT AS61933 POST SBE71-0067	aa-ac	1
-283283B	AS61933	• CLAMP - 4.78 MM (.188) U1653 ALT TA025074-03 POST SBE71-0067 PRE SBE70-0746	ab-ac	REF
283283C	TA025074-03	• CLAMP - .188 DIA 84971 ALT AS61933 POST SBE70-0746	ab-ac	1
-283283D	AS61933	• CLAMP - 4.78 MM (.188) U1653 ALT TA025074-03 POST SBE70-0746	ab-ac	REF
284284	JM44LC39H103RG	• CLAMP 22175 PRE SBE71-0067	aa-ac	1
284284A	TA025074-03	• CLAMP - .188 DIA 84971 ALT AS61933 POST SBE71-0067	aa-ac	1
-284284B	AS61933	• CLAMP - 4.78 MM (.188) U1653 ALT TA025074-03 POST SBE71-0067 PRE SBE70-0746	ab-ac	REF
284284C	TA025074-03	• CLAMP - .188 DIA 84971 ALT AS61933 POST SBE70-0746	ab-ac	1
-284284D	AS61933	• CLAMP - 4.78 MM (.188) U1653 ALT TA025074-03 POST SBE70-0746	ab-ac	REF
288288	AS41104	• NUT - .190 DIA U1653 PRE SBE70-0746	aa-ab	1
288288A	AS41104	• NUT - .190 DIA U1653 POST SBE70-0746	ac	1
289289	4W0104	• BOLT - .190 DIA X .562 PRE SBE70-0746	aa-ab	1
289289A	4W0104	• BOLT - .190 DIA X .562 POST SBE70-0746	ac	1
290290	SP154D	• WASHER - .190 DIA K7766 PRE SBE70-0746	aa-ab	1
290290A	SP154D	• WASHER - .190 DIA K7766 POST SBE70-0746	ac	1
291291	JM44LC39H103RG	• CLAMP 22175 PRE SBE71-0067	aa-ac	1
291291A	TA025074-03	• CLAMP - .188 DIA 84971 ALT AS61933 POST SBE71-0067	aa-ac	1
-291291B	AS61933	• CLAMP - 4.78 MM (.188) U1653 ALT TA025074-03 POST SBE71-0067 PRE SBE70-0746	ab-ac	REF
291291C	TA025074-03	• CLAMP - .188 DIA 84971 ALT AS61933 POST SBE70-0746	ab-ac	1
-291291D	AS61933	• CLAMP - 4.78 MM (.188) U1653 ALT TA025074-03 POST SBE70-0746	ab-ac	REF
292292	JM44LC39H103RG	• CLAMP 22175 PRE SBE71-0067	aa-ac	1
292292A	TA025074-03	• CLAMP - .188 DIA 84971 ALT AS61933 POST SBE71-0067	aa-ac	1
-292292B	AS61933	• CLAMP - 4.78 MM (.188) U1653 ALT TA025074-03 POST SBE71-0067 PRE SBE70-0746	ab-ac	REF
292292C	TA025074-03	• CLAMP - .188 DIA 84971 ALT AS61933 POST SBE70-0746	ab-ac	1
-292292D	AS61933	• CLAMP - 4.78 MM (.188) U1653 ALT TA025074-03 POST SBE70-0746	ab-ac	REF
296296	4W0001	• NUT - .190 DIA	aa-ac	1
296296A	4W0001	• NUT - .190 DIA POST SBE70-0746	ac	1
400400	144-171-902-011	• • BOLT S3960	aa-ac	3
400400A	144-171-902-011	• • BOLT S3960	aa-ac	3
410410	144-171-901-011	• • PLATE S3960	aa-ac	1
410410A	144-171-901-011	• • PLATE S3960	aa-ac	1
420420	951-11-19-0050	• • PACKING S3960	aa-ac	1
420420A	951-11-19-0050	• • PACKING S3960	aa-ac	1
420420B	952-11-19-0050	• • RING	aa-ac	1
610610	AS8600A	• • NUT - .112 DIA U1653	aa-ac	8
614614	A117-1A	• • BOLT K7766	aa-ac	8

620620	144-171-903-011	• • BRACKET - CONNECTOR S3960	aa-ac	1
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

Manufacturer Code:	0AM53
Enterprise Name:	IAE INTERNATIONAL AERO ENGINES AG
BU Name:	NULL
Building:	SUITE 400
Street:	628 HEBRON AVENUE
City:	GLASTONBURY
State:	CT
Zip Code:	06033
Country:	USA

Manufacturer Code:	22175
Enterprise Name:	J AND M PRODUCTS INC
BU Name:	J AND M PRODUCTS INC
Street:	2435 N NAOMI STREET
City:	BURBANK
State:	CA
Zip Code:	91504-3425
Country:	USA

Manufacturer Code:	51563
Enterprise Name:	ROHR INC, A COLLINS AEROSPACE COMPANY
BU Name:	ROHR INC, A COLLINS AEROSPACE COMPANY
Street:	850 LAGOON DRIVE
City:	CHULA VISTA
State:	CA
Zip Code:	91910-2098
Country:	USA
Phone Number:	1-619-691-2089
Fax Number:	1-619-691-6195

Manufacturer Code:	84971
Enterprise Name:	KIRKHILL - TA MFG SUB OF ESTERLINE TECHNOLOGIES
BU Name:	KIRKHILL - TA MFG SUB OF ESTERLINE TECHNOLOGIES
Department:	TA MFG LTD
Street:	28065 WEST FRANKLIN PARKWAY,VALENCIA
City:	SANTA CLARITA
State:	CALIFORNIA
Zip Code:	GL1 2BS
Country:	USA

Manufacturer Code:	96906
Enterprise Name:	MILITARY STANDARDS MANUAL 4120 3-M
BU Name:	MILITARY STANDARDS MANUAL 4120 3-M
Street:	NONE
City:	NONE
Country:	USA
Phone Number:	NONE

VIBRATION TRANSDUCER

Export Control

Copyright

Applicability

Figure: VIBRATION TRANSDUCER

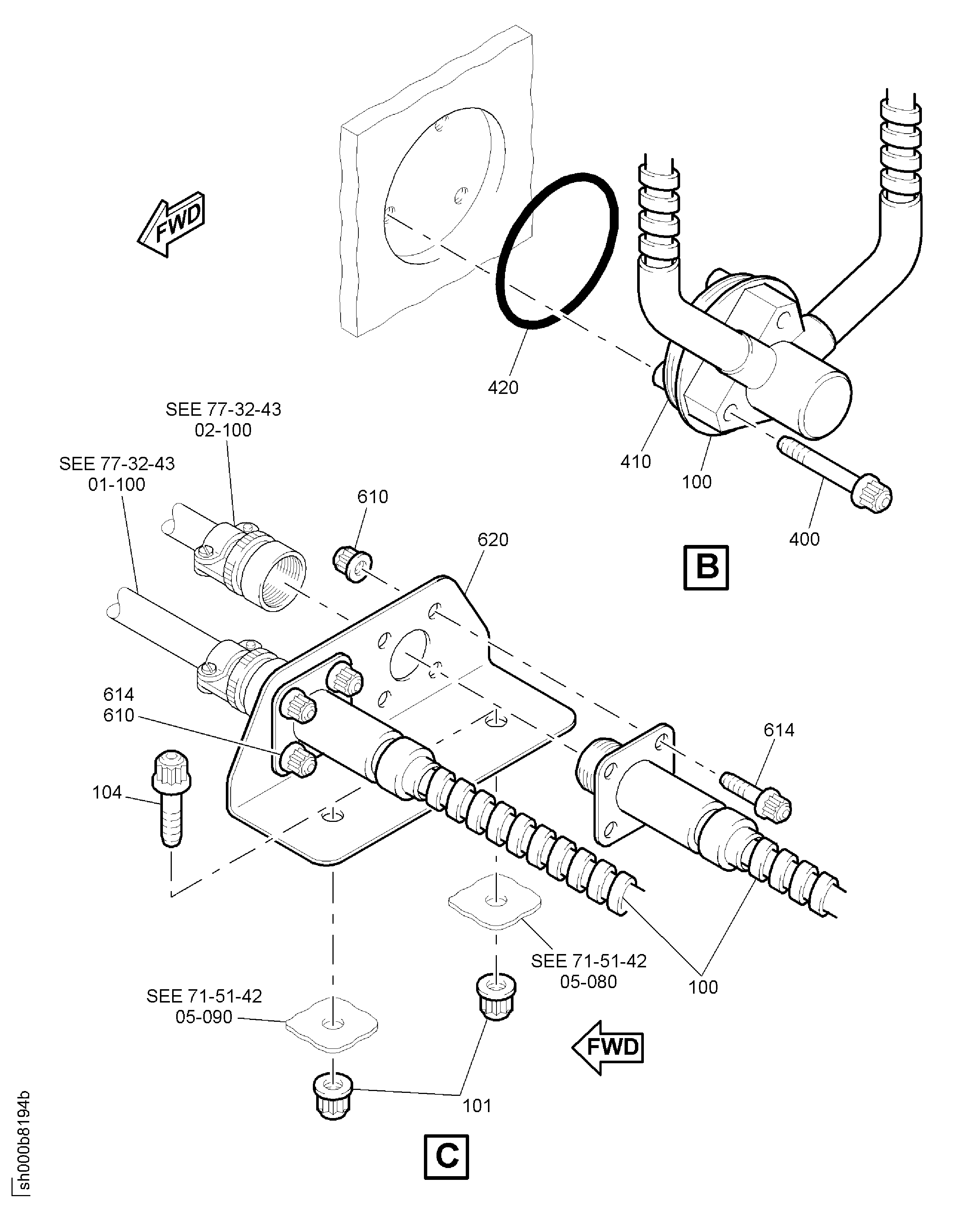

TRANSDUCER ASSY VIBRATION

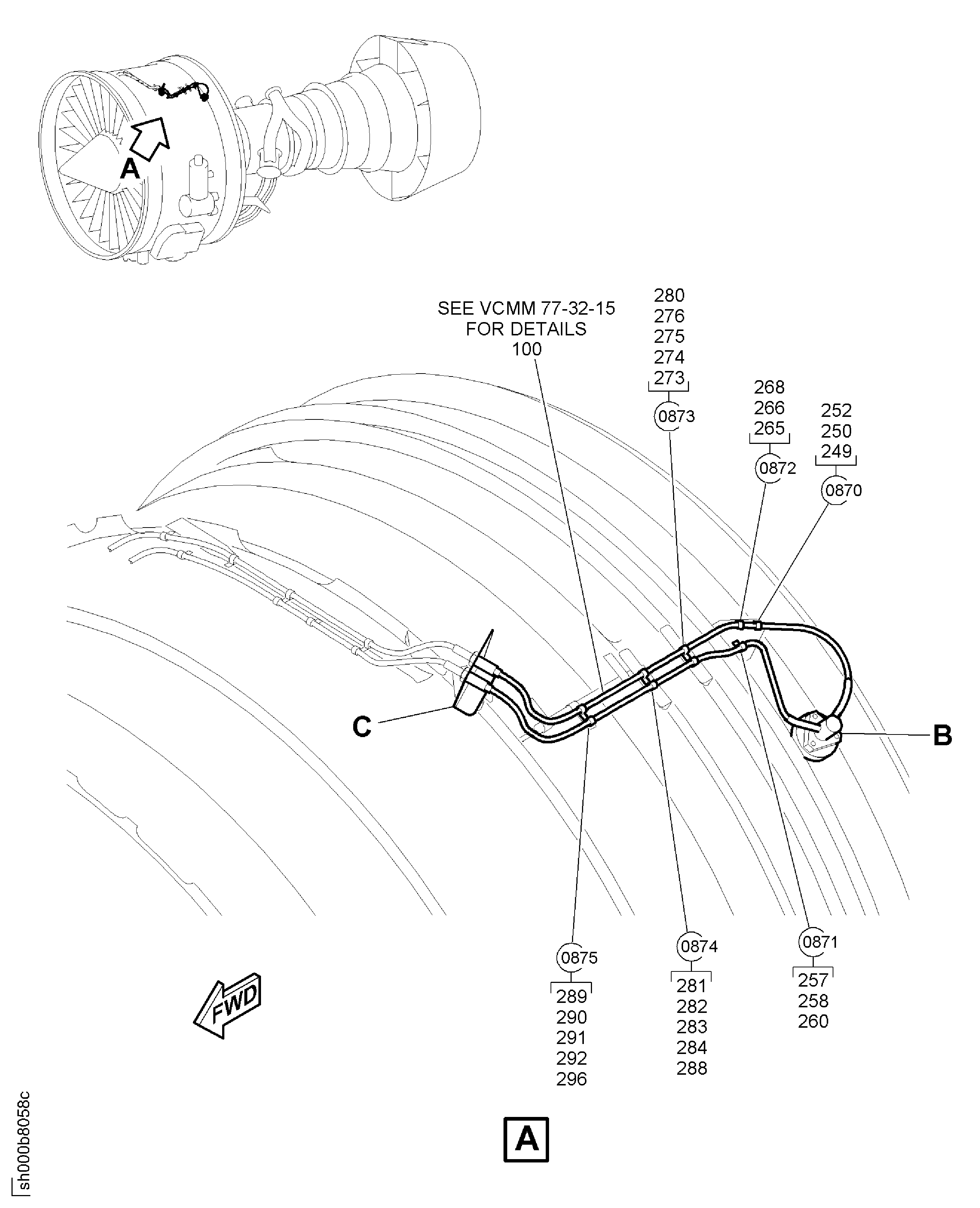

TRANSDUCER ASSY VIBRATION

Manufacturer Code:	K7766
Enterprise Name:	K7766
BU Name:	British Standards Institution
Street:	2 Park Street
City:	London
Zip Code:	AW1A 2BS
Country:	England

Manufacturer Code:	S3960
Enterprise Name:	VIBRO-METER SA
BU Name:	VIBRO-METER SA
Street:	ROUTE DE MONCOR 4
P.O. Box:	1701
City:	FRIBOURG
State:	NH
Zip Code:	03103
Country:	SWITZERLAND

Manufacturer Code:	U1653
Enterprise Name:	Society Of British Aerospace Companies, LTD.

Part Number:	144-171-000-031
Part Name:	TRANSDUCER - VIBRATION CA-171
Manufacturer Code:	S3960

Part Number:	AS20624
Part Name:	NUT, SELF LOCKING DBL HEX - .190 DIA
Manufacturer Code:	U1653
