VIBRATION TRANSDUCER JUNCTION BOX

DMC:V2500-A1-77-32-43-05A-941A-D|Issue No:001|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig. Item	Part No.	Description	Effect/Model Applic.	UPA
05
000	B77324305	VIBRATION TRANSDUCER JUNCTION BOX, PRE SBE71-0067	aa
000	SBE0067-01	VIBRATION TRANSDUCER JUNCTION BOX, PRE SBE70-0164	ab
000	SBE0164-01	VIBRATION TRANSDUCER JUNCTION BOX, PRE SBE71-0177	ac
000	SBE0177-01	VIBRATION TRANSDUCER JUNCTION BOX	ad
-005005	740-5968-501	HARNESS - VIBRATION 51563	aa-ad	REF
060060	740-5425-501	• BRACKET 51563	aa-ad	1
060060A	740-5425-505	• BRACKET 51563	aa-ad	1

061061	4W0002	• NUT - .250 DIA	aa-ad	2
064064	4W0164	• BOLT - .250 DIA X .625 PRE SBE71-0177	aa-ac	2
064064A	4W0165	• BOLT - .250 DIA X .688 POST SBE71-0177	ad	2

080080	740-5440-501	• BRACKET 51563	aa-ad	1
080080A	740-5440-501	• BRACKET 51563	aa-ad	1

082082	AS20625	• NUT - .250 DIA U1653	aa-ad	1
082082A	AS20625	• NUT - .250 DIA U1653	aa-ad	2
082082B	AS20625	• NUT - .250 DIA U1653	aa-ad	2
086086	AS21509	• BOLT - .250 DIA X .562 U1653	aa-ad	1
086086A	4W0164	• BOLT - .250 DIA X .625	aa-ad	2

100100	740-5448-501	• RACEWAY - ASSY 51563	aa-ad	1
100100A	740-5448-501	• RACEWAY - ASSY 51563	aa-ad	1

101101	AS21408	• BOLT - .190 DIA X .500 U1653	aa-ad	1
101101A	4W0103	• BOLT - .190 DIA X .500	aa-ad	1
102102	SP154D	• WASHER - .190 DIA K7766	aa-ad	1
104104	JM44LC39S107	• CLAMP 22175	aa-ad	1
104104A	JM44LC39H107RG	• CLAMP 22175	aa-ad	1
104104B	JM44LC39H107RG	• CLAMP 22175 PRE SBE71-0067	aa-ab	1
104104C	TA025074-10	• CLAMP - .625 DIA 84971 ALT AS61908 POST SBE71-0067 PRE SBE70-0164	aa-ab	1
-104104D	AS61908	• CLAMP - 15.88 MM (O.625) U1653 ALT 400WSS12 POST SBE71-0067 PRE SBE70-0164	ab	REF
104104E	400WSS12	• CLIP 83930 POST SBE70-0164	ab	1
104104F	400WSS12	• CLIP 83930 ALT AS61908 POST SBE70-0164	ab	1
-104104G	AS61908	• CLAMP - 15.88 MM (O.625) U1653 ALT TA025074-10 POST SBE70-0164	ab	REF
108108	AS41104	• NUT - .190 DIA U1653	aa-ad	1
108108A	AS41104	• NUT - .190 DIA U1653	aa-ad	1
109109	AS21408	• BOLT - .190 DIA X .500 U1653	aa-ad	1
109109A	4W0103	• BOLT - .190 DIA X .500	aa-ad	1
116116	AS20624	• NUT - .190 DIA U1653	aa-ad	1
116116A	4W0001	• NUT - .190 DIA	aa-ad	1

- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

Manufacturer Code:	0AM53
Enterprise Name:	IAE INTERNATIONAL AERO ENGINES AG
BU Name:	NULL
Building:	SUITE 400
Street:	628 HEBRON AVENUE
City:	GLASTONBURY
State:	CT
Zip Code:	06033
Country:	USA

Manufacturer Code:	22175
Enterprise Name:	J AND M PRODUCTS INC
BU Name:	J AND M PRODUCTS INC
Street:	2435 N NAOMI STREET
City:	BURBANK
State:	CA
Zip Code:	91504-3425
Country:	USA

Manufacturer Code:	51563
Enterprise Name:	ROHR INC, A COLLINS AEROSPACE COMPANY
BU Name:	ROHR INC, A COLLINS AEROSPACE COMPANY
Street:	850 LAGOON DRIVE
City:	CHULA VISTA
State:	CA
Zip Code:	91910-2098
Country:	USA
Phone Number:	1-619-691-2089
Fax Number:	1-619-691-6195

Manufacturer Code:	83930
Enterprise Name:	TRANSDIGM INC
BU Name:	TRANSDIGM INC
Department:	ADEL FASTENERS
Building:	SANDWELL INDUSTRIAL ESTATE
Street:	5000 TRIGGS STREET
City:	LOS ANGELES
State:	WEST MIDLANDS
Zip Code:	B66 1QJ
Country:	USA

Manufacturer Code:	84971
Enterprise Name:	KIRKHILL - TA MFG SUB OF ESTERLINE TECHNOLOGIES
BU Name:	KIRKHILL - TA MFG SUB OF ESTERLINE TECHNOLOGIES
Department:	TA MFG LTD
Street:	28065 WEST FRANKLIN PARKWAY,VALENCIA
City:	SANTA CLARITA
State:	CALIFORNIA
Zip Code:	GL1 2BS
Country:	USA

VIBRATION TRANSDUCER JUNCTION BOX

Export Control

Copyright

Applicability

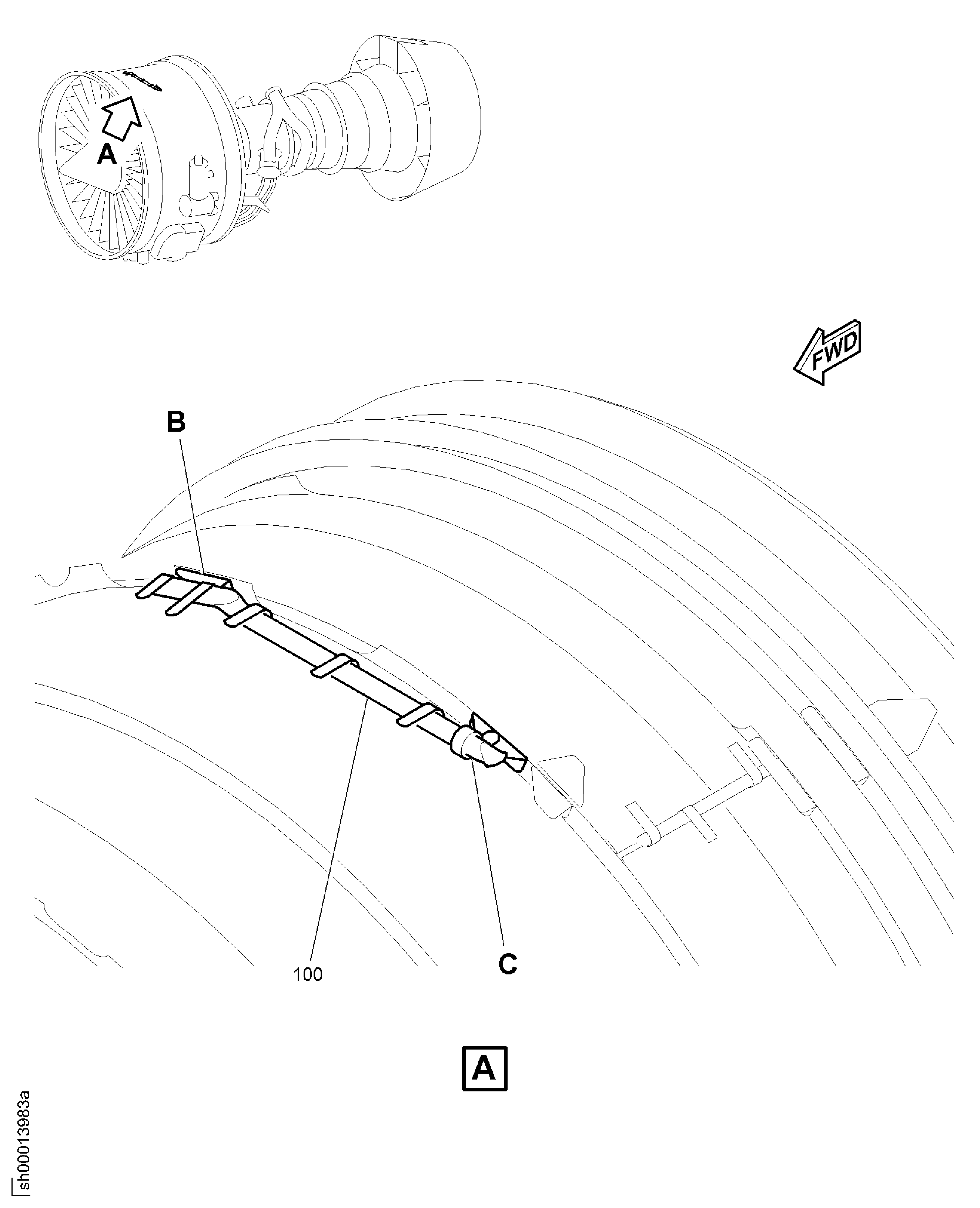

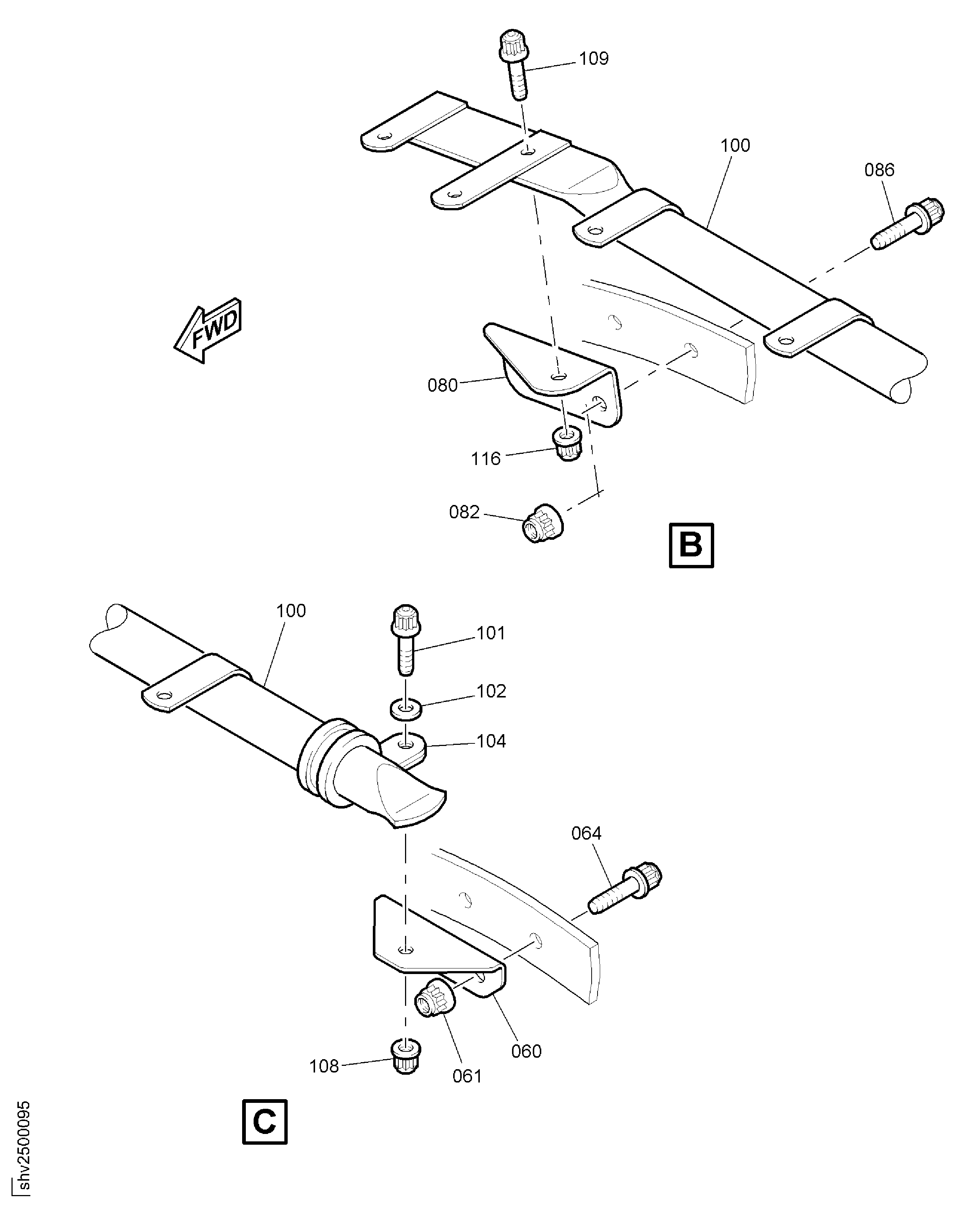

Figure: VIBRATION TRANSDUCER JUNCTION BOX
