DMC:V2500-A1-78-11-11-02A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 02 | ||||
| B78111102 | EXHAUST-COMMON NOZZLE EXHAUST COLLECTOR, PRE SBN78-0070 | aa | ||
| SBN0070-01 | EXHAUST-COMMON NOZZLE EXHAUST COLLECTOR, PRE SBN70-0880 | ab | ||
| SBN0880-01 | EXHAUST-COMMON NOZZLE EXHAUST COLLECTOR | ac | ||
| -002 | 740-1094-519 | NOZZLE - COMMON ASSY 51563 POST SBN78-0070 PRE SBN70-0424 | ***** | REF |
| -002A | 745-1101-507 | NOZZLE - ASSY 51563 POST SBN70-0880 | ac | REF |
| 040 | 740-1126-501 | • SEAL - ASSY,UPPER PAN 51563 | aa-ac | 1 |
| 120 | 740-1126-502 | • SEAL - ASSY UPPER PAN 51563 | aa-ac | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

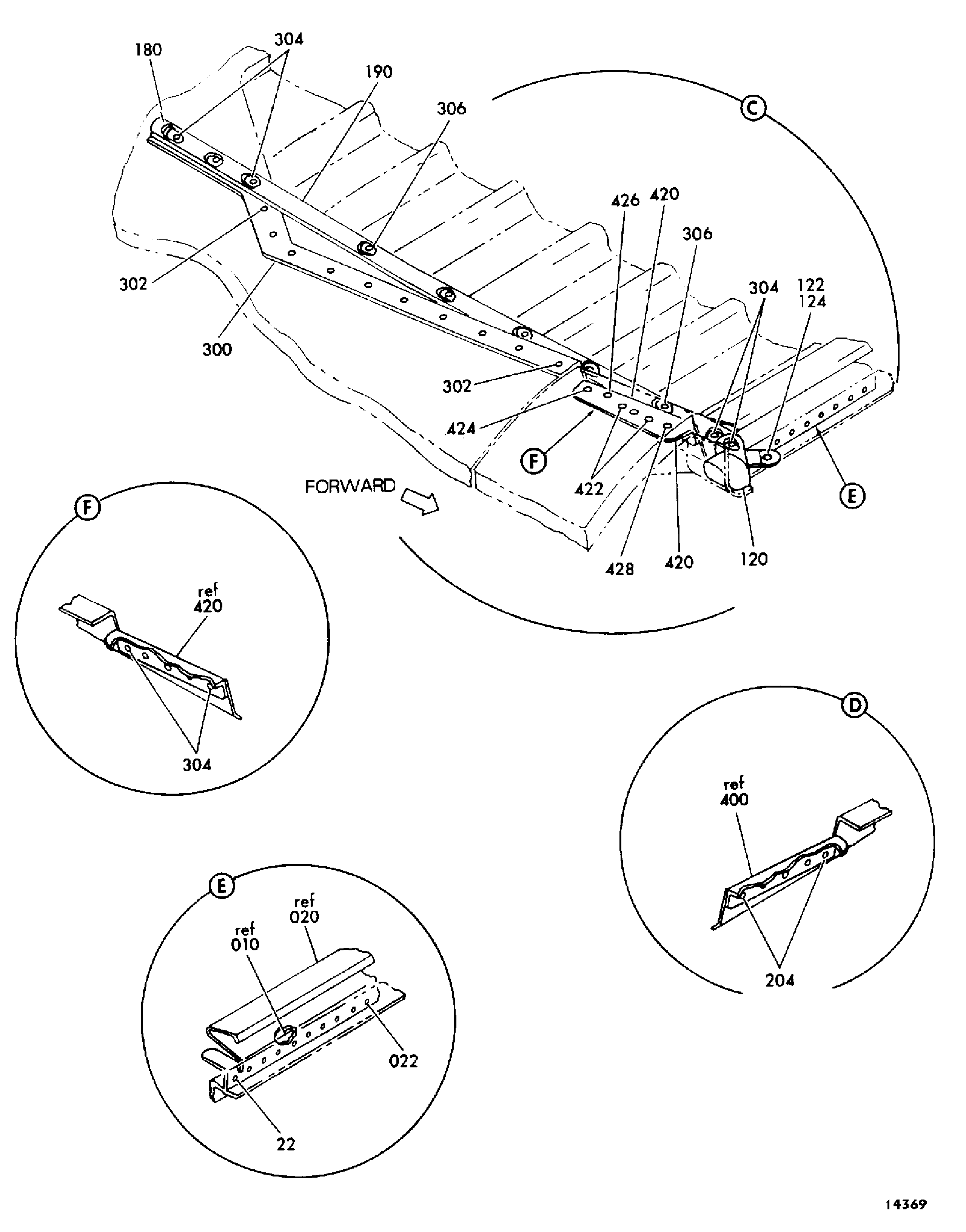

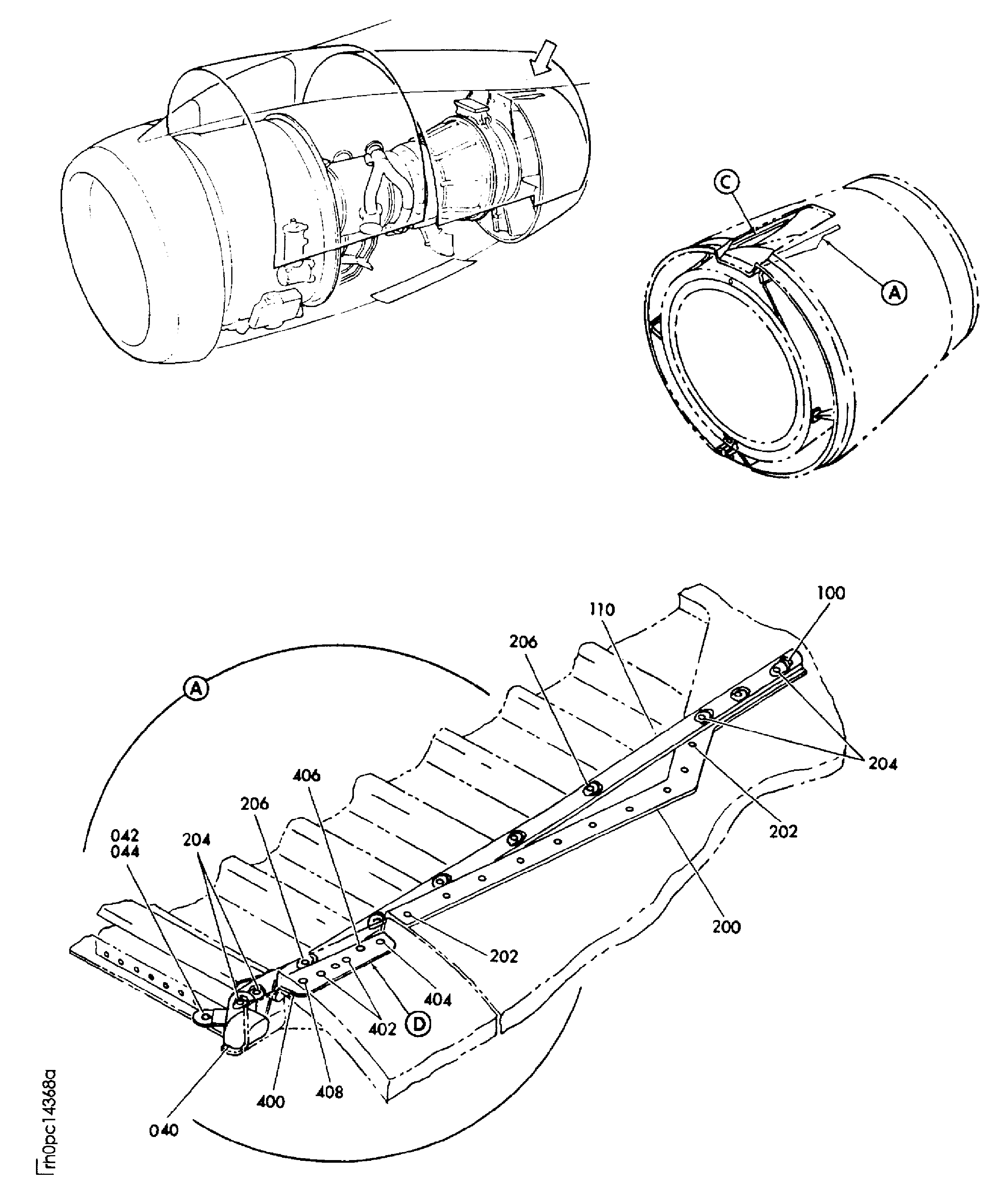

Figure: EXHAUST-COMMON NOZZLE EXHAUST COLLECTOR
COMMON NOZZLE ASSEMBLY
COMMON NOZZLE ASSEMBLY
