DMC:V2500-A1-78-11-12-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B78111201 | EXHAUST-ENGINE EXHAUST CONE, PRE SBN78-0066 | aa | ||
| SBN0066-01 | EXHAUST-ENGINE EXHAUST CONE, PRE SBE70-0541 | ab | ||
| SBE0541-01 | EXHAUST-ENGINE EXHAUST CONE | ac | ||
| -001 | 740-1123-501 | PLUG - INSTL,COMMON NOZZLE 51563 PRE SBN78-0066 | aa | REF |
| -001A | 740-1123-503 | PLUG - INSTL,COMMON NOZZLE 51563 POST SBN78-0066 | aa-ac | REF |
| 010 | 740-1061-503 | • PLUG - ASSY 51563 PRE SBE70-0541 | aa-ab | 1 |
| 010A | 740-1061-505 | • PLUG - ASSY 51563 POST SBE70-0541 | ac | 1 |
| 030 | 77711-4-4 | • BOLT 56878 PRE SBN78-0066 | aa | 13 |
| 030A | S700B1419 | • BOLT 51563 POST SBN78-0066 | ab-ac | 13 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

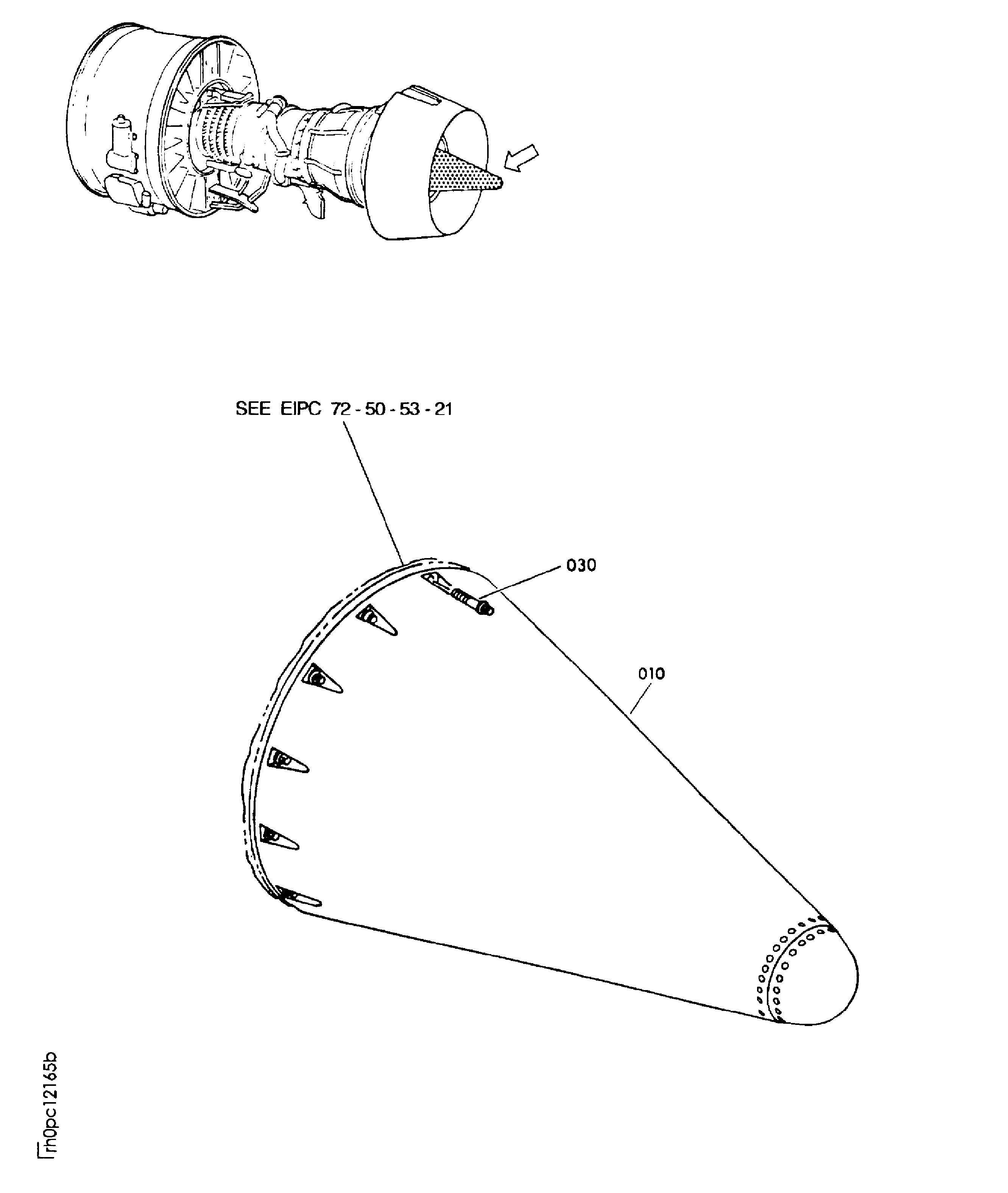

Figure: EXHAUST-ENGINE EXHAUST CONE
COMMON NOZZLE PLUG ASSEMBLY
