DMC:V2500-A1-78-30-00-02A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 02 | ||||
| B78300002 | EXHAUST-THRUST REVERSER | aa | ||
| -001 | 740-0001-521 | INSTL - FAN RVSR ENG POS NO 2 51563 PRE SBN78-0001 | ***** | REF |
| 130 | 740-0002-549 | • THRUST - REVERER,ASSY LH SIDE 51563 | aa | 1 |
| 140 | 740-0002-559 | • THRUST - RVSR ASSY,RH SIDE 51563 | aa | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

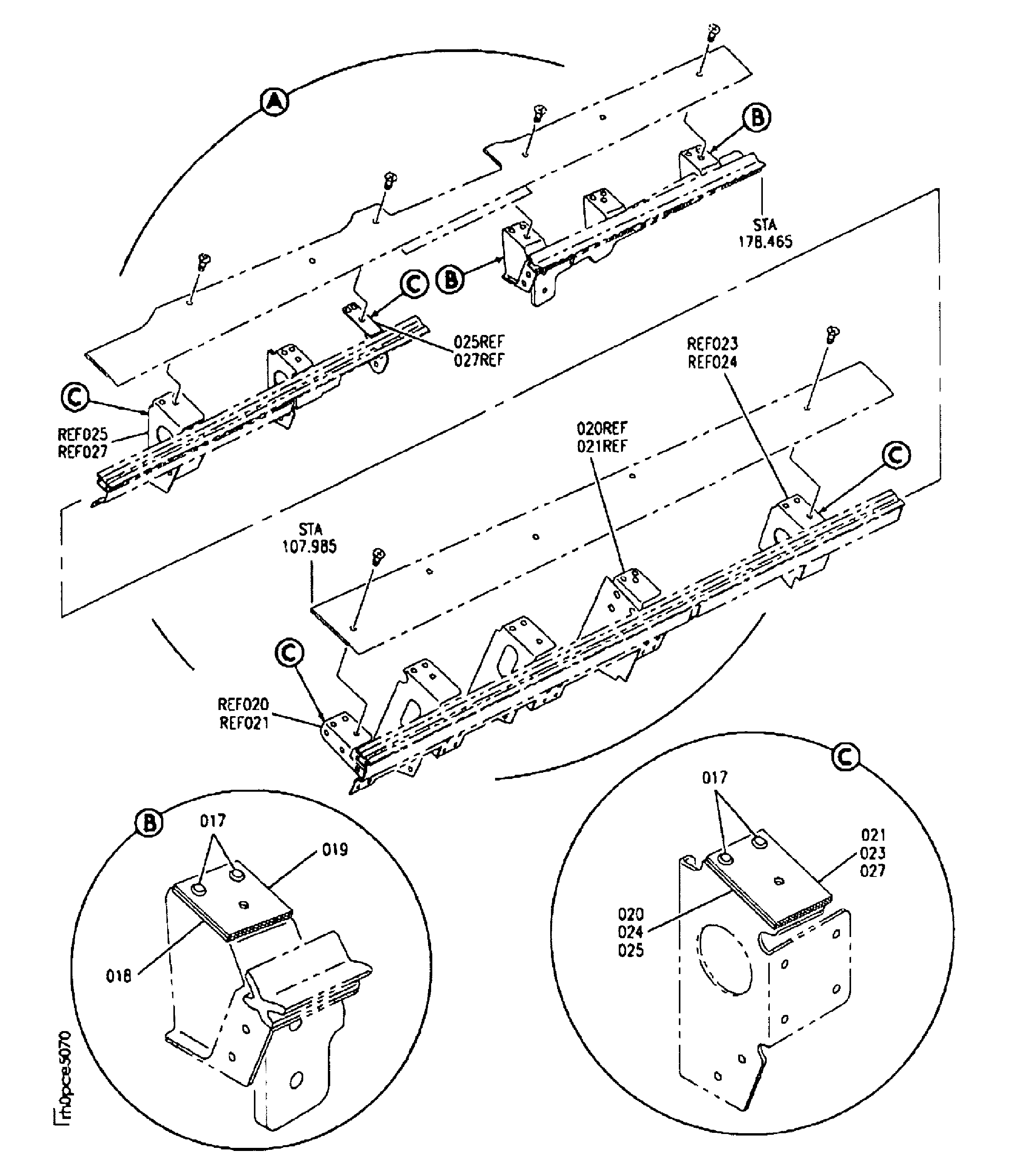

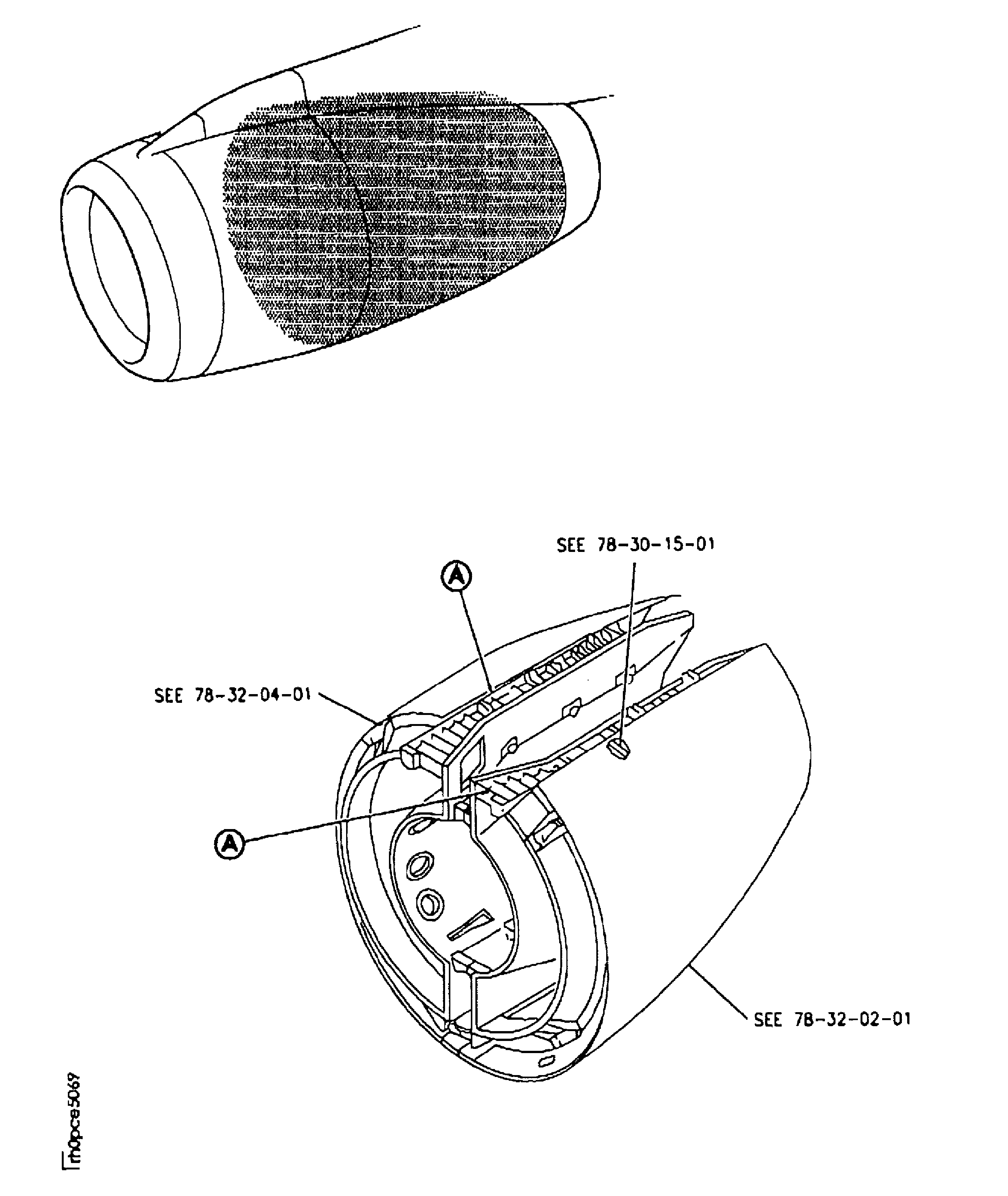

Figure: EXHAUST-THRUST REVERSER
EXHAUST-THRUST REVERSER
EXHAUST-THRUST REVERSER
