EXHAUST-LEFT C-DUCT ELECTRICAL HARNESS

DMC:V2500-A1-78-32-47-01A-941A-D|Issue No:001.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig.
Item		Part No.DescriptionEffect/Model Applic.UPA
01
000B78324701EXHAUST-LEFT C-DUCT ELECTRICAL HARNESSaa
200200MS27488-16• • PLUG - SEALING
96906		aa2
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

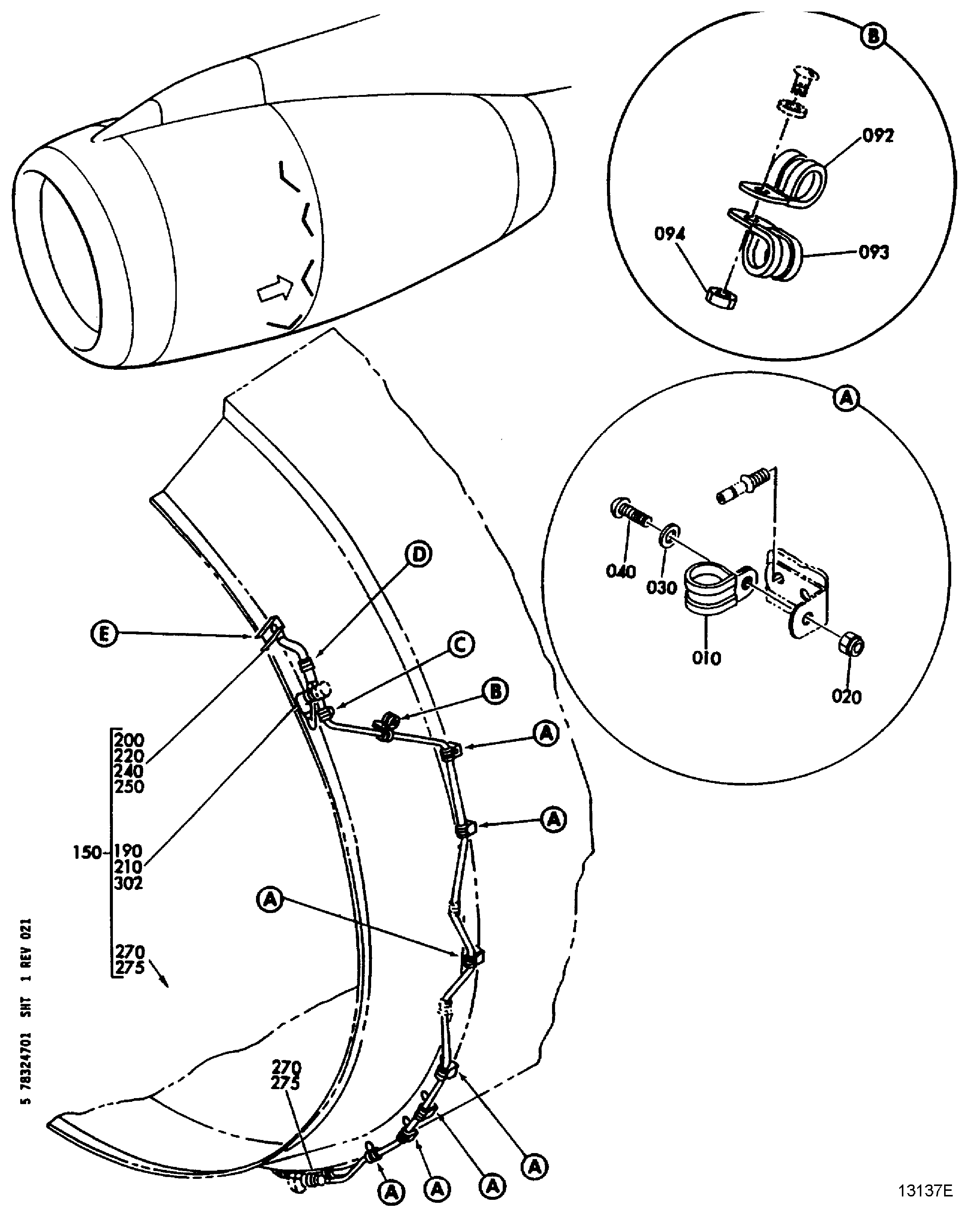

Figure: EXHAUST-LEFT C-DUCT ELECTRICAL HARNESS

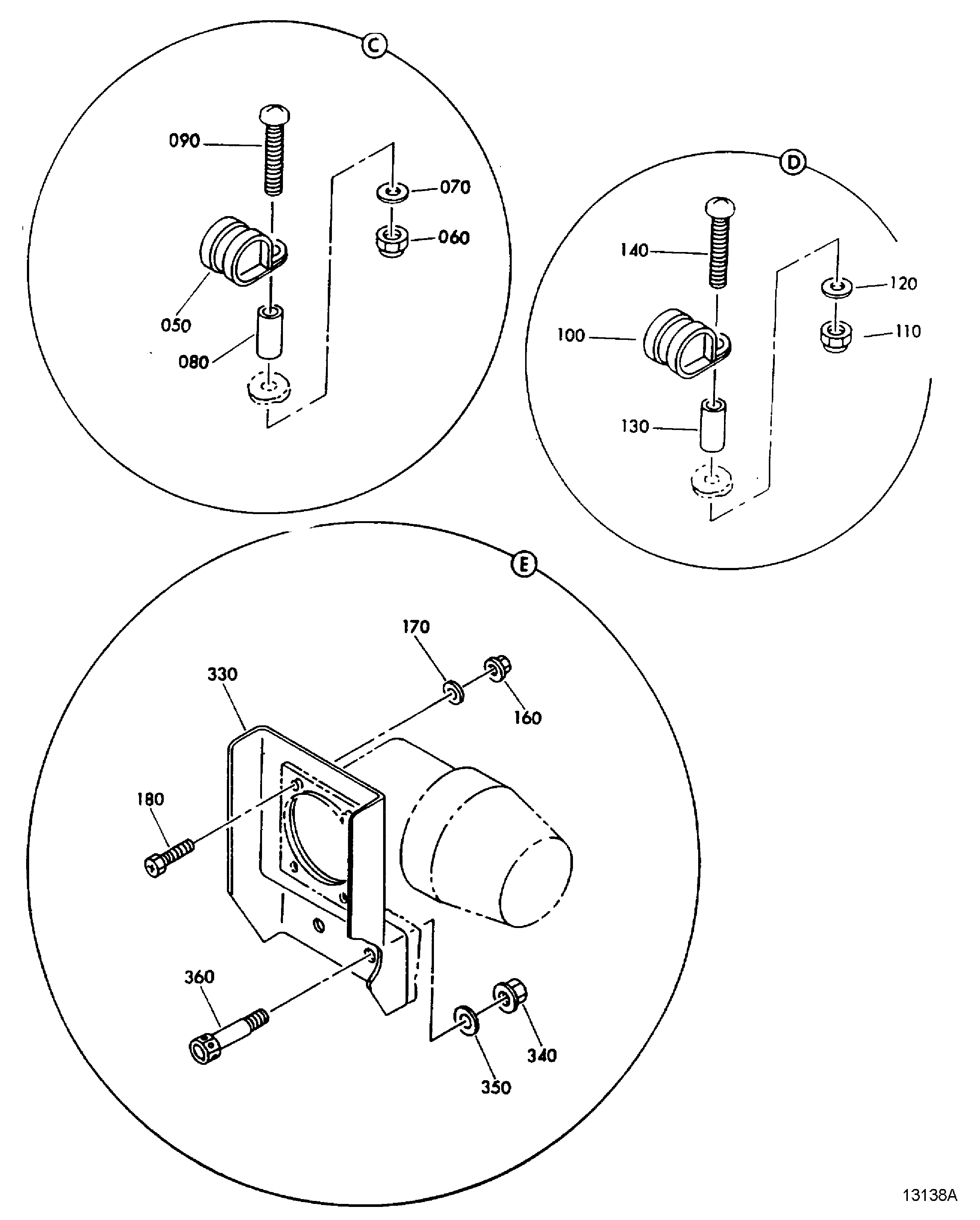

C DUCT ELECTRICAL INSTL LH SIDE

C DUCT ELECTRICAL INSTL LH SIDE

Manufacturer Code:96906
Enterprise Name:MILITARY STANDARDS MANUAL 4120 3-M
BU Name:MILITARY STANDARDS MANUAL 4120 3-M
Street:NONE
City:NONE
Country:USA
Phone Number:NONE
Part Number:MS27488-16
Part Name:PLUG, SEALING
Manufacturer Code:96906
Unit Of Issue:EA
