| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 35 | ||||
| B78324935 | EXHAUST-LEFT C-DUCT FIXED STRUCTURE, PRE SBN70-0772 | aa | ||
| SBN0772-01 | EXHAUST-LEFT C-DUCT FIXED STRUCTURE | ab | ||
| 010 | 745-0018-501 | • BLOCK - ASSY,UPPER SEAL 51563 POST SBN70-0772 | ab | 1 |
| 010A | 745-0018-501 | • BLOCK - ASSY,UPPER SEAL 51563 POST SBN70-0772 | ab | 1 |
| 020 | CR3523-6-5 | • RIVET 81349 POST SBN70-0772 | ab | 2 |
| 020A | CR3523-6-5 | • RIVET 81349 POST SBN70-0772 | ab | 2 |
| 040 | 745-0017-501 | • BLOCK - ASSY,LOWER SEAL 51563 POST SBN70-0772 | ab | 1 |
| 040A | 745-0017-501 | • BLOCK - ASSY,LOWER SEAL 51563 POST SBN70-0772 | ab | 1 |
| 050 | CR3523-6-5 | • RIVET 81349 POST SBN70-0772 | ab | 2 |
| 050A | CR3523-6-5 | • RIVET 81349 POST SBN70-0772 | ab | 2 |
| 306 | NAS1398M5-2 | • RIVET 80205 | aa-ab | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

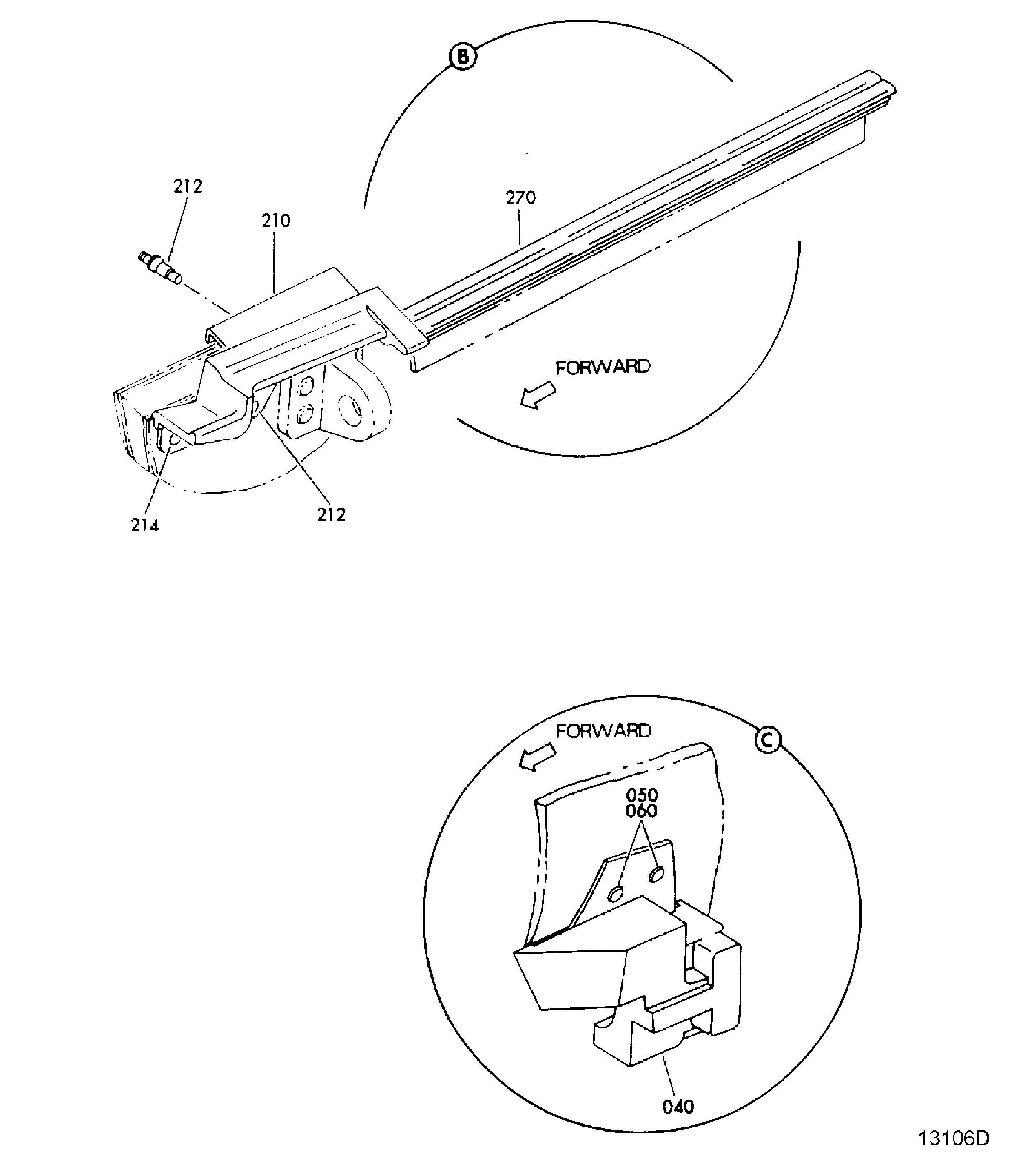

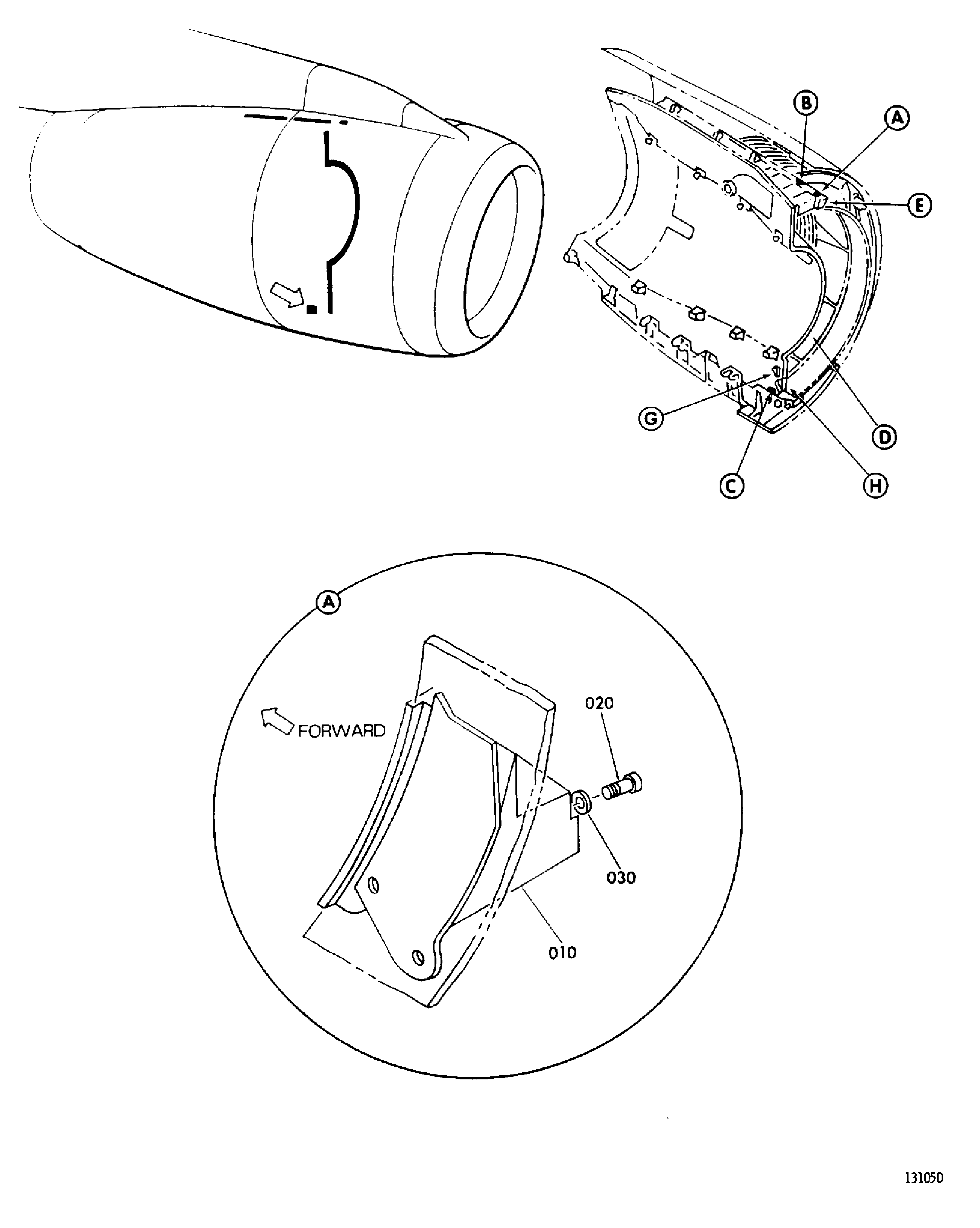

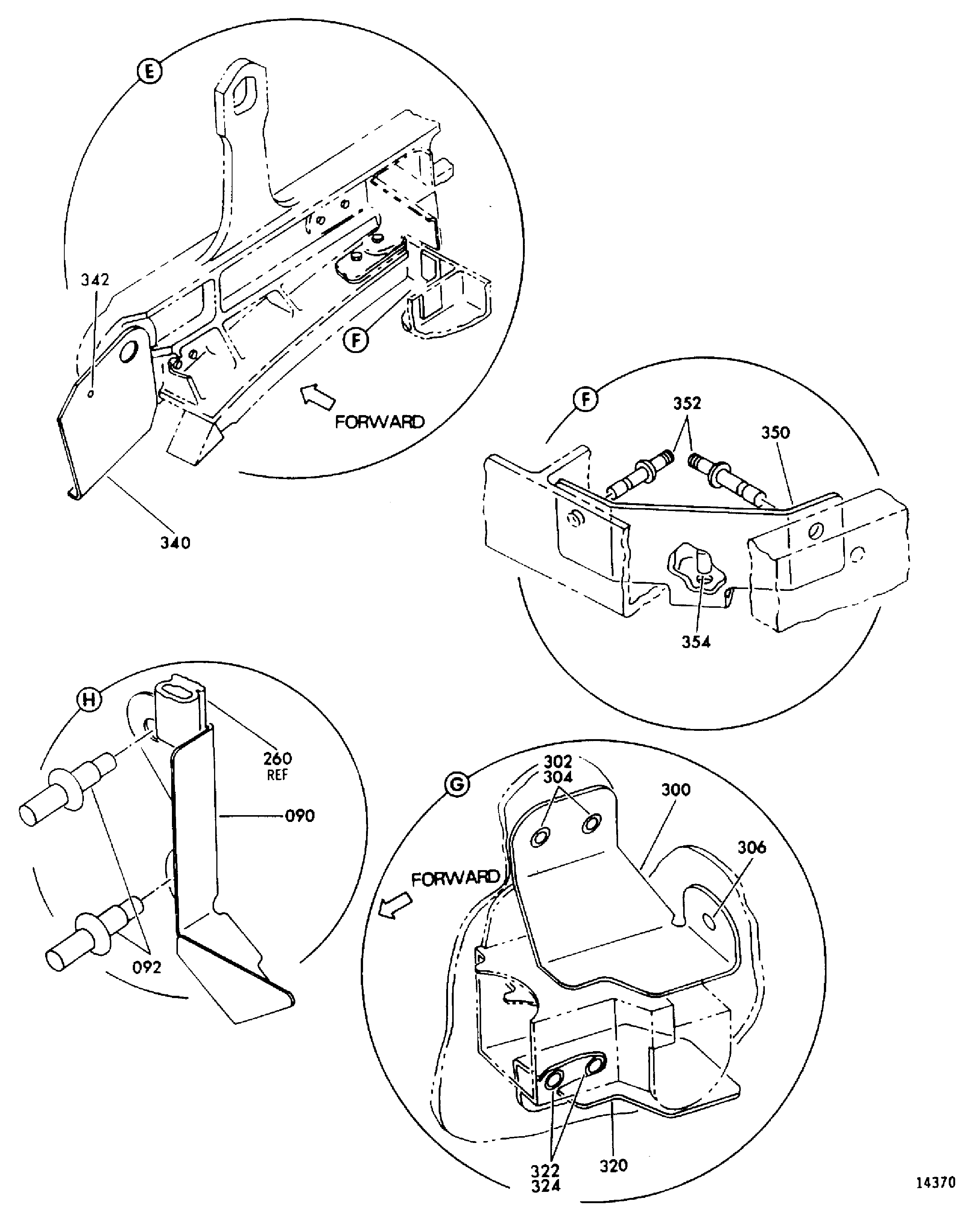

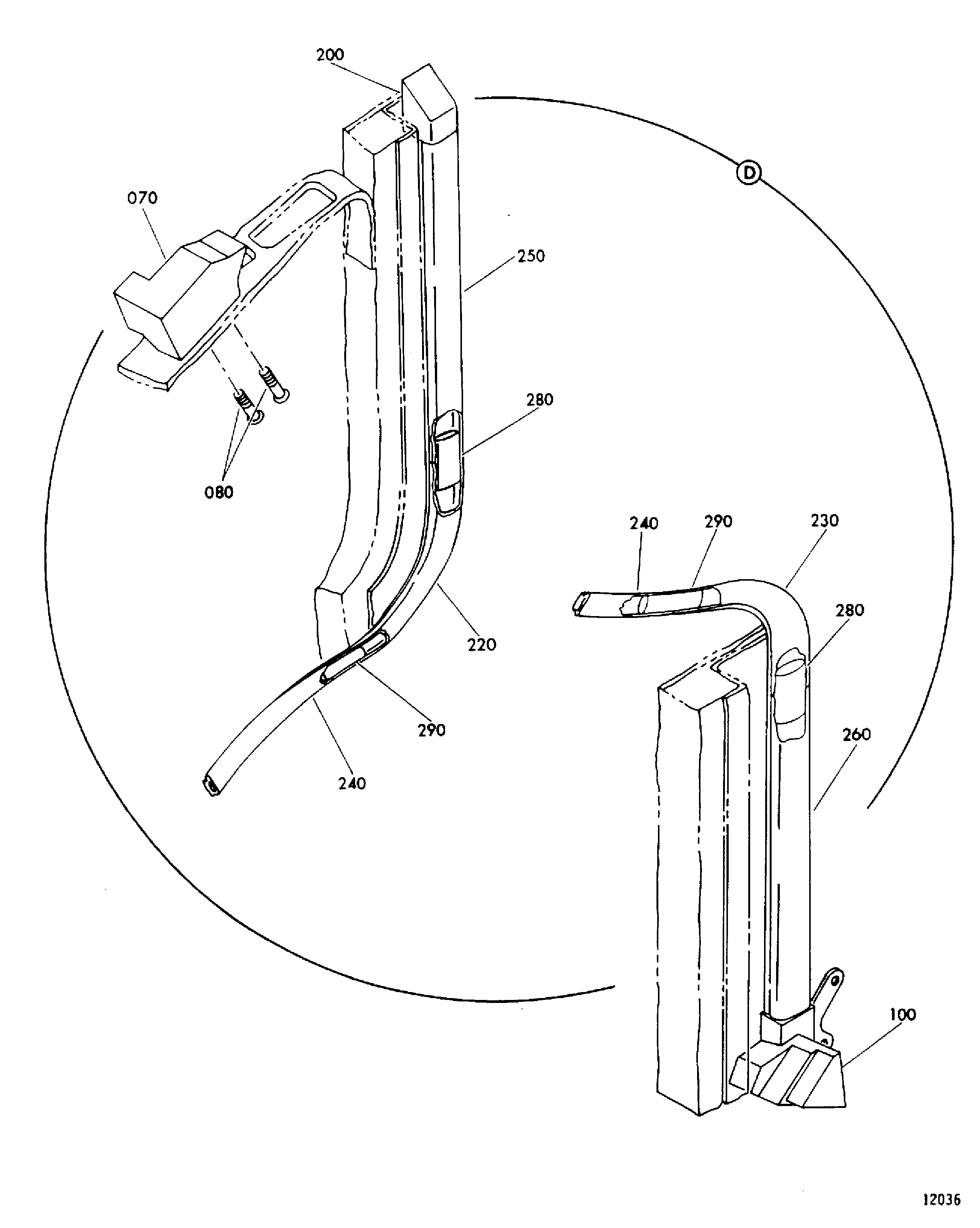

Figure: EXHAUST-LEFT C-DUCT FIXED STRUCTURE
PRESSURE SEAL INSTL LH SIDE
PRESSURE SEAL INSTL LH SIDE
PRESSURE SEAL INSTL LH SIDE
PRESSURE SEAL INSTL LH SIDE
