DMC:V2500-A1-78-32-75-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B78327501 | EXHAUST-RIGHT BLOCKER DOOR, PRE SBN70-0223 | aa | ||
| SBN0223-01 | EXHAUST-RIGHT BLOCKER DOOR, PRE SBN78-0080 | ab | ||
| SBN0080-01 | EXHAUST-RIGHT BLOCKER DOOR | ac | ||
| 010 | 740-0043-531 | • DOOR - ASSY, BLOCKER 51563 POST SBN78-0080 | ac | 3 |
| 170 | 740-0043-534 | • DOOR - ASSY, BLOCKER 51563 POST SBN78-0080 | ac | 1 |
| 340 | 740-0042-516 | • DOOR - ASSY, BLOCKER 51563 POST SBN70-0223 PRE SBN78-0080 | ab-ac | 1 |
| 340A | 740-0042-518 | • DOOR - ASSY, BLOCKER 51563 POST SBN78-0080 | ab-ac | 1 |
| 410 | 740-0050-507 | • • SPRING - BLOCKER DOOR LINK 51563 POST SBN70-0223 | ab-ac | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

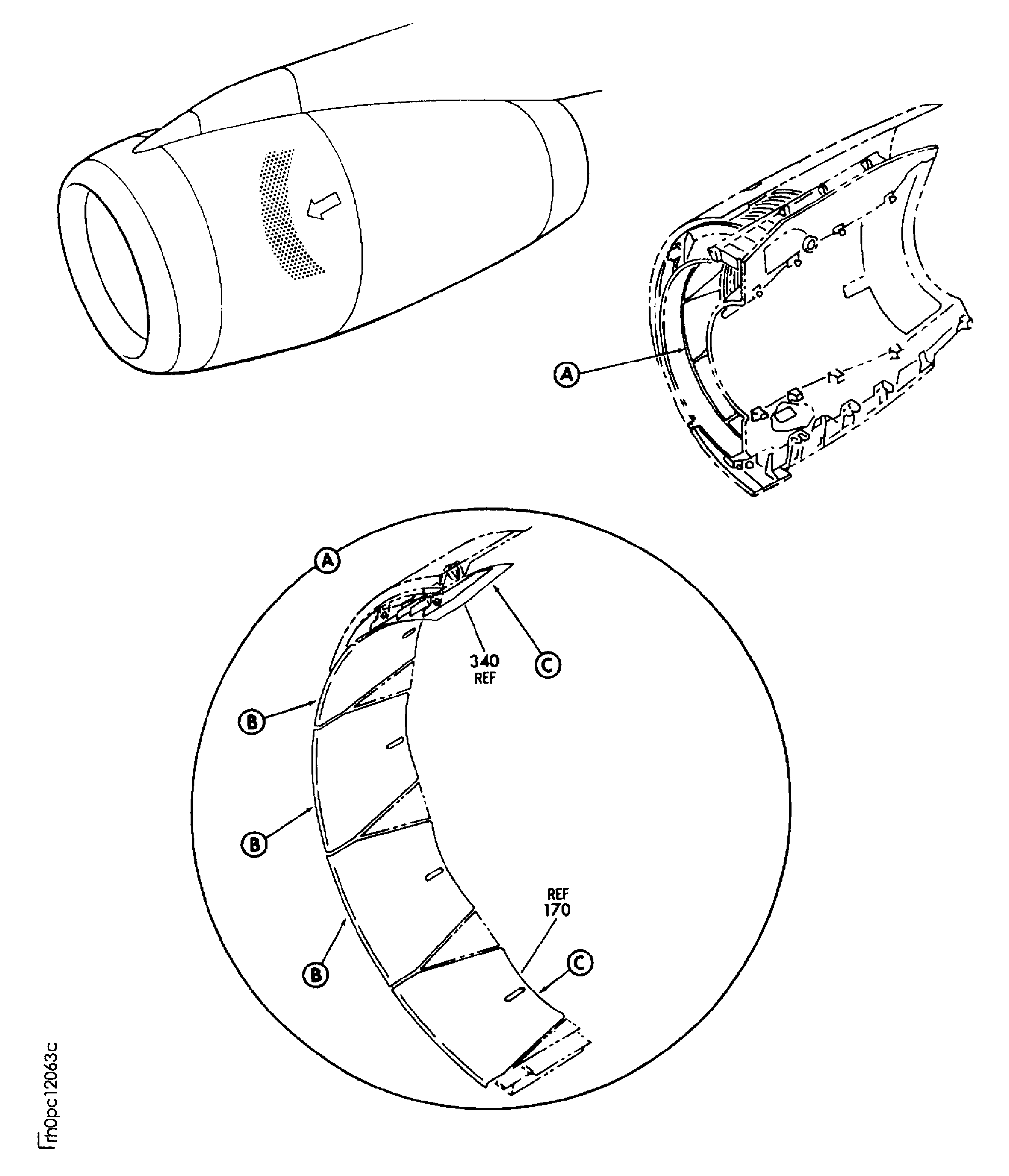

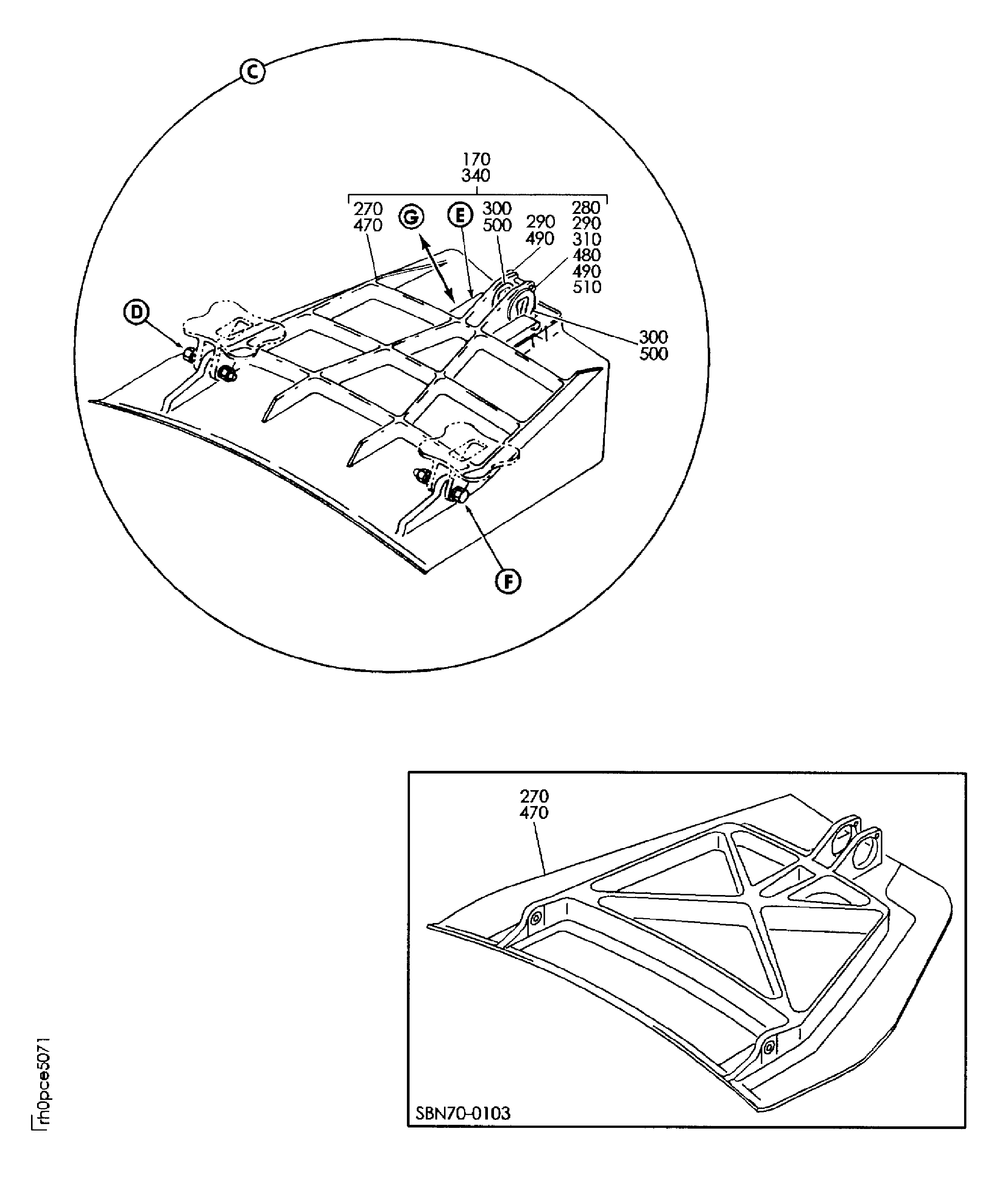

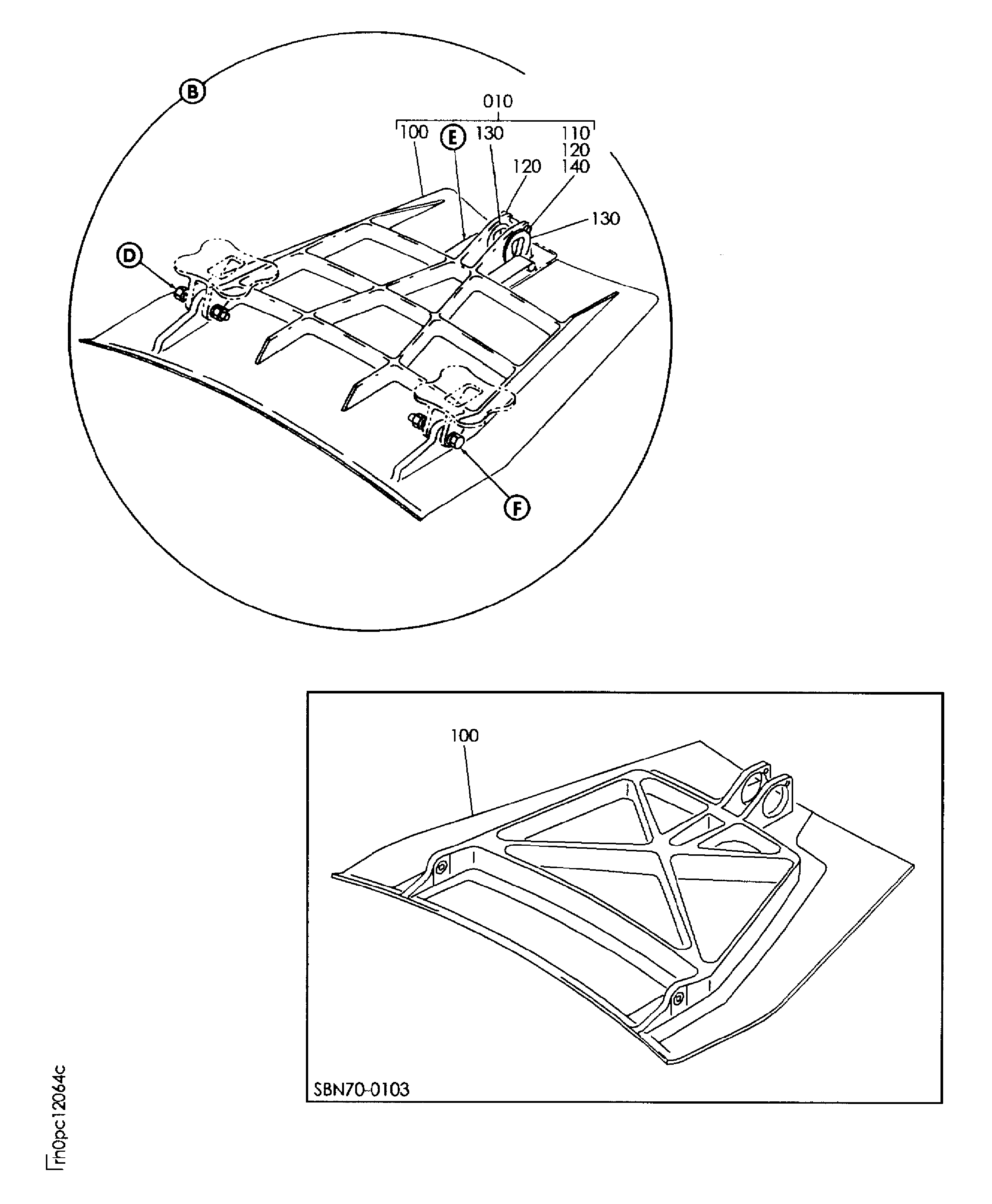

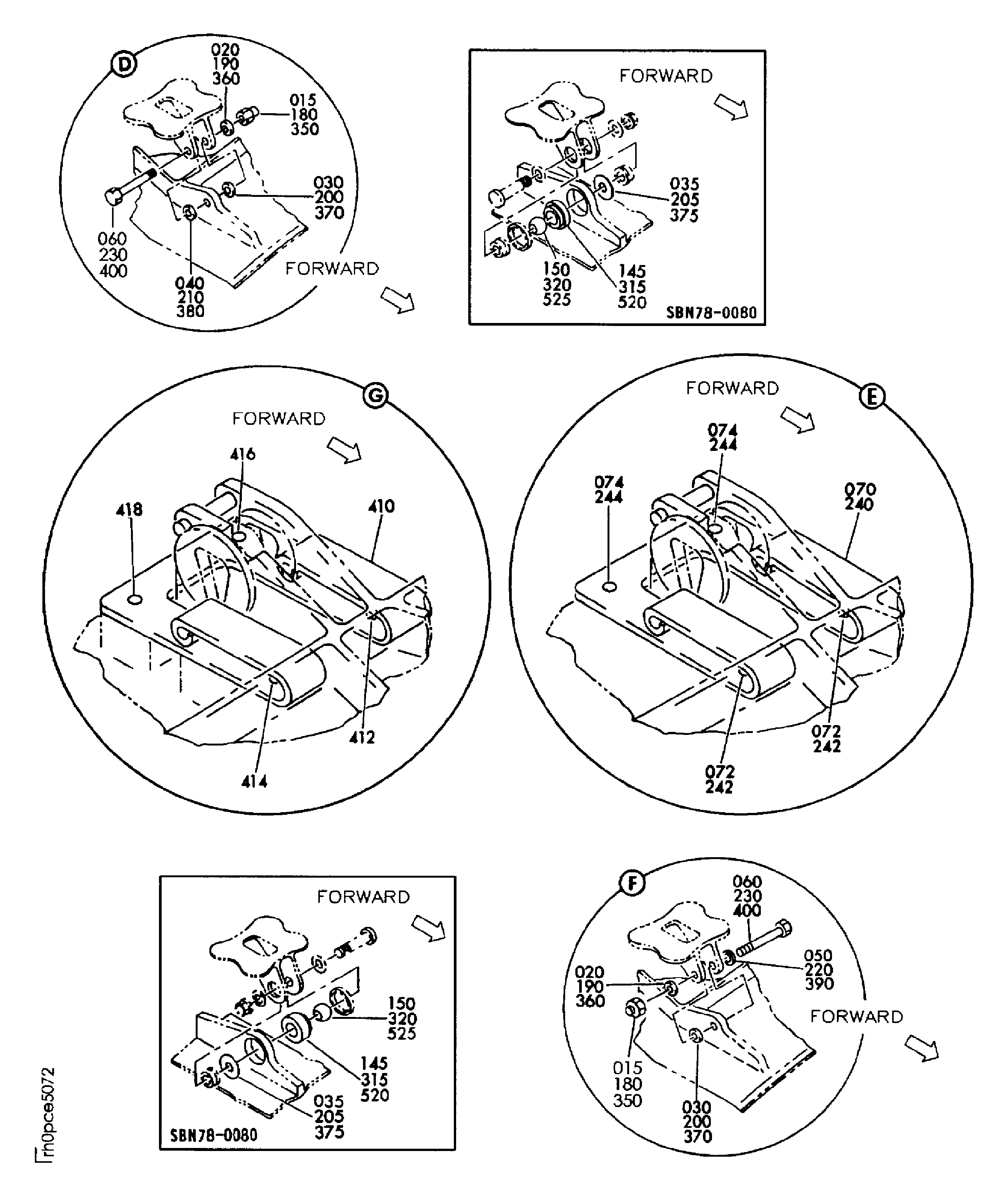

Figure: EXHAUST-RIGHT BLOCKER DOOR
BLOCKER DOOR ASSY RH SIDE
BLOCKER DOOR ASSY RH SIDE
BLOCKER DOOR ASSY RH SIDE
BLOCKER DOOR ASSY RH SIDE
