| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 30 | ||||
| B78327930 | EXHAUST-RIGHT C DUCT FIXED STRUCTURE, PRE SBN78-0081 | aa | ||
| SBN0081-01 | EXHAUST-RIGHT C DUCT FIXED STRUCTURE, PRE SBN70-0779 | ab | ||
| SBN0779-01 | EXHAUST-RIGHT C DUCT FIXED STRUCTURE | ac | ||
| 260 | 740M0150-7 | • • PLATE 51563 POST SBN78-0081 | ab-ac | 2 |
| 265 | CR2663-3-2 | • • RIVET 81349 POST SBN78-0081 | ab-ac | 8 |
| 270 | 740M0150-5 | • • PLATE 51563 POST SBN78-0081 | ab-ac | 2 |
| 275 | CR2663-3-2 | • • RIVET 81349 POST SBN78-0081 | ab-ac | 12 |
| 280 | 740M0150-1 | • • PANEL 51563 POST SBN78-0081 | ab-ac | 1 |
| 285 | 740M0150-3 | • • PLATE 51563 POST SBN78-0081 | ab-ac | 1 |
| 450 | 740-0220-365 | • SHIELD - HEAT,PANDOWN 51563 POST SBN70-0779 | ac | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

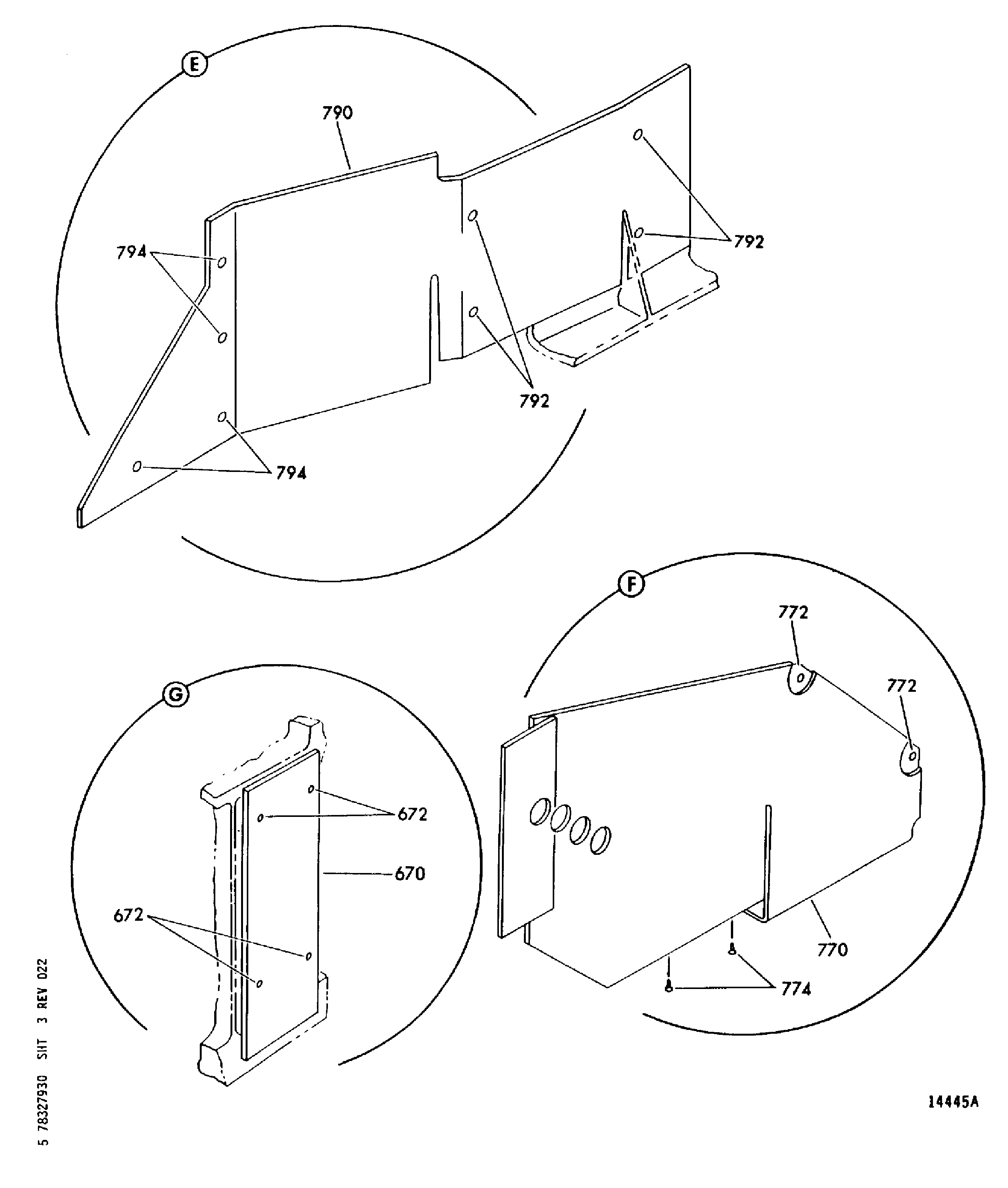

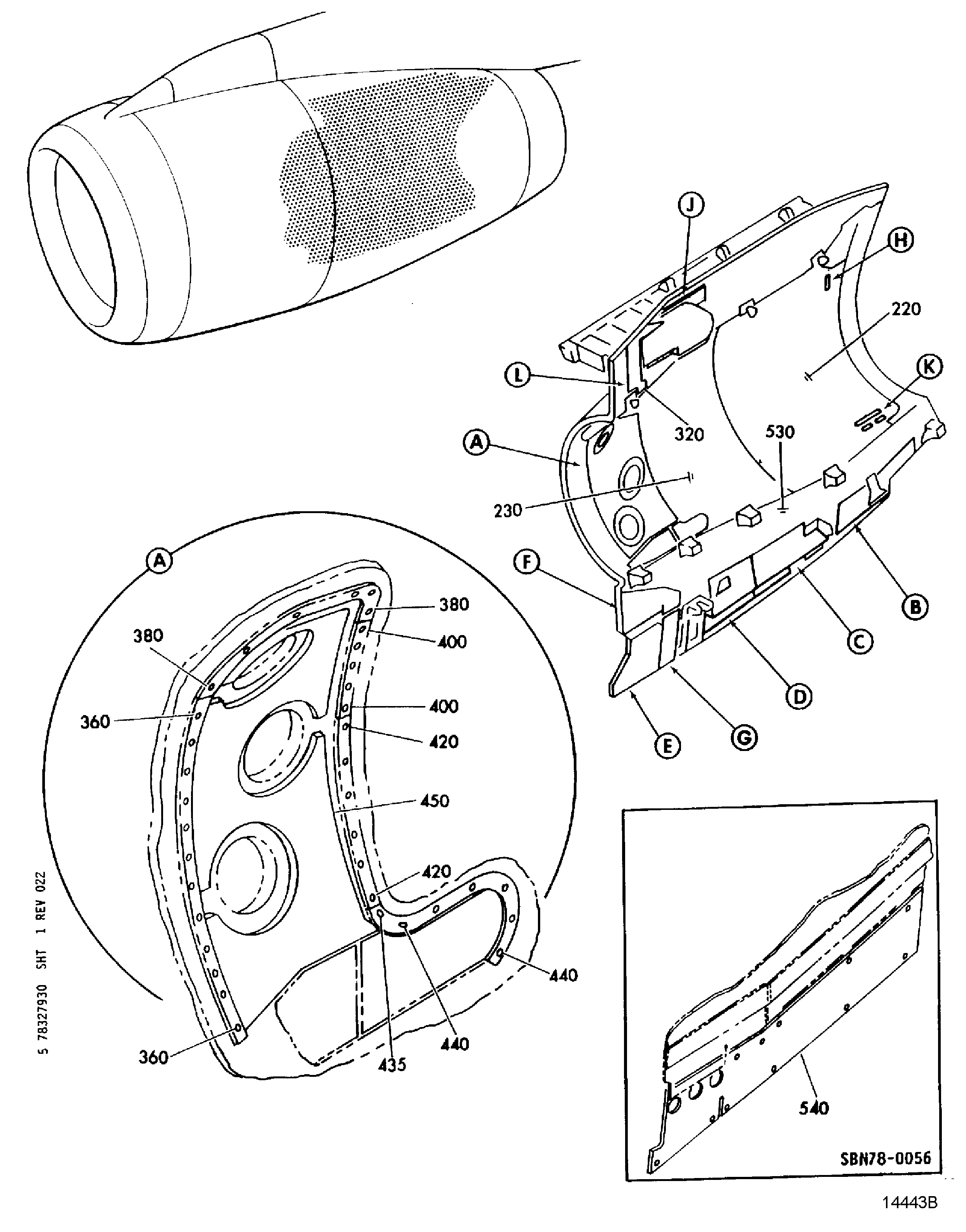

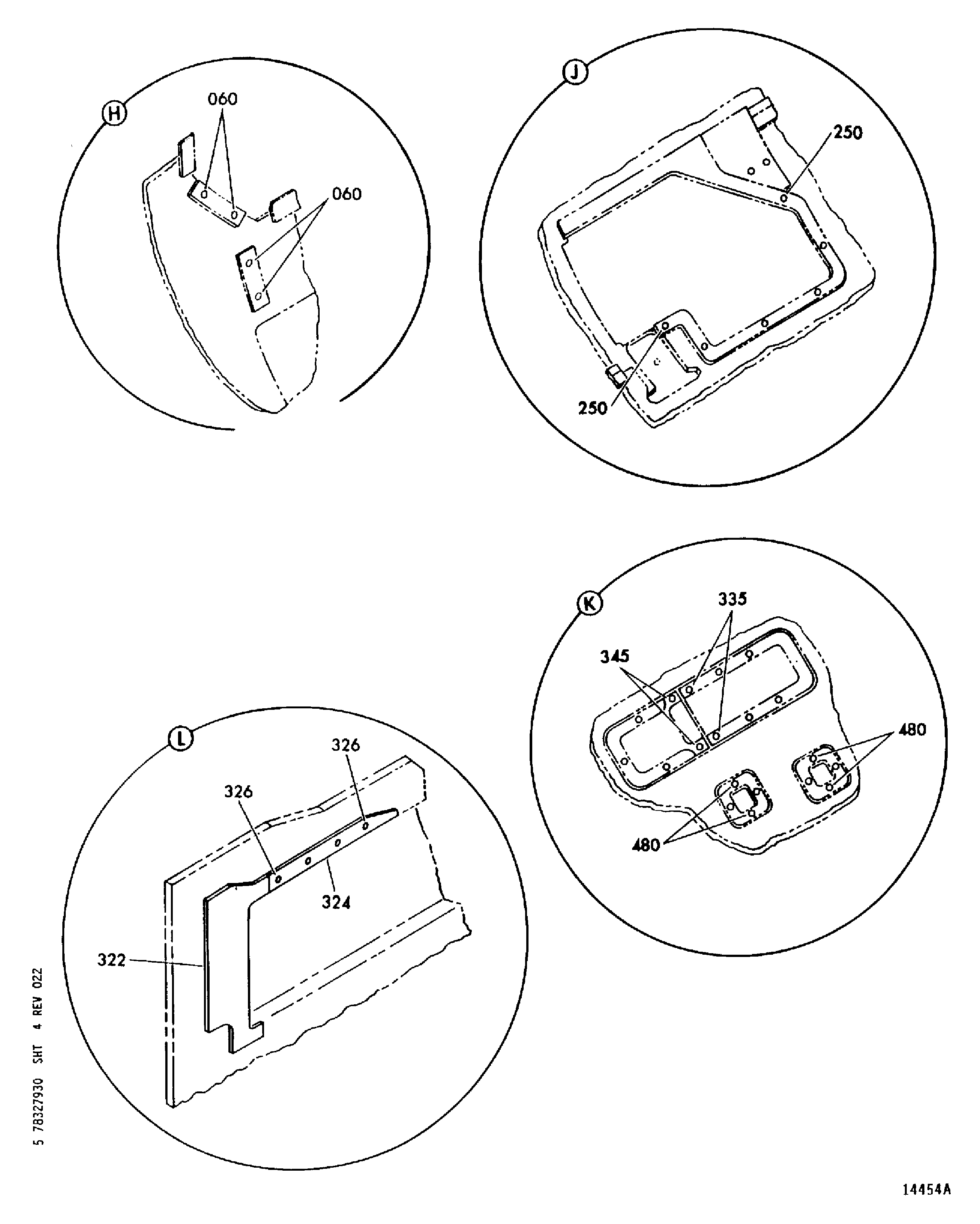

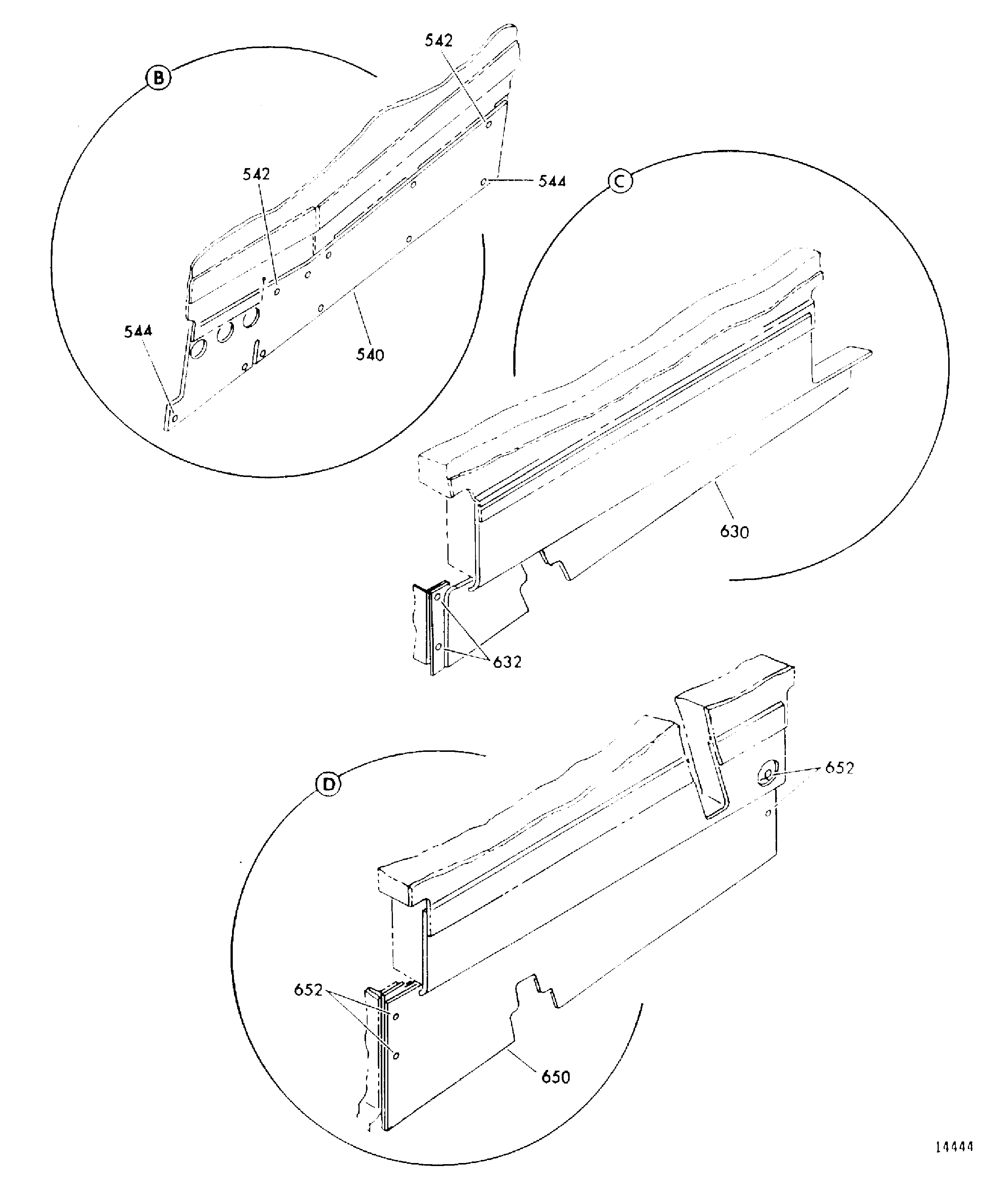

Figure: EXHAUST-RIGHT C DUCT FIXED STRUCTURE
HEAT SHIELD INSTL RH SIDE
HEAT SHIELD INSTL RH SIDE
HEAT SHIELD INSTL RH SIDE
HEAT SHIELD INSTL RH SIDE
