DMC:V2500-A1-78-36-51-02A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 02 | ||||
| B78365102 | EXHAUST-THRUST REVERSER OPENING ACTUATOR, PRE SBN78-0018 | aa | ||
| SBN0018-01 | EXHAUST-THRUST REVERSER OPENING ACTUATOR | ab | ||
| -001 | 740-0251-515 | SYS - INSTL,C DUCT OPNG RH S 51563 | aa-ab | REF |
| -001A | 740-0251-523 | SYS - INSTL,C DUCT OPNG RH S 51563 PRE SBN78-0018 | aa | REF |
| -001B | 740-0251-531 | DRAWING - SYS INSTL,C DUCT OPNG RH S 51563 POST SBN78-0018 | ab | REF |
| 010 | 3282982-3 | • ACTUATOR 59364 | aa-ab | 1 |
| 015 | MS21042-6 | • NUT - .375 DIA 96906 | aa-ab | 2 |
| 015A | NAS1805-6 | • NUT 80205 | aa-ab | 2 |
| 020 | AN960-616 | • WASHER 81352 | aa-ab | 2 |
| 020A | AN960C616 | • WASHER 81352 | aa-ab | 4 |
| 030 | S700B1029-501 | • BUSHING 51563 | aa-ab | 4 |
| 030A | S700B1029-507 | • BUSHING 51563 | aa-ab | 2 |
| 040 | NAS6206-17 | • BOLT 80205 | aa-ab | 2 |
| 040A | NAS6706U21 | • BOLT 80205 | aa-ab | 2 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

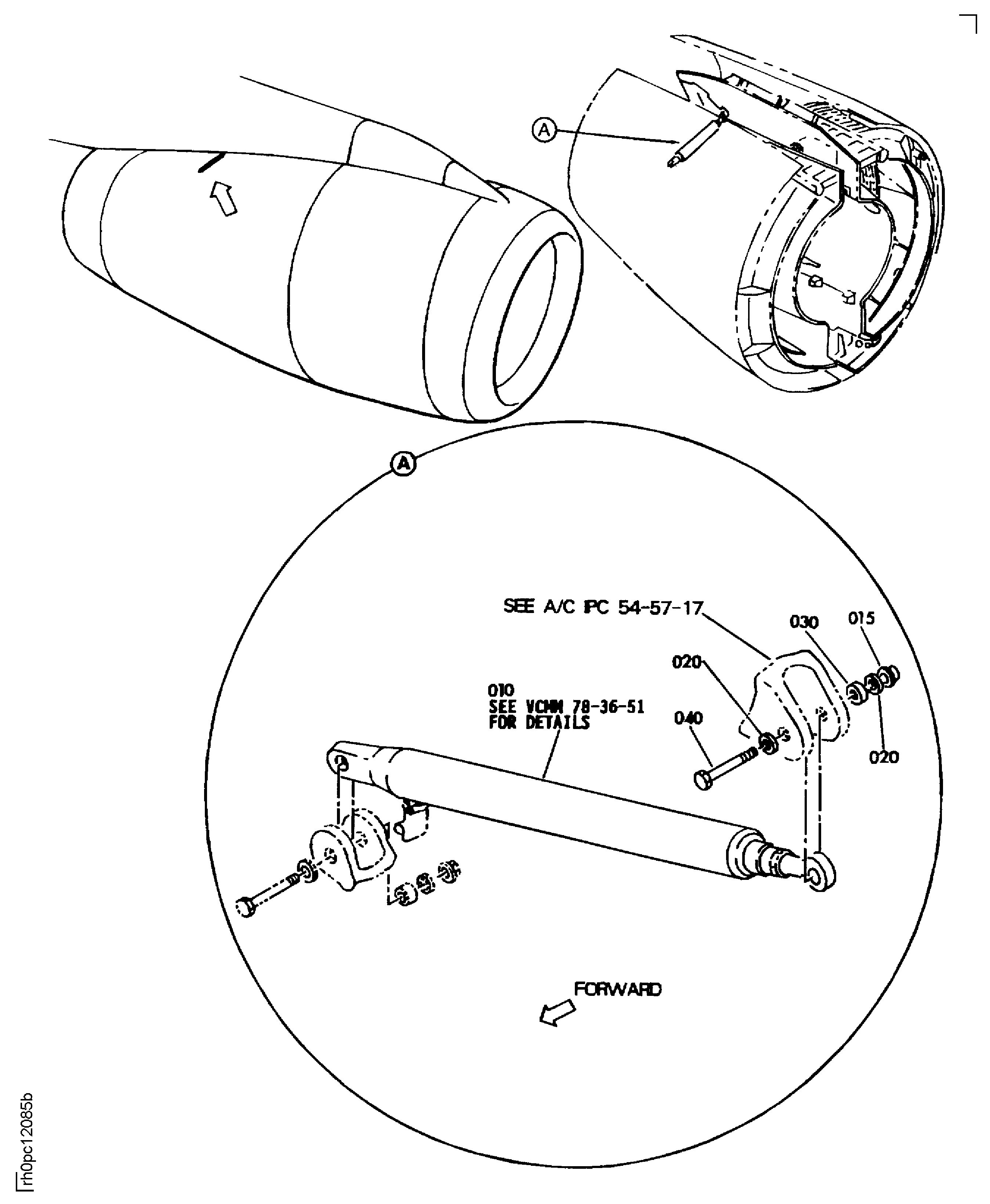

Figure: EXHAUST-THRUST REVERSER OPENING ACTUATOR
ACTUATOR RH SIDE
