DMC:V2500-A1-79-11-41-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B79114101 | OIL-OIL TANK, PRE SBE79-0004 | aa | ||
| SBE0004-01 | OIL-OIL TANK, PRE SBE79-0003 | ab | ||
| SBE0003-01 | OIL-OIL TANK, PRE SBE79-0013 | ac | ||
| SBE0013-01 | OIL-OIL TANK, PRE SBE79-0014 | ad | ||
| SBE0014-01 | OIL-OIL TANK, PRE SBE70-0158 | ae | ||
| SBE0158-01 | OIL-OIL TANK, PRE SBE79-0022 | af | ||
| SBE0022-01 | OIL-OIL TANK, PRE SBE79-0027 | ag | ||
| SBE0027-01 | OIL-OIL TANK, PRE SBE79-0023 | ah | ||
| SBE0023-01 | OIL-OIL TANK, PRE SBE71-0110 | ai | ||
| SBE0110-01 | OIL-OIL TANK, PRE SBE79-0025 | aj | ||
| SBE0025-01 | OIL-OIL TANK, PRE SBE79-0030 | ak | ||
| SBE0030-01 | OIL-OIL TANK, PRE SBE70-0581 | al | ||
| SBE0581-01 | OIL-OIL TANK, PRE SBE70-0715 | am | ||
| SBE0715-01 | OIL-OIL TANK, PRE SBE79-0090 | an | ||
| SBE0090-01 | OIL-OIL TANK, PRE SBE79-0092 | ao | ||
| SBE0092-01 | OIL-OIL TANK, PRE SBE79-0101 | ap | ||
| SBE0101-01 | OIL-OIL TANK | aq | ||
| 001 | 4A7001 | TANK - ASSY OIL PRE SBE79-0014 | aa-ad | 1 |
| 001A | 4A7002 | TANK - ASSY POST SBE79-0014 PRE SBE79-0022 | ae-af | 1 |
| 001B | 4A7002 | TANK - ASSY OIL POST SBE79-0022 PRE SBE79-0027 | ag | 1 |
| 001C | 4A7002 | TANK - ASSY POST SBE79-0027 PRE SBE79-0023 | ah | 1 |
| 001D | 4A7002 | TANK - ASSY POST SBE79-0023 PRE SBE79-0025 | ai-aj | 1 |
| 001E | 4A7003 | TANK - ASSY OIL POST SBE79-0025 PRE SBE79-0030 | ak-al | 1 |
| 001F | 4A7003 | TANK - ASSY POST SBE79-0030 PRE SBE70-0581 | ak-al | 1 |
| 001G | 4A7003 | TANK - ASSY POST SBE70-0581 PRE SBE70-0715 | am | 1 |
| 001H | 4A7003 | TANK - ASSY POST SBE70-0715 PRE SBE79-0101 | an-aq | 1 |
| 001J | 4A7003R | TANK - ASSY A3460 POST SBE79-0101 | an-aq | 1 |
| 052 | 4W0003 | • NUT - .3125 DIA | aa-aq | 6 |
| 053 | 740-5641-503 | • BRACKET 51563 | aa-aq | 1 |
| 054 | MS9321-11 | • WASHER 96906 | aa-aq | 2 |
| 056 | 4P7169 | BRACKET PRE SBE71-0110 | aa-ai | 1 |
| 056A | 4P7267 | BRACKET POST SBE71-0110 | aj-aq | 1 |
| 058 | AS3209-165 | • PACKING U1653 | aa-aq | 1 |
| 080 | 4P7232 | • COVER POST SBE79-0014 PRE SBE79-0025 | ae-aj | 1 |
| 081 | 4T7921 | • SIGHT - GLASS POST SBE79-0025 PRE SBE79-0030 | ak | 1 |
| 081A | 4T7926 | • SIGHT - GLASS POST SBE79-0030 PRE SBE70-0581 | al | 1 |
| 081B | 4T7928 | • GAUGE - SIGHT GLASS I.C.DRG ALT 4T7926 POST SBE70-0581 | am-aq | 1 |
| 081C | 4T7926 | • SIGHT - GLASS ALT 4T7927 POST SBE70-0581 | am-aq | 1 |
| 081D | 4T7927 | • GAUGE - SIGHT GLASS ALT 4T7928 POST SBE70-0581 | am-aq | 1 |
| 083 | 4T7921-02 | • • GASKET - SIGHT-GLASS POST SBE79-0025 PRE SBE79-0030 | ak | 1 |
| 083A | 4T7926-02 | • • GASKET - SIGHT GLASS POST SBE79-0030 PRE SBE70-0581 | al | 1 |
| 083B | 4T7926-02 | • • GASKET ALT 4T7927-02 POST SBE70-0581 | am-aq | 1 |
| 083C | 4T7927-02 | • • GASKET - SIGHT GLASS ALT 4T7926-02 POST SBE70-0581 | am-aq | 1 |
| 084 | 4W2326 | • SCREW - .190 DIA X .625 Optional Part 4W2326 POST SBE79-0014 PRE SBE79-0025 | ae-aj | 8 |
| 084A | T0RX5703-10 | • SCREW 93907 POST SBE79-0025 PRE SBE79-0030 | ak | 8 |
| 084B | 4T0510 | • SCREW POST SBE79-0030 | al-aq | 8 |
| 090 | AS15825 | • NUT - ASSY,TUBE CLOSURE U1653 POST SBE79-0014 PRE SBE79-0025 | ae-aj | 1 |
| 092 | AS3209-113 | • PACKING - PREFORMED U1653 POST SBE79-0014 | ae-aq | 1 |
| 094 | 4P7238 | • ADAPTOR - UNION POST SBE79-0014 | ae-aq | 1 |
| 100 | 2D1853 | • INDICATR - OIL TANK LEVEL 97484 REF No. 50R377 PRE SBE79-0025 | aa-aj | 1 |
| 101 | 6A4689 | • BRACKET POST SBE70-0158 | af-aq | 1 |
| 101A | 5W8391 | • BRACKET POST SBE79-0025 | ak-aq | 1 |
| 102 | 4P7236 | • COVER POST SBE79-0025 | ak-aq | 1 |
| 120 | 4W0105 | • BOLT - .190 DIA X .625 PRE SBE79-0025 | aa-aj | 2 |
| 140 | AS3209-121 | • PACKING U1653 PRE SBE79-0025 | aa-aj | 1 |
| 144 | 4B7181 | • CONNECTR - A/O PRE SBE79-0025 | aa-aj | 1 |
| 146 | 4W0165 | • BOLT - .250 DIA X .688 | aa-aq | 2 |
| 147 | MS9321-10 | • WASHER 96906 PRE SBE79-0025 | aa-aj | 2 |
| 148 | AS3209-122 | • PACKING U1653 | aa-aq | 1 |
| 151 | MS21209F1-20L | • • INSERT 96906 PRE SBE79-0025 | aa-aj | 2 |
| 160 | AS3209-113 | • PACKING - PREFORMED U1653 PRE SBE79-0101 | aa-ap | 1 |
| 180 | 4P7238 | • ADAPTOR - UNION PRE SBE79-0025 | aa-aj | 1 |
| 182 | 4P7237 | • PLUG POST SBE79-0025 PRE SBE79-0101 | ak-ap | 1 |
| 240 | 4B7109 | • DEAERATR - A/O PRE SBE79-0013 | aa-ac | 1 |
| 240A | 4B7199 | • DE - AERATOR ASSY OF POST SBE79-0013 PRE SBE79-0101 | ad-aq | 1 |
| 240B | 4B7381 | • SEPARATR - AIR-OIL POST SBE79-0101 | ad-aq | 1 |
| 245 | 4W0165 | • BOLT - .250 DIA X .688 | aa-aq | 6 |
| 247 | 5W8318 | • BRACKET PRE SBE79-0004 | aa | 1 |
| 247A | 5W0092 | • BRACKET - ASSY POST SBE79-0004 | ab-aq | 1 |
| 250 | MS9321-10 | • WASHER 96906 | aa-aq | 6 |
| 255 | AS3209-164 | • PACKING U1653 | aa-aq | 1 |
| 295 | 4L7000 | • • BUSHING - ,(VRS5213) A3460 POST SBE70-0321 | ***** | 1 |
| 296 | 4L7001 | • • BUSHING - ,(VRS5209) A3460 POST SBE70-0321 | ***** | 1 |
| 297 | 4L7013 | • • BUSHING - ,(VRS5211) A3460 POST SBE70-0321 | ***** | 1 |
| 298 | 4L7014 | • • BUSHING - ,(VRS5425) A3460 POST SBE70-0321 | ***** | 1 |
| 355 | 4W0165 | • BOLT - .250 DIA X .688 POST SBE79-0101 | aq | 4 |
| 357 | 4P7268 | • PLATE POST SBE79-0023 PRE SBE79-0092 | ai-ao | 1 |
| 357A | 4P7285 | • PLATE POST SBE79-0092 | ap-aq | 1 |
| 410 | 4B7032 | • COVER - A/O PRE SBE79-0003 | aa-aq | 1 |
| 410A | 4B7250 | • COVER - A/O POST SBE79-0003 | aa-aq | 1 |
| 415 | 4W0163 | • BOLT - .250 DIA X .562 | aa-aq | 4 |
| 418 | 4P7231 | • BRACKET POST SBE79-0022 | ag-aq | 1 |
| 420 | AS3209-148 | • PACKING U1653 | aa-aq | 1 |
| 425 | AS3208-06 | • PACKING - PREFORMED U1653 POST SBE79-0090 | ao-aq | 1 |
| 426 | MS9902-06 | • PLUG 96906 POST SBE79-0090 | ao-aq | 1 |
| 427 | AS3208-08 | • PACKING - PREFORMED U1653 POST SBE79-0090 | ao-aq | 1 |
| 428 | MS9902-08 | • PLUG - MACHINE THREAD 96906 POST SBE79-0090 | ao-aq | 1 |
| 590 | 4B7053 | • FILLER - A/O,NECK PRE SBE79-0014 | aa-ad | 1 |
| 590A | 4B7197 | • FILLER - A/O NECK POST SBE79-0014 | ae-aq | 1 |
| 595 | 4W0165 | • BOLT - .250 DIA X .688 | aa-aq | 4 |
| 600 | MS9321-10 | • WASHER 96906 | aa-aq | 4 |
| 605 | AS3209-222 | • PACKING U1653 | aa-aq | 1 |
| 610 | AS3209-148 | • PACKING U1653 | aa-aq | 1 |
| 760 | AS3209-226 | • PACKING - PREFORMED U1653 | aa-aq | 1 |
| 780 | 4T7902 | • CAP - ASSY PRE SBE79-0003 | aa-aq | 1 |
| 780A | 4T7923 | • CAP - ASSY POST SBE79-0003 PRE SBE79-0027 | aa-aq | 1 |
| 780B | 4T7925 | • CAP - ASSY POST SBE79-0027 | aa-aq | 1 |
| 800 | 4B7056 | • WIRE - ASSY,ROPE PRE SBE70-0715 | aa-am | 1 |
| 800A | 4B7328 | • WIRE - ASSY ROPE POST SBE70-0715 | an-aq | 1 |
| 860 | 4B7030 | • TANK - A/O,OIL PRE SBE79-0014 | aa-ad | 1 |
| 860A | 4B7195 | • TANK - A/O OIL POST SBE79-0014 PRE SBE79-0025 | ae-aq | 1 |
| 860B | 4B7244 | • TANK - A/O OIL POST SBE79-0025 | ae-aq | 1 |
| 870 | MS21209F4-15L | • • INSERT - WIRE THREAD, .250 DIA 96906 | aa-aq | 22 |
| 872 | MS21209F1-20L | • • INSERT 96906 POST SBE79-0014 | ae-aq | 8 |
| 882 | 4L7002 | • • BUSHING - ,(VRS5231) A3460 POST SBE70-0321 | ***** | 1 |
| 883 | 4L7003 | • • BUSHING - ,(VRS5229) A3460 POST SBE70-0321 | ***** | 1 |
| 884 | 4L7004 | • • BUSHING - ,(VRS5227) A3460 POST SBE70-0321 | ***** | 1 |
| -950 | 4W2627 | • WIRE Optional Part 4W2627 | aa-aq | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

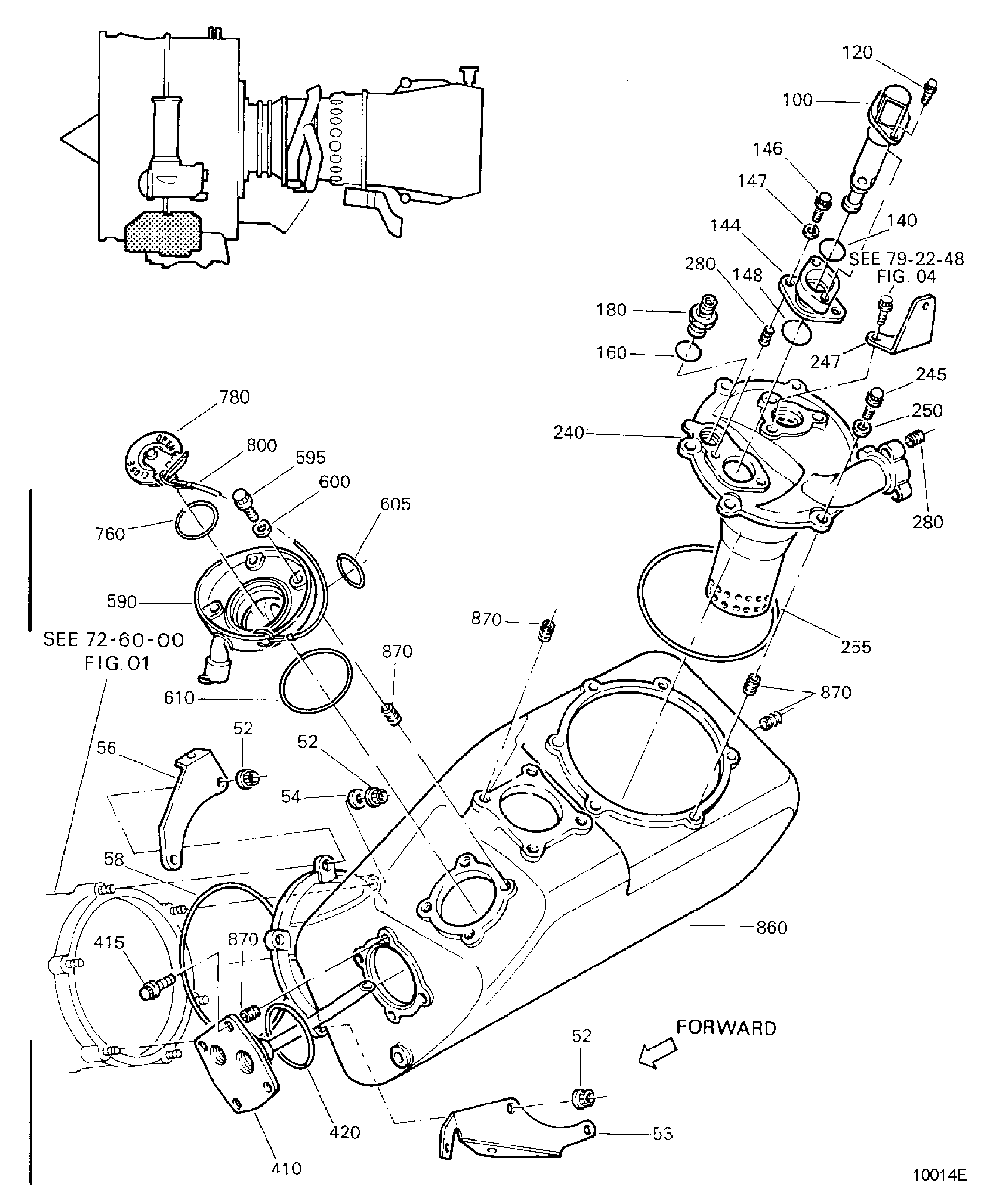

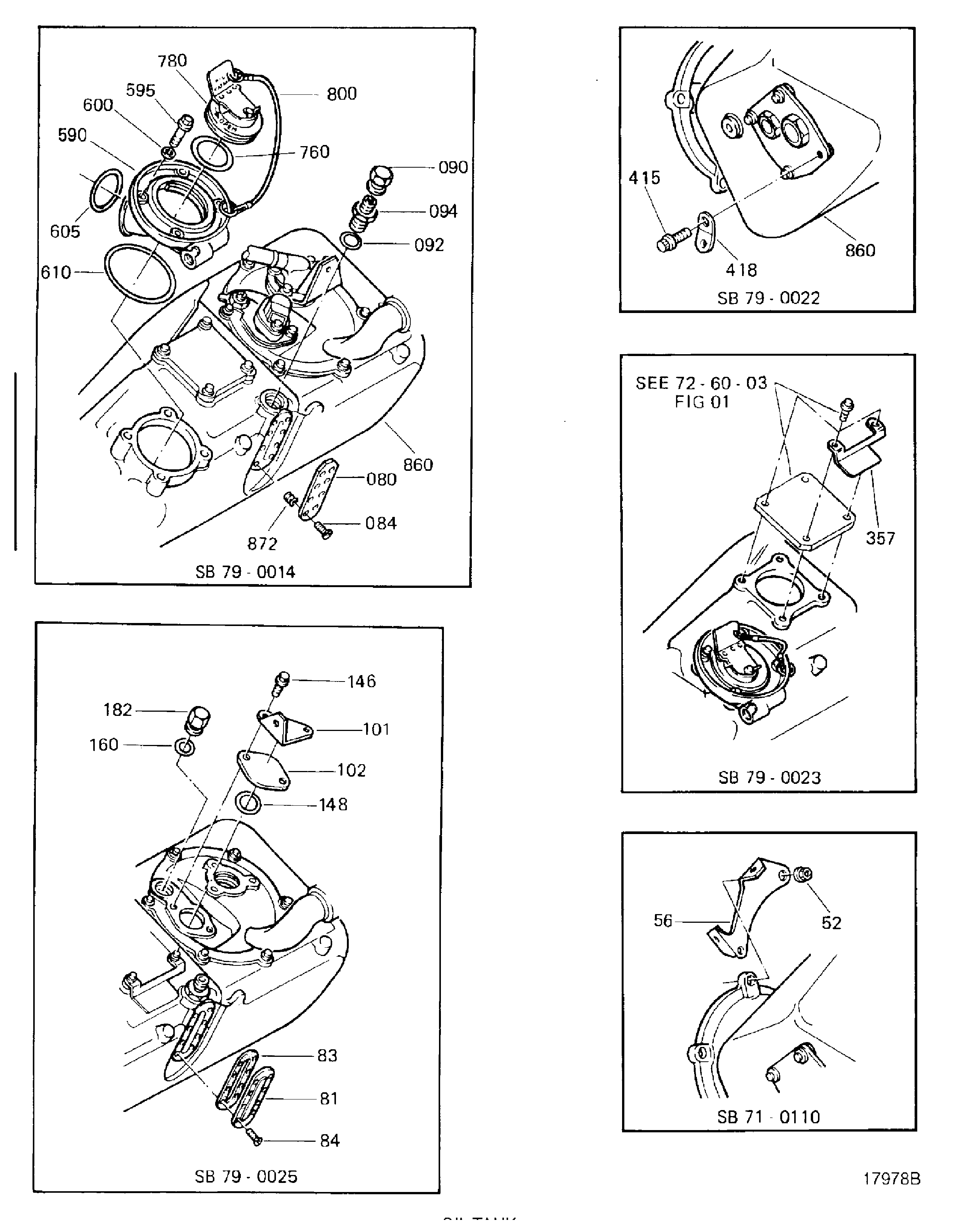

Figure: OIL-OIL TANK
OIL TANK
OIL TANK
