DMC:V2500-A1-79-11-51-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B79115101 | OIL-OIL TANK VALVE | aa | ||
| 001 | 4A7081 | VALVE - ASSY PRESS OIL TANK | aa | 1 |
| 050 | MS9386-214 | • PACKING 96906 | aa | 1 |
| 060 | MS9386-218 | • PACKING 96906 | aa | 1 |
| 150 | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 | aa | 1 |
| 160 | 4P7082 | • SEAT - SPRING | aa | 1 |
| 170 | 4P7083 | • SPRING | aa | 1 |
| 180 | 4P7242 | • VALVE | aa | 1 |
| 190 | 4P7080 | • SEAT - VALVE | aa | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

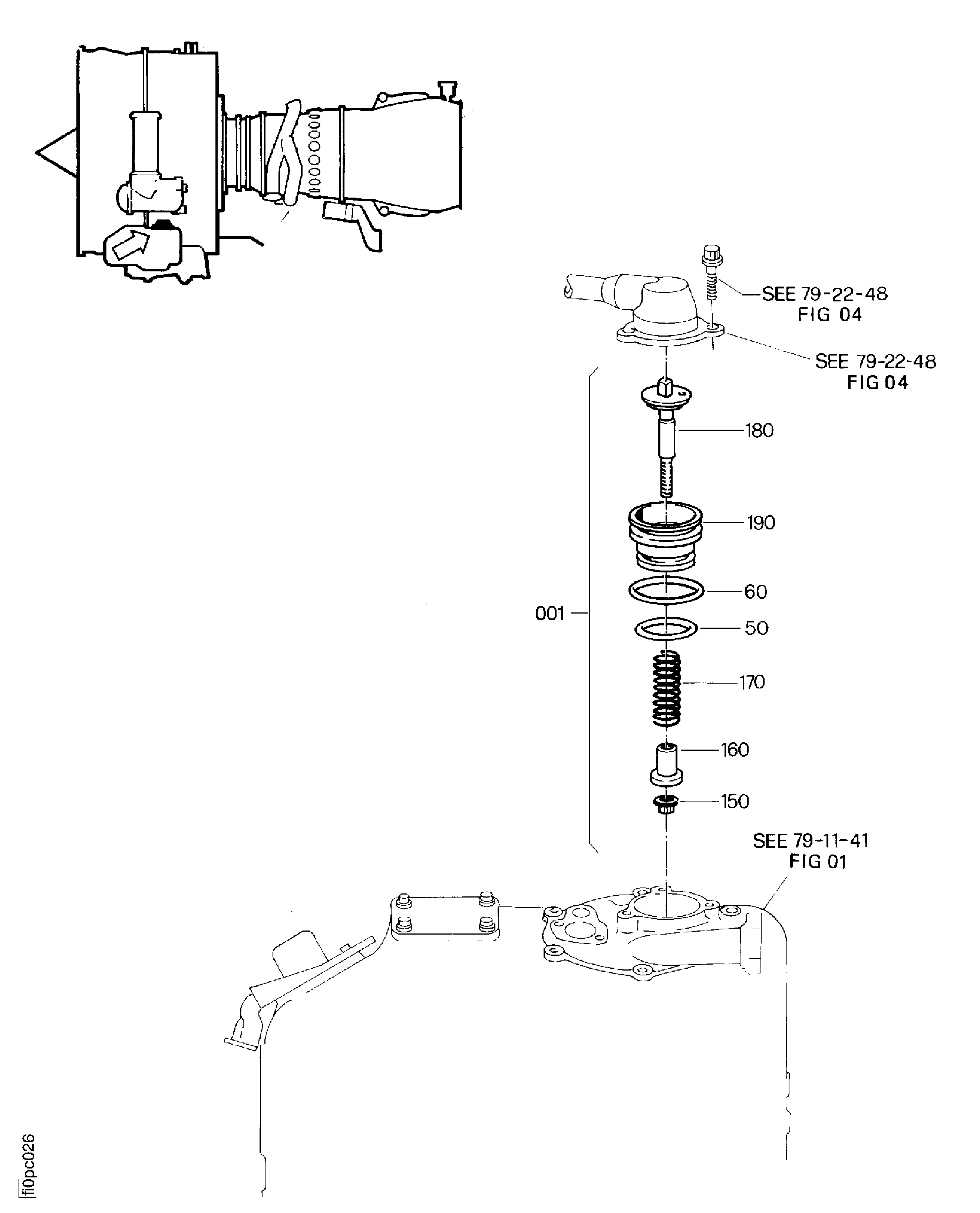

Figure: OIL-OIL TANK VALVE
PRESSURE VALVE ASSY
