DMC:V2500-A1-79-21-48-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B79214801 | OIL-PRESSURE OIL TUBES-GEARBOX, PRE SBE70-0206 | aa | ||
| SBE0206-01 | OIL-PRESSURE OIL TUBES-GEARBOX, PRE SBE72-0492 | ab | ||
| SBE0492-01 | OIL-PRESSURE OIL TUBES-GEARBOX | ac | ||
| 700 | 4B0267 | • DISTRBTR - A/O OIL PRESS PRE SBE70-0206 | aa-ac | 1 |
| 700A | 4B0265 | • DISTRBTR - INTRCH.CONT.DWG ALT 4B0267 POST SBE70-0206 | aa-ac | 1 |
| -700B | 4B0267 | • DISTRBTR - A/O OIL PRESS ALT 4B0257 POST SBE70-0206 | ab-ac | REF |
| -700C | 4B0257 | • DISTRBTR - A/O OIL PRESS ALT 4B0267 POST SBE70-0206 | ab-ac | REF |
| 720 | 4W0002 | • NUT - .250 DIA PRE SBE72-0492 | aa-ab | 1 |
| 720A | 4W1246 | • BOLT - .250 DIA X .750 POST SBE72-0492 | ac | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

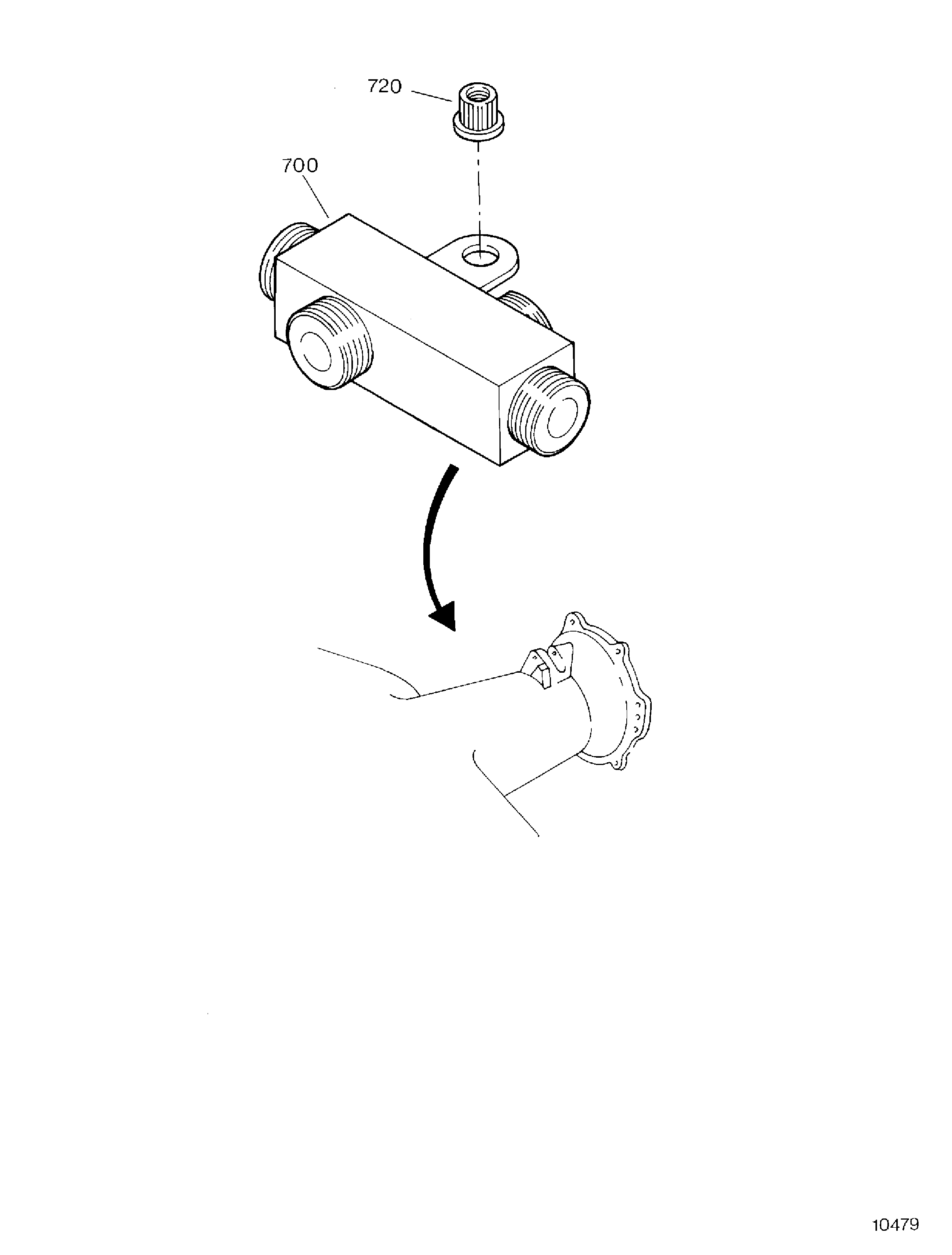

Figure: OIL-PRESSURE OIL TUBES-GEARBOX
TUBES AND DISTR OIL PRESS
