DMC:V2500-A1-79-21-49-02A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 02 | ||||
| B79214902 | OIL-PRESSURE OIL TUBES-ENGINE, PRE SBE71-0110 | aa | ||
| SBE0110-01 | OIL-PRESSURE OIL TUBES-ENGINE, PRE SBE73-0061 | ab | ||
| SBE0061-01 | OIL-PRESSURE OIL TUBES-ENGINE, PRE SBE79-0069 | ac | ||
| SBE0069-01 | OIL-PRESSURE OIL TUBES-ENGINE | ad | ||
| 096 | AS43013-118 | • RING - SEALING TOROIDAL, 21.89MM I/D X 2.62MM U1653 | aa-ad | 1 |
| 100 | 5A9153 | • TUBE - A/O PRE SBE79-0069 | aa-ac | 1 |
| 100A | 6A6182 | • TUBE - ASSY POST SBE79-0069 | ad | 1 |
| 106 | 4W0170 | • BOLT - .250 DIA X 1.000 Optional Part 4W0170 | aa-ad | 3 |
| 128 | 400WSS14 | • CLIP 83930 PRE SBE73-0061 | aa-ab | 1 |
| 128A | AS62414 | • CLIP - 22.22 MM (0.875) U1653 POST SBE73-0061 | aa-ad | 1 |
| 202 | 5A8694 | • • ADAPTOR - ELBOW | aa-ad | 1 |
| 242 | AS15816 | • • ADAPTOR - STRAIGHT TUBE U1653 | aa-ad | 1 |
| 500 | 5A9081 | • TUBE - A/O PRE SBE71-0110 | aa | 1 |
| 500A | 5A8795 | • TUBE - ASSY OF ACOC TO FCOC POST SBE71-0110 PRE SBE79-0069 | ab-ac | 1 |
| 500B | 6A6183 | • TUBE - ASSY POST SBE79-0069 | ad | 1 |
| 517 | AS21407 | • BOLT - BIHEX HD, .190 DIA X .438 U1653 POST SBE71-0110 PRE SBE79-0069 | ab-ac | 1 |
| 517A | 4W0103 | • BOLT - .190 DIA X .500 Optional Part 4W0103 POST SBE79-0069 | ad | 1 |
| 518 | 5W1086 | • WASHER POST SBE71-0110 | ab-ad | 1 |
| 520 | 400WSS12 | • CLIP - LOOP TYPE 83930 POST SBE71-0110 PRE SBE79-0069 | ab-ad | 1 |
| 520A | AS62412 | • CLIP - 19.05 MM (0.750) U1653 POST SBE79-0069 | ab-ad | 1 |
| 524 | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 POST SBE71-0110 | ab-ad | 1 |
| 528 | 400WSS14 | • CLIP 83930 PRE SBE79-0069 | aa-ad | 1 |
| 528A | AS62414 | • CLIP - 22.22 MM (0.875) U1653 POST SBE79-0069 | aa-ad | 1 |
| 536 | 400WSS14 | • CLIP 83930 PRE SBE71-0110 | aa | 1 |
| 541 | 4W0103 | • BOLT - .190 DIA X .500 PRE SBE71-0110 | aa | 1 |
| 542 | 5W1086 | • WASHER PRE SBE71-0110 | aa | 1 |
| 544 | 400WSS14 | • CLIP 83930 PRE SBE71-0110 | aa | 1 |
| 548 | 4W0001 | • NUT - .190 DIA PRE SBE71-0110 | aa | 1 |
| 549 | 4W0102 | • BOLT - .190 DIA X .438 POST SBE79-0069 | ad | 1 |
| 552 | 400WSS14 | • CLIP 83930 PRE SBE71-0110 | aa | 1 |
| 552A | AS62414 | • CLIP - 22.22 MM (0.875) U1653 POST SBE79-0069 | ad | 1 |
| 556 | 4W0001 | • NUT - .190 DIA POST SBE79-0069 | ad | 1 |
| 557 | 4W0103 | • BOLT - .190 DIA X .500 PRE SBE71-0110 | aa | 1 |
| 557A | 4W0103 | • BOLT - .190 DIA X .500 POST SBE79-0069 | ad | 1 |
| 558 | 5W1086 | • WASHER PRE SBE71-0110 | aa | 1 |
| 560 | 400WSS14 | • CLIP 83930 PRE SBE71-0110 | aa | 1 |
| 564 | 4W0001 | • NUT - .190 DIA PRE SBE71-0110 | aa | 1 |
| 564A | 4W0001 | • NUT - .190 DIA POST SBE79-0069 | ad | 1 |
| 565 | AS21419 | • BOLT - .190 DIA X 1.188 U1653 | aa-ad | 1 |
| 566 | SP154D | • WASHER - .190 DIA K7766 | aa-ad | 2 |
| 568 | 400WSS13 | • CLIP 83930 | aa-ad | 1 |
| 570 | ST1698D49 | • SPACER K4585 | aa-ad | 1 |
| 572 | 4W0001 | • NUT - .190 DIA | aa-ad | 1 |
| 573 | 4W0103 | • BOLT - .190 DIA X .500 Optional Part 4W0103 POST SBE71-0110 | ab-ad | 1 |
| 574 | 5W1086 | • WASHER POST SBE71-0110 | ab-ad | 1 |
| 576 | 400WSS14 | • CLIP - LOOP TYPE 83930 POST SBE71-0110 | ab-ad | 1 |
| 580 | 4W0043 | • NUT - .190 DIA Optional Part 4W0043 POST SBE71-0110 | ab-ad | 1 |
| 581 | 4W0103 | • BOLT - .190 DIA X .500 Optional Part 4W0103 POST SBE71-0110 PRE SBE79-0069 | ab-ac | 1 |
| 588 | 4W0043 | • NUT - .190 DIA Optional Part 4W0043 POST SBE71-0110 PRE SBE79-0069 | ab-ac | 1 |
| 589 | 4W0103 | • BOLT - .190 DIA X .500 Optional Part 4W0103 POST SBE71-0110 PRE SBE79-0069 | ab-ac | 1 |
| 590 | 5W1086 | • WASHER POST SBE71-0110 PRE SBE79-0069 | ab-ac | 1 |
| 592 | 400WSS14 | • CLIP - LOOP TYPE 83930 POST SBE71-0110 PRE SBE79-0069 | ab-ac | 1 |
| 596 | 4W0043 | • NUT - .190 DIA Optional Part 4W0043 POST SBE71-0110 PRE SBE79-0069 | ab-ac | 1 |
| 600 | AS15784 | • • WIRE - THRUST U1653 | aa-ad | 1 |
| 601 | AS15708 | • • NUT - TUBE COUPLING U1653 | aa-ad | 1 |
| 602 | AS15736 | • • FERRULE - WELDING TUBE U1653 | aa-ad | 1 |
| 614 | 5W1093 | • • LUG - BRAZED PRE SBE71-0110 | aa | 3 |
| 614A | 5W1093 | • • LUG - BRAZED POST SBE71-0110 | ab-ad | 2 |
| 614B | UP11167 | • • BRACKET - INTER TUBE SUPPORT POST SBE79-0069 | ad | 2 |
| 642 | AS15816 | • • ADAPTOR - STRAIGHT TUBE U1653 | aa-ad | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

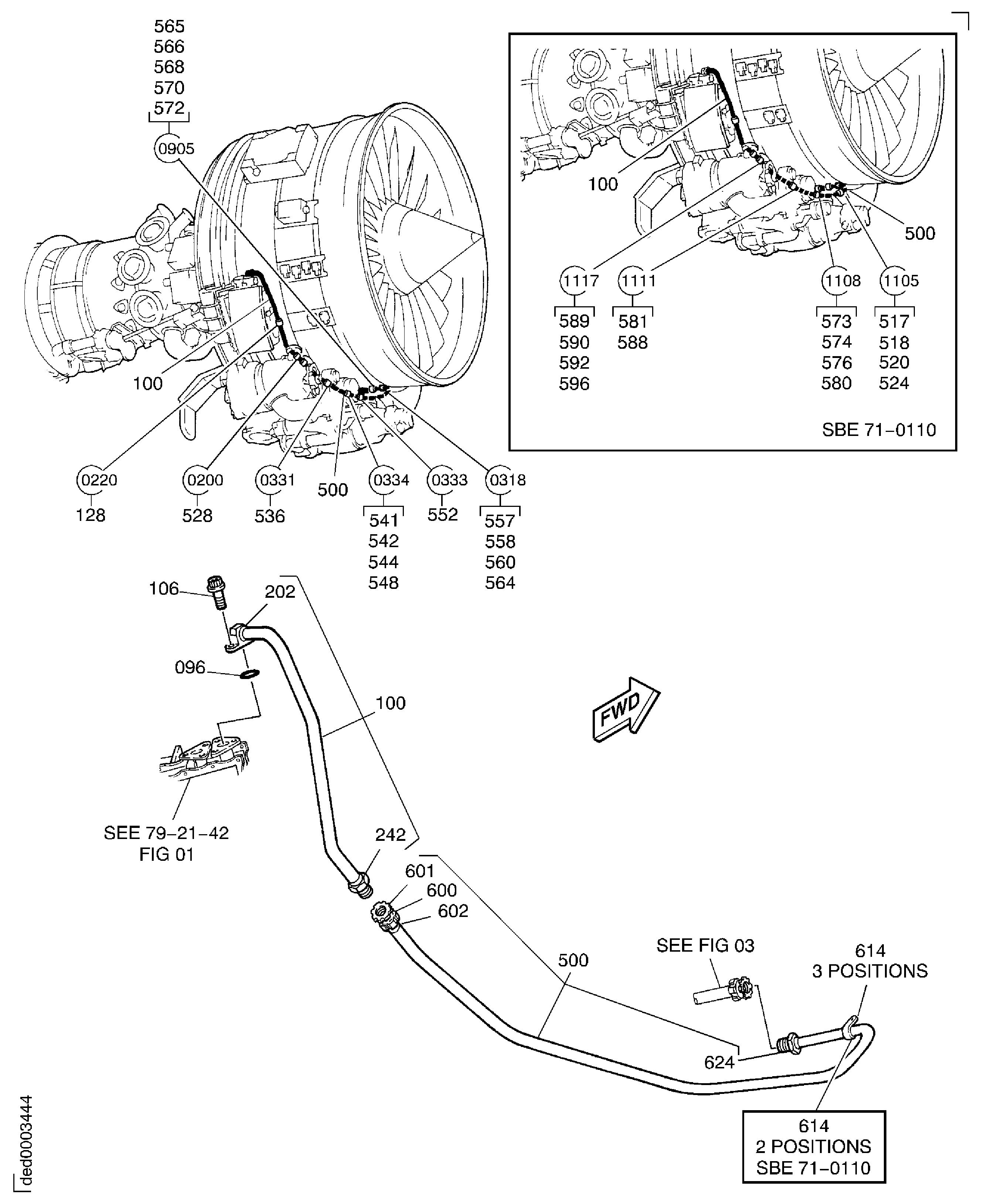

Figure: OIL-PRESSURE OIL TUBES-ENGINE
PRESSURE OIL TUBES ENGINE
