DMC:V2500-A1-79-21-49-03A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 03 | ||||
| B79214903 | OIL-PRESSURE OIL TUBES-ENGINE, PRE SBE71-0004 | aa | ||
| SBE0004-01 | OIL-PRESSURE OIL TUBES-ENGINE, PRE SBE71-0110 | ab | ||
| SBE0110-01 | OIL-PRESSURE OIL TUBES-ENGINE, PRE SBE73-0045 | ac | ||
| SBE0045-01 | OIL-PRESSURE OIL TUBES-ENGINE | ad | ||
| 098 | AS43013-118 | • RING - SEALING TOROIDAL, 21.89MM I/D X 2.62MM U1653 | aa-ad | 1 |
| 100 | 5A8770 | • TUBE - A/O OIL PRE SBE71-0110 | aa-ab | 1 |
| 100A | 5A8797 | • TUBE - ASSY OF ACOC TO FCOC POST SBE71-0110 | ac-ad | 1 |
| 114 | 4W0170 | • BOLT - .250 DIA X 1.000 Optional Part 4W0170 | aa-ad | 3 |
| 133 | 4W0103 | • BOLT - .190 DIA X .500 | aa-ad | 1 |
| 134 | 5W1086 | • WASHER | aa-ad | 1 |
| 136 | 400WSS14 | • CLIP 83930 PRE SBE73-0045 | aa-ac | 1 |
| 136A | AS62414 | • CLIP - 22.22 MM (0.875) U1653 POST SBE73-0045 | ad | 1 |
| 140 | 4W0001 | • NUT - .190 DIA | aa-ad | 1 |
| 144 | 400WSS13 | • CLIP 83930 | aa-ad | 1 |
| 144A | 400WSS13 | • CLIP 83930 PRE SBE73-0045 | aa-ac | 1 |
| 144B | AS62413 | • CLIP - 20.62 MM (0.812) U1653 POST SBE73-0045 | ad | 1 |
| 200 | AS15784 | • • WIRE - THRUST U1653 | aa-ad | 1 |
| 201 | AS15708 | • • NUT - TUBE COUPLING U1653 | aa-ad | 1 |
| 202 | AS15736 | • • FERRULE - WELDING TUBE U1653 | aa-ad | 1 |
| 214 | 5W1093 | • • LUG - BRAZED | aa-ad | 5 |
| 242 | 5A8693 | • • ADAPTOR - STRAIGHT | aa-ad | 1 |
| 496 | AS43013-118 | • RING - SEALING TOROIDAL, 21.89MM I/D X 2.62MM U1653 | aa-ad | 1 |
| 500 | 5A8767 | • TUBE - A/O OIL PRE SBE73-0045 | aa-ac | 1 |
| 500A | 6A5345 | • TUBE - A/O OIL FCOC TO DISCON POST SBE73-0045 | ad | 1 |
| 506 | 4W0170 | • BOLT - .250 DIA X 1.000 Optional Part 4W0170 | aa-ad | 3 |
| 528 | 400WSS14 | • CLIP 83930 PRE SBE73-0045 | aa-ac | 1 |
| 528A | AS62414 | • CLIP - 22.22 MM (0.875) U1653 POST SBE73-0045 | ad | 1 |
| 533 | 4W0102 | • BOLT - .190 DIA X .438 | aa-ad | 1 |
| 534 | 5W1086 | • WASHER | aa-ad | 1 |
| 536 | 400WSS14 | • CLIP 83930 PRE SBE73-0045 | aa-ac | 1 |
| 536A | AS62414 | • CLIP - 22.22 MM (0.875) U1653 POST SBE73-0045 | ad | 1 |
| 540 | 4W0043 | • NUT - .190 DIA | aa-ad | 1 |
| 552 | 400WSS14 | • CLIP 83930 POST SBE71-0004 PRE SBE73-0045 | ab-ac | 1 |
| 552A | AS62414 | • CLIP - 22.22 MM (0.875) U1653 POST SBE73-0045 | ad | 1 |
| 602 | 5W8072 | • • ADAPTOR - STRAIGHT PRE SBE73-0045 | aa-ac | 1 |
| 602A | 5A8693 | • • ADAPTOR - STRAIGHT POST SBE73-0045 | ad | 1 |
| 618 | 5W8221 | • • ADAPTOR - LUG PRE SBE73-0045 | aa-ac | 1 |
| 618A | 6A5522 | • • ADAPTOR POST SBE73-0045 | ad | 1 |
| 622 | 5W8221 | • • ADAPTOR - LUG PRE SBE73-0045 | aa-ac | 1 |
| 622A | 6A5522 | • • ADAPTOR POST SBE73-0045 | ad | 1 |
| 626 | 5W8138 | • • CONNECTR - TEE PRE SBE73-0045 | aa-ac | 1 |
| 626A | 5W8125 | • • ADAPTOR - TEE POST SBE73-0045 | ad | 1 |
| 640 | AS15784 | • • WIRE - THRUST U1653 | aa-ad | 1 |
| 641 | AS15708 | • • NUT - TUBE COUPLING U1653 | aa-ad | 1 |
| 642 | 5W0058 | • • FERRULE PRE SBE73-0045 | aa-ac | 1 |
| 642A | AS15736 | • • FERRULE - WELDING TUBE U1653 POST SBE73-0045 | ad | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

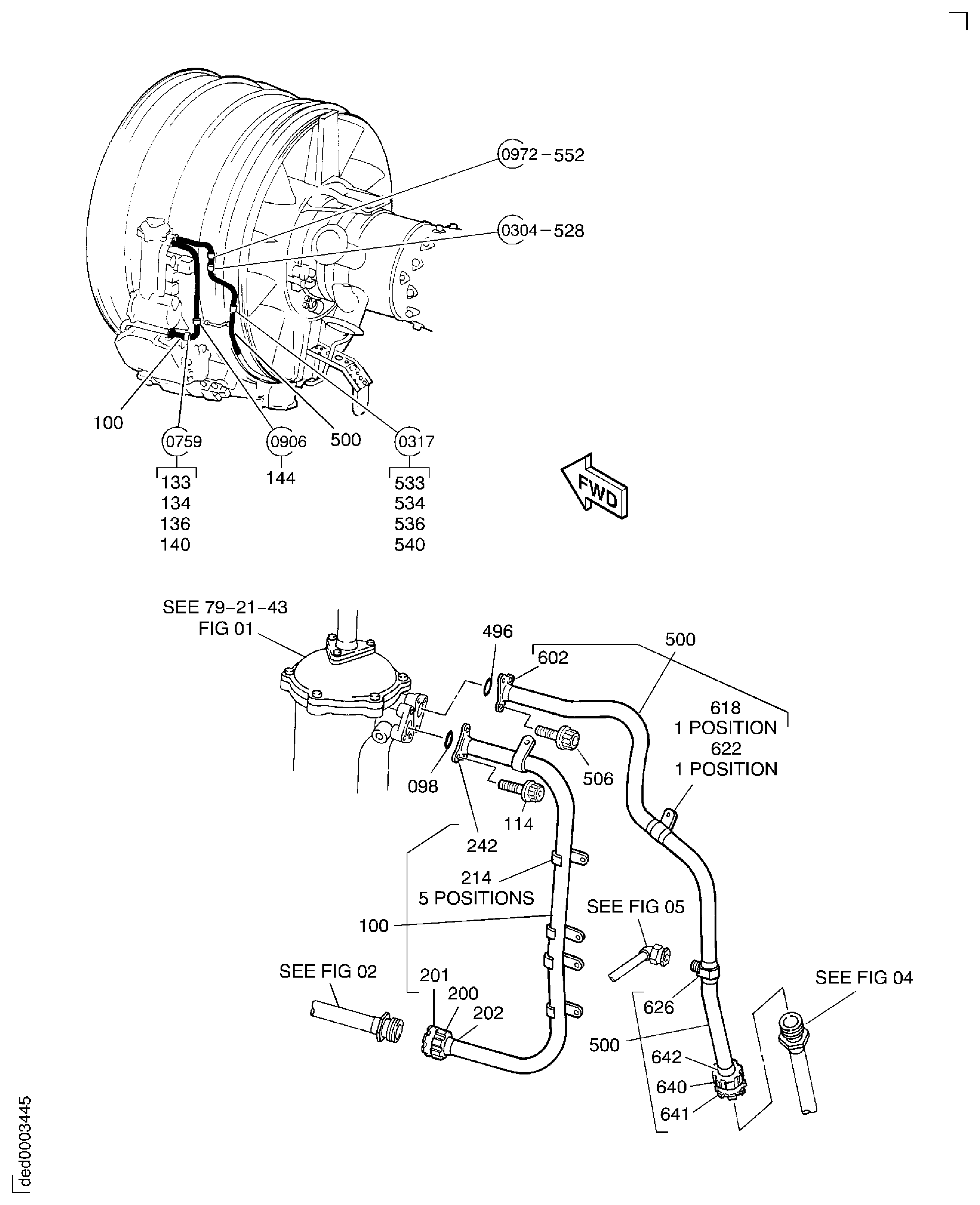

Figure: OIL-PRESSURE OIL TUBES-ENGINE
PRESSURE OIL TUBES ENGINE
