DMC:V2500-A1-79-21-49-05A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 05 | ||||
| B79214905 | OIL-PRESSURE OIL TUBES-ENGINE, PRE SBE79-0025 | aa | ||
| SBE0025-01 | OIL-PRESSURE OIL TUBES-ENGINE, PRE SBE73-0045 | ab | ||
| SBE0045-01 | OIL-PRESSURE OIL TUBES-ENGINE, PRE SBE73-0061 | ac | ||
| SBE0061-01 | OIL-PRESSURE OIL TUBES-ENGINE | ad | ||
| 100 | 5A8774 | • TUBE - A/O OIL PRE SBE79-0025 | aa-ac | 1 |
| 100A | 5A8794 | • TUBE - ASSY,OIL SPILL TO TANK POST SBE79-0025 PRE SBE73-0061 | aa-ac | 1 |
| 100B | 6A5346 | • TUBE - A/O POST SBE73-0061 | ad | 1 |
| 144 | 400WSS4 | • CLIP 83930 PRE SBE73-0045 | aa-ab | 1 |
| 144A | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE73-0045 | ac-ad | 1 |
| 149 | 4W0102 | • BOLT - .190 DIA X .438 | aa-ad | 1 |
| 150 | 5W1086 | • WASHER | aa-ad | 1 |
| 152 | 400WSS4 | • CLIP 83930 PRE SBE73-0061 | aa-ac | 1 |
| 152A | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE73-0061 | aa-ad | 1 |
| 156 | 4W0043 | • NUT - .190 DIA | aa-ad | 1 |
| 157 | 4W0103 | • BOLT - .190 DIA X .500 Optional Part 4W0103 POST SBE79-0025 PRE SBE73-0061 | ab-ac | 1 |
| 157A | 4W0102 | • BOLT - .190 DIA X .438 Optional Part 4W0102 POST SBE73-0061 | ab-ad | 1 |
| 158 | 5W1086 | • WASHER POST SBE79-0025 | ab-ad | 1 |
| 160 | 400WSS4 | • CLIP - LOOP TYPE 83930 POST SBE79-0025 PRE SBE73-0061 | ab-ac | 1 |
| 160A | AS62404 | • CLIP - 6.35 MM (0.250) U1653 POST SBE73-0061 | ab-ad | 1 |
| 164 | 4W0043 | • NUT - .190 DIA Optional Part 4W0043 POST SBE79-0025 | ab-ad | 1 |
| 200 | AS15777 | • • WIRE - THRUST U1653 POST SBE73-0061 | ad | 1 |
| 201 | AS15701 | • • NUT - TUBE COUPLING U1653 POST SBE73-0061 | ad | 1 |
| 202 | K17404 | • • FERRULE POST SBE73-0061 | ad | 1 |
| 210 | 6A5531 | • • ADAPTOR - LUG POST SBE73-0061 | ad | 1 |
| 222 | 6A5531 | • • ADAPTOR - LUG POST SBE73-0061 | ad | 1 |
| 240 | AS15777 | • • WIRE - THRUST U1653 POST SBE73-0061 | ad | 1 |
| 241 | AS15701 | • • NUT - TUBE COUPLING U1653 POST SBE73-0061 | ad | 1 |
| 242 | K17404 | • • FERRULE POST SBE73-0061 | ad | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

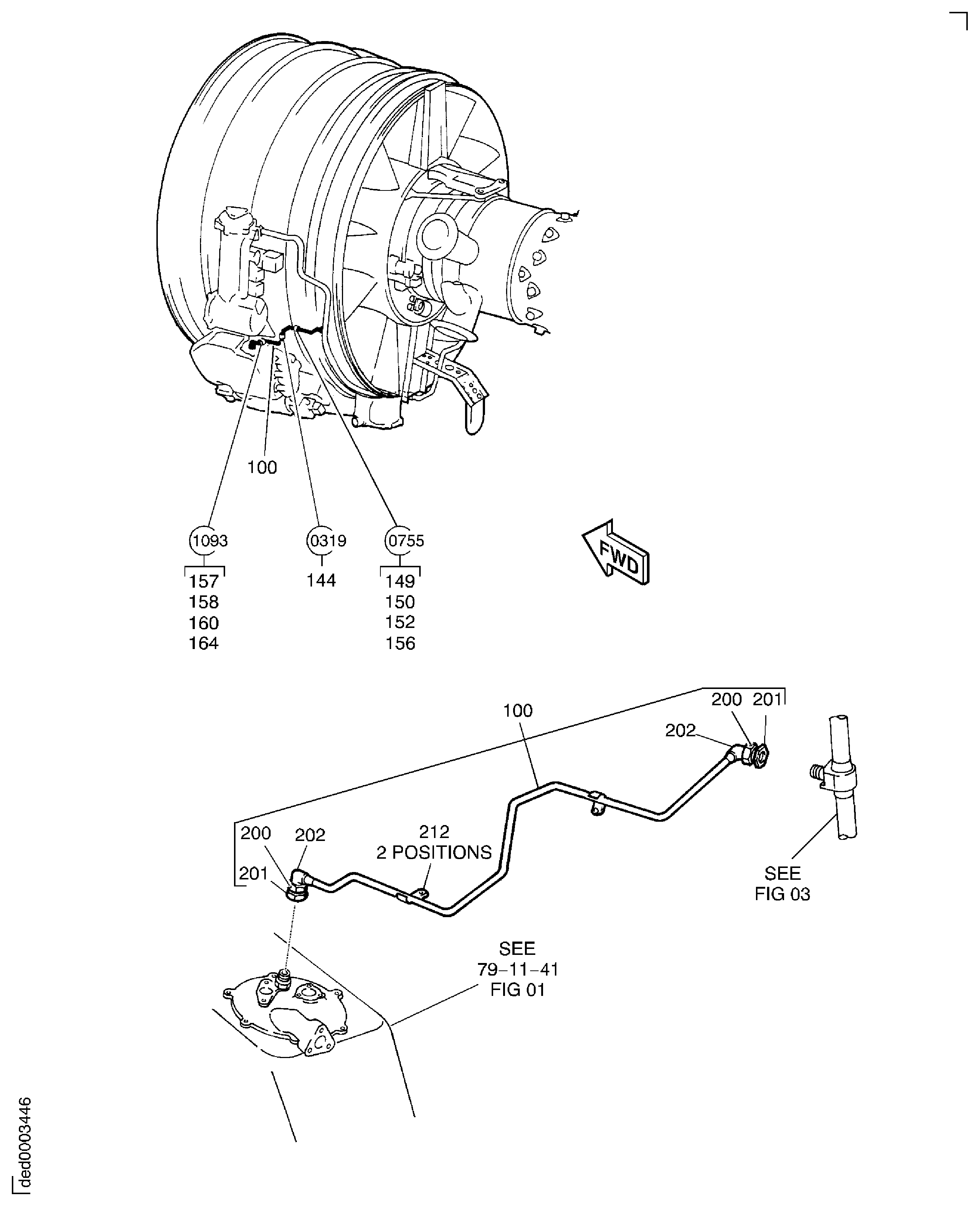

Figure: OIL-PRESSURE OIL TUBES-ENGINE
PRESSURE OIL TUBES ENGINE
