| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 11 | ||||
| B79214911 | OIL-PRESSURE OIL TUBES-ENGINE, PRE SBE79-0087 | aa | ||
| SBE0087-01 | OIL-PRESSURE OIL TUBES-ENGINE | ab | ||
| 100 | 5R8133 | • TUBE - A/O 1,2,3,OIL FEED PRE SBE79-0087 | aa | 1 |
| 100A | 6A5395 | • TUBE - A/O-OIL DISCON 4WAY ADAPTOR TO 12&3BRGS POST SBE79-0087 | ab | 1 |
| 114 | 4W0166 | • BOLT - .250 DIA X .750 | aa-ab | 3 |
| 116 | AS43013-116 | • RING - SEALING TOROIDAL, 18.72 MM I/DIA X 2,62 U1653 | aa-ab | 1 |
| 141 | 4W0120 | • BOLT - .190 DIA X 1.562 PRE SBE79-0087 | aa | 1 |
| 141A | 4W0103 | • BOLT - .190 DIA X .500 POST SBE79-0087 | ab | 1 |
| 142 | 5W1086 | • WASHER PRE SBE79-0087 | aa | 1 |
| 144 | 400WSS10 | • CLIP 83930 PRE SBE79-0087 | aa | 1 |
| 144A | AS62410 | • CLIP - 15.88 MM (0.625) U1653 POST SBE79-0087 | ab | 1 |
| 146 | 5W1033 | • SPACER - (25MM) PRE SBE79-0087 | aa | 1 |
| 148 | 4W0043 | • NUT - .190 DIA | aa-ab | 1 |
| 200 | AS15782 | • • WIRE - THRUST U1653 | aa-ab | 1 |
| 201 | AS15706 | • • NUT - TUBE COUPLING U1653 | aa-ab | 1 |
| 202 | 5W8157 | • • FERRULE PRE SBE79-0087 | aa | 1 |
| 202A | AS15732 | • • FERRULE U1653 POST SBE79-0087 | ab | 1 |
| 214 | UP11156 | • • BRACKET - INTER TUBE SUPPORT | aa-ab | 5 |
| 214A | UP11156 | • • BRACKET - INTER TUBE SUPPORT POST SBE79-0087 | ab | 5 |
| 222 | 5W1593 | • • ADAPTOR - CLIP PRE SBE79-0087 | aa | 1 |
| 226 | 5W1593 | • • ADAPTOR - CLIP | aa-ab | 1 |
| 230 | 5W1593 | • • ADAPTOR - CLIP | aa-ab | 1 |
| 234 | 5W1593 | • • ADAPTOR - CLIP | aa-ab | 1 |
| 242 | 5T8240 | • • ADAPTOR - FLANGED PRE SBE79-0087 | aa | 1 |
| 242A | 5T8241 | • • ADAPTOR - FLANGED POST SBE79-0087 | ab | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

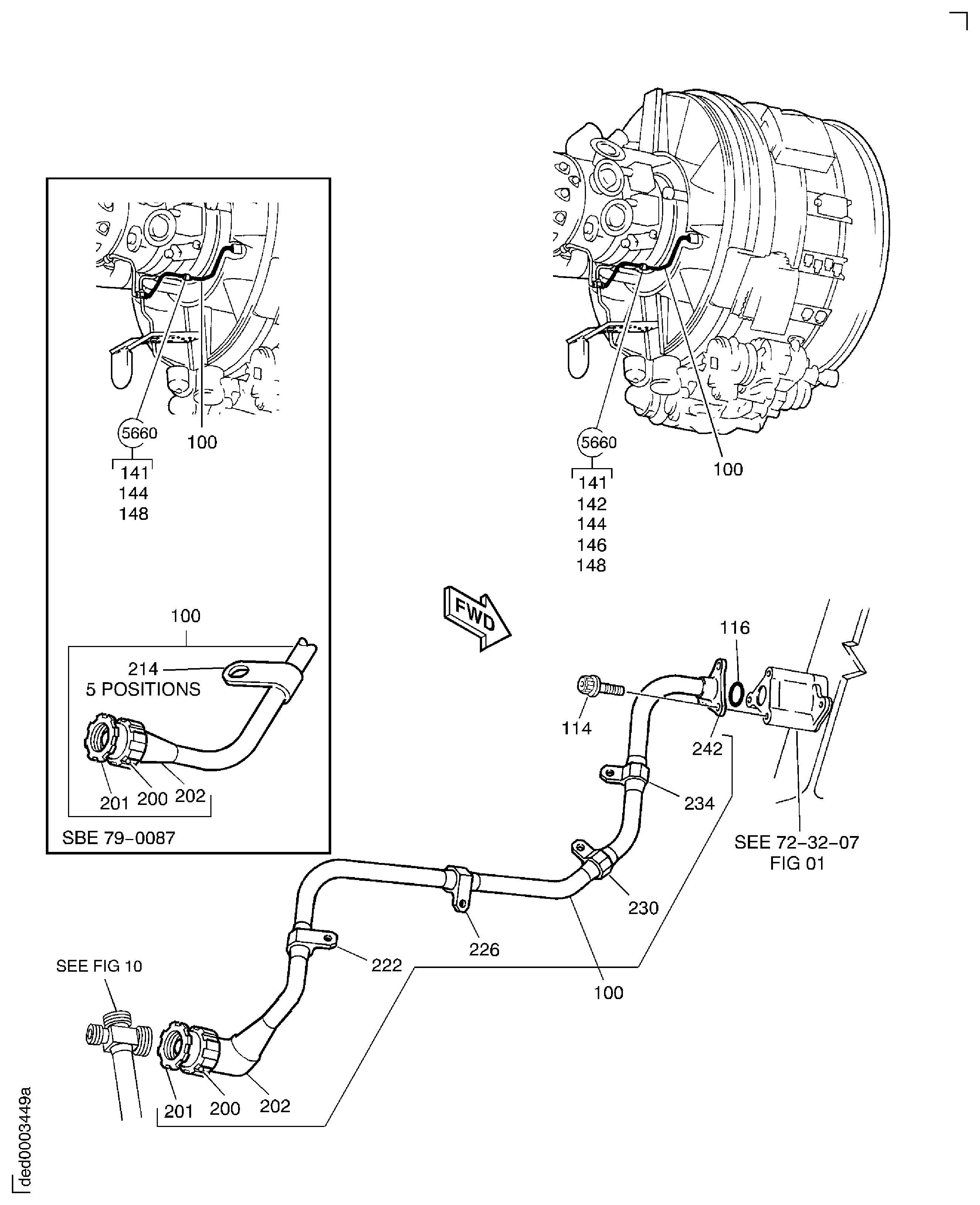

Figure: OIL-PRESSURE OIL TUBES-ENGINE
PRESSURE OIL TUBES-ENGINE
