DMC:V2500-A1-79-21-49-12A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 12 | ||||
| B79214912 | OIL-PRESSURE OIL TUBES-ENGINE, PRE SBE79-0087 | aa | ||
| SBE0087-01 | OIL-PRESSURE OIL TUBES-ENGINE | ab | ||
| 100 | 5R8135 | • TUBE - A/O OIL NO.5 OIL FEED PRE SBE79-0087 | aa | 1 |
| 100A | 6A5397 | • TUBE - A/O-OIL DISCON 4WAY ADAPTOR TO NO.5BRG POST SBE79-0087 | ab | 1 |
| 133 | 4W0102 | • BOLT - .190 DIA X .438 PRE SBE79-0087 | aa | 1 |
| 133A | 4W0119 | • BOLT - .190 DIA X 1.500 POST SBE79-0087 | ab | 1 |
| 134 | 5W1086 | • WASHER PRE SBE79-0087 | aa | 1 |
| 136 | 400WSS5 | • CLIP 83930 PRE SBE79-0087 | aa | 1 |
| 136A | AS62405 | • CLIP - 7.92MM (0.312) U1653 POST SBE79-0087 | ab | 1 |
| 138 | LK44011 | • SPACER POST SBE79-0087 | ab | 1 |
| 140 | 4W0043 | • NUT - .190 DIA | aa-ab | 1 |
| 141 | 4W0102 | • BOLT - .190 DIA X .438 PRE SBE79-0087 | aa | 1 |
| 142 | 5W1086 | • WASHER PRE SBE79-0087 | aa | 1 |
| 144 | 400WSS5 | • CLIP 83930 PRE SBE79-0087 | aa | 1 |
| 148 | 4W0043 | • NUT - .190 DIA PRE SBE79-0087 | aa | 1 |
| 157 | 4W0103 | • BOLT - .190 DIA X .500 Optional Part 4W0103 POST SBE79-0087 | ab | 1 |
| 158 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE79-0087 | ab | 2 |
| 160 | AS62405 | • CLIP - 7.92MM (0.312) U1653 POST SBE79-0087 | ab | 1 |
| 164 | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 POST SBE79-0087 | ab | 1 |
| 165 | 4W0102 | • BOLT - .190 DIA X .438 Optional Part 4W0102 POST SBE79-0087 | ab | 1 |
| 168 | AS62405 | • CLIP - 7.92MM (0.312) U1653 POST SBE79-0087 | ab | 1 |
| 172 | 4W0043 | • NUT - .190 DIA Optional Part 4W0043 POST SBE79-0087 | ab | 1 |
| 200 | AS15778 | • • WIRE - THRUST U1653 | aa-ab | 1 |
| 201 | AS15702 | • • NUT - TUBE COUPLING U1653 | aa-ab | 1 |
| 202 | 5W8153 | • • FERRULE PRE SBE79-0087 | aa | 1 |
| 202A | K17407 | • • FERRULE POST SBE79-0087 | ab | 1 |
| 214 | 5W1588 | • • LUG PRE SBE79-0087 | aa | 1 |
| 214A | UP11153 | • • BRACKET - INTER TUBE SUPPORT POST SBE79-0087 | ab | 2 |
| 240 | AS15778 | • • WIRE - THRUST U1653 | aa-ab | 1 |
| 241 | AS15702 | • • NUT - TUBE COUPLING U1653 | aa-ab | 1 |
| 242 | 5W1681 | • • FERRULE PRE SBE79-0087 | aa | 1 |
| 242A | AS15724 | • • FERRULE - WELDING TUBE U1653 POST SBE79-0087 | ab | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

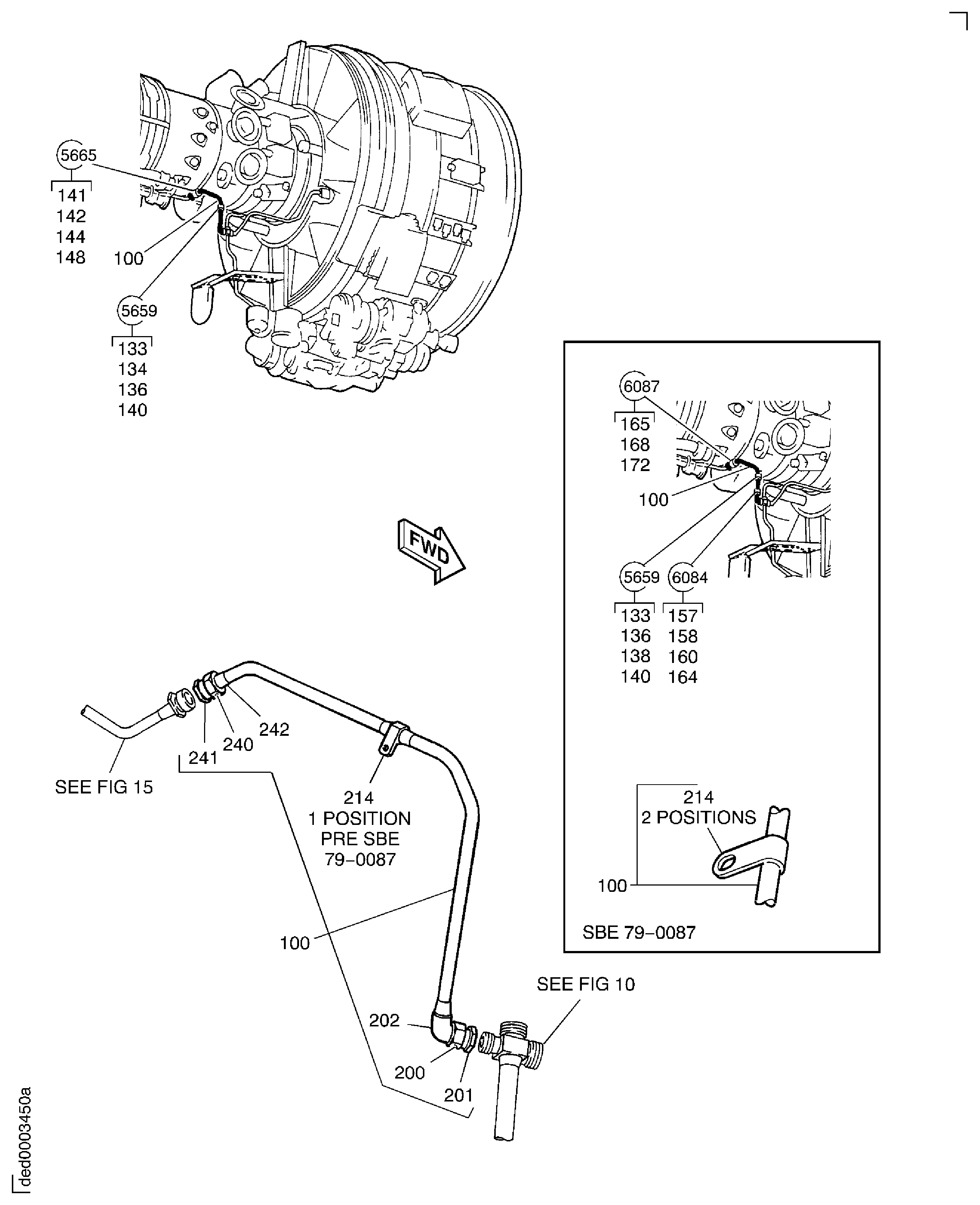

Figure: OIL-PRESSURE OIL TUBES-ENGINE
PRESSURE OIL TUBES ENGINE
