DMC:V2500-A1-79-21-49-13A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 13 | ||||
| B79214913 | OIL-PRESSURE OIL TUBES-ENGINE, PRE SBE79-0087 | aa | ||
| SBE0087-01 | OIL-PRESSURE OIL TUBES-ENGINE | ab | ||
| 070 | 6A2801 | • BRACKET | aa-ab | 1 |
| 090 | 5W8311 | • BRACKET | aa-ab | 1 |
| 092 | 4W0001 | • NUT - .190 DIA | aa-ab | 2 |
| 094 | 4W0102 | • BOLT - .190 DIA X .438 | aa-ab | 2 |
| 100 | 5R8134 | • TUBE - A/O OIL NO.4 OIL FEED PRE SBE79-0087 | aa | 1 |
| 100A | 6A6202 | • TUBE - A/O OIL-NO.4BRG 4WAY ADAPTOR TO DICONNECT POST SBE79-0087 | ab | 1 |
| 110 | 4W0002 | • NUT - .250 DIA | aa-ab | 3 |
| 114 | 4W0168 | • BOLT - .250 DIA X .875 | aa-ab | 3 |
| 116 | AS43013-121 | • RING - SEALING TOROIDAL, 1.049 I/DIA X .103 U1653 | aa-ab | 1 |
| 133 | 4W0102 | • BOLT - .190 DIA X .438 | aa-ab | 1 |
| 134 | 5W1086 | • WASHER PRE SBE79-0087 | aa | 1 |
| 136 | 400WSS7 | • CLIP 83930 PRE SBE79-0087 | aa | 1 |
| 136A | AS62407 | • CLIP - 11.12 MM (0.438) U1653 POST SBE79-0087 | ab | 1 |
| 140 | 4W0043 | • NUT - .190 DIA | aa-ab | 1 |
| 149 | 4W0109 | • BOLT - .190 DIA X .875 Optional Part 4W0109 POST SBE79-0087 | ab | 1 |
| 150 | K8831 | • WASHER - .190 DIA X 0,51 THK POST SBE79-0087 | ab | 1 |
| 152 | AS62407 | • CLIP - 11.12 MM (0.438) U1653 POST SBE79-0087 | ab | 1 |
| 154 | UP10479 | • SPACER - 10MM POST SBE79-0087 | ab | 1 |
| 156 | 4W0001 | • NUT - .190 DIA Optional Part 4W0001 POST SBE79-0087 | ab | 1 |
| 200 | AS15780 | • • WIRE - THRUST U1653 | aa-ab | 1 |
| 201 | AS15704 | • • NUT - TUBE COUPLING U1653 | aa-ab | 1 |
| 202 | 5W1683 | • • FERRULE PRE SBE79-0087 | aa | 1 |
| 202A | K17413 | • • FERRULE POST SBE79-0087 | ab | 1 |
| 240 | 5T8234 | • • ADAPTOR - FLANGED PRE SBE79-0087 | aa | 1 |
| 242 | 5T8235 | • • FLANGE POST SBE79-0087 | ab | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

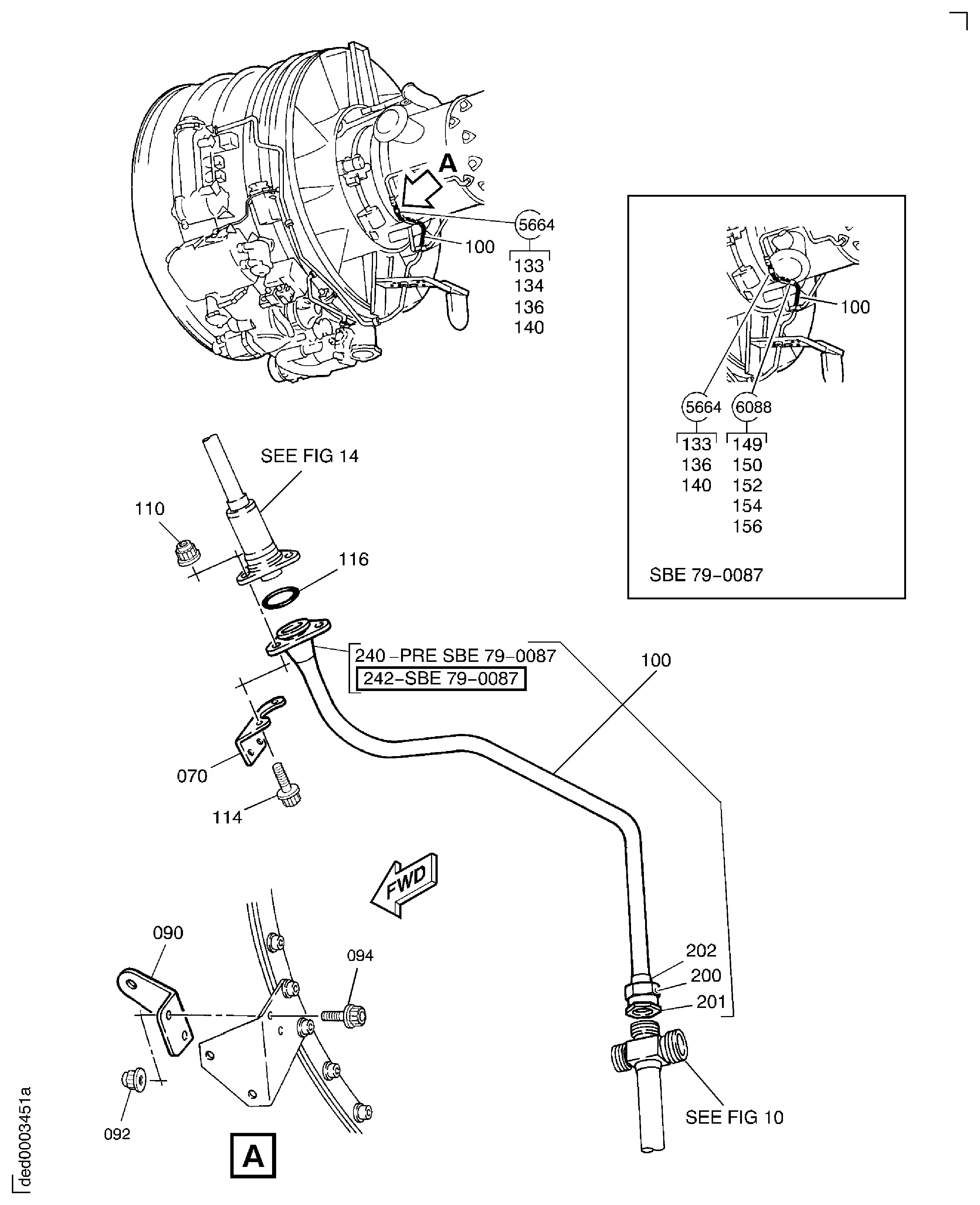

Figure: OIL-PRESSURE OIL TUBES-ENGINE
PRESSURE OIL TUBES ENGINE
