OIL-PRESSURE OIL TUBES-ENGINE

DMC:V2500-A1-79-21-49-17A-941A-D|Issue No:001.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig.
Item		Part No.DescriptionEffect/Model Applic.UPA
17
000B79214917OIL-PRESSURE OIL TUBES-ENGINE, PRE SBE71-0004aa
000SBE0004-01OIL-PRESSURE OIL TUBES-ENGINE, PRE SBN70-0143ab
000SBN0143-01OIL-PRESSURE OIL TUBES-ENGINE, PRE SBE75-0010ac
000SBE0010-01OIL-PRESSURE OIL TUBES-ENGINE, PRE SBE73-0006ad
000SBE0006-01OIL-PRESSURE OIL TUBES-ENGINE, PRE SBE73-0045ae
000SBE0045-01OIL-PRESSURE OIL TUBES-ENGINE, PRE SBE70-0962af
000SBE0962-01OIL-PRESSURE OIL TUBES-ENGINEag
-005005740-5019-503ARRGT - OIL SYSTEM INDIC
51563		aa-agREF
-005005A740-5019-515ARRGT - OIL SYSTEM INDICATING
51563		aa-agREF
-005005B740-5019-517ARRGT - OIL SYSTEM INDICATING
51563
PRE SBN70-0143		aa-abREF
-005005C740-5019-519ARRGT - OIL SYSTEM INDICATING
51563
POST SBN70-0143		ac-agREF
-005005D740-5019-521ARRGT - OIL SYSTEM INDICATING
51563
POST SBE75-0010
PRE SBE70-0962		ad-afREF
-005005E740-5019-529ARRNGMNT
51563
POST SBE70-0962		agREF
100100740-5767-507• TUBE
51563		aa-ag1
100100A740-5767-507• TUBE
51563
PRE SBN70-0143		aa-ag1
100100B740-5767-509• TUBE
51563
POST SBN70-0143		aa-ag1
125125AS21408• BOLT - .190 DIA X .500
U1653		aa-ag1
126126SP154D• WASHER - .190 DIA
K7766		aa-ag1
128128400WSS4• CLIP
83930		aa-ag1
132132AS20624• NUT - .190 DIA
U1653		aa-ag1
133133AS21409• BOLT - .190 DIA X .562
U1653		aa-ag1
134134SP154D• WASHER - .190 DIA
K7766		aa-ag2
136136400WSS4• CLIP
83930		aa-ag1
140140AS20624• NUT - .190 DIA
U1653		aa-ag1
141141AS21408• BOLT - .190 DIA X .500
U1653		aa-ag1
142142SP154D• WASHER - .190 DIA
K7766		aa-ag1
144144400WSS4• CLIP
83930		aa-ag1
148148AS41104• NUT - .190 DIA
U1653		aa-ag1
1491494W0103• BOLT - .190 DIA X .500aa-ag1
150150SP154D• WASHER - .190 DIA
K7766		aa-ag1
152152400WSS4• CLIP
83930		aa-ag1
1561564W0001• NUT - .190 DIAaa-ag1
1571574W0103• BOLT - .190 DIA X .500aa-ag1
158158SP154D• WASHER - .190 DIA
K7766		aa-ag2
160160400WSS4• CLIP
83930		aa-ag1
1641644W0001• NUT - .190 DIAaa-ag1
1651654W0103• BOLT - .190 DIA X .500aa-ag1
166166SP154D• WASHER - .190 DIA
K7766		aa-ag1
168168400WSS4• CLIP
83930		aa-ag1
1721724W0001• NUT - .190 DIAaa-ag1
180180400WSS4• CLIP
83930		aa-ag1
500500740-5757-507• TUBE - ASSY OIL PRESSURE
51563		aa-ag1
500500A740-5769-509• TUBE - ASSY OIL SCAVENGE
51563
PRE SBN70-0143		aa-ag1
500500B740-5769-511• TUBE - ASSY OIL SCAVENGE
51563
POST SBN70-0143		aa-ag1
510510MS21902-04S• UNION
96906		aa-ag1
514514AS43003-904• RING - 8.92 MM X 1.83 MM
U1653		aa-ag1
5175174W0104• BOLT - .190 DIA X .562
POST SBE71-0004		ab-ag1
518518SP154D• WASHER - .190 DIA
K7766
POST SBE71-0004		ab-ag1
520520400WSS4• CLIP
83930
POST SBE71-0004		ab-ag1
5245244W0001• NUT - .190 DIA
POST SBE71-0004		ab-ag1
525525AS21408• BOLT - .190 DIA X .500
U1653		aa-ag1
525525A4W0104• BOLT - .190 DIA X .562
POST SBE73-0006		ae-ag1
526526SP154D• WASHER - .190 DIA
K7766		aa-ag2
526526ASP154D• WASHER - .190 DIA
K7766
POST SBE73-0006		ae-ag1
528528400WSS4• CLIP
83930		aa-ag1
528528A400WSS4• CLIP
83930
POST SBE73-0006		ae-ag1
532532AS20624• NUT - .190 DIA
U1653		aa-ag1
532532A4W0001• NUT - .190 DIA
POST SBE73-0006		ae-ag1
533533AS21408• BOLT - .190 DIA X .500
U1653		aa-ag1
533533AAS21408• BOLT - .190 DIA X .500
U1653
PRE SBE71-0004		aa1
534534SP154D• WASHER - .190 DIA
K7766		aa-ag2
534534ASP154D• WASHER - .190 DIA
K7766
PRE SBE71-0004		aa2
536536400WSS4• CLIP
83930		aa-ag1
536536A400WSS4• CLIP
83930
PRE SBE71-0004		aa1
540540AS20624• NUT - .190 DIA
U1653		aa-ag1
540540AAS20624• NUT - .190 DIA
U1653
PRE SBE71-0004		aa1
5415414W0104• BOLT - .190 DIA X .562aa-ag1
542542SP154D• WASHER - .190 DIA
K7766		aa-ag2
544544400WSS4• CLIP
83930		aa-ag1
5485484W0001• NUT - .190 DIAaa-ag1
549549AS21408• BOLT - .190 DIA X .500
U1653		aa-ag1
550550SP154D• WASHER - .190 DIA
K7766		aa-ag1
552552400WSS4• CLIP
83930		aa-ag1
556556AS41104• NUT - .190 DIA
U1653		aa-ag1
557557AS21408• BOLT - .190 DIA X .500
U1653		aa-ag1
558558SP154D• WASHER - .190 DIA
K7766		aa-ag1
560560400WSS4• CLIP
83930		aa-ag1
564564AS20624• NUT - .190 DIA
U1653		aa-ag1
565565AS21409• BOLT - .190 DIA X .562
U1653		aa-ag1
566566SP154D• WASHER - .190 DIA
K7766		aa-ag1
568568400WSS4• CLIP
83930		aa-ag1
572572AS20624• NUT - .190 DIA
U1653		aa-ag1
5735734W0103• BOLT - .190 DIA X .500aa-ag1
574574SP154D• WASHER - .190 DIA
K7766		aa-ag1
576576400WSS4• CLIP
83930		aa-ag1
580580AS41104• NUT - .190 DIA
U1653		aa-ag1
5815814W0103• BOLT - .190 DIA X .500aa-ag1
582582SP154D• WASHER - .190 DIA
K7766		aa-ag1
584584400WSS4• CLIP
83930		aa-ag1
588588AS20624• NUT - .190 DIA
U1653		aa-ag1
5895894W0106• BOLT - .190 DIA X .688aa-ag1
590590SP154D• WASHER - .190 DIA
K7766		aa-ag1
592592400WSS16• CLIP
83930
PRE SBE73-0045		aa-ae1
592592AAS62416• CLIP - 25.40 MM (1.000)
U1653
POST SBE73-0045		af-ag1
594594ST1698D47• SPACER
K4585		aa-ag1
5965964W0001• NUT - .190 DIAaa-ag1
900900740-5779-501• BRACKET
51563		aa-ag1
901901AS20625• NUT - .250 DIA
U1653		aa-ag2
902902SP155E• WASHER
K7766		aa-ag2
904904AS21512• BOLT - .250 DIA X .750
U1653		aa-ag2
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

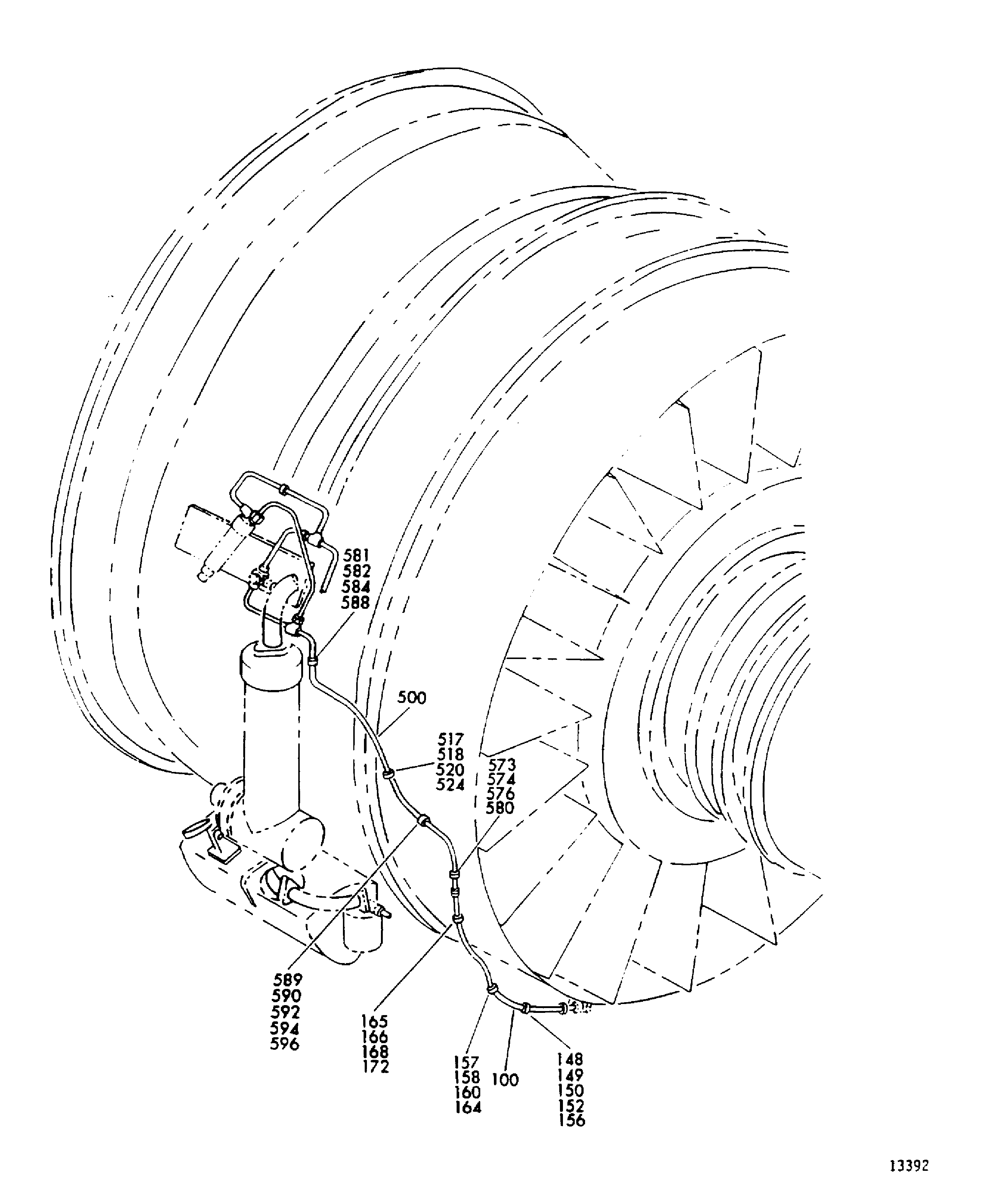

Figure: OIL-PRESSURE OIL TUBES-ENGINE

PRESSURE OIL TUBES ENGINE

Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Manufacturer Code:51563
Enterprise Name:ROHR INC, A COLLINS AEROSPACE COMPANY
BU Name:ROHR INC, A COLLINS AEROSPACE COMPANY
Street:850 LAGOON DRIVE
City:CHULA VISTA
State:CA
Zip Code:91910-2098
Country:USA
Phone Number:1-619-691-2089
Fax Number:1-619-691-6195
Manufacturer Code:83930
Enterprise Name:TRANSDIGM INC
BU Name:TRANSDIGM INC
Department:ADEL FASTENERS
Building:SANDWELL INDUSTRIAL ESTATE
Street:5000 TRIGGS STREET
City:LOS ANGELES
State:WEST MIDLANDS
Zip Code:B66 1QJ
Country:USA
Manufacturer Code:96906
Enterprise Name:MILITARY STANDARDS MANUAL 4120 3-M
BU Name:MILITARY STANDARDS MANUAL 4120 3-M
Street:NONE
City:NONE
Country:USA
Phone Number:NONE
Manufacturer Code:K4585
Enterprise Name:SHORT BROS PLC
BU Name:NULL
Street:AIRPORT ROAD
P.O. Box:PO BOX 241 BT3
City:QUEENS ISLAND
State:BELFAST
Zip Code:9DZ
Country:UNITED KINGDOM
Manufacturer Code:K7766
Enterprise Name:K7766
BU Name:British Standards Institution
Street:2 Park Street
City:London
Zip Code:AW1A 2BS
Country:England
Manufacturer Code:U1653
Enterprise Name:Society Of British Aerospace Companies, LTD.
Part Number:400WSS16
Part Name:CLIP
Manufacturer Code:83930
Part Number:400WSS4
Part Name:CLIP
Manufacturer Code:83930
Optional Parts
Part NumberPart NameManufacturer
AS62404CLIP - 6.35 MM (0.250)U1653
Part Number:4W0001
Part Name:NUT, OPTION - .190 DIA
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS20624NUT, SELF LOCKING DBL HEX - .190 DIAU1653
Part Number:4W0103
Part Name:BOLT - .190 DIA X .500
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS21408BOLT - 0.19 DIA X 0.500U1653
Part Number:4W0104
Part Name:BOLT - .190 DIA X .562
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
4W0344BOLT , BIHEX HD - .190 DIA X .5620AM53
Part Number:4W0106
Part Name:BOLT - .190 DIA X .688
Manufacturer Code:0AM53
Part Number:4W0344
Part Name:BOLT , BIHEX HD - .190 DIA X .562
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
4W0104BOLT - .190 DIA X .5620AM53
Part Number:740-5019-503
Part Name:ARRANGEMENT - OIL SYSTEM INDICATING
Manufacturer Code:51563
Part Number:740-5019-515
Part Name:ARRANGEMENT - OIL SYSTEM INDICATING
Manufacturer Code:51563
Part Number:740-5019-517
Part Name:ARRANGEMENT - OIL SYSTEM INDICATING
Manufacturer Code:51563
Part Number:740-5019-519
Part Name:ARRANGEMENT - OIL SYSTEM INDICATING
Manufacturer Code:51563
Part Number:740-5019-521
Part Name:ARRANGEMENT - OIL SYSTEM INDICATING
Manufacturer Code:51563
Part Number:740-5019-529
Part Name:ARRANGEMENT - OIL SYSTEM INDICATING
Manufacturer Code:51563
Part Number:740-5757-507
Part Name:TUBE - OIL PRESSURE, ASSEMBLY OF
Manufacturer Code:51563
Part Number:740-5767-507
Part Name:TUBE - OIL SCAVENGE, ASSEMBLY OF
Manufacturer Code:51563
Part Number:740-5767-509
Part Name:TUBE
Manufacturer Code:51563
Part Number:740-5769-509
Part Name:TUBE - OIL SCAVENGE, ASSEMBLY OF
Manufacturer Code:51563
Part Number:740-5769-511
Part Name:TUBE - OIL SCAVENGE, ASSEMBLY OF
Manufacturer Code:51563
Part Number:740-5779-501
Part Name:BRACKET
Manufacturer Code:51563
Part Number:AS20624
Part Name:NUT, SELF LOCKING DBL HEX - .190 DIA
Manufacturer Code:U1653
Part Number:AS20625
Part Name:NUT, SELF LOCKING, BIHEX, .250 DIA
Manufacturer Code:U1653
Unit Of Issue:EA
Part Number:AS21408
Part Name:BOLT - 0.19 DIA X 0.500
Manufacturer Code:U1653
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
MS9556-06BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.50096906
Part Number:AS21409
Part Name:BOLT - 0.190 DIA X 0.562
Manufacturer Code:U1653
Optional Parts
Part NumberPart NameManufacturer
MS9556-07BOLT - MACHINE, DOUBLE HEXAGON, EXTERNAL WASHER HEAD, 0.190 - 32 X 0.56296906
Part Number:AS21512
Part Name:BOLT - 0.25 DIA X 0.750
Manufacturer Code:U1653
Part Number:AS41104
Part Name:NUT - 0.19 DIA
Manufacturer Code:U1653
Part Number:AS43003-904
Part Name:RING - 8.92 MM X 1.83 MM
Manufacturer Code:U1653
Part Number:AS62404
Part Name:CLIP - 6.35 MM (0.250)
Manufacturer Code:U1653
Optional Parts
Part NumberPart NameManufacturer
400WSS4CLIP83930
Part Number:AS62416
Part Name:CLIP - 25.40 MM (1.000)
Manufacturer Code:U1653
Part Number:MS21902-04S
Part Name:UNION
Manufacturer Code:96906
Part Number:MS9556-06
Part Name:BOLT - MACHINE, DOUBLE HEXAGON, EXTENDED WASHER HEAD, 0.190-32 X 0.500
Manufacturer Code:96906
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
AS21408BOLT - 0.19 DIA X 0.500U1653
Part Number:MS9556-07
Part Name:BOLT - MACHINE, DOUBLE HEXAGON, EXTERNAL WASHER HEAD, 0.190 - 32 X 0.562
Manufacturer Code:96906
Optional Parts
Part NumberPart NameManufacturer
AS21409BOLT - 0.190 DIA X 0.562U1653
Part Number:SP154D
Part Name:WASHER - 0.190 DIA
Manufacturer Code:K7766
Part Number:SP155E
Part Name:WASHER
Manufacturer Code:K7766
Part Number:ST1698D47
Part Name:SPACER (5MM)
Manufacturer Code:K4585
