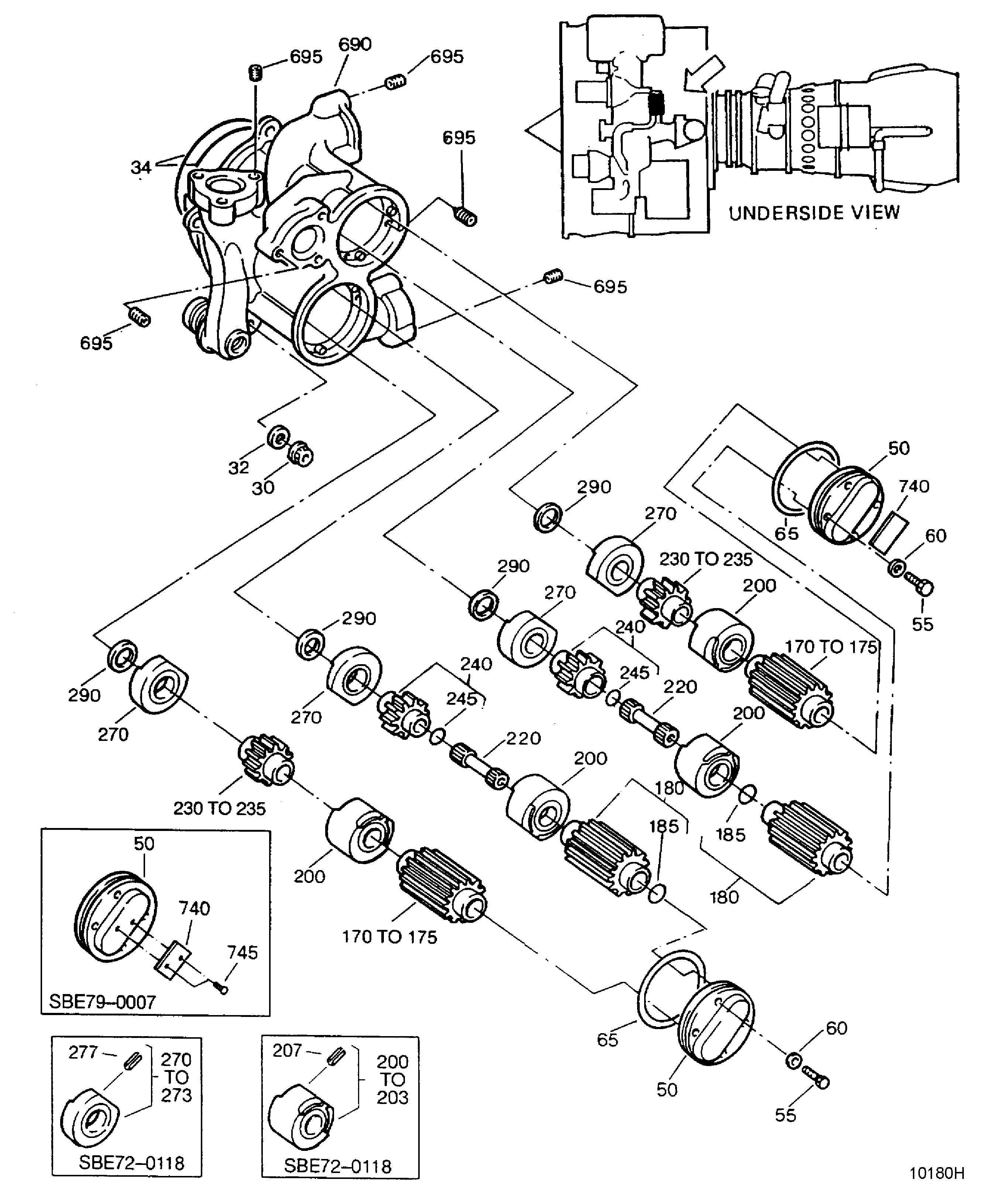

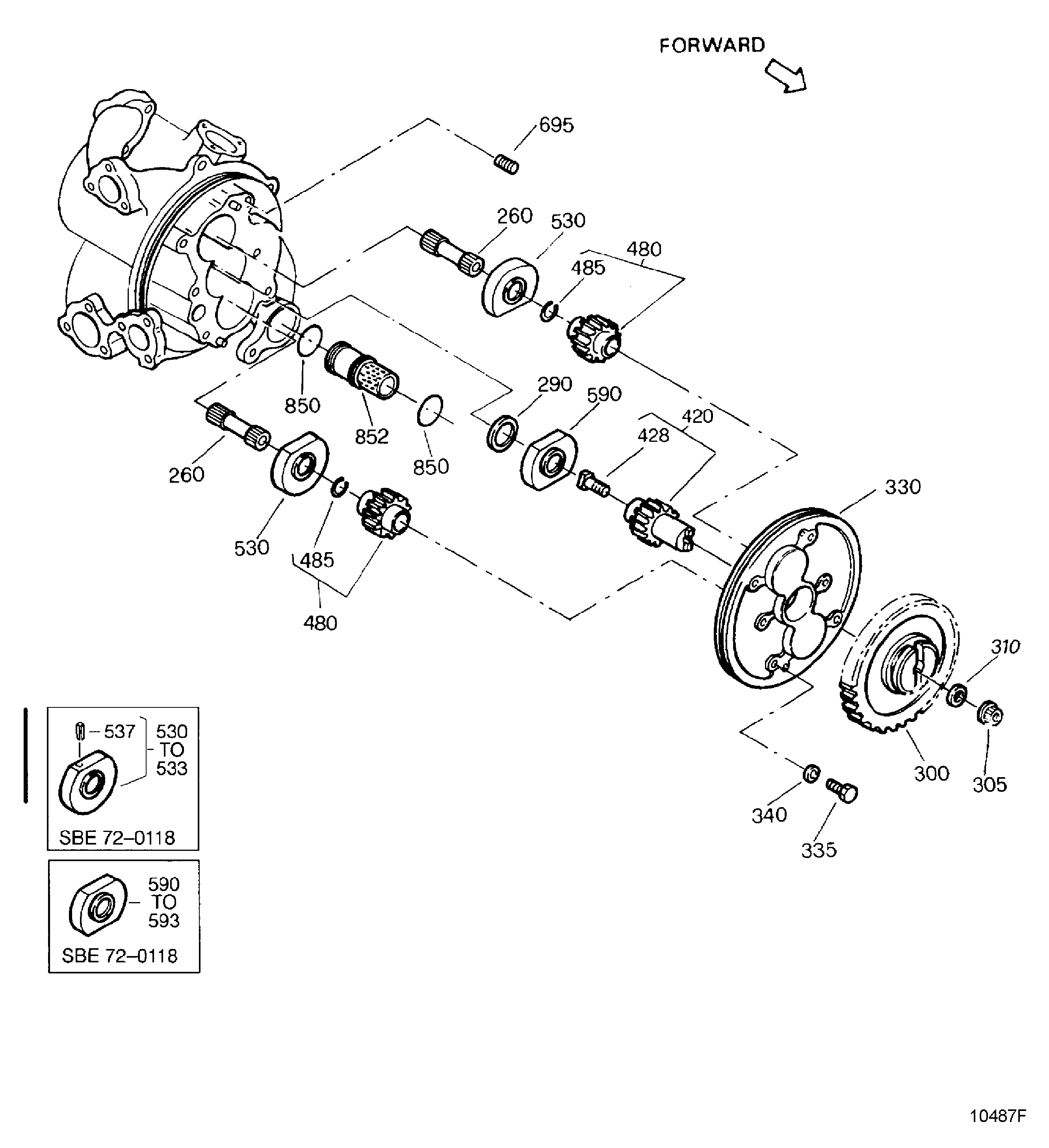

OIL-SCAVENGE OIL PUMP

DMC:V2500-A1-79-22-41-01A-941A-D|Issue No:004.00|Issue Date:2018-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig.
Item		Part No.DescriptionEffect/Model Applic.UPA
01
000B79224101OIL - SCAVENGE OIL PUMP, PRE SBE79-0007aa
000SBE0007-01OIL - SCAVENGE OIL PUMP, PRE SBE72-0118ab
000SBE0118-01OIL - SCAVENGE OIL PUMP, PRE SBE79-0051ac
000SBE0051-01OIL - SCAVENGE OIL PUMP, PRE SBE70-0365ad
000SBE0365-01OIL - SCAVENGE OIL PUMP, PRE SBE70-0448ae
000SBE0448-01OIL - SCAVENGE OIL PUMP, PRE SBE79-0049af
000SBE0049-01OIL - SCAVENGE OIL PUMP, PRE SBE79-0074ag
000SBE0074-01OIL - SCAVENGE OIL PUMP, PRE SBE70-0603ah
000SBE0603-01OIL - SCAVENGE OIL PUMP, PRE SBE79-0077ai
000SBE0077-01OIL - SCAVENGE OIL PUMP, PRE SBE79-0093aj
000SBE0093-01OIL - SCAVENGE OIL PUMP, PRE SBE70-0992ak
000SBE0992-01OIL - SCAVENGE OIL PUMP, PRE SBE79-0101al
000SBE0101-01OIL - SCAVENGE OIL PUMPam
-0010014A7013• PUMP - OIL, PRESSURE, ASSEMBLY OF
PRE SBE72-0118		aa-am1
-001001A4A7112• PUMP - OIL, PRESSURE, ASSEMBLY OF
POST SBE72-0118
PRE SBE79-0051		aa-am1
-001001B4A7117• PUMP - OIL, PRESSURE, ASSEMBLY OF
POST SBE79-0051
PRE SBE79-0049		aa-am1
-001001C4A7117• PUMP - OIL, PRESSURE, ASSEMBLY OF
POST SBE79-0049
PRE SBE79-0074		aa-am1
-001001D4A7117• PUMP - OIL, PRESSURE, ASSEMBLY OF
POST SBE79-0074
PRE SBE70-0603		aa-am1
-001001E4A7117• PUMP - OIL, PRESSURE, ASSEMBLY OF
POST SBE70-0603
PRE SBE79-0077		aa-am1
001001F4A7120• PUMP - OIL, PRESSURE, ASSEMBLY OF
POST SBE79-0077
PRE SBE79-0093
REF SBE79-0105		aa-am1
001001G4A7123• PUMP - OIL, PRESSURE, ASSEMBLY OF
POST SBE79-0093
PRE SBE79-0101
REF SBE79-0105		aa-am1
-001001H4A7123A• PUMP - OIL, PRESSURE, ASSEMBLY OF
A3460
POST SBE79-0101		aa-am1
0300304W0003• NUT - 0.3125 DIAaa-am4
032032MS9321-11• WASHER
96906		aa-am4
034034AS3209-157• PACKING - PREFORMED
U1653
PRE SBE79-0049		aa-af2
034034AAS3209-158• PACKING - PREFORMED
U1653
POST SBE79-0049		ag-am2
0500504B7003• COVER - ASSEMBLY OF
PRE SBE79-0051		aa-ac2
050050A4B7319• COVER
POST SBE79-0051
PRE SBE79-0077		ad-ai2
050050B4B7348• COVER - ASSEMBLY OF
POST SBE79-0077		aj-am2
0550554P7026• BOLT
PRE SBE79-0101		aa-am8
055055A4W1249• BOLT - 0.250 DIA X 0.938
POST SBE79-0101		aa-am8
0600604T7907• PACKING - PREFORMEDaa-am8
065065AS3209-152• PACKING - PREFORMED
U1653		aa-am2
-1001004P7323• • BUSHING
POST SBE79-0051		ad-am1
-1501504P7365• GEAR - DRIVEN
POST SBE79-0093		ak-am1
-1511514P7365CL01• GEAR - DRIVEN
POST SBE79-0093		ak-am1
-1521524P7365CL02• GEAR - DRIVEN
POST SBE79-0093		ak-am1
-1531534P7365CL03• GEAR - DRIVEN
POST SBE79-0093		ak-am1
-1541544P7365CL04• GEAR - DRIVEN
POST SBE79-0093		ak-am1
-1551554P7365CL05• GEAR - DRIVEN
POST SBE79-0093		ak-am1
-1601604B7370• GEAR - DRIVE, ASSEMBLY OF
POST SBE79-0093		ak-am1
-1621624B7370CL02• GEAR - DRIVE, ASSEMBLY OF
POST SBE79-0093		ak-am1
-1631634B7370CL03• GEAR - DRIVE, ASSEMBLY OF
POST SBE79-0093		ak-am1
-1641644B7370CL04• GEAR - DRIVE, ASSEMBLY OF
POST SBE79-0093		ak-am1
-1651654B7370CL05• GEAR - DRIVE, ASSEMBLY OF
POST SBE79-0093		ak-am1
1701704P7010• GEAR - DRIVENaa-am2
1711714P7010CL01• GEAR - DRIVEN
POST SBE70-0448		af-am2
1721724P7010CL02• GEAR - DRIVEN
POST SBE70-0448		af-am2
1731734P7010CL03• GEAR - DRIVEN
POST SBE70-0448		af-am2
1741744P7010CL04• GEAR - DRIVEN
POST SBE70-0448		af-am2
1751754P7010CL05• GEAR - DRIVEN
POST SBE70-0448		af-am2
1801804B7009• GEAR - DRIVE, ASSEMBLY OF
PRE SBE70-0448		aa-ae2
180180A4B7009• GEAR - DRIVE, ASSEMBLY OF
POST SBE70-0448		af-am2
-1811814B7009CL01• GEAR - DRIVE, ASSEMBLY OF
POST SBE70-0448		af-am2
-1821824B7009CL02• GEAR - DRIVE, ASSEMBLY OF
POST SBE70-0448		af-am2
-1831834B7009CL03• GEAR - DRIVE, ASSEMBLY OF
POST SBE70-0448		af-am2
-1841844B7009CL04• GEAR - DRIVE, ASSEMBLY OF
POST SBE70-0448		af-am2
1851854P7020• • RING - RETAINING
PRE SBE70-0448		aa-ae1
185185A4B7009CL05• • GEAR - DRIVE, ASSEMBLY OF
POST SBE70-0448		af-am2
-1881884P7020• • RING - RETAINING
POST SBE70-0448		af-am1
-1901904P7009• • GEAR - DRIVEaa-am1
-1971974B7368• SPACER - ASSEMBLY OF
POST SBE79-0093
PRE SBE79-0101		ak-am1
-1981984B7368CL01• SPACER - ASSEMBLY OF
POST SBE79-0093
PRE SBE79-0101		ak-am1
-1991994B7368CL02• SPACER - ASSEMBLY OF
POST SBE79-0093
PRE SBE79-0101		ak-am1
2002004B7096• SPACER - ASSEMBLY OF
PRE SBE72-0118		aa-ab4
200200A4B7315• SPACER - ASSEMBLY OF
POST SBE72-0118
PRE SBE79-0051		ac4
200200B4B7320• SPACER
POST SBE79-0051
PRE SBE79-0077		ad-ai4
200200C4B7342• COVER - ASSEMBLY OF
POST SBE79-0077
PRE SBE79-0093		aj2
200200D4B7342• COVER - ASSEMBLY OF
POST SBE79-0093		ak-am1
2012014B7315CL01• SPACER - 39,6125-39.6170 MM, ASSEMBLY OF
POST SBE72-0118
PRE SBE79-0051		ac4
201201A4B7320CL01• SPACER
POST SBE79-0051
PRE SBE79-0077		ad-ai4
201201B4B7342CL01• SPACER - CLASS, ASSEMBLY OF
POST SBE79-0077
PRE SBE79-0093		aj2
201201C4B7342CL01• SPACER - CLASS, ASSEMBLY OF
POST SBE79-0093		ak-am1
2022024B7315CL02• SPACER - 39,6180-39.6270 MM, ASSEMBLY OF
POST SBE72-0118
PRE SBE79-0051		ac4
202202A4B7320CL02• SPACER
POST SBE79-0051
PRE SBE79-0077		ad-ai4
202202B4B7342CL02• SPACER - CLASS, ASSEMBLY OF
POST SBE79-0077
PRE SBE79-0093		aj2
202202C4B7342CL02• SPACER - CLASS, ASSEMBLY OF
POST SBE79-0093		ak-am1
2032034B7315CL03• SPACER - 39,6280-396375MM, ASSEMBLY OF
POST SBE72-0118
PRE SBE79-0051		ac4
207207MS171462• • PIN - SPRING
96906
POST SBE72-0118
PRE SBE79-0077		ac-am1
207207AMS171462• • PIN - SPRING
96906
POST SBE79-0077		ac-am1
-2112114B7343• SPACER - ASSEMBLY OF
POST SBE79-0077
PRE SBE79-0093		aj2
-211211A4B7343• SPACER - ASSEMBLY OF
POST SBE79-0093		ak-am1
-2132134B7343CL01• SPACER - CLASS, ASSEMBLY OF
POST SBE79-0077
PRE SBE79-0093		aj2
-213213A4B7343CL01• SPACER - CLASS, ASSEMBLY OF
POST SBE79-0093		ak-am1
-2152154B7343CL02• SPACER - CLASS, ASSEMBLY OF
POST SBE79-0077
PRE SBE79-0093		aj2
-215215A4B7343CL02• SPACER - CLASS, ASSEMBLY OF
POST SBE79-0093		ak-am1
-219219MS171462• • PIN - SPRING
96906
POST SBE79-0077		aj-am1
2202204P7007• COUPLING
PRE SBE79-0074		aa-am2
220220A4P7341• COUPLING
POST SBE79-0074		aa-am2
-2252254B7369• SPACER - ASSEMBLY OF
POST SBE79-0093
PRE SBE79-0101		ak-am1
-2262264B7369CL01• SPACER - ASSEMBLY OF
POST SBE79-0093
PRE SBE79-0101		ak-am1
-2272274B7369CL02• SPACER - ASSEMBLY OF
POST SBE79-0093
PRE SBE79-0101		ak-am1
2302304P7094• GEAR - DRIVEN
PRE SBE79-0093		aa-aj2
230230A4P7094• GEAR - DRIVEN
POST SBE79-0093		ak-am1
2312314P7094CL01• GEAR - DRIVEN
POST SBE70-0448
PRE SBE79-0093		af-aj2
231231A4P7094CL01• GEAR - DRIVEN
POST SBE79-0093		ak-am1
2322324P7094CL02• GEAR - DRIVEN
POST SBE70-0448
PRE SBE79-0093		af-aj2
232232A4P7094CL02• GEAR - DRIVEN
POST SBE79-0093		ak-am1
2332334P7094CL03• GEAR - DRIVEN
POST SBE70-0448
PRE SBE79-0093		af-aj2
233233A4P7094CL03• GEAR - DRIVEN
POST SBE79-0093		ak-am1
2342344P7094CL04• GEAR - DRIVEN
POST SBE70-0448
PRE SBE79-0093		af-aj2
234234A4P7094CL04• GEAR - DRIVEN
POST SBE79-0093		ak-am1
2352354P7094CL05• GEAR - DRIVEN
POST SBE70-0448
PRE SBE79-0093		af-aj2
235235A4P7094CL05• GEAR - DRIVEN
POST SBE79-0093		ak-am1
2402404B7093• GEAR - DRIVE, ASSEMBLY OF
PRE SBE70-0448		aa-ae2
240240A4B7093• GEAR - DRIVE, ASSEMBLY OF
POST SBE70-0448
PRE SBE79-0093		af-aj2
240240B4B7093• GEAR - DRIVE, ASSEMBLY OF
POST SBE79-0093		ak-am1
-2412414B7093CL01• GEAR - DRIVE, ASSEMBLY OF
POST SBE70-0448
PRE SBE79-0093		af-aj2
-241241A4B7093CL01• GEAR - DRIVE, ASSEMBLY OF
POST SBE79-0093		ak-am1
-2422424B7093CL02• GEAR - DRIVE, ASSEMBLY OF
POST SBE70-0448
PRE SBE79-0093		af-aj2
-242242A4B7093CL02• GEAR - DRIVE, ASSEMBLY OF
POST SBE79-0093		ak-am1
-2432434B7093CL03• GEAR - DRIVE, ASSEMBLY OF
POST SBE70-0448
PRE SBE79-0093		af-aj2
-243243A4B7093CL03• GEAR - DRIVE, ASSEMBLY OF
POST SBE79-0093		ak-am1
-2442444B7093CL04• GEAR - DRIVE, ASSEMBLY OF
POST SBE70-0448
PRE SBE79-0093		af-aj2
-244244A4B7093CL04• GEAR - DRIVE, ASSEMBLY OF
POST SBE79-0093		ak-am1
2452454P7020• • RING - RETAINING
PRE SBE70-0448		aa-ae1
245245A4B7093CL05• • GEAR - DRIVE, ASSEMBLY OF
POST SBE70-0448
PRE SBE79-0093		af-aj2
245245B4B7093CL05• • GEAR - DRIVE, ASSEMBLY OF
POST SBE79-0093		ak-am1
-2482484P7020• • RING - RETAINING
POST SBE70-0448		af-am1
-2502504P7093• • GEAR - DRIVEaa-am1
2602604P7007• COUPLING
PRE SBE79-0074		aa-am2
260260A4P7341• COUPLING
POST SBE79-0074		aa-am2
-2632634B7344• SPACER - ASSEMBLY OF
POST SBE79-0077		aj-am2
-2642644B7344CL01• SPACER - CLASS, ASSEMBLY OF
POST SBE79-0077		aj-am2
-2652654B7344CL02• SPACER - CLASS, ASSEMBLY OF
POST SBE79-0077		aj-am2
-268268MS171462• • PIN - SPRING
96906
POST SBE79-0077		aj-am1
2702704B7115• SPACER - ASSEMBLY OF
PRE SBE72-0118		aa-ac4
270270A4B7301• SPACER - ASSEMBLY OF
POST SBE72-0118
PRE SBE79-0051		aa-ac4
270270B4B7321• SPACER
POST SBE79-0051
PRE SBE79-0077		ad-ai4
270270C4B7344• SPACER - ASSEMBLY OF
POST SBE79-0077
PRE SBE79-0093		aj2
270270D4B7344• SPACER - ASSEMBLY OF
POST SBE79-0093		ak-am1
2712714B7301CL01• SPACER - 39,6125 - 39.6170 MM, ASSEMBLY OF
POST SBE72-0118
PRE SBE79-0051		ac4
271271A4B7321CL01• SPACER
POST SBE79-0051
PRE SBE79-0077		ad-ai4
271271B4B7344CL01• SPACER - CLASS, ASSEMBLY OF
POST SBE79-0077
PRE SBE79-0093		aj2
271271C4B7344CL01• SPACER - CLASS, ASSEMBLY OF
POST SBE79-0093		ak-am1
2722724B7301CL02• SPACER - 39,6180 - 39.6270 MM, ASSEMBLY OF
POST SBE72-0118
PRE SBE79-0051		ac4
272272A4B7321CL02• SPACER
POST SBE79-0051
PRE SBE79-0077		ad-ai4
272272B4B7344CL02• SPACER - CLASS, ASSEMBLY OF
POST SBE79-0077
PRE SBE79-0093		aj2
272272C4B7344CL02• SPACER - CLASS, ASSEMBLY OF
POST SBE79-0093		ak-am1
2732734B7301CL03• SPACER - 39,6280-39,6375, ASSEMBLY OF
POST SBE72-0118
PRE SBE79-0051		ac4
277277MS171462• • PIN - SPRING
96906
POST SBE72-0118
PRE SBE79-0077		ac-am1
277277AMS171462• • PIN - SPRING
96906
POST SBE79-0077		ac-am1
-2852854B7366• SPACER - ASSEMBLY OF
POST SBE79-0093		ak-am1
-2862864B7366CL01• SPACER - ASSEMBLY OF
POST SBE79-0093		ak-am1
-2872874B7366CL02• SPACER - ASSEMBLY OF
POST SBE79-0093		ak-am1
2902904P7021• SPRING - WAVEaa-am5
3003004P7017• GEAR - DRIVE
PRE SBE70-0365		aa-am1
300300A4P7316• GEAR - DRIVE
POST SBE70-0365		aa-am1
3053054W0002• NUT - 0.250 DIAaa-am1
310310MS9321-10• WASHER - FLAT, 0.500 X 0.276 X 0.062
96906		aa-am1
3303304B7002• COVER - ASSEMBLY OF
PRE SBE79-0051		aa-ac1
330330A4B7318• SPACER
POST SBE79-0051
PRE SBE79-0077		ad-ai1
330330B4B7347• COVER - ASSEMBLY OF
POST SBE79-0077
PRE SBE70-0992		aj-al1
330330C4T0562• COVER - ASSEMBLY OF
A3460
ALT 4B7347
POST SBE70-0992		aj-al1
-330330D4B7347• COVER - ASSEMBLY OF
ALT 4B7389
POST SBE70-0992		aj-alREF
-330330E4B7389• COVER - ASSEMBLY OF
ALT 4T0562
POST SBE70-0992		aj-alREF
3353354P7026• BOLT
PRE SBE79-0101		aa-am6
335335A4W1249• BOLT - 0.250 DIA X 0.938
POST SBE79-0101		am6
3403404T7907• PACKING - PREFORMEDaa-am6
-3703704P7324• • BUSHING
POST SBE79-0051		ad-am1
-3753754P7323• • BUSHING
POST SBE79-0051		ad-am2
4204204B7005• GEAR - DRIVE, ASSEMBLY OF
PRE SBE70-0448		aa-ae1
420420A4B7005• GEAR - DRIVE, ASSEMBLY OF
POST SBE70-0448		af-am1
-4214214B7005CL01• GEAR - DRIVE
POST SBE70-0448		af-am1
-4224224B7005CL02• GEAR - DRIVE
POST SBE70-0448		af-am1
-4234234B7005CL03• GEAR - DRIVE
POST SBE70-0448		af-am1
-4244244B7005CL04• GEAR - DRIVE
POST SBE70-0448		af-am1
-4254254B7005CL05• GEAR - DRIVE
POST SBE70-0448		af-am1
4284284P7027• • BOLTaa-am1
4804804B7006• GEAR - DRIVE, ASSEMBLY OF
PRE SBE70-0448		aa-ae2
480480A4B7006• GEAR - DRIVE, ASSEMBLY OF
POST SBE70-0448		af-am2
-4814814B7006CL01• GEAR - DRIVE
POST SBE70-0448		af-am2
-4824824B7006CL02• GEAR - DRIVE
POST SBE70-0448		af-am2
-4834834B7006CL03• GEAR - DRIVE
POST SBE70-0448		af-am2
-4844844B7006CL04• GEAR - DRIVE
POST SBE70-0448		af-am2
4854854P7020• • RING - RETAINING
PRE SBE70-0448		aa-ae1
485485A4B7006CL05• • GEAR - DRIVE
POST SBE70-0448		af-am2
-4884884P7020• • RING - RETAINING
POST SBE70-0448		af-am1
4904904P7006• • GEAR - DRIVEaa-am1
-5005004B7385• SPACER - ASSEMBLY OF
POST SBE79-0101		am1
-5015014B7385CL01• SPACER - CLASS, ASSEMBLY OF
POST SBE79-0101		am1
-5025024B7385CL02• SPACER - CLASS, ASSEMBLY OF
POST SBE79-0101		am1
-5075074B7384• SPACER - ASSEMBLY OF
POST SBE79-0101		am1
-5085084B7384CL01• SPACER - CLASS, ASSEMBLY OF
POST SBE79-0101		am1
-5095094B7384CL02• SPACER - CLASS, ASSEMBLY OF
POST SBE79-0101		am1
5305304B7115• SPACER - ASSEMBLY OF
PRE SBE72-0118		aa-ac2
530530A4B7301• SPACER - ASSEMBLY OF
POST SBE72-0118
PRE SBE79-0051		aa-ac2
530530B4B7321• SPACER
POST SBE79-0051
PRE SBE79-0077		ad-ai2
530530C4B7345• SPACER - ASSEMBLY OF
POST SBE79-0077
PRE SBE79-0093		aj2
530530D4B7345• SPACER - ASSEMBLY OF
POST SBE79-0093		ak-am1
5315314B7301CL01• SPACER - 39,6125 - 39.6170 MM, ASSEMBLY OF
POST SBE72-0118
PRE SBE79-0051		ac2
531531A4B7321CL01• SPACER
POST SBE79-0051
PRE SBE79-0077		ad-ai2
531531B4B7345CL01• SPACER - CLASS, ASSEMBLY OF
POST SBE79-0077
PRE SBE79-0093		aj2
531531C4B7345CL01• SPACER - CLASS, ASSEMBLY OF
POST SBE79-0093		ak-am1
5325324B7301CL02• SPACER - 39,6180 - 39.6270 MM, ASSEMBLY OF
POST SBE72-0118
PRE SBE79-0051		ac2
532532A4B7321CL02• SPACER
POST SBE79-0051
PRE SBE79-0077		ad-ai2
532532B4B7345CL02• SPACER - CLASS, ASSEMBLY OF
POST SBE79-0077
PRE SBE79-0093		aj2
532532C4B7345CL02• SPACER - CLASS, ASSEMBLY OF
POST SBE79-0093		ak-am1
5335334B7301CL03• SPACER - 39,6280-39,6375, ASSEMBLY OF
POST SBE72-0118
PRE SBE79-0051		ac2
537537MS171462• • PIN - SPRING
96906
POST SBE72-0118
PRE SBE79-0077		ac-am1
537537AMS171462• • PIN - SPRING
96906
POST SBE79-0077		ac-am1
-5505504B7367• SPACER - ASSEMBLY OF
POST SBE79-0093		ak-am1
-5515514B7367CL01• SPACER - ASSEMBLY OF
POST SBE79-0093		ak-am1
-5525524B7367CL02• SPACER - ASSEMBLY OF
POST SBE79-0093		ak-am1
5905904B7114• SPACER - ASSEMBLY OF
PRE SBE72-0118		aa-ac1
590590A4B7302• SPACER - ASSEMBLY OF
POST SBE72-0118
PRE SBE79-0051		aa-ac1
590590B4B7322• SPACER
POST SBE79-0051
PRE SBE79-0077		ad-ai1
590590C4B7346• SPACER - ASSEMBLY OF
POST SBE79-0077		ad-am1
5915914B7302CL01• SPACER - 35,9885-35.9890 MM, ASSEMBLY OF
POST SBE72-0118
PRE SBE79-0051		ac1
591591A4B7322CL01• SPACER
POST SBE79-0051
PRE SBE79-0077		ad-ai1
591591B4B7346CL01• SPACER - CLASS, ASSEMBLY OF
POST SBE79-0077		ad-am1
5925924B7302CL02• SPACER - 35,990-36.000 MM, ASSEMBLY OF
POST SBE72-0118
PRE SBE79-0051		ac1
592592A4B7322CL02• SPACER
POST SBE79-0051
PRE SBE79-0077		ad-ai1
592592B4B7346CL02• SPACER - CLASS, ASSEMBLY OF
POST SBE79-0077		ad-am1
5935934B7302CL03• SPACER - 36,000-36.0075 MM, ASSEMBLY OF
POST SBE72-0118
PRE SBE79-0051		ac1
6906904B7107• CASING - ASSEMBLY OF
PRE SBE79-0077		aa-ai1
690690A4B7349• CASING - ASSEMBLY OF
POST SBE79-0077		aj-am1
-7067064L7012• • • BUSHING - ,(VRS5371)
A3460
POST SBE70-0321		*****1
-7077074L7013• • • BUSHING - ,(VRS5211)
A3460
POST SBE70-0321		*****1
-7087084L7014• • • BUSHING - ,(VRS5380)
A3460
POST SBE70-0321		*****1
-7097094P7299• • • INSERT - SCREW THREAD
POST SBE70-0321		*****1
-710710AS3208-11• • • PACKING - PREFORMED
U1653
POST SBE70-0321		*****1
7407404P7048• PLATE - IDENTIFICATION
PRE SBE79-0007		aa1
740740A4P7239• PLATE - IDENTIFICATION
POST SBE79-0007
PRE SBE79-0093		ab-aj1
740740B4P7372• PLATE - IDENTIFICATION
POST SBE79-0093		ak-am1
745745MS21318-1• SCREW
96906
POST SBE79-0007		ab-am2
-7507504W2627• WIRE - THRUST
Optional Part
4W2627		aa-am1
850850AS3209-120• PACKING - PREFORMED
U1653		aa-am2
8528524B0090• STRAINER - SCAVENGE, PUMP,ASSEMBLY OFaa-am1
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

Figure: OIL-SCAVENGE OIL PUMP

SCAVENGE OIL PUMP

SCAVENGE OIL PUMP

Change Type:

Removed Incorrect SB Reference And Corrected Effectivity.

Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Manufacturer Code:96906
Enterprise Name:MILITARY STANDARDS MANUAL 4120 3-M
BU Name:MILITARY STANDARDS MANUAL 4120 3-M
Street:NONE
City:NONE
Country:USA
Phone Number:NONE
Manufacturer Code:A3460
Enterprise Name:DELETED, SEE CAGE CODE U0406
Manufacturer Code:U1653
Enterprise Name:Society Of British Aerospace Companies, LTD.
Part Number:4A7013
Part Name:PUMP - OIL, PRESSURE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4A7112
Part Name:PUMP - OIL, PRESSURE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4A7117
Part Name:PUMP - OIL, PRESSURE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4A7120
Part Name:PUMP - OIL, PRESSURE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4A7123A
Part Name:PUMP - OIL, PRESSURE, ASSEMBLY OF
Manufacturer Code:A3460
Part Number:4A7123
Part Name:PUMP - OIL, PRESSURE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B0090
Part Name:STRAINER - SCAVENGE, PUMP,ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7002
Part Name:COVER - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7003
Part Name:COVER - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7005CL01
Part Name:GEAR - DRIVE
Manufacturer Code:0AM53
Part Number:4B7005CL02
Part Name:GEAR - DRIVE
Manufacturer Code:0AM53
Part Number:4B7005CL03
Part Name:GEAR - DRIVE
Manufacturer Code:0AM53
Part Number:4B7005CL04
Part Name:GEAR - DRIVE
Manufacturer Code:0AM53
Part Number:4B7005CL05
Part Name:GEAR - DRIVE
Manufacturer Code:0AM53
Part Number:4B7005
Part Name:GEAR - DRIVE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7006CL01
Part Name:GEAR - DRIVE
Manufacturer Code:0AM53
Part Number:4B7006CL02
Part Name:GEAR - DRIVE
Manufacturer Code:0AM53
Part Number:4B7006CL03
Part Name:GEAR - DRIVE
Manufacturer Code:0AM53
Part Number:4B7006CL04
Part Name:GEAR - DRIVE
Manufacturer Code:0AM53
Part Number:4B7006CL05
Part Name:GEAR - DRIVE
Manufacturer Code:0AM53
Part Number:4B7006
Part Name:GEAR - DRIVE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7009CL01
Part Name:GEAR - DRIVE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7009CL02
Part Name:GEAR - DRIVE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7009CL03
Part Name:GEAR - DRIVE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7009CL04
Part Name:GEAR - DRIVE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7009CL05
Part Name:GEAR - DRIVE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7009
Part Name:GEAR - DRIVE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7093CL01
Part Name:GEAR - DRIVE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7093CL02
Part Name:GEAR - DRIVE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7093CL03
Part Name:GEAR - DRIVE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7093CL04
Part Name:GEAR - DRIVE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7093CL05
Part Name:GEAR - DRIVE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7093
Part Name:GEAR - DRIVE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7096
Part Name:SPACER - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7107
Part Name:CASING - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7114
Part Name:SPACER - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7115
Part Name:SPACER - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7301CL01
Part Name:SPACER - 39,6125 - 39.6170 MM, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7301CL02
Part Name:SPACER - 39,6180 - 39.6270 MM, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7301CL03
Part Name:SPACER - 39,6280-39,6375, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7301
Part Name:SPACER - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7302CL01
Part Name:SPACER - 35,9885-35.9890 MM, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7302CL02
Part Name:SPACER - 35,990-36.000 MM, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7302CL03
Part Name:SPACER - 36,000-36.0075 MM, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7302
Part Name:SPACER - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7315CL01
Part Name:SPACER - 39,6125-39.6170 MM, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7315CL02
Part Name:SPACER - 39,6180-39.6270 MM, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7315CL03
Part Name:SPACER - 39,6280-396375MM, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7315
Part Name:SPACER - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7318
Part Name:SPACER
Manufacturer Code:0AM53
Part Number:4B7319
Part Name:COVER
Manufacturer Code:0AM53
Part Number:4B7320CL01
Part Name:SPACER
Manufacturer Code:0AM53
Part Number:4B7320CL02
Part Name:SPACER
Manufacturer Code:0AM53
Part Number:4B7320
Part Name:SPACER
Manufacturer Code:0AM53
Part Number:4B7321CL01
Part Name:SPACER
Manufacturer Code:0AM53
Part Number:4B7321CL02
Part Name:SPACER
Manufacturer Code:0AM53
Part Number:4B7321
Part Name:SPACER
Manufacturer Code:0AM53
Part Number:4B7322CL01
Part Name:SPACER
Manufacturer Code:0AM53
Part Number:4B7322CL02
Part Name:SPACER
Manufacturer Code:0AM53
Part Number:4B7322
Part Name:SPACER
Manufacturer Code:0AM53
Part Number:4B7342CL01
Part Name:SPACER - CLASS, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7342CL02
Part Name:SPACER - CLASS, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7342
Part Name:COVER - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7343CL01
Part Name:SPACER - CLASS, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7343CL02
Part Name:SPACER - CLASS, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7343
Part Name:SPACER - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7344CL01
Part Name:SPACER - CLASS, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7344CL02
Part Name:SPACER - CLASS, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7344
Part Name:SPACER - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7345CL01
Part Name:SPACER - CLASS, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7345CL02
Part Name:SPACER - CLASS, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7345
Part Name:SPACER - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7346CL01
Part Name:SPACER - CLASS, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7346CL02
Part Name:SPACER - CLASS, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7346
Part Name:SPACER - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7347
Part Name:COVER - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7348
Part Name:COVER - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7349
Part Name:CASING - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7366CL01
Part Name:SPACER - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7366CL02
Part Name:SPACER - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7366
Part Name:SPACER - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7367CL01
Part Name:SPACER - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7367CL02
Part Name:SPACER - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7367
Part Name:SPACER - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7368CL01
Part Name:SPACER - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7368CL02
Part Name:SPACER - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7368
Part Name:SPACER - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7369CL01
Part Name:SPACER - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7369CL02
Part Name:SPACER - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7369
Part Name:SPACER - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7370CL02
Part Name:GEAR - DRIVE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7370CL03
Part Name:GEAR - DRIVE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7370CL04
Part Name:GEAR - DRIVE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7370CL05
Part Name:GEAR - DRIVE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7370
Part Name:GEAR - DRIVE, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7384CL01
Part Name:SPACER - CLASS, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7384CL02
Part Name:SPACER - CLASS, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7384
Part Name:SPACER - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7385CL01
Part Name:SPACER - CLASS, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7385CL02
Part Name:SPACER - CLASS, ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7385
Part Name:SPACER - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4B7389
Part Name:COVER - ASSEMBLY OF
Manufacturer Code:0AM53
Part Number:4L7012
Part Name:BUSHING - ,(VRS5371)
Manufacturer Code:A3460
Part Number:4L7013
Part Name:BUSHING - ,(VRS5211)
Manufacturer Code:A3460
Part Number:4L7014
Part Name:BUSHING - ,(VRS5380)
Manufacturer Code:A3460
Part Number:4P7006
Part Name:GEAR - DRIVE
Manufacturer Code:0AM53
Part Number:4P7007
Part Name:COUPLING
Manufacturer Code:0AM53
Part Number:4P7009
Part Name:GEAR - DRIVE
Manufacturer Code:0AM53
Part Number:4P7010CL01
Part Name:GEAR - DRIVEN
Manufacturer Code:0AM53
Part Number:4P7010CL02
Part Name:GEAR - DRIVEN
Manufacturer Code:0AM53
Part Number:4P7010CL03
Part Name:GEAR - DRIVEN
Manufacturer Code:0AM53
Part Number:4P7010CL04
Part Name:GEAR - DRIVEN
Manufacturer Code:0AM53
Part Number:4P7010CL05
Part Name:GEAR - DRIVEN
Manufacturer Code:0AM53
Part Number:4P7010
Part Name:GEAR - DRIVEN
Manufacturer Code:0AM53
Part Number:4P7017
Part Name:GEAR - DRIVE
Manufacturer Code:0AM53
Part Number:4P7020
Part Name:RING - RETAINING
Manufacturer Code:0AM53
Part Number:4P7021
Part Name:SPRING - WAVE
Manufacturer Code:0AM53
Part Number:4P7026
Part Name:BOLT
Manufacturer Code:0AM53
Part Number:4P7027
Part Name:BOLT
Manufacturer Code:0AM53
Part Number:4P7048
Part Name:PLATE - IDENTIFICATION
Manufacturer Code:0AM53
Part Number:4P7093
Part Name:GEAR - DRIVE
Manufacturer Code:0AM53
Part Number:4P7094CL01
Part Name:GEAR - DRIVEN
Manufacturer Code:0AM53
Part Number:4P7094CL02
Part Name:GEAR - DRIVEN
Manufacturer Code:0AM53
Part Number:4P7094CL03
Part Name:GEAR - DRIVEN
Manufacturer Code:0AM53
Part Number:4P7094CL04
Part Name:GEAR - DRIVEN
Manufacturer Code:0AM53
Part Number:4P7094CL05
Part Name:GEAR - DRIVEN
Manufacturer Code:0AM53
Part Number:4P7094
Part Name:GEAR - DRIVEN
Manufacturer Code:0AM53
Part Number:4P7239
Part Name:PLATE - IDENTIFICATION
Manufacturer Code:0AM53
Part Number:4P7299
Part Name:INSERT - SCREW THREAD
Manufacturer Code:0AM53
Part Number:4P7316
Part Name:GEAR - DRIVE
Manufacturer Code:0AM53
Part Number:4P7323
Part Name:BUSHING
Manufacturer Code:0AM53
Part Number:4P7324
Part Name:BUSHING
Manufacturer Code:0AM53
Part Number:4P7341
Part Name:COUPLING
Manufacturer Code:0AM53
Part Number:4P7365CL01
Part Name:GEAR - DRIVEN
Manufacturer Code:0AM53
Part Number:4P7365CL02
Part Name:GEAR - DRIVEN
Manufacturer Code:0AM53
Part Number:4P7365CL03
Part Name:GEAR - DRIVEN
Manufacturer Code:0AM53
Part Number:4P7365CL04
Part Name:GEAR - DRIVEN
Manufacturer Code:0AM53
Part Number:4P7365CL05
Part Name:GEAR - DRIVEN
Manufacturer Code:0AM53
Part Number:4P7365
Part Name:GEAR - DRIVEN
Manufacturer Code:0AM53
Part Number:4P7372
Part Name:PLATE - IDENTIFICATION
Manufacturer Code:0AM53
Part Number:4T0562
Part Name:COVER - ASSEMBLY OF
Manufacturer Code:A3460
Part Number:4T7907
Part Name:PACKING - PREFORMED
Manufacturer Code:0AM53
Part Number:4W0002
Part Name:NUT, SELF LOCKING DBL HEX - .250 DIA
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS20625NUT, SELF LOCKING, BIHEX, .250 DIAU1653
Part Number:4W0003
Part Name:NUT,SELF LOCKING DBL HEX
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS20626NUT - SELF LOCKING, BIHEXAGON, 0.3125U1653
Part Number:4W1249
Part Name:BOLT - 0.250 DIA X 0.938
Manufacturer Code:0AM53
Optional Parts
Part NumberPart NameManufacturer
AS49915BOLT - 0.250 DIA X 0.938U1653
Part Number:4W2627
Part Name:WIRE - THRUST
Manufacturer Code:0AM53
Part Number:AS20625
Part Name:NUT, SELF LOCKING, BIHEX, .250 DIA
Manufacturer Code:U1653
Unit Of Issue:EA
Part Number:AS20626
Part Name:NUT - SELF LOCKING, BIHEXAGON, 0.3125
Manufacturer Code:U1653
Unit Of Issue:EA
Part Number:AS3208-11
Part Name:PACKING - PREFORMED
Manufacturer Code:U1653
Part Number:AS3209-120
Part Name:PACKING - PREFORMED
Manufacturer Code:U1653
Part Number:AS3209-152
Part Name:PACKING - PREFORMED
Manufacturer Code:U1653
Part Number:AS3209-157
Part Name:PACKING
Manufacturer Code:U1653
Part Number:AS3209-158
Part Name:PACKING - PREFORMED
Manufacturer Code:U1653
Part Number:AS49915
Part Name:BOLT - 0.250 DIA X 0.938
Manufacturer Code:U1653
Part Number:MS171462
Part Name:PIN - SPRING
Manufacturer Code:96906
Part Number:MS21318-1
Part Name:SCREW
Manufacturer Code:96906
Part Number:MS9321-10
Part Name:WASHER - FLAT, 0.500 X 0.276 X 0.062
Manufacturer Code:96906
Part Number:MS9321-11
Part Name:WASHER
Manufacturer Code:96906
