DMC:V2500-A1-79-22-44-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B79224401 | OIL-SCAVENGE OIL FILTER ELEMENT, PRE SBE70-0399 | aa | ||
| SBE0399-01 | OIL-SCAVENGE OIL FILTER ELEMENT | ab | ||
| 100 | 5R5030 | • ELEMENT - OIL FILTER SCAVENGE K6539 PRE SBE70-0399 | aa-ab | 1 |
| 100A | QA05954 | • ELEMENT K6539 ALT CA00080A POST SBE70-0399 | aa-ab | 1 |
| -100B | CA00080A | • ELEMENT - OIL FILTER-SCAVENGE F0559 ALT QA05954 POST SBE70-0399 | aa-ab | REF |
| -200 | AS3209-153 | • PACKING - PREFORMED U1653 (SEE 79-22-43-01-155 ) | aa-ab | REF |
| -210 | AS3208-08 | • PACKING - PREFORMED U1653 (SEE 79-22-43-01-100) | aa-ab | REF |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

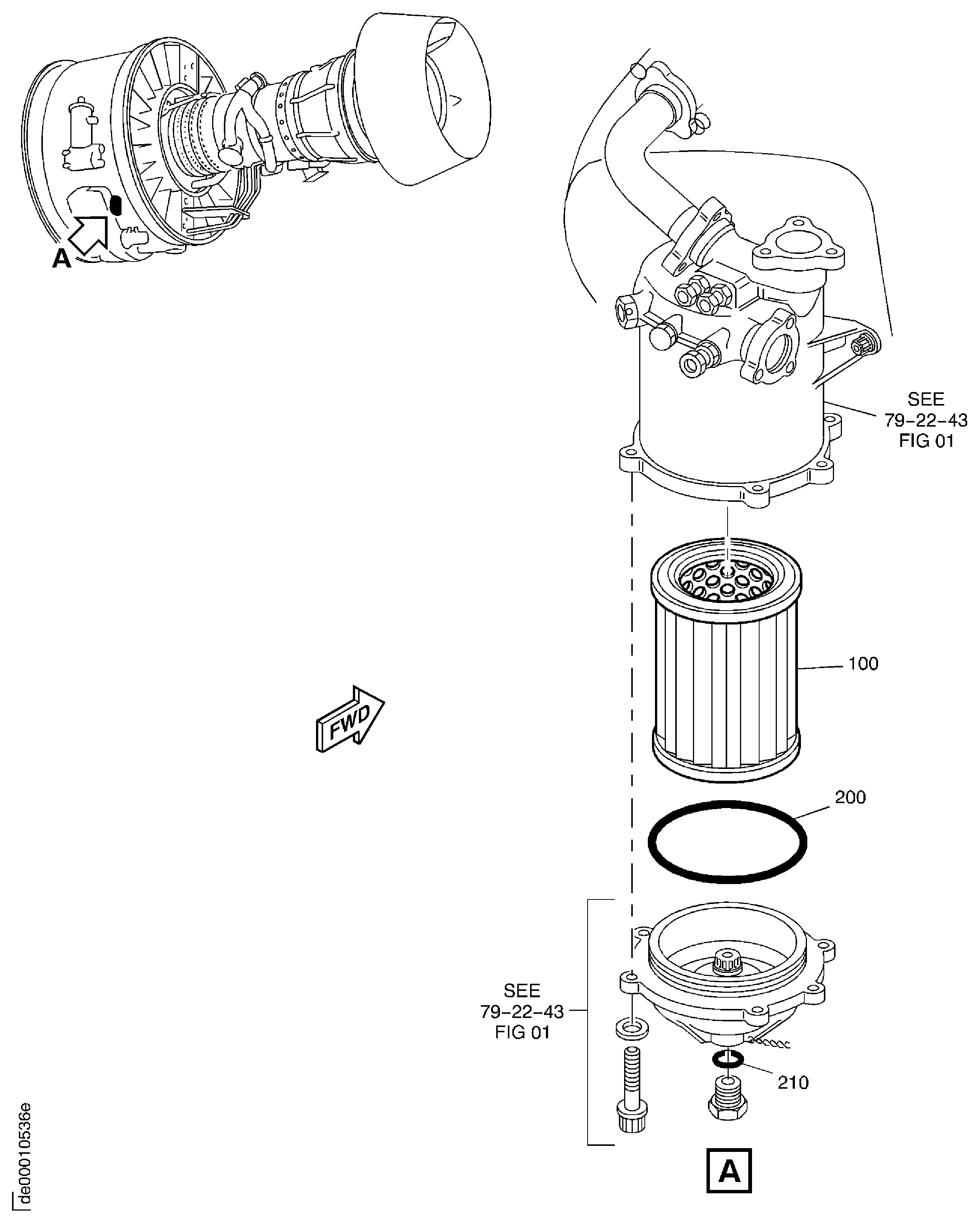

Figure: OIL-SCAVENGE OIL FILTER ELEMENT
SCAVENGE OIL FILTER ELEMENT
