OIL-MAGNETIC CHIP DETECTOR

DMC:V2500-A1-79-22-45-01A-941A-D|Issue No:001.00|Issue Date:2014-05-01

Export Control

EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.

Copyright

© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).

Applicability

All

Fig.
Item		Part No.DescriptionEffect/Model Applic.UPA
01
000B79224501OIL-MAGNETIC CHIP DETECTOR, PRE SBE79-0028aa
000SBE0028-01OIL-MAGNETIC CHIP DETECTOR, PRE SBE70-0628ab
000SBE0628-01OIL-MAGNETIC CHIP DETECTOR, PRE SBE79-0042ac
000SBE0042-01OIL-MAGNETIC CHIP DETECTORad
-001001740-5011-503CHIP - DETECTOR INSTL
51563		aa-adREF
010010VB3505• PROBE - ASSY,MAGNETIC
K0624
PRE SBE79-0028		aa7
020020VB3522-2• BODY - ASSY,UNIT
K0624
PRE SBE79-0028		aa7
03003044066• RING - SEALING
97484
PRE SBE79-0028		aa14
040040AS43003-909• RING - SEALING TOROIDAL
U1653		aa-ad7
049049AS43003-908• RING - SEALING TOROIDAL
U1653
ALT M83248-1-908
POST SBE79-0042		ad1
049049AM83248-1-908• SEAL - RING
81349
ALT AS43003-908
POST SBE79-0042		ad1
050050VB3521-2• MAGNETIC - CHIP DETECTOR ASSY
K0624
POST SBE79-0028
PRE SBE70-0628		ab2
050050A6U1000• CHIP - MAGNETIC-DETECTOR ASSY
POST SBE79-0042		ad1
051051VB3505• PROBE - ASSY,MAGNETIC
K0624
POST SBE70-0628
PRE SBE79-0042		ac1
051051A1A6794-1• PROBE - MAGNETIC
97484
POST SBE79-0042		ad1
052052VB3522-2• BODY - ASSY,UNIT
K0624
POST SBE70-0628
PRE SBE79-0042		ac1
052052A1A6794-2• BODY - UNIT
97484
POST SBE79-0042		ad1
05305344066• RING - SEALING
97484
POST SBE70-0628
PRE SBE79-0042		ac2
053053A44066• RING - SEALING
97484
POST SBE79-0042		ad1
054054AS43003-908• RING - SEALING TOROIDAL
U1653
POST SBE70-0628
PRE SBE79-0042		ac1
057057M83248-1-012• • SEAL - RING
81349
POST SBE79-0042		ad1
058058AS43003-908• RING - SEALING TOROIDAL
U1653
ALT M83248-1-908
POST SBE79-0042		ad1
058058AM83248-1-908• SEAL - RING
81349
ALT AS43003-908
POST SBE79-0042		ad1
0590591A6794• CHIP - MAGNETIC-DETECTOR ASSY, (IAE REF NO. 6U1000)
97484
POST SBE79-0042		ad1
059059A6U1000• CHIP - MAGNETIC-DETECTOR ASSY
POST SBE79-0042		ad1
060060VB3505• • PROBE - ASSY,MAGNETIC
K0624
POST SBE79-0028
PRE SBE70-0628		ab2
060060AVB3505• • PROBE - ASSY,MAGNETIC
K0624
POST SBE70-0628
PRE SBE79-0042		ac1
060060B1A6794-1• • PROBE - MAGNETIC
97484
POST SBE79-0042		ad1
070070VB3522-2• • BODY - ASSY,UNIT
K0624
POST SBE79-0028
PRE SBE70-0628		ab2
070070AVB3522-2• • BODY - ASSY,UNIT
K0624
POST SBE70-0628
PRE SBE79-0042		ac1
070070B1A6794-2• • BODY - UNIT
97484
POST SBE79-0042		ad1
08008044066• • RING - SEALING
97484
POST SBE79-0028
PRE SBE70-0628		ab4
080080A44066• • RING - SEALING
97484
POST SBE70-0628
PRE SBE79-0042		ac2
080080B44066• • RING - SEALING
97484
POST SBE79-0042		ad1
085085M83248-1-012• • SEAL - RING
81349
POST SBE79-0042		ad1
090090AS43003-908• • RING - SEALING TOROIDAL
U1653
POST SBE79-0028
PRE SBE70-0628		ab1
090090AAS43003-908• • RING - SEALING TOROIDAL
U1653
POST SBE70-0628
PRE SBE79-0042		ac1
100100VB3521-2• MAGNETIC - CHIP DETECTOR ASSY
K0624
POST SBE79-0028
PRE SBE70-0628		ab5
100100AMS9954-09• PLUG - BLANKING (QUANTITY QUOTED IS A MAXIMUM)
96906
POST SBE79-0028		ab-ad5
102102AS43003-908• RING - SEALING TOROIDAL
U1653
ALT M83248-1-908
POST SBE79-0042		ad1
102102AM83248-1-908• SEAL - RING
81349
ALT AS43003-908
POST SBE79-0042		ad1
1031031A6794• CHIP - MAGNETIC-DETECTOR ASSY, (IAE REF NO. 6U1000)
97484
POST SBE79-0042		ad1
103103A6U1000• CHIP - MAGNETIC-DETECTOR ASSY
POST SBE79-0042		ad1
106106VB3505• PROBE - ASSY,MAGNETIC
K0624
POST SBE70-0628
PRE SBE79-0042		ac1
106106A1A6794-1• PROBE - MAGNETIC
97484
POST SBE79-0042		ad1
107107VB3522-2• BODY - ASSY,UNIT
K0624
POST SBE70-0628
PRE SBE79-0042		ac1
107107A1A6794-2• BODY - UNIT
97484
POST SBE79-0042		ad1
10810844066• RING - SEALING
97484
POST SBE70-0628
PRE SBE79-0042		ac2
108108A44066• RING - SEALING
97484
POST SBE79-0042		ad1
109109AS43003-908• RING - SEALING TOROIDAL
U1653
POST SBE70-0628
PRE SBE79-0042		ac1
110110VB3505• • PROBE - ASSY,MAGNETIC
K0624
POST SBE79-0028
PRE SBE70-0628		ab5
110110AVB3505• • PROBE - ASSY,MAGNETIC
K0624
POST SBE70-0628
PRE SBE79-0042		ac4
112112M83248-1-012• • SEAL - RING
81349
POST SBE79-0042		ad1
114114AS43003-908• RING - SEALING TOROIDAL
U1653
POST SBE79-0042		ad4
114114AM83248-1-908• SEAL - RING
81349
POST SBE79-0042		ad4
1151151A6794• CHIP - MAGNETIC-DETECTOR ASSY, (IAE REF NO. 6U1000)
97484
POST SBE79-0042		ad4
115115A6U1000• CHIP - MAGNETIC-DETECTOR ASSY
POST SBE79-0042		ad4
1181181A6794-1• • PROBE - MAGNETIC
97484
POST SBE79-0042		ad1
120120VB3522-2• • BODY - ASSY,UNIT
K0624
POST SBE79-0028
PRE SBE70-0628		ab5
120120AVB3522-2• • BODY - ASSY,UNIT
K0624
POST SBE70-0628
PRE SBE79-0042		ac4
120120B1A6794-2• • BODY - UNIT
97484
POST SBE79-0042		ad1
13013044066• • RING - SEALING
97484
POST SBE79-0028
PRE SBE70-0628		ab10
130130A44066• • RING - SEALING
97484
POST SBE70-0628
PRE SBE79-0042		ac8
130130B44066• • RING - SEALING
97484
POST SBE79-0042		ad4
135135M83248-1-012• • SEAL - RING
81349
POST SBE79-0042		ad4
140140AS43003-908• • RING - SEALING TOROIDAL
U1653
POST SBE79-0028
PRE SBE70-0628		ab5
140140AAS43003-909• • RING - SEALING TOROIDAL (MAX QTY-1 USED PER MS9954-09)
U1653
POST SBE79-0028		ab-ad5
140140BAS43003-908• • RING - SEALING TOROIDAL
U1653
POST SBE70-0628
PRE SBE79-0042		ac4
- ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE

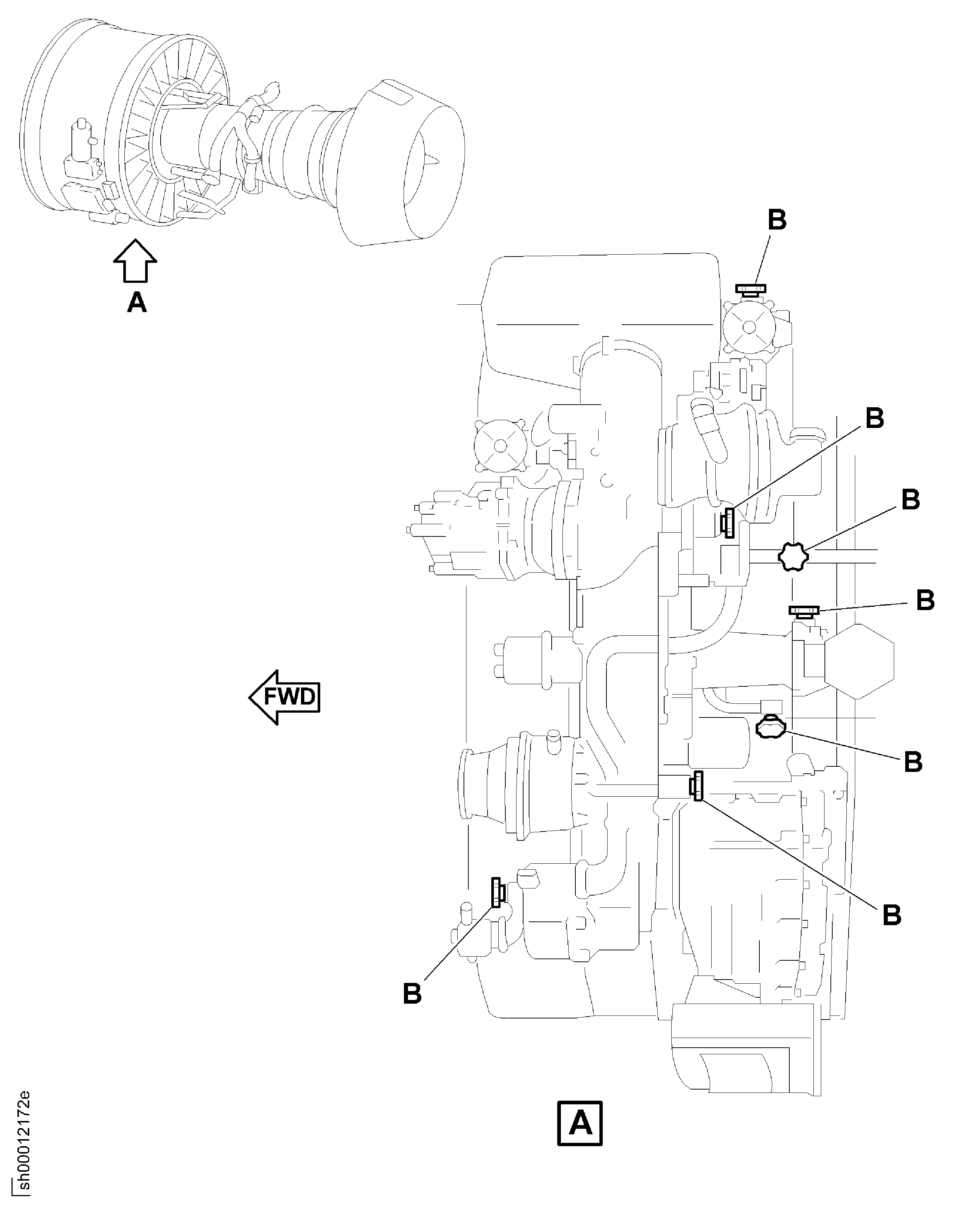

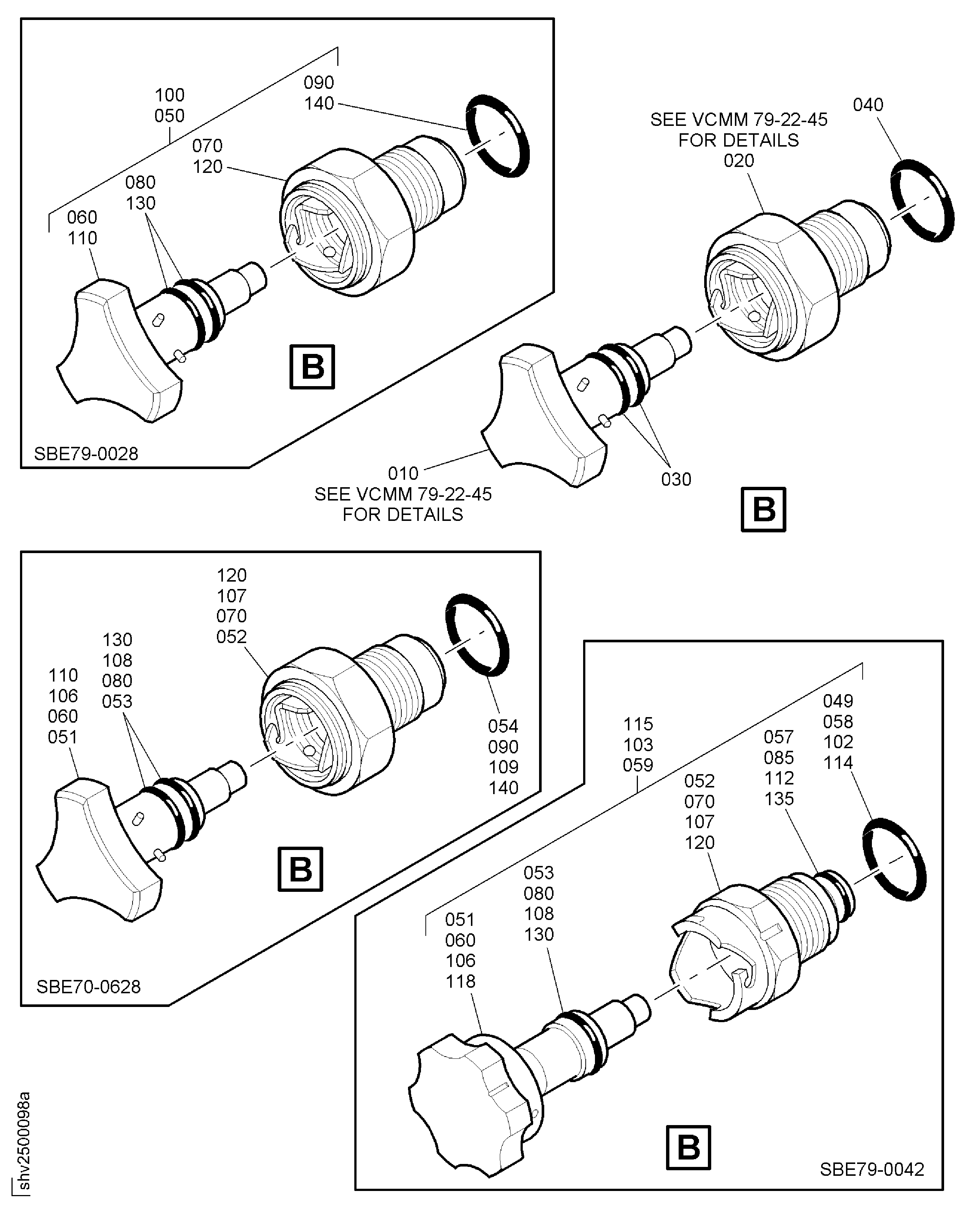

Figure: OIL-MAGNETIC CHIP DETECTOR

OIL-MAGNETIC CHIP DETECTOR

OIL-MAGNETIC CHIP DETECTOR

Manufacturer Code:0AM53
Enterprise Name:IAE INTERNATIONAL AERO ENGINES AG
BU Name:NULL
Building:SUITE 400
Street:628 HEBRON AVENUE
City:GLASTONBURY
State:CT
Zip Code:06033
Country:USA
Manufacturer Code:51563
Enterprise Name:ROHR INC, A COLLINS AEROSPACE COMPANY
BU Name:ROHR INC, A COLLINS AEROSPACE COMPANY
Street:850 LAGOON DRIVE
City:CHULA VISTA
State:CA
Zip Code:91910-2098
Country:USA
Phone Number:1-619-691-2089
Fax Number:1-619-691-6195
Manufacturer Code:81349
Enterprise Name:DELETED, SEE CAGE CODE 81348
Manufacturer Code:96906
Enterprise Name:MILITARY STANDARDS MANUAL 4120 3-M
BU Name:MILITARY STANDARDS MANUAL 4120 3-M
Street:NONE
City:NONE
Country:USA
Phone Number:NONE
Manufacturer Code:97484
Enterprise Name:EATON AEROSPACE - TEDECO PRODUCTS
BU Name:EATON AEROSPACE - TEDECO PRODUCTS
Street:24 E GLENHOLDEN AVE
City:GLENHOLDEN
State:PA
Zip Code:19036
Country:USA
Manufacturer Code:K0624
Enterprise Name:MUIRHEAD AEROSPACE LTD
BU Name:MUIRHEAD AEROSPACE LTD
Street:33 OAKFIELD ROAD
City:PENGE
State:LONDON
Zip Code:SE20 8EW
Country:ENGLAND
Manufacturer Code:U1653
Enterprise Name:Society Of British Aerospace Companies, LTD.
Part Number:1A6794-1
Part Name:PROBE - MAGNETIC
Manufacturer Code:97484
Part Number:1A6794-2
Part Name:BODY - UNIT
Manufacturer Code:97484
Part Number:1A6794
Part Name:CHIP - MAGNETIC-DETECTOR ASSY
Manufacturer Code:97484
Part Number:44066
Part Name:RING - SEALING
Manufacturer Code:97484
Part Number:6U1000
Part Name:CHIP - MAGNETIC-DETECTOR ASSY
Manufacturer Code:0AM53
Part Number:740-5011-503
Part Name:CHIP - DETECTOR INSTALL
Manufacturer Code:51563
Part Number:AS43003-908
Part Name:RING - SEALING, TOROIDAL
Manufacturer Code:U1653
Unit Of Issue:EA
Optional Parts
Part NumberPart NameManufacturer
M83248-1-908SEAL - RING81349
Part Number:AS43003-909
Part Name:RING - SEALING, TOROIDAL
Manufacturer Code:U1653
Part Number:M83248-1-012
Part Name:SEAL - RING
Manufacturer Code:81349
Part Number:M83248-1-908
Part Name:SEAL - RING
Manufacturer Code:81349
Optional Parts
Part NumberPart NameManufacturer
AS43003-908RING - SEALING, TOROIDALU1653
Part Number:MS9954-09
Part Name:PLUG
Manufacturer Code:96906
Part Number:VB3505
Part Name:PROBE - MAGNETIC, ASSEMBLY OF
Manufacturer Code:K0624
Part Number:VB3521-2
Part Name:MAGNETIC - CHIP DETECTOR ASSEMBLY
Manufacturer Code:K0624
Part Number:VB3522-2
Part Name:BODY - UNIT, ASSEMBLY OF
Manufacturer Code:K0624
