DMC:V2500-A1-79-22-48-01A-941A-DIssue No:001.00Issue Date:2014-05-01
Export Control
EAR Export Classification: Not subject to the EAR per 15 C.F.R. Chapter 1, Part 734.3(b)(3), except for the following Service Bulletins which are currently published as EAR Export Classification 9E991: SBE70-0992, SBE72-0483, SBE72-0580, SBE72-0588, SBE72-0640, SBE73-0209, SBE80-0024 and SBE80-0025.Copyright
© IAE International Aero Engines AG (2001, 2014 - 2021) The information contained in this document is the property of © IAE International Aero Engines AG and may not be copied or used for any purpose other than that for which it is supplied without the express written authority of © IAE International Aero Engines AG. (This does not preclude use by engine and aircraft operators for normal instructional, maintenance or overhaul purposes.).Applicability
All
| Fig. Item | Part No. | Description | Effect/Model Applic. | UPA |
|---|---|---|---|---|
| 01 | ||||
| B79224801 | OIL-SCAVENGE OIL TUBES-GEARBOX, PRE SBE79-0064 | aa | ||
| SBE0064-01 | OIL-SCAVENGE OIL TUBES-GEARBOX | ab | ||
| 100 | 4P0125 | • PACKING | aa-ab | 1 |
| 110 | 4B0215 | • TUBE - A/O PRE SBE79-0064 | aa-ab | 1 |
| 110A | 4B0323 | • TUBE A3460 POST SBE79-0064 | aa-ab | 1 |
| 120 | 4P7158 | • COLLAR PRE SBE79-0064 | aa | 1 |
| 120A | 4P7327 | • COLLAR A3460 POST SBE79-0064 | ab | 1 |
| 140 | 4W0165 | • BOLT - .250 DIA X .688 | aa-ab | 3 |
| 150 | MS9321-10 | • WASHER 96906 | aa-ab | 3 |
| 160 | AS3209-217 | • PACKING U1653 | aa-ab | 1 |
| - ITEM NOT ILLUSTRATED, ***** EFFECTIVITY NOT AVAILABLE | ||||

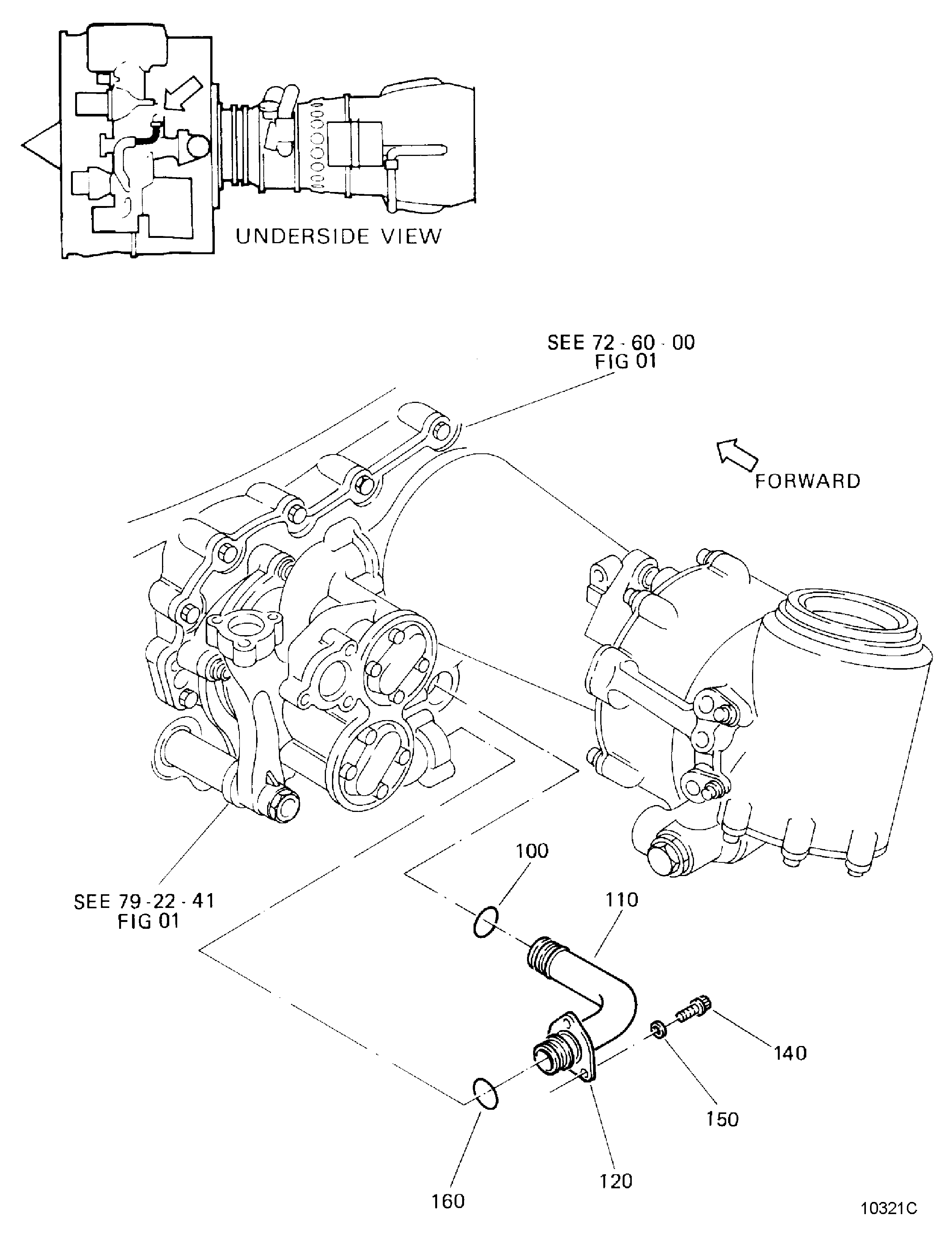

Figure: OIL-SCAVENGE OIL TUBES-GEARBOX
SCAVENGE OIL TUBES GEARBOX
